P0112, P0113 IAT SENSOR

EC-191

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK INTAKE AIR TEMPERATURE SENSOR

Refer to

EC-191, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace mass air flow sensor (with intake air temperature sensor). Refer to

EM-25, "Removal and

Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009620009

1.

CHECK INTAKE AIR TEMPERATURE SENSOR

1. Turn ignition switch OFF.

2. Disconnect mass air flow sensor harness connector.

3. Check resistance between mass air flow sensor terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor (with intake air temperature sensor). Refer to

EM-25, "Removal and

Installation"

.

MAF sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F31

6

F11

55

Existed

Mass air flow sensor

Condition

Resistance (k

Ω)

Terminals

5

6

Temperature [

°C (°F)]

25 (77)

1.800 - 2.200

EC-192

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P0116 ECT SENSOR

P0116 ECT SENSOR

DTC Logic

INFOID:0000000009267090

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Is it necessary to erase permanent DTC?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

EC-193, "Component Function Check"

.

NOTE:

Use the component function check to check the overall function of the ECT sensor circuit. During this check, a

1st trip DTC might not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-193, "Diagnosis Procedure"

.

3.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

• Before performing the following procedure, do not add fuel.

• Before performing the following procedure, check that fuel level is between 1/4 and 4/4.

• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for 60 minutes.

2. Move the vehicle to a cool place.

NOTE:

Cool the vehicle in an environment of ambient air temperature between

−10°C (14°F) and 35°C (95°F).

3. Turn ignition switch OFF and soak the vehicle for 12 hours.

CAUTION:

Never turn ignition switch ON during soaking.

NOTE:

The vehicle must be cooled with the food open.

4. Start engine and let it idle for 5 minutes or more.

CAUTION:

Never turn ignition switch OFF during idling.

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0116

ECT SEN/CIRC
[Engine coolant temperature
(ECT) sensor circuit range/per-
formance]

The comparison result of signals transmitted
to ECM from each temperature sensor (IAT
sensor, ECT sensor, FTT sensor, and EOT
sensor) shows that the voltage signal of the
ECT sensor is higher/lower than that of other
temperature sensors when the engine is
started with its cold state.

• Harness or connectors

(High or low resistance in the ECT
sensor circuit)

• ECT sensor

P0116 ECT SENSOR

EC-193

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-193, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Component Function Check

INFOID:0000000009267091

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECT sensor harness connector.

3. Remove ECT sensor. Refer to

CO-24, "Exploded View"

.

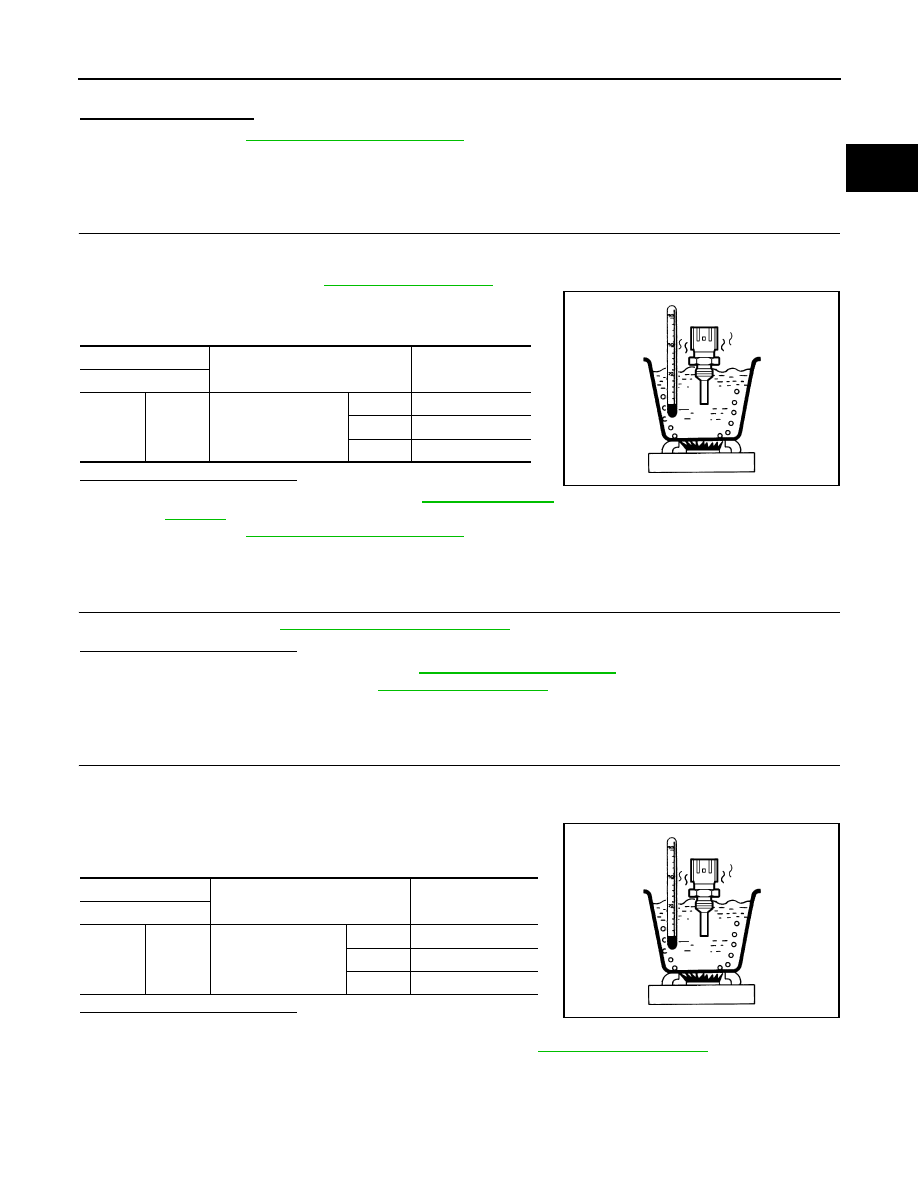

4. Check resistance between ECT sensor terminals by heating

with hot water as shown in the figure.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent

Incident"

.

NO

>> Proceed to

EC-193, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009267092

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Check ECT sensor. Refer to

EC-193, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace ECT sensor. Refer to

CO-24, "Exploded View"

.

Component Inspection

INFOID:0000000009267093

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECT sensor harness connector.

3. Remove ECT sensor.

4. Check resistance between ECT sensor terminals by heating

with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor. Refer to

CO-24, "Exploded View"

.

ECT sensor

Condition

Resistance (k

Ω)

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.10 – 2.90

50 (122)

0.68 – 1.00

90 (194)

0.236 – 0.260

JMBIA0080ZZ

ECT sensor

Condition

Resistance (k

Ω)

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.10 - 2.90

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ

EC-194

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

P0117, P0118 ECT SENSOR

P0117, P0118 ECT SENSOR

DTC Logic

INFOID:0000000009267094

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 5 seconds.

2. Check DTC.
Is DTC detected?

YES

>> Go to

EC-194, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009267095

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E15. Refer to Ground Inspection in

GI-48, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ECT SENSOR POWER SUPPLY CIRCUIT

1. Disconnect engine coolant temperature (ECT) sensor harness connector.

2. Turn ignition switch ON.

3. Check the voltage between ECT sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between ECT sensor harness connector and ECM harness connector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0117

Engine coolant temperature
sensor circuit low input

An excessively low voltage from the sensor
is sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Engine coolant temperature sensor

P0118

Engine coolant temperature
sensor circuit high input

An excessively high voltage from the sensor
is sent to ECM.

ECT sensor

Ground

Voltage

Connector

Terminal

F6

1

Ground

Approx. 5 V
