Nissan Versa Sedan. Manual - part 234

DLK-254

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

Is the inspection result normal?

YES

>> GO TO 7

NO

>> Repair or replace harness between BCM and remote keyless entry receiver.

6.

CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 3

1. Check continuity between BCM connector and remote keyless entry receiver connector.

2. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 7

NO

>> Repair or replace harness between BCM and remote keyless entry.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> Inspection End.

BCM

connector

Terminal

Remote keyless entry

receiver

connector

Terminal

Continuity

M18

18

M23

1

Yes

BCM

connector

Terminal

Remote keyless entry

receiver

connector

Terminal

Continuity

M18

20

M23

2

Yes

BCM connector

Terminal

Ground

Continuity

M18

20

No

KEYFOB BATTERY AND FUNCTION

DLK-255

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB BATTERY AND FUNCTION

Description

INFOID:0000000009268956

The following functions are available when having and carrying the keyfob.

• Door lock/unlock

• Panic mode (horn and headlamp operation)

Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

INFOID:0000000009268957

NOTE:

The Signal Tech II Tool (J-50190) can be used to test the remote keyless entry keyfob relative signal strength.

Refer to the Signal Tech II User Guide for additional information.

1.

CHECK FUNCTION

With CONSULT

Check remote keyless entry receiver KEYLESS LOCK, KEYLESS UNLOCK, KYLS TRNK/HAT and KEYLESS

PANIC in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-255, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268958

NOTE:

The Signal Tech II Tool (J-50190) can be used to test the remote keyless entry keyfob relative signal strength.

Refer to the Signal Tech II User Guide for additional information.

1.

CHECK KEYFOB FUNCTION

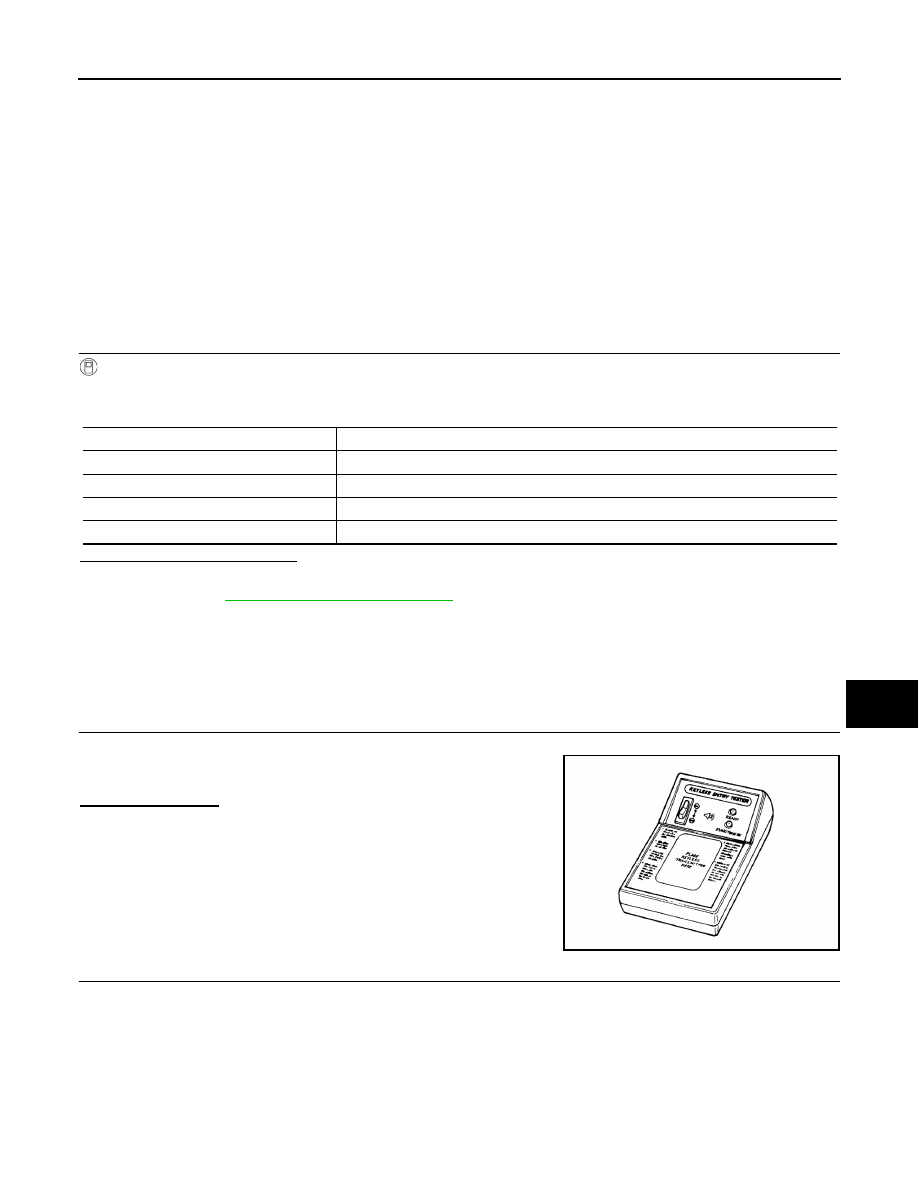

Check keyfob function using Signal Tech II Tool J-50190 or Remote

Keyless Entry Tester J-43241 (shown).
Does the test pass?

YES

>> Keyfob is OK.

NO

>> GO TO 2

2.

 CHECK KEYFOB COMPONENTS

Monitor item

Condition

KEYLESS LOCK

Checks whether value changes from "Off" to "On" when operating keyfob lock button.

KEYLESS UNLOCK

Checks whether value changes from "Off" to "On" when operating keyfob unlock button.

KYLS TRNK/HAT

Checks whether value changes from "Off" to "On" when operating keyfob trunk button.

KEYLESS PANIC

Checks whether value changes from "Off" to "On" when operating keyfob panic button.

ALKIA2300ZZ

DLK-256

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

KEYFOB BATTERY AND FUNCTION

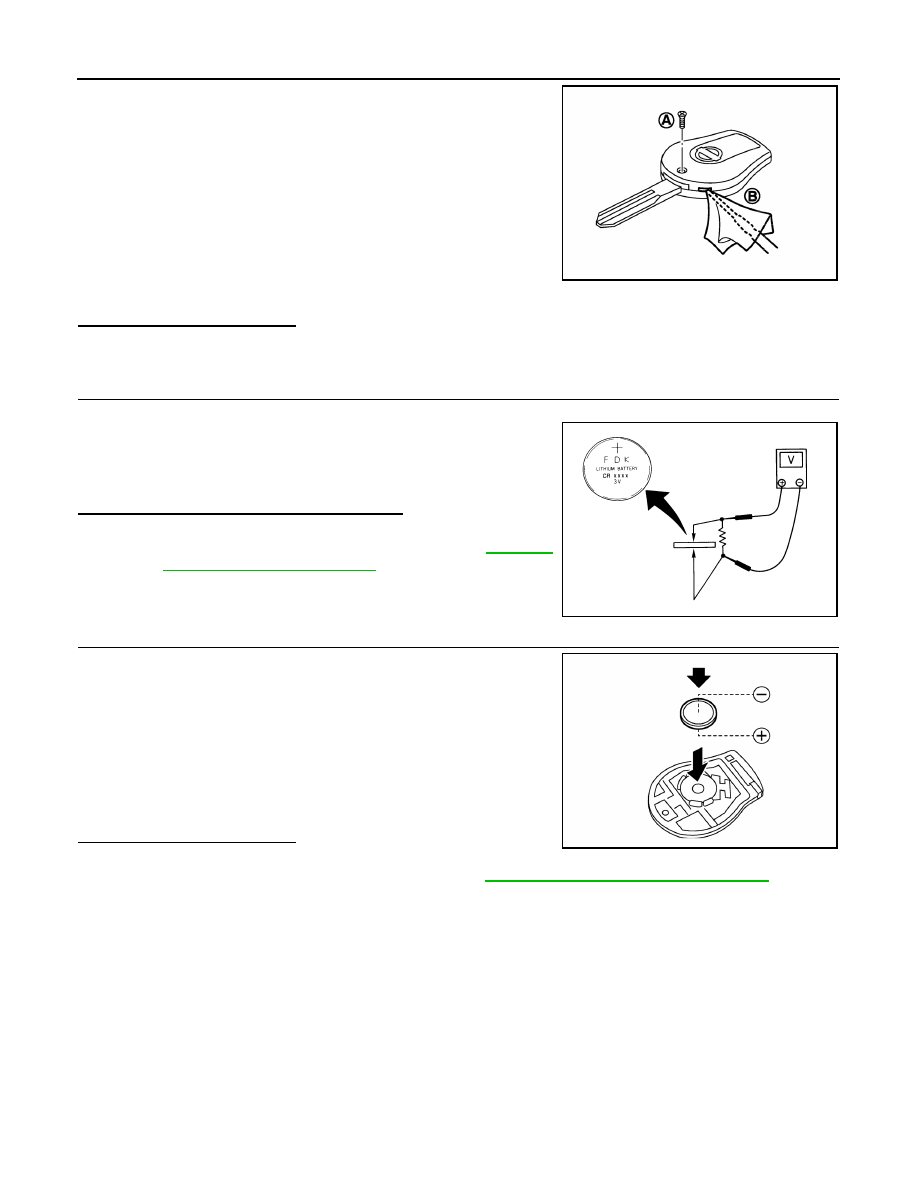

1. Remove the screw (A).

2. Insert a small screwdriver into the slit of the corner (B) and twist

it to separate the upper part from the power part. Use a cloth to

protect the casing.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The keyfob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Remove the keyfob battery.

CAUTION:

• Keep dirt, grease, and other foreign materials off the elec-

trode contact area.

4. Visually inspect keyfob internal components.
Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning parts.

3.

CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300

Ω) so that the

current value becomes about 10 mA.

Is the measurement value within specification?

YES

>> Keyfob battery is OK. Check remote keyless entry

receiver. Refer to

DLK-252,

"Component Function Check"

.

NO

>> GO TO 4

4.

 REPLACE KEYFOB BATTERY

1. Replace the keyfob battery with a new one (CR1620 or equiva-

lent).

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• Make sure that the + side faces the bottom of the case.

2. Align the tips of the upper and lower parts, and then push them

together until it is securely closed.

3. After replacing the battery, check that all keyfob functions work

properly.

Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Check remote keyless entry receiver. Refer to

DLK-252, "Component Function Check"

.

ALKIA2301ZZ

Standard

: Approx. 2.5 - 3.0V

OCC0607D

ALKIA2302ZZ

HORN FUNCTION

DLK-257

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HORN FUNCTION

Description

INFOID:0000000009268959

Perform answer-back for each operation with horn.

Component Function Check

INFOID:0000000009268960

1.

CHECK FUNCTION

1. Select HORN in “ACTIVE TEST” mode with CONSULT.

2. Check the horn operation.

Is the operation normal?

YES

>> Inspection End.

NO

>> Refer to

DLK-257, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009268961

Regarding Wiring Diagram information, refer to

DLK-218, "Wiring Diagram"

.

1.

CHECK HORN FUNCTION

Check horn function with horn switch.
Does the horn sound?

YES

>> GO TO 2

NO

>> Refer to

HRN-3, "Wiring Diagram"

.

2.

CHECK HORN RELAY POWER SUPPLY

1. Turn ignition switch ON.

2. Perform “ACTIVE TEST” (“HORN”) with CONSULT.

3. Using an oscilloscope or analog voltmeter to check voltage between IPDM E/R connector and ground.

Is the inspection result normal?

YES

>> Repair or replace open harness between IPDM E/R and horn relay.

NO

>> GO TO 3

3.

CHECK HORN RELAY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R and horn relay connector.

3. Check continuity between IPDM E/R harness connector and horn relay harness connector.

4. Check continuity between IPDM E/R harness connector and ground.

Test item

Description

HORN

ON

Horn relay

ON (for 20 ms)

IPDM E/R

Ground

Test item

Voltage (V)

(Approx.)

Connector

Terminal

E46

73

Ground

HORN

ON

Battery voltage

→ 0 → Battery voltage

Other than above

Battery voltage

IPDM E/R

Horn relay

Continuity

Connector

Terminal

Connector

Terminal

E46

73

E39

1

Yes
