Nissan Versa Sedan. Manual - part 208





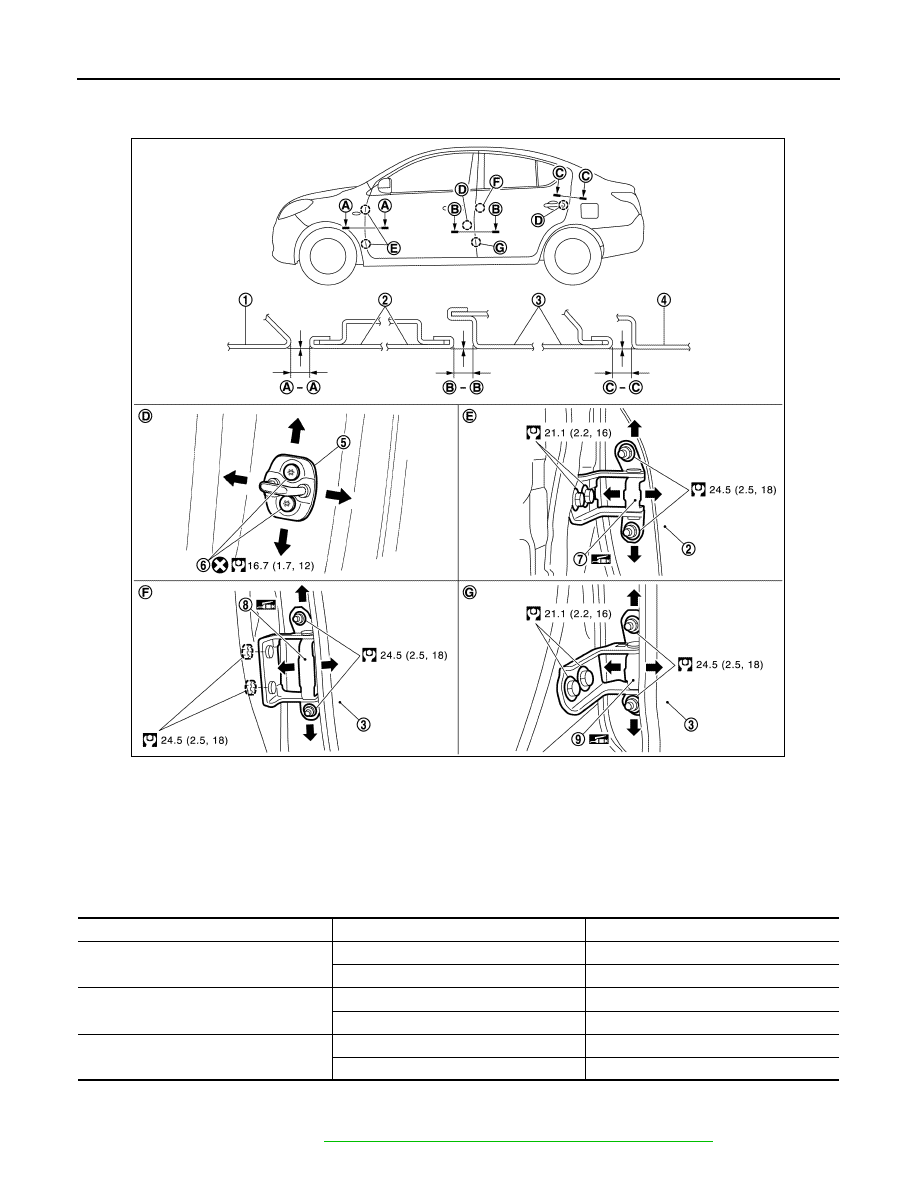

DLK-150

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009268845

Check the clearance and surface height between front door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

ADJUSTMENT PROCEDURE

1. Remove front fender. Refer to

DLK-146, "FRONT FENDER : Removal and Installation"

.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

JMKIA8146GB

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

FRONT DOOR

DLK-151

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Loosen door hinge nuts on door side.
3. Adjust the surface height of front door according to the specifications provided.
4. Temporarily tighten door hinge nuts on door side.
5. Loosen door hinge bolts on body side.
6. Raise or lower the front door at rear end to adjust clearance of the front door according to the specifica-

tions provided.

7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After adjusting, apply touch-up paint (body color) onto the heads of hinge bolts and nuts.

8. Install front fender. Refer to refer to

DLK-146, "FRONT FENDER : Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009268846

REMOVAL

Remove striker bolts and front door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check front door open/close, lock/unlock operation.

• After installation, perform the front door adjustment procedure. Refer to

DLK-150, "DOOR ASSEM-

BLY : Adjustment"

.

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009268847

REMOVAL

CAUTION:

• Use two people when removing or installing front door due to its heavy weight

• When removing and installing front door assembly, support the door using a suitable tool.

• Use shops cloths to protect surrounding components from damage during removal and installation

of front door assembly.

1. Remove front fender. Refer to

DLK-146, "FRONT FENDER : Removal and Installation"

.

2. Remove front door assembly. Refer to

DLK-148, "DOOR ASSEMBLY : Removal and Installation"

.

3. Remove front door hinge bolts (body side) and front door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the hinge mating surface.

• After installation, perform the front door adjustment procedure. Refer to

DLK-150, "DOOR ASSEM-

BLY : Adjustment"

.

• After adjusting, apply touch-up paint (body color) onto the head of door hinge nuts.

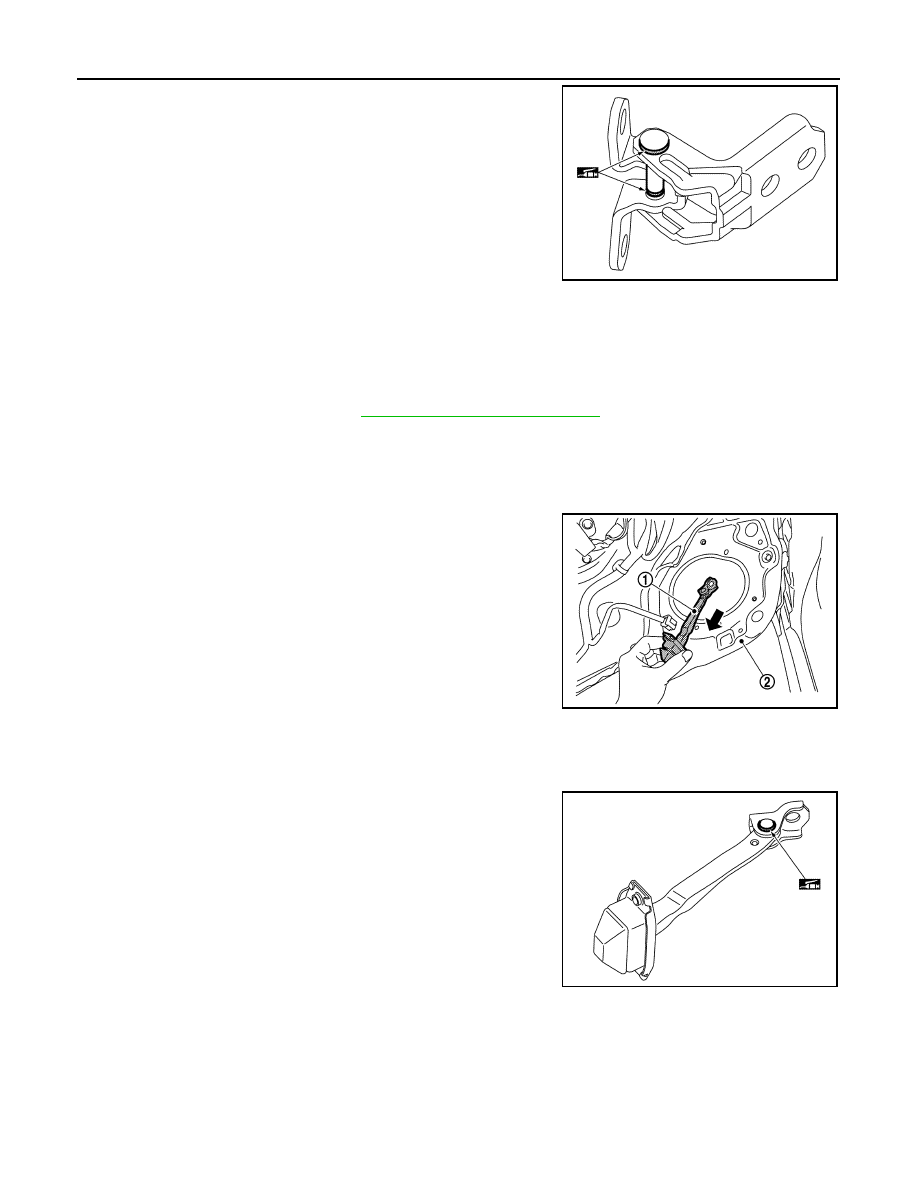

DLK-152

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009268848

REMOVAL

1. Fully close the front door window.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove front door speaker bolts.
4. Disconnect harness connector from front door speaker and remove.
5. Remove door check link bolt from body.
6. Remove door check link bolts on door panel.
7. Remove door check link (1) through the hole in door panel (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close, lock/unlock operation.

• Check door check link rotating point for poor lubrication. If

necessary, apply a multi-purpose grease.

JMKIA8072ZZ

JMKIA8073ZZ

JMKIA8074ZZ

REAR DOOR

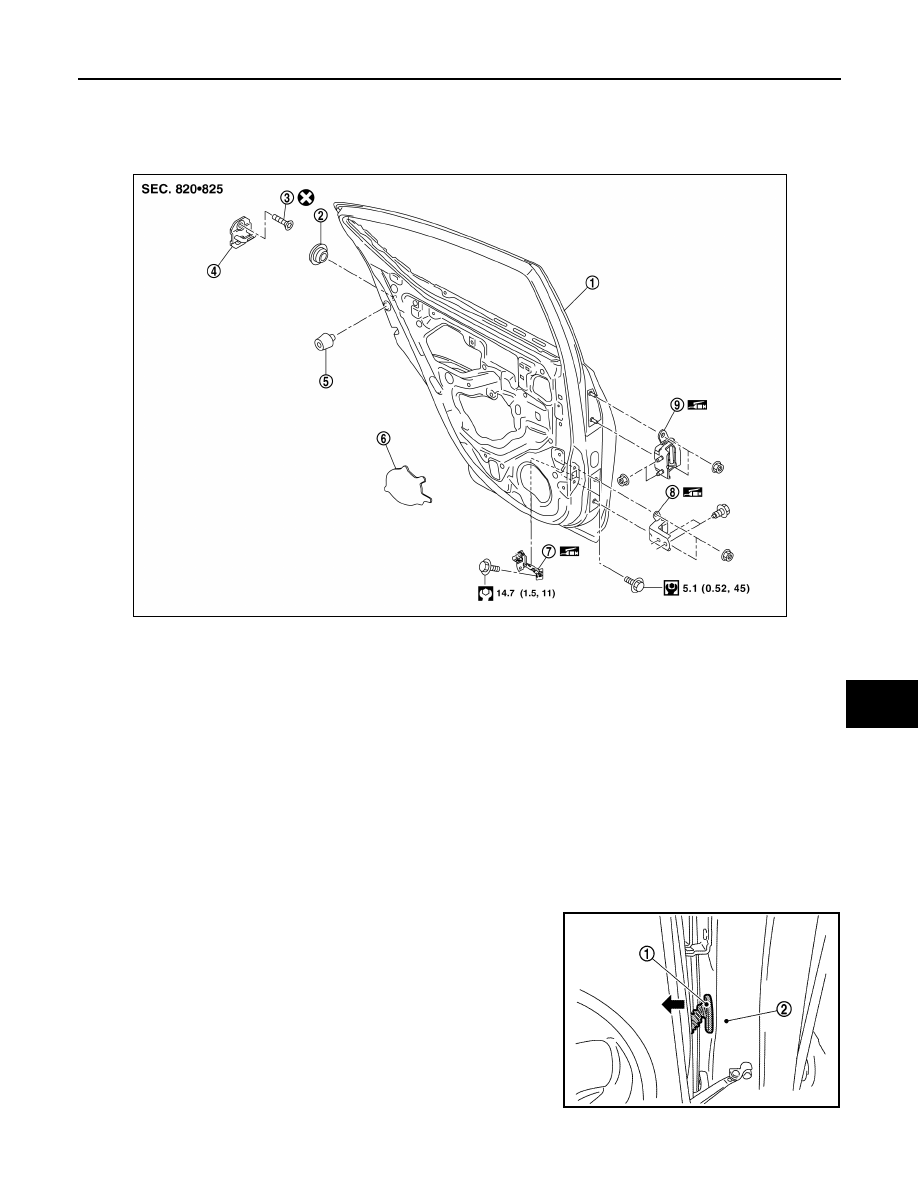

DLK-153

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

Exploded View

INFOID:0000000009268849

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009268850

CAUTION:

• Use two people when removing or installing rear door due to its heavy weight.

• When removing and installing rear door assembly, support door using a suitable tool.

• Use shops cloths to protect surrounding components from damage during removal and installation

of front door assembly.

REMOVAL

1. Remove rear door harness grommet (1) from body side outer

(2), and then pull out rear door harness.

1.

Rear door panel

2.

Grommet

3.

Striker bolt

4.

Door striker

5.

Bumper rubber

6.

Sealing screen (lower) (without door
speaker)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

AWKIA1920GB

JMKIA8083ZZ
