Nissan Versa Sedan. Manual - part 189





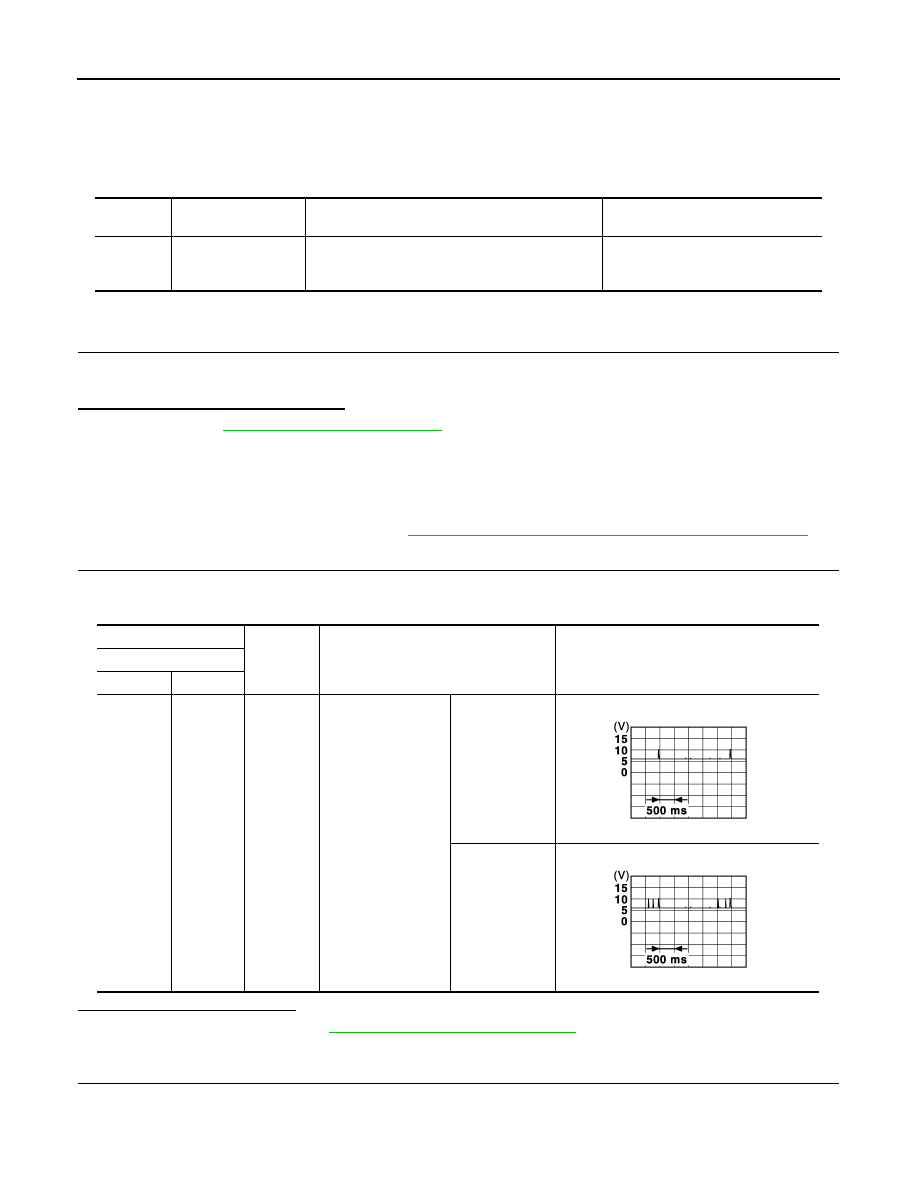

DLK-74

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2627 OUTSIDE ANTENNA

B2627 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000009268749

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check Self Diagnostic Result mode of BCM using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-74, "Diagnosis Procedure"

.

NO

>> Outside key antenna (RH) is OK.

Diagnosis Procedure

INFOID:0000000009268750

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and outside key antenna (RH) connector.

3. Check continuity between BCM harness connector and outside key antenna (RH) harness connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2627

OUTSIDE ANTENNA
2

An excessive high or low voltage from outside key
antenna (RH) is sent to BCM

• Outside key antenna (RH)
• Between BCM Outside key anten-

na (RH)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

80
81

Ground

When the passenger
side door request
switch is operated
with ignition switch
OFF

When Intelli-
gent Key is in
the antenna de-
tection area
(The distance
between Intelli-
gent Key and
antenna: 80 cm
or less)

When Intelli-
gent Key is not
in the antenna
detection area
(The distance
between Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

B2627 OUTSIDE ANTENNA

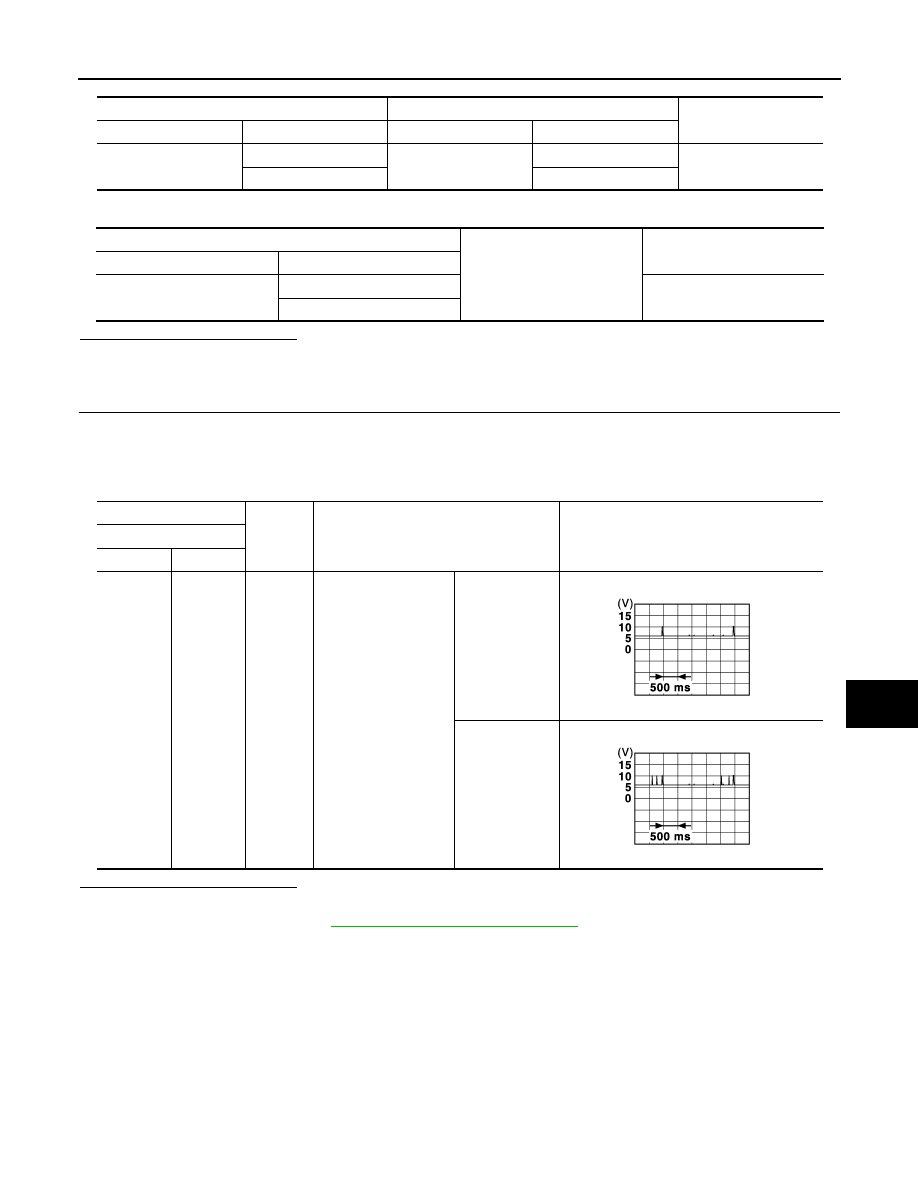

DLK-75

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (RH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (RH) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (RH).

NO

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

BCM

Outside key antenna (RH)

Continuity

Connector

Terminal

Connector

Terminal

M98

80

D106

1

Yes

81

2

BCM

Ground

Continuity

Connector

Terminal

M98

80

No

81

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

80
81

Ground

When the passenger
side door request
switch is operated with
ignition switch OFF

When Intelli-
gent Key is in
the antenna de-
tection area
(The distance
between Intelli-
gent Key and
antenna: 80 cm
or less)

When Intelli-
gent Key is not
in the antenna
detection area
(The distance
between Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

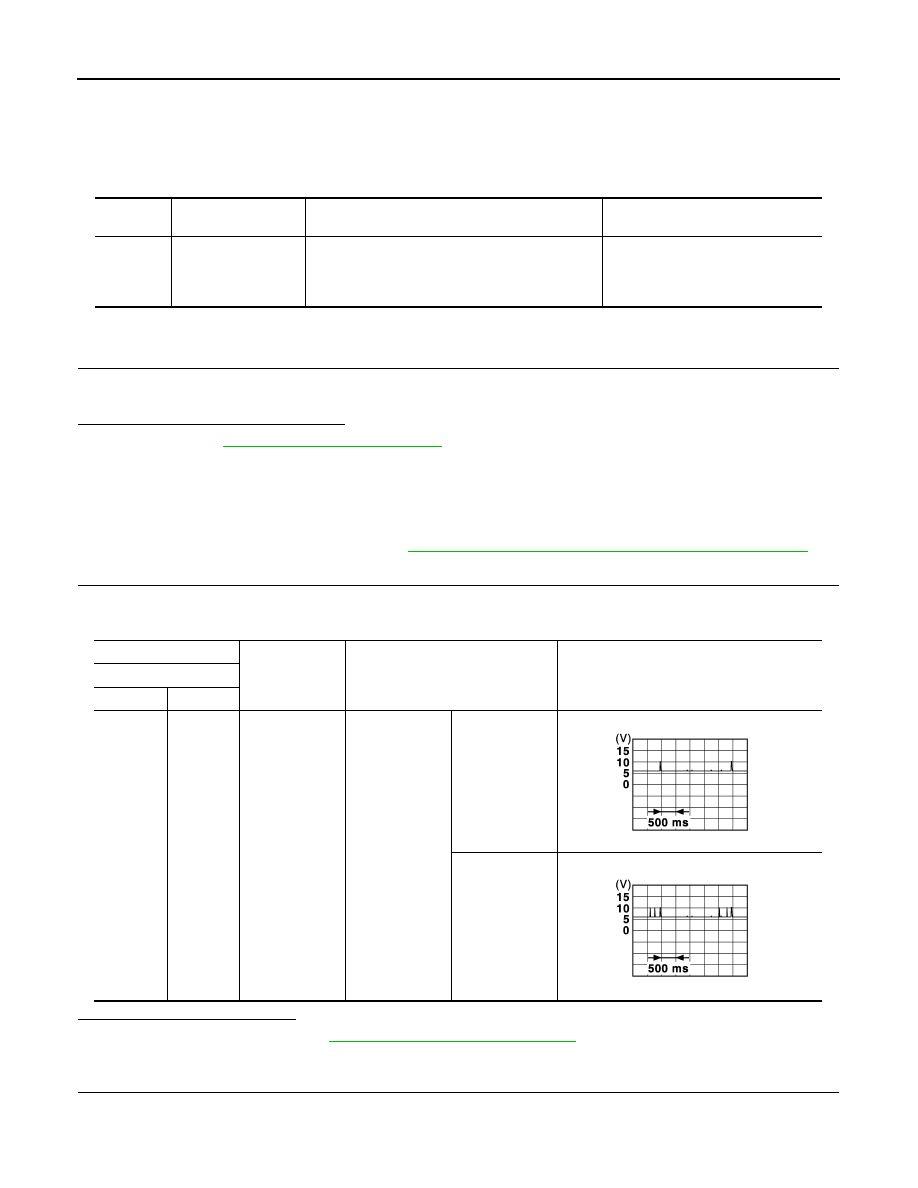

DLK-76

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2628 OUTSIDE ANTENNA

B2628 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000009268751

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check Self Diagnostic Result mode of BCM using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-76, "Diagnosis Procedure"

.

NO

>> Outside key antenna (rear bumper) is OK.

Diagnosis Procedure

INFOID:0000000009268752

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and outside key antenna (rear bumper) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2628

OUTSIDE ANTENNA
3

An excessive high or low voltage from outside key
antenna (rear bumper) is sent to BCM

• Outside key antenna (rear

bumper)

• Between BCM – Outside key an-

tenna (rear bumper)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

82,83

Ground

When the trunk
lid opener switch
is operated with
ignition switch
OFF

When Intelligent
Key is in the an-
tenna detection
area (The dis-
tance between
Intelligent Key
and antenna: 80
cm or less)

When Intelligent
Key is not in the
antenna detec-
tion area (The
distance be-
tween Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

B2628 OUTSIDE ANTENNA

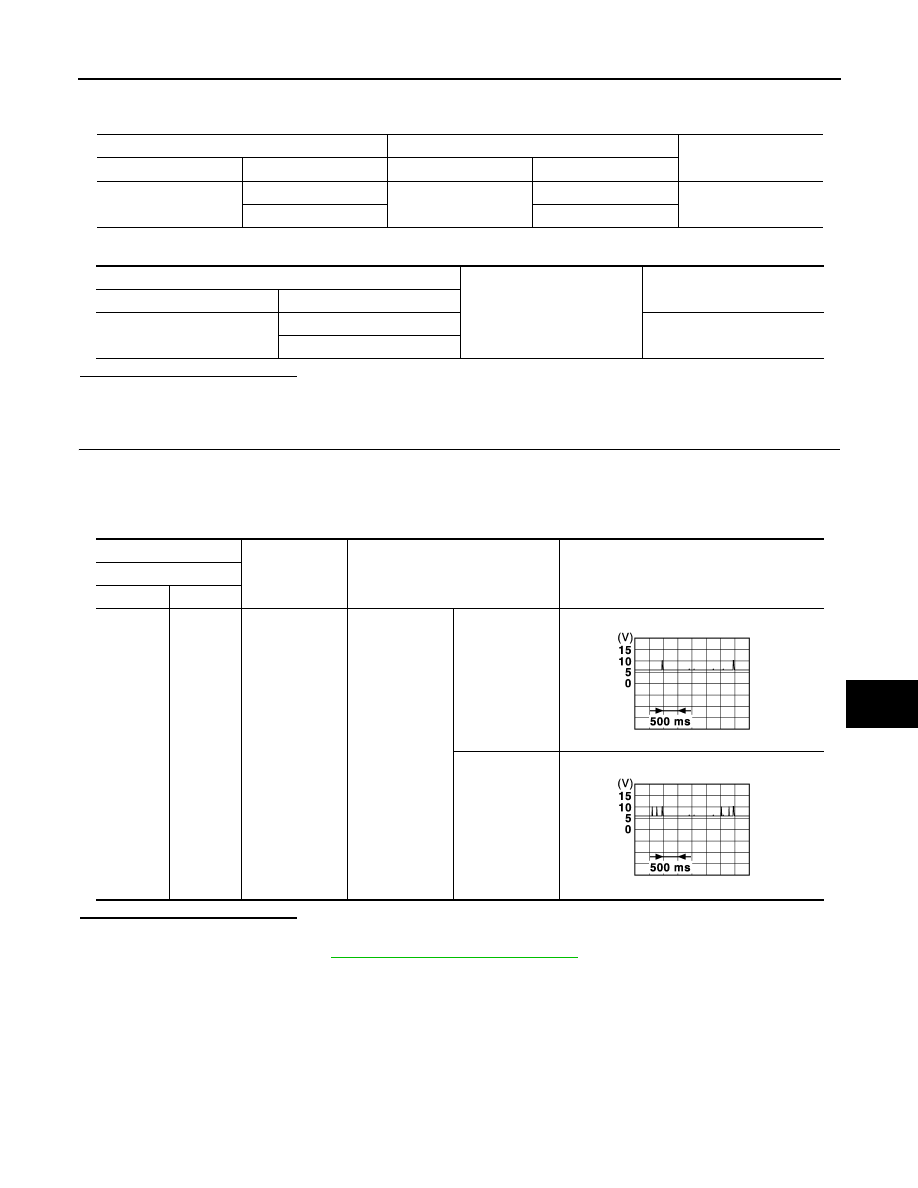

DLK-77

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-

nector.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (rear bumper). (New antenna or other antenna)

2. Connect BCM and outside key antenna (rear bumper) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper).

NO

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

.

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

M98

82

B49

1

Yes

83

2

BCM

Ground

Continuity

Connector

Terminal

M98

82

No

83

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

82,83

Ground

When the trunk
lid opener switch
is operated with
ignition switch
OFF

When Intelligent
Key is in the an-
tenna detection
area (The dis-
tance between
Intelligent Key
and antenna: 80
cm or less)

When Intelligent
Key is not in the
antenna detec-
tion area (The
distance be-
tween Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB
