Nissan Versa Sedan. Manual - part 174

DLK-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

POWER DOOR LOCK SYSTEM : Component Description

INFOID:0000000009268716

INTELLIGENT KEY SYSTEM

1.

BCM (shown with instrument panel
removed)

2.

Front door switch LH

3.

Front door lock actuator LH

4.

Front door lock key cylinder switch
LH

5.

Front door switch RH

6.

Front door lock actuator RH

7.

 Rear door switch RH

8.

Rear door lock actuator RH

9.

Rear door lock switch LH

10. Rear door lock actuator LH

11. Main power window and door lock/

unlock switch

12. Power window and door lock/unlock

switch RH

Item

Function

BCM

Controls the door lock system

Door switch

Inputs door open/close condition to BCM

Door lock and unlock switch

• Detects if door lock and unlock switch is press/release
• Integrated in the main power window and door lock/unlock switch and  power window and

door lock/unlock switch (RH)

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door

COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

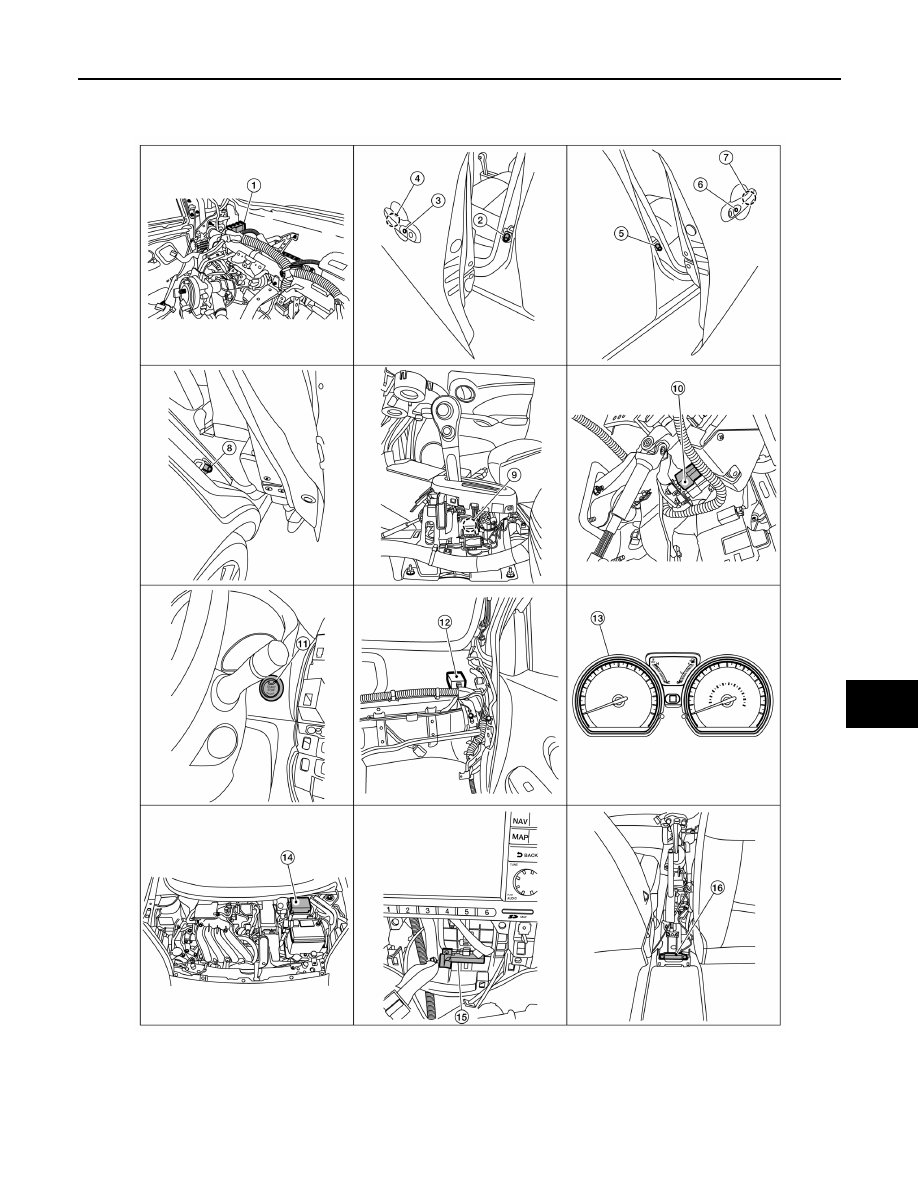

INTELLIGENT KEY SYSTEM : Component Parts Location

INFOID:0000000009268717

ALKIA2840ZZ

DLK-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

INTELLIGENT KEY SYSTEM : Component Description

INFOID:0000000009268718

1.

BCM (view with instrument panel re-
moved)

2.

Front door switch LH

3.

Door request switch LH

4.

Outside key antenna LH

5.

Front door switch RH

6.

Door request switch RH

7.

Outside key antenna RH

8.

Rear door switch RH (rear door
switch LH similar)

9.

CVT shift selector (park position
switch) (view with center console re-
moved)

10. Brake switch

11. Push-button ignition switch

12. Remote keyless entry receiver (view

with instrument panel removed)

13. Combination meter (type B)

14. IPDM E/R

15. Inside key antenna (center)

16. Inside key antenna (console) (view

with center console removed)

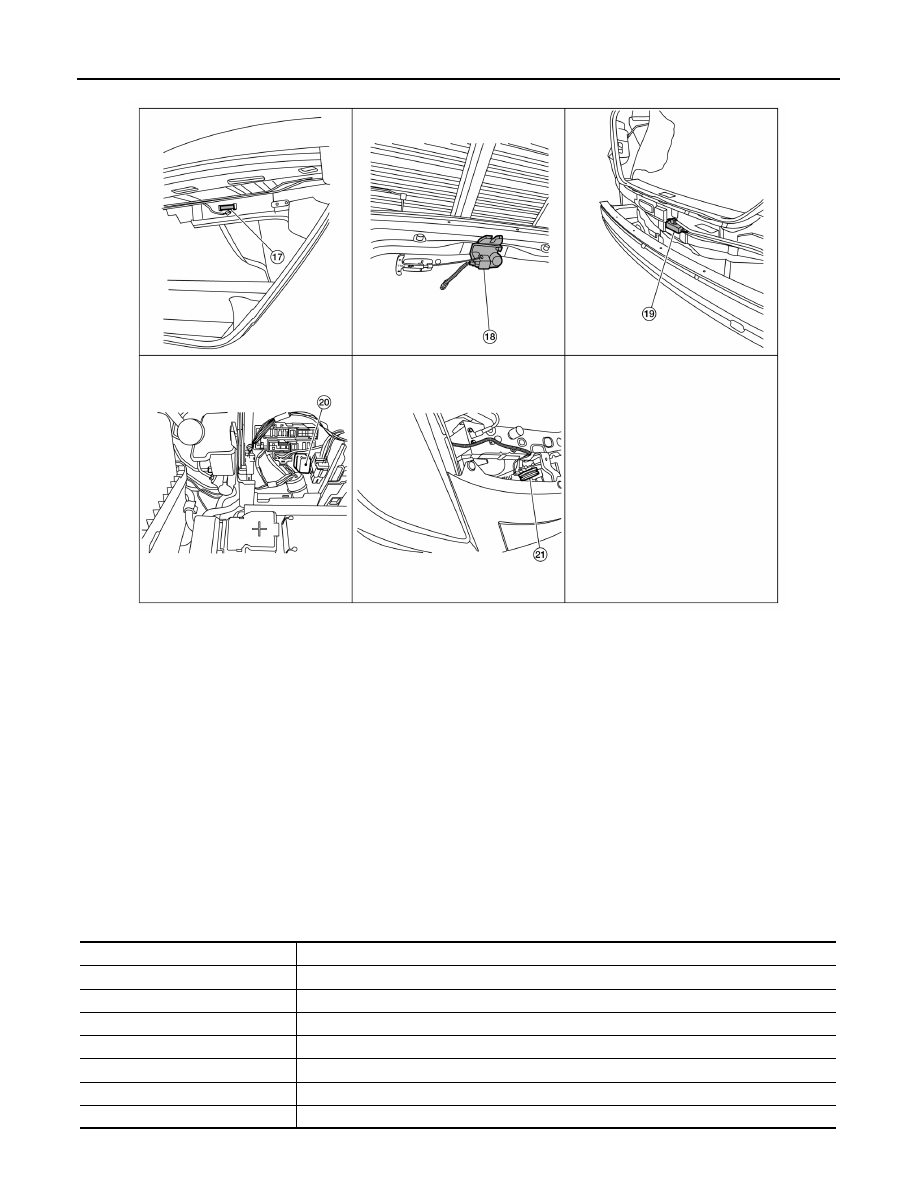

17. Inside key antenna (trunk room)

18. Trunk room lamp switch

19. Outside key antenna (rear bumper)

(view with rear bumper facia re-
moved)

20. Horn relay (shown with IPDM E/R re-

moved)

21. Horn

ALKIA2841ZZ

Item

Function

BCM

Controls the Intelligent Key system.

Trunk room lamp switch

Inputs trunk lid open/close condition to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Stop lamp switch

Inputs the brake pedal position condition to BCM.

Push button ignition switch

Inputs the push button ignition switch ON/OFF condition to BCM.

Door switch

Inputs door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SYSTEM

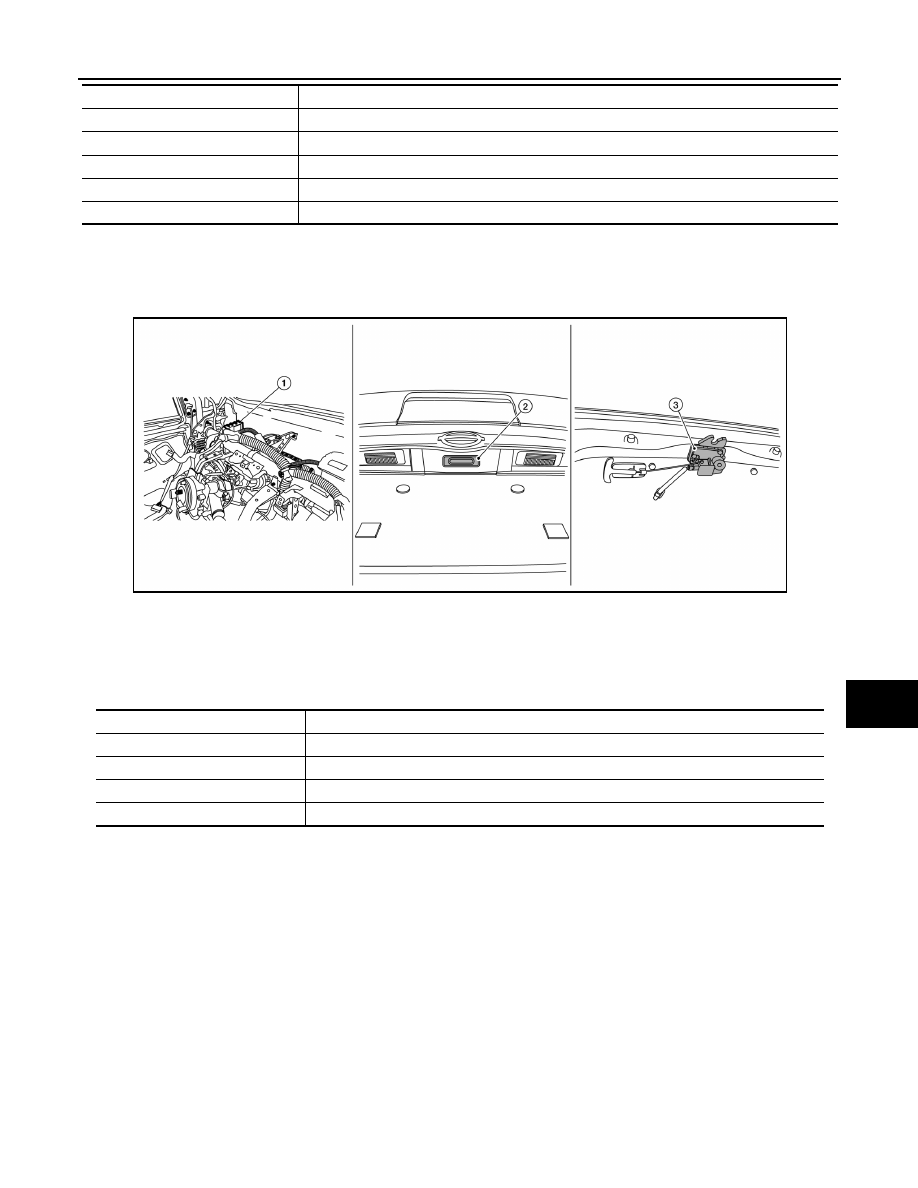

TRUNK LID OPENER SYSTEM : Component Parts Location

INFOID:0000000009268719

TRUNK LID OPENER SYSTEM : Component Description

INFOID:0000000009268720

Request switch

Inputs lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Combination meter

Display, buzzer (combination meter) and KEY warning lamp are installed to combination meter.

Item

Function

1.

BCM (view with instrument panel re-
moved)

2.

Trunk lid switch

3.

Trunk lid lock assembly (trunk lid
opener actuator and trunk lid switch)

ALKIA2834ZZ

Item

Function

BCM

Controls the Intelligent Key system.

Trunk lid switch

Inputs the trunk open request to the BCM.

Trunk lid opener actuator

Releases the mechanical latch to open the trunk lid.

Trunk room lamp switch

Inputs the trunk  lid open/close condition to the BCM.
