PREPARATION

PREPARATION

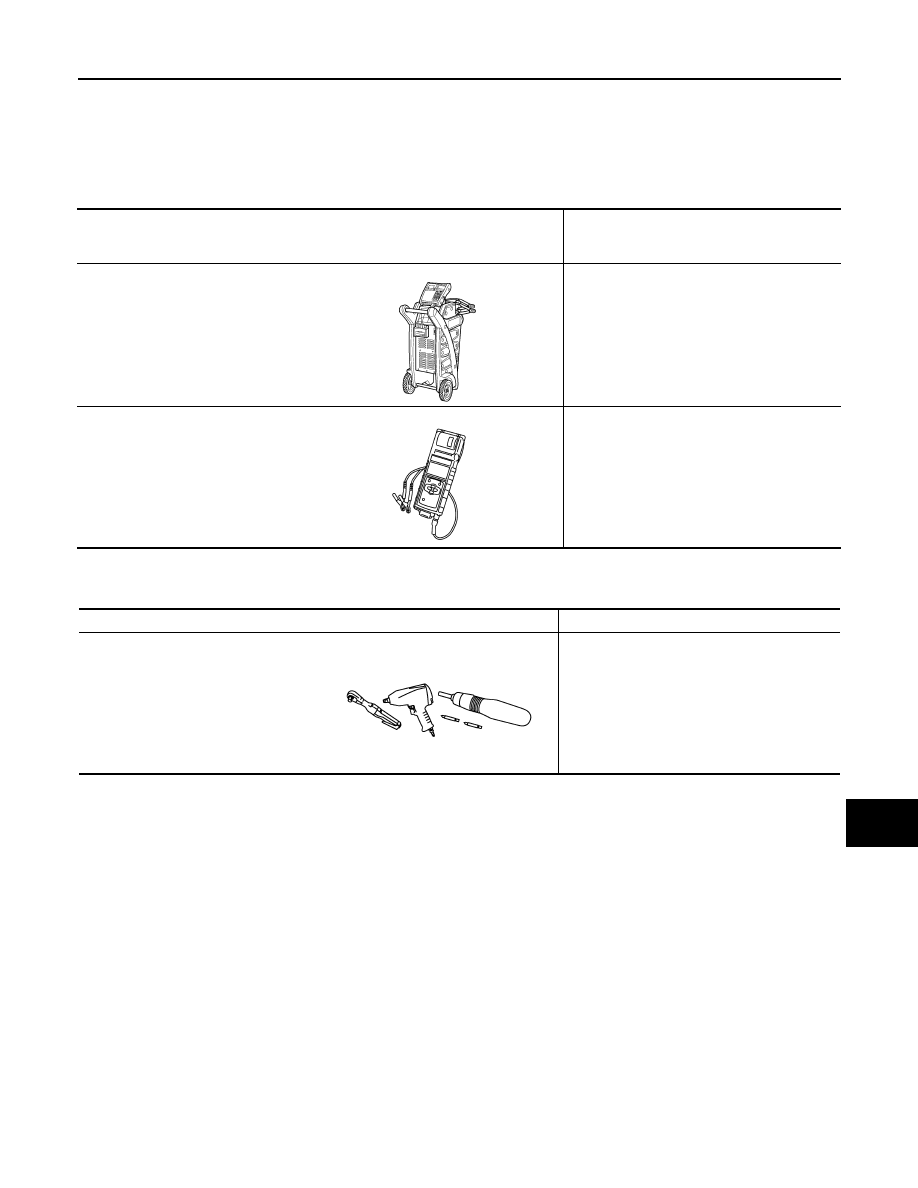

Special Service Tool

INFOID:0000000009269515

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009269516

Tool number
(Kent-Moore No.)
Tool name

Description

—

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
Operating instructions, refer to diagnostic sta-
tion instruction manual.

—

(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
Operating instructions, refer to diagnostic an-
alyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

CHG-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

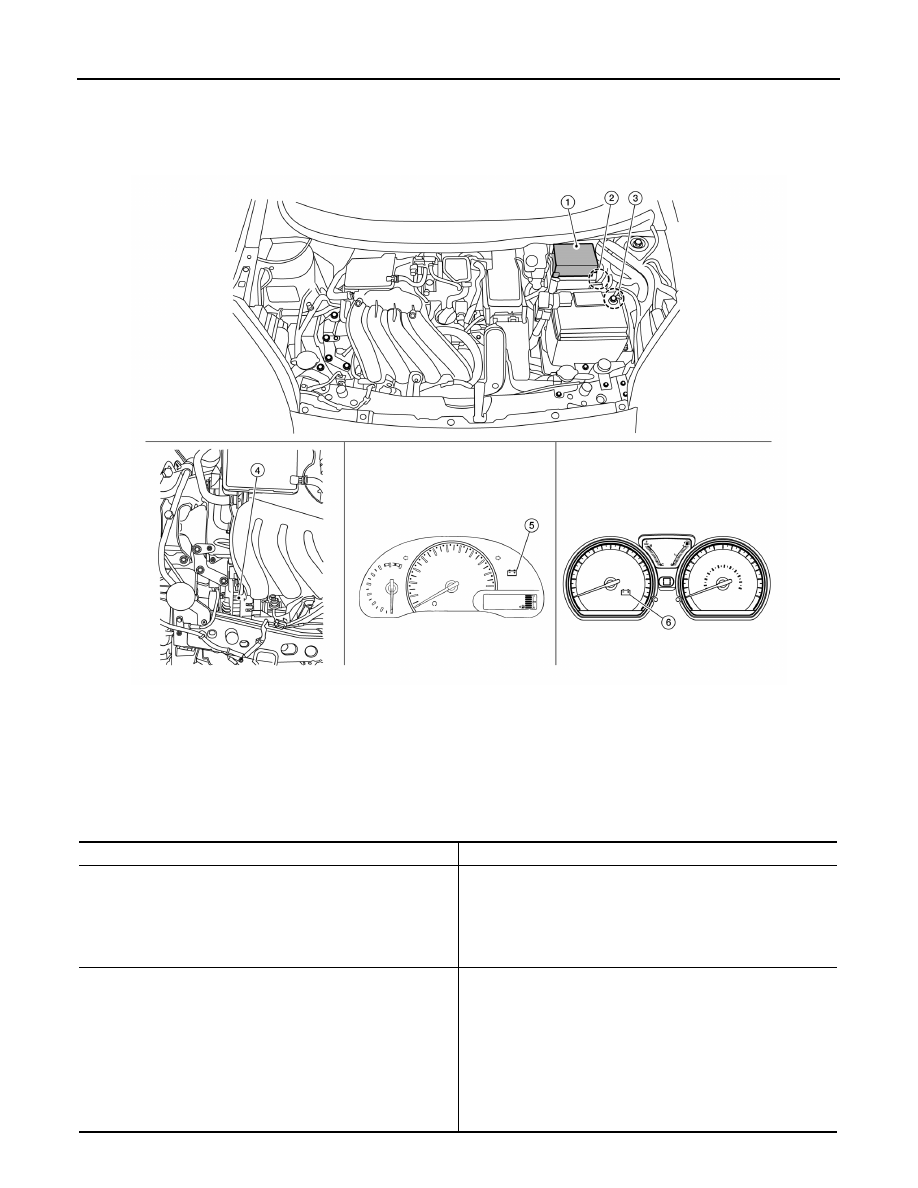

Component Parts Location

INFOID:0000000009269517

Component Description

INFOID:0000000009269518

ALMIA0606ZZ

1.

Battery current sensor

2.

IPDM E/R

3.

ECM

4.

Generator

5.

Combination meter (Type A)

6.

Combination meter (Type B)

Component part

Description

Generator (IC regulator)

The IC regulator controls the power generation voltage by the tar-
get power generation voltage based on the received PWM com-
mand signal.
When there is no PWM command signal, the generator performs
the normal power generation according to the characteristic of the
IC regulator.

ECM

The battery current sensor detects the charging/discharging cur-
rent of the battery. The ECM judges the battery condition based on
this signal.
The ECM judges whether to request more output via the power
generation voltage variable control according to the battery condi-
tion.
When performing the power generation voltage variable control,
the ECM calculates the target power generation voltage according
to the battery condition and sends the calculated value as the pow-
er generation command value to the IPDM E/R.

CHG

COMPONENT PARTS

CHG-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R

The IPDM E/R converts the received power generation command
value into a pulse width modulated (PWM) command signal and
sends it to the IC regulator.

Combination meter (charge warning lamp)

The IC regulator warning function activates to illuminate the
charge warning lamp if any of the following symptoms occur while
generator is operating:
·Excessive voltage is produced.
·No voltage is produced.

Battery current sensor

The battery current sensor is located on the negative battery cable
terminal. The battery current sensor detects the charging/dis-
charging current of the battery and sends a voltage signal to the
ECM according to the current value detected.

Component part

Description

CHG-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

CHARGING SYSTEM

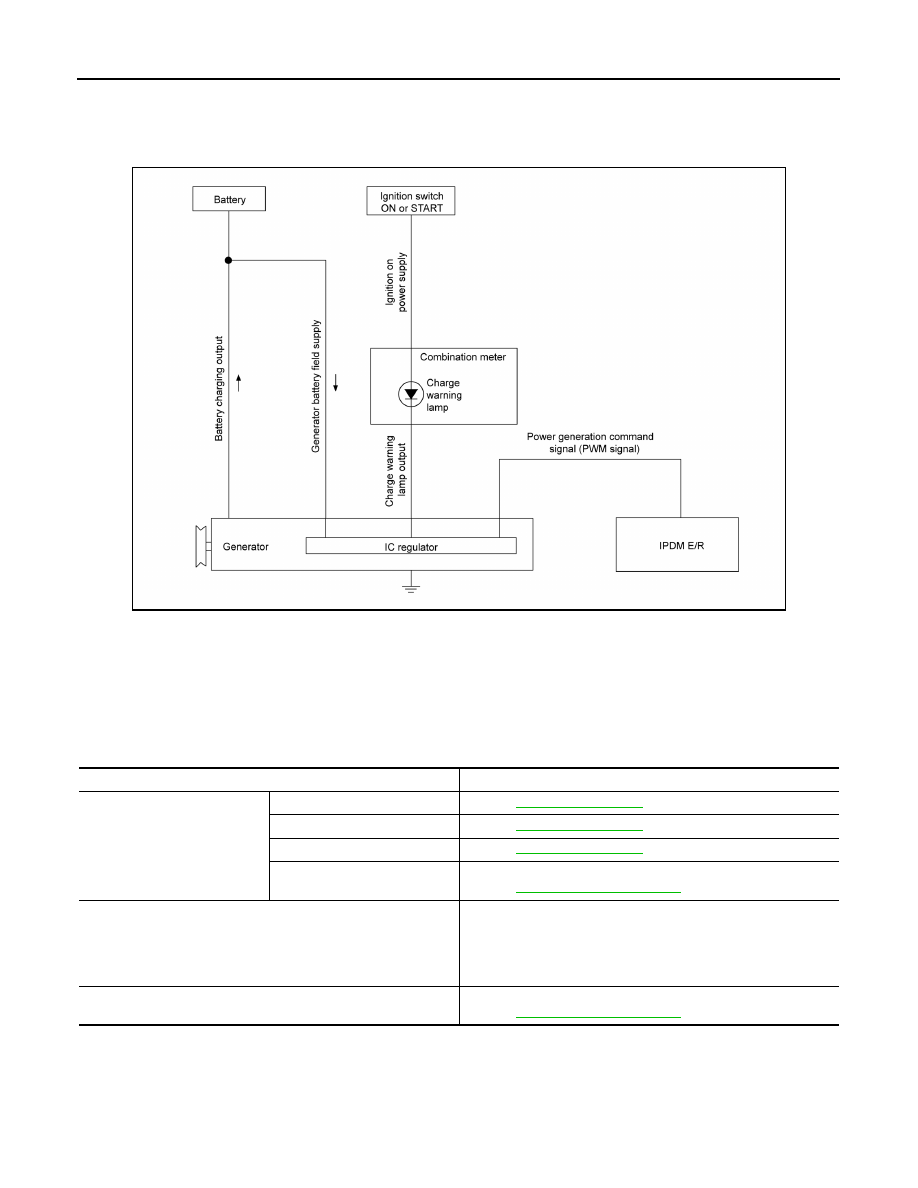

CHARGING SYSTEM : System Diagram

INFOID:0000000009269519

CHARGING SYSTEM : System Description

INFOID:0000000009269520

The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.

The voltage output is controlled by the IC regulator.

CHARGING SYSTEM : Component Description

INFOID:0000000009269521

AWMIA1334GB

Component part

Description

Generator

Terminal “1”

Refer to

CHG-22, "Description"

.

Terminal “2”

Refer to

CHG-23, "Description"

.

Terminal “3”

Refer to

CHG-26, "Description"

.

Terminal “4”

Used for the power generation voltage variable control system.
Refer to

CHG-7, "System Description"

.

Combination meter (Charge warning lamp)

The IC regulator warning function activates to illuminate the
charge warning lamp if any of the following symptoms occur while
generator is operating:
• Excessive voltage is produced.
• No voltage is produced.

IPDM E/R

Used for the power generation voltage variable control system.
Refer to

CHG-7, "System Description"

.
