BR-18

< PERIODIC MAINTENANCE >

REAR DRUM BRAKE

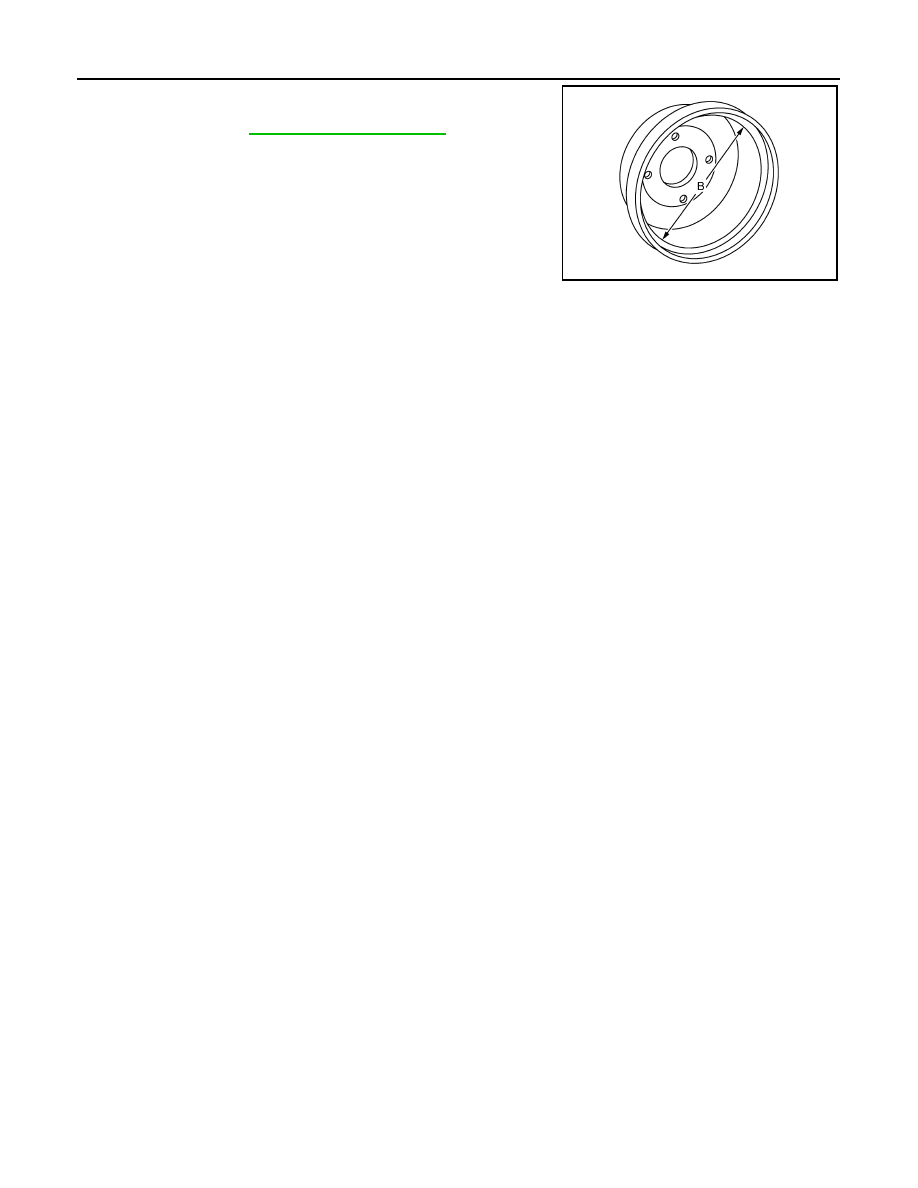

Check inner diameter (B) of the brake drum.

ADJUSTMENT

Burnish contact surfaces between brake drum and brake lining according to the following procedure after

refinishing or replacing brake drum, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate firmly/securely until brake drum and

brake lining are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive vehicle on straight, flat road.
2. Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.
3. Drive without depressing brake for a few minutes to cool the brake.
4. Repeat steps 1 to 3 until brake drum and brake lining are securely fitted.

(B)

: Refer to

BR-45, "Rear Drum Brake"

.

JPFIA0113ZZ

2014 Versa Sedan

BRAKE PEDAL

BR-19

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REMOVAL AND INSTALLATION

BRAKE PEDAL

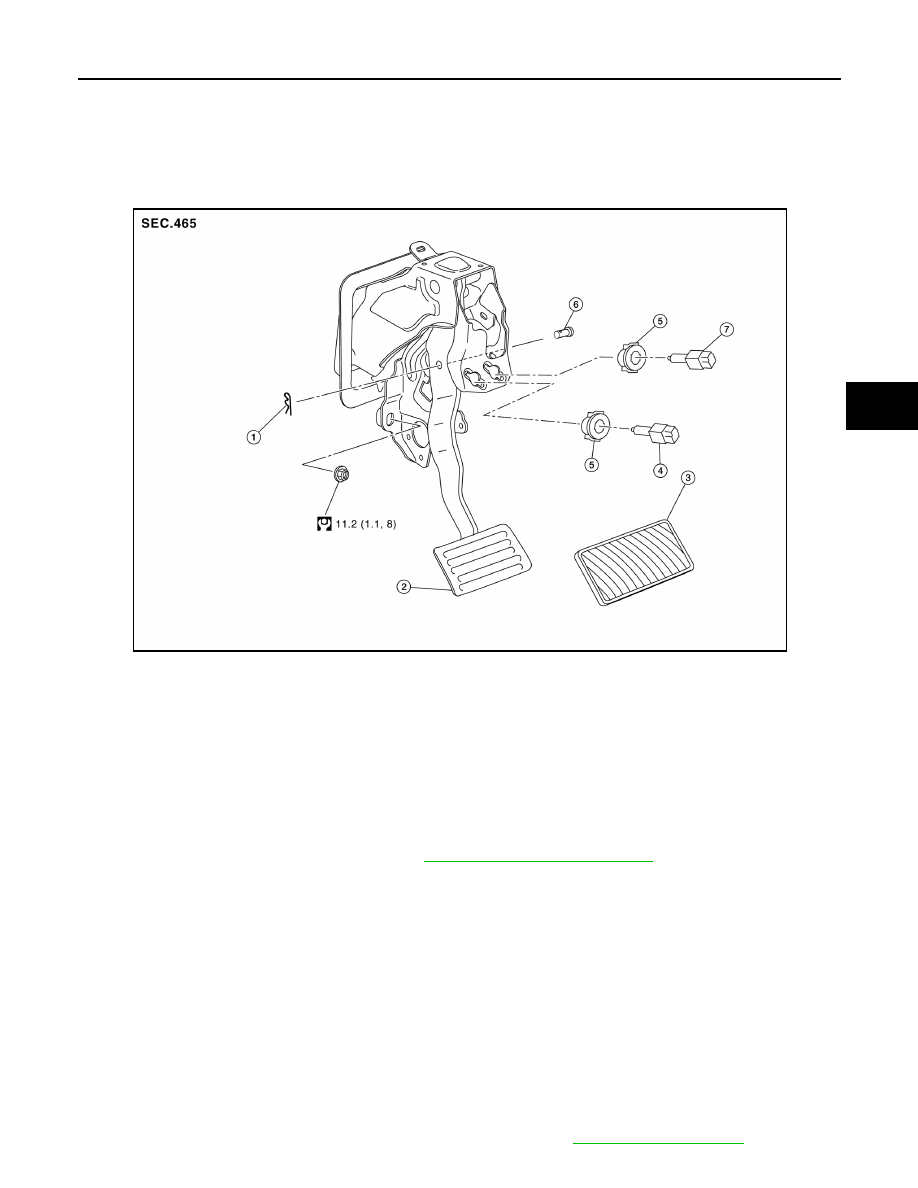

Exploded View

INFOID:0000000009267533

NOTE:

CVT and A/T brake pedal assemblies shown, M/T brake pedal assembly similar.

Removal and Installation

INFOID:0000000009267534

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-20, "Removal and Installation"

.

2. Disconnect the harness connectors from the stop lamp switch and ASCD cancel switch (if equipped).
3. Disconnect the harness connector from the accelerator pedal.
4. Separate the harness from brake pedal assembly.
5. Rotate the stop lamp switch counter clockwise to remove.
6. Rotate the ASCD cancel switch counter clockwise to remove (if equipped).
7. Remove snap pin and clevis pin from clevis.

CAUTION:

Do not reuse the snap pin and clevis pin.

8. Disconnect the power steering harness connector and position it aside.
9. Remove the brake pedal assembly.

CAUTION:

Hold the brake booster and master cylinder assembly so as not to drop out or contact them other

parts.

10. Disconnect accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Exploded View"

.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Snap pin

7.

ASCD cancel switch (if equipped)

AWFIA0875GB

2014 Versa Sedan

BR-20

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

11. Perform inspection after removal. Refer to

BR-20, "Inspection and Adjustment"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Do not reuse the snap pin and clevis pin.

• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)

NOTE:

• The clevis pin may be inserted in either direction.

• Do not give any impact caused by dropping, interference with a tool, contact between parts or with rack to

the brake pedal.

• Do not use an part that has been subject to an impact.

• Perform adjustment after installation. Refer to

BR-20, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000009267535

INSPECTION AFTER REMOVAL

• Check the brake pedal for bend, damage, and cracks on the welded parts, and replace the brake pedal

assembly if necessary.

ADJUSTMENT AFTER INSTALLATION

• Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Refer to

BR-8,

"Inspection and Adjustment"

.

• Perform the release position learning of the accelerator pedal. Refer to

EC-124, "Work Procedure"

.

2014 Versa Sedan

BRAKE PIPING

BR-21

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE PIPING

FRONT

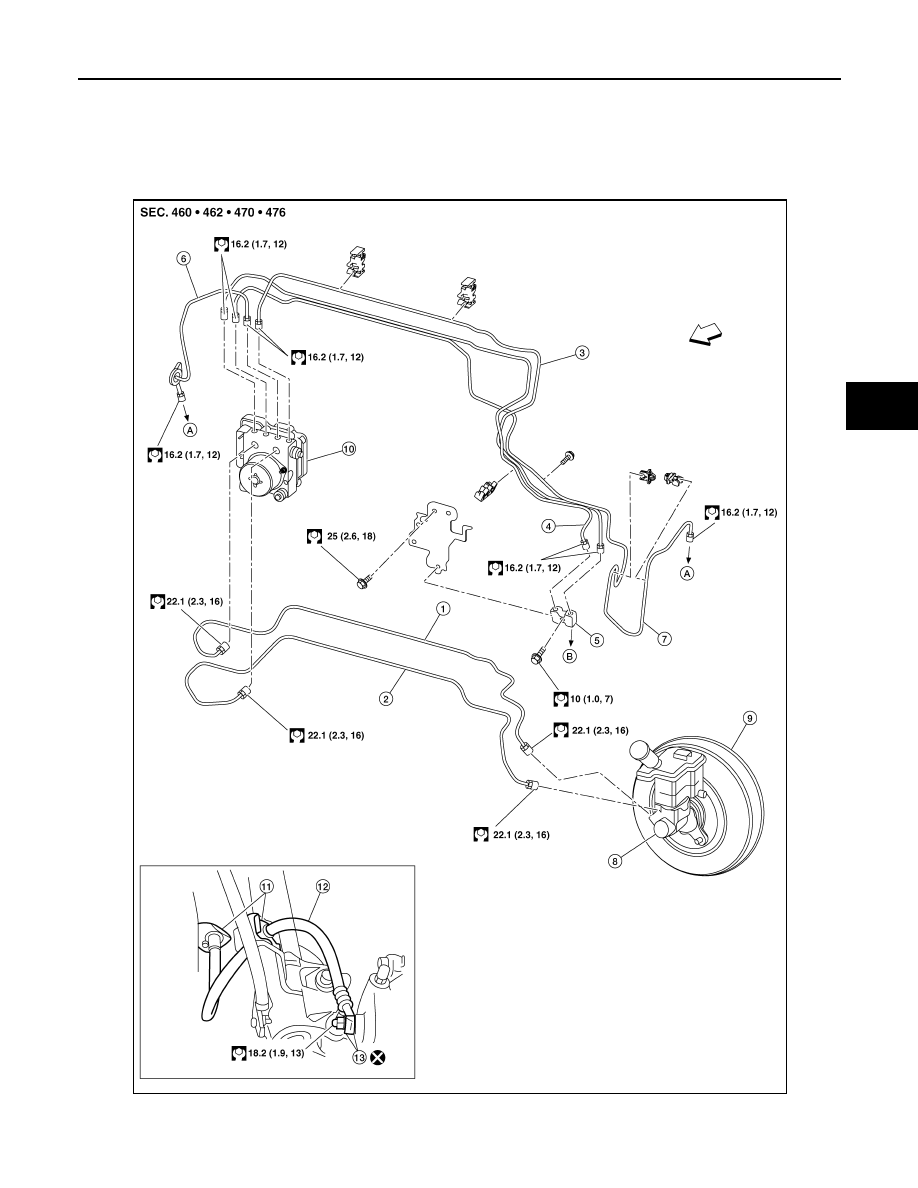

FRONT : Exploded View

INFOID:0000000009267536

AWFIA1066ZZ
