B26F6: BCM

—

×

×

—

PCS-93

B26F7: BCM

×

×

×

—

SEC-88

B26FC: KEY REGISTRATION

—

×

×

—

SEC-89

C1704: LOW PRESSURE FL

—

—

—

×

WT-22

C1705: LOW PRESSURE FR

—

—

—

×

C1706: LOW PRESSURE RR

—

—

—

×

C1707: LOW PRESSURE RL

—

—

—

×

C1708: [NO DATA] FL

—

—

—

×

WT-23

C1709: [NO DATA] FR

—

—

—

×

C1710: [NO DATA] RR

—

—

—

×

C1711: [NO DATA] RL

—

—

—

×

C1716: [PRESS DATA ERR] FL

—

—

—

×

WT-26

C1717: [PRESS DATA ERR] FR

—

—

—

×

C1718: [PRESS DATA ERR] RR

—

—

—

×

C1719: [PRESS DATA ERR] RL

—

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

—

×

WT-28

CONSULT display

Fail-safe

Freeze Frame Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condition

Intelligent Key

warning lamp

ON

Tire pressure monitor

warning lamp ON

Reference page

BCS-50

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

BCM

WIRING DIAGRAM

BCM

Wiring Diagram

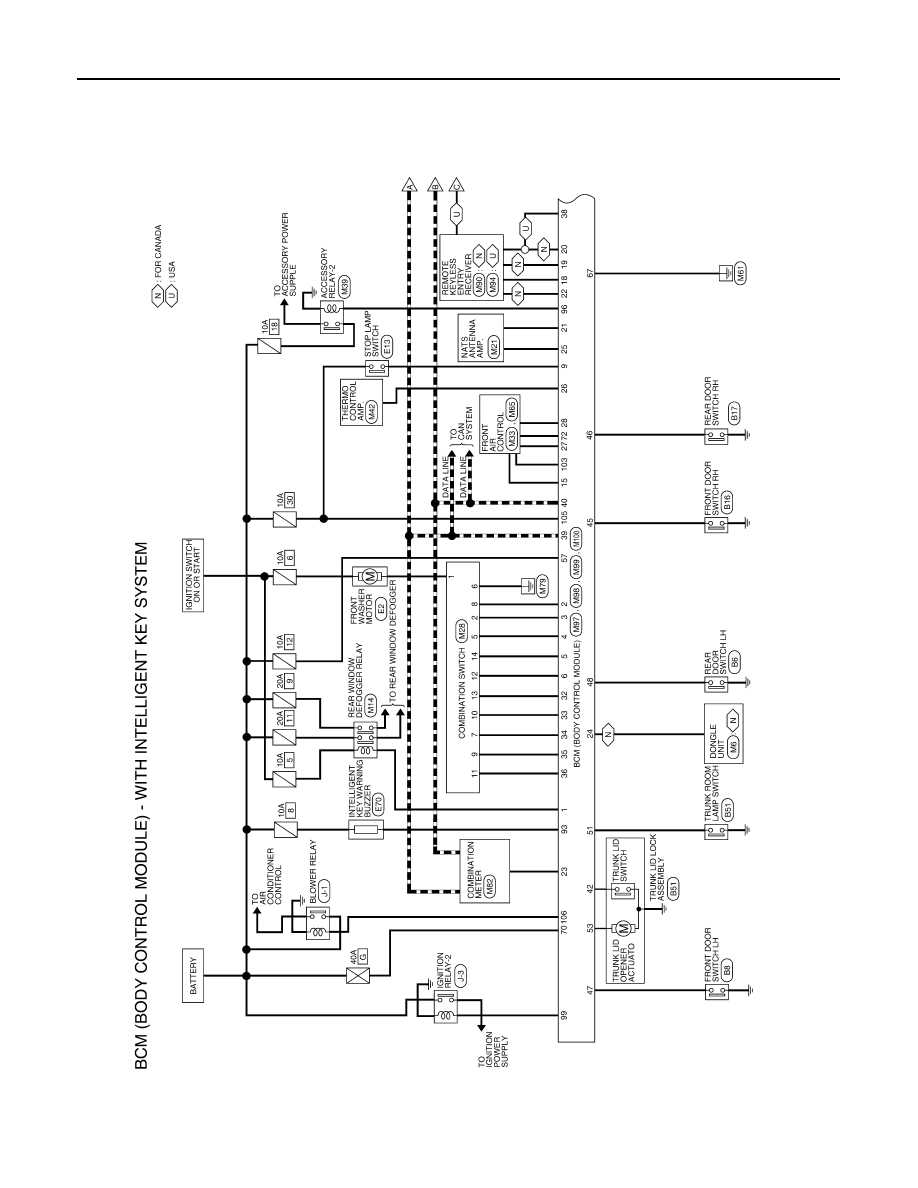

INFOID:0000000009268636

ABMWA2062GB

BCS

BCM

BCS-51

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2063GB

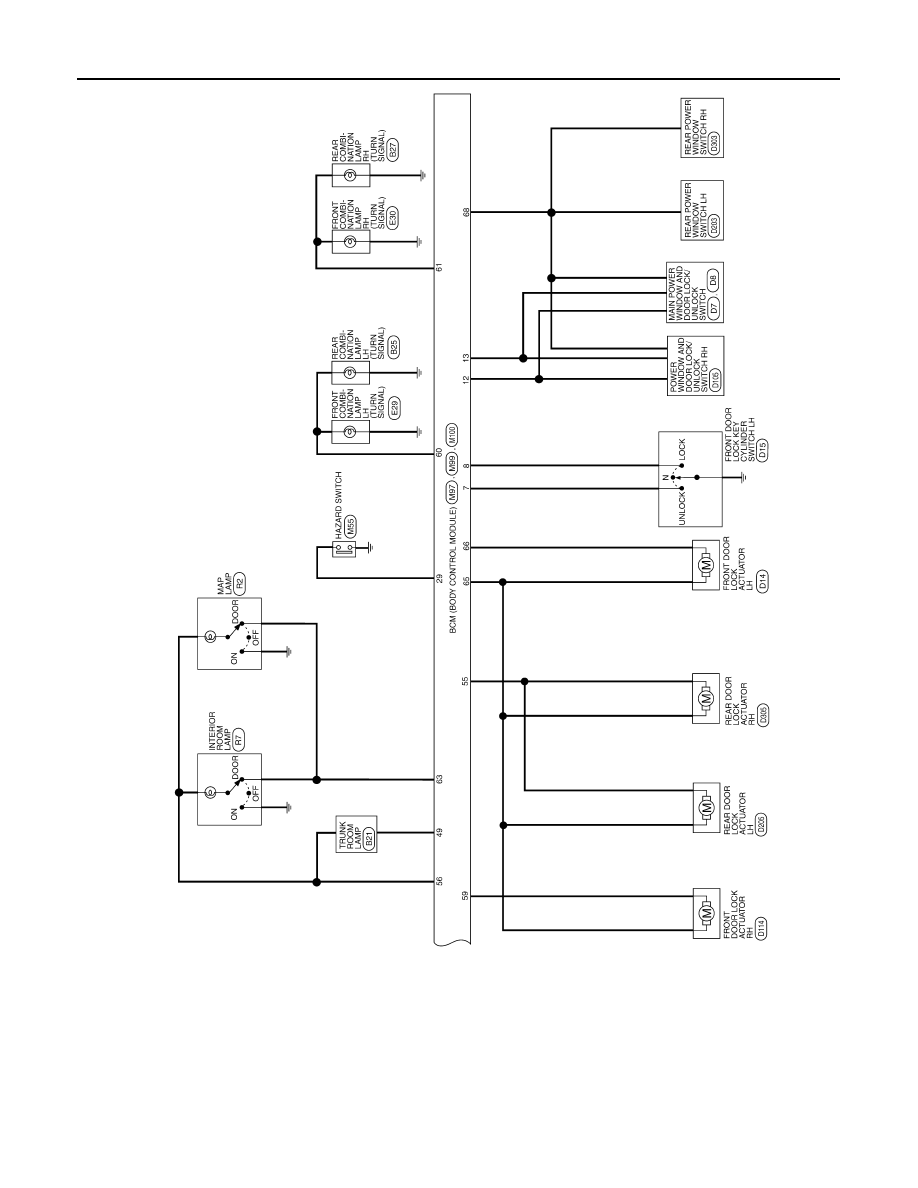

BCS-52

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

BCM

ABMWA1730GB
