WIPER AND WASHER SWITCH

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Removal and Installation

INFOID:0000000009578916

The wiper and washer switch is part of the combination switch. Refer to

EXL-112, "Removal and Installation"

.

WW-64

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

REAR WIPER ARM

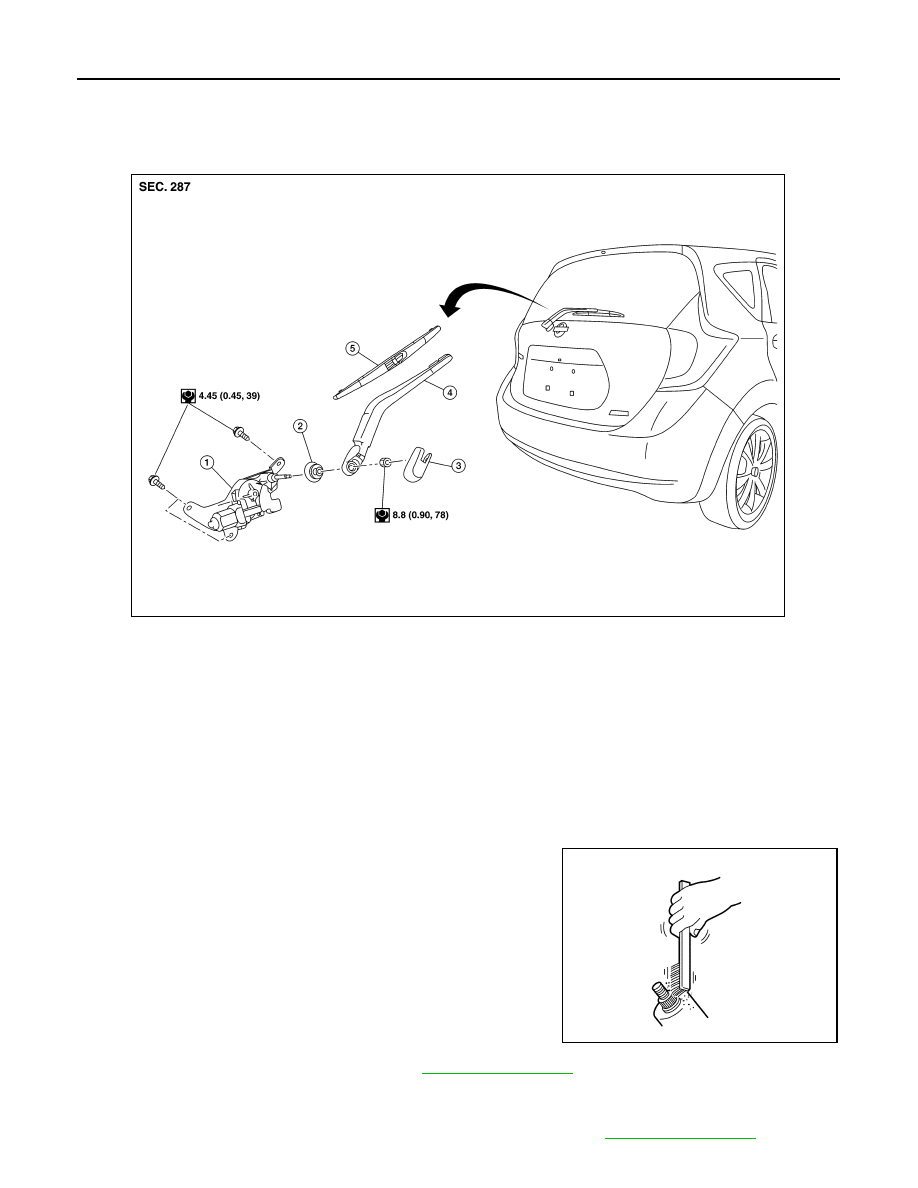

Exploded View

INFOID:0000000009606296

Removal and Installation

INFOID:0000000009606297

REMOVAL

1. Operate the rear wiper to move it to the auto stop position.
2. Remove rear wiper arm cover.
3. Remove nut and rear wiper arm.

INSTALLATION

1. Clean the rear wiper arm as shown. This will reduce the possibil-

ity of wiper arm looseness.

2. Adjust the rear wiper blade position. Refer to

WW-65, "Adjustment"

.

3. Install the rear wiper arm and nut.
4. Install the rear wiper arm cover.
5. Check that the rear wiper blade stops at the specified position. Refer to

WW-65, "Adjustment"

.

1.

Rear wiper motor

2.

Rear wiper arm seal

3.

Rear wiper arm cover

4.

Rear wiper arm

5.

Rear wiper blade

ALLIA1312ZZ

SKIA0082J

REAR WIPER ARM

WW-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Adjustment

INFOID:0000000009606298

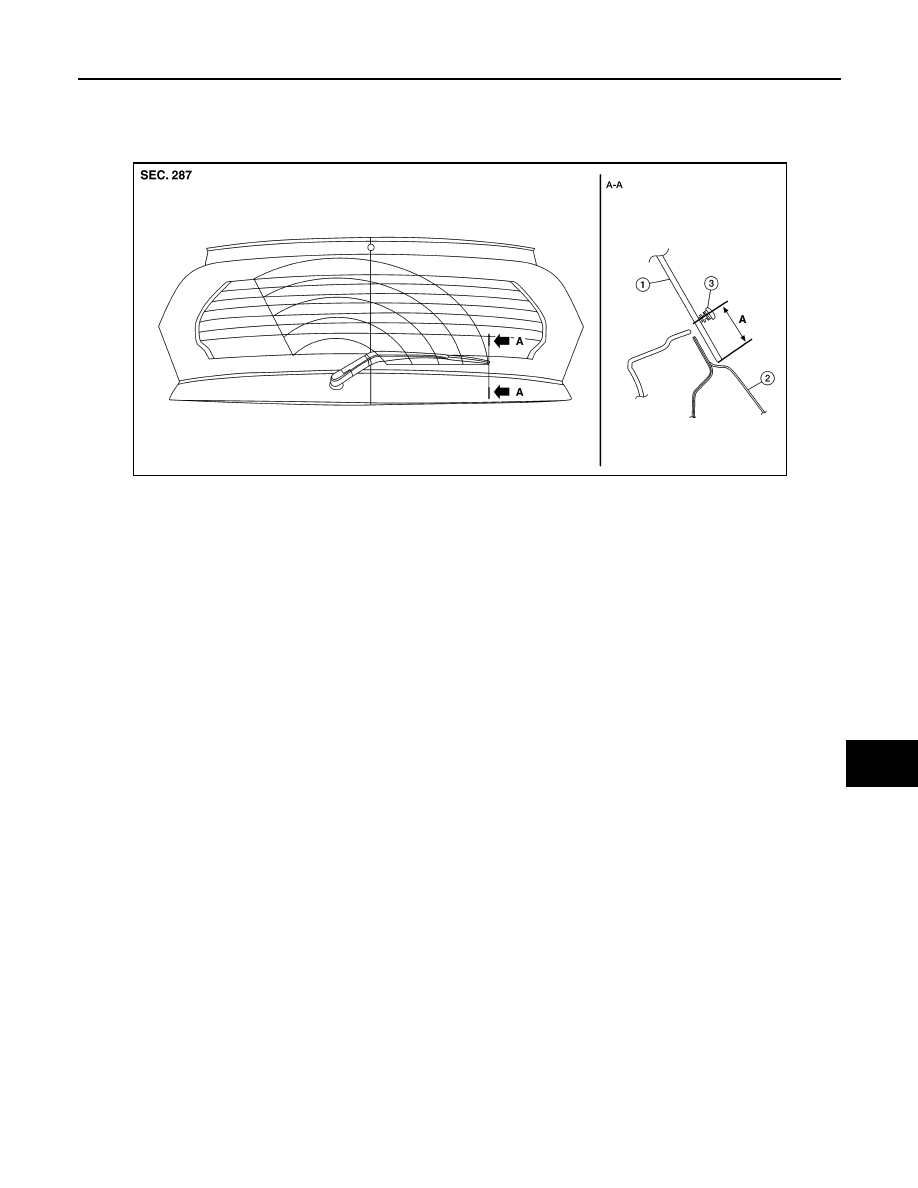

WIPER BLADE POSITION ADJUSTMENT

1.

Back door window glass

2.

Back door

3.

Rear wiper blade

A.

30.7

± 7.5 mm (1.21 ± 0.30 in)

ALLIA1313ZZ

WW-66

< REMOVAL AND INSTALLATION >

REAR WIPER BLADE

REAR WIPER BLADE

Removal and Installation

INFOID:0000000009606299

REMOVAL

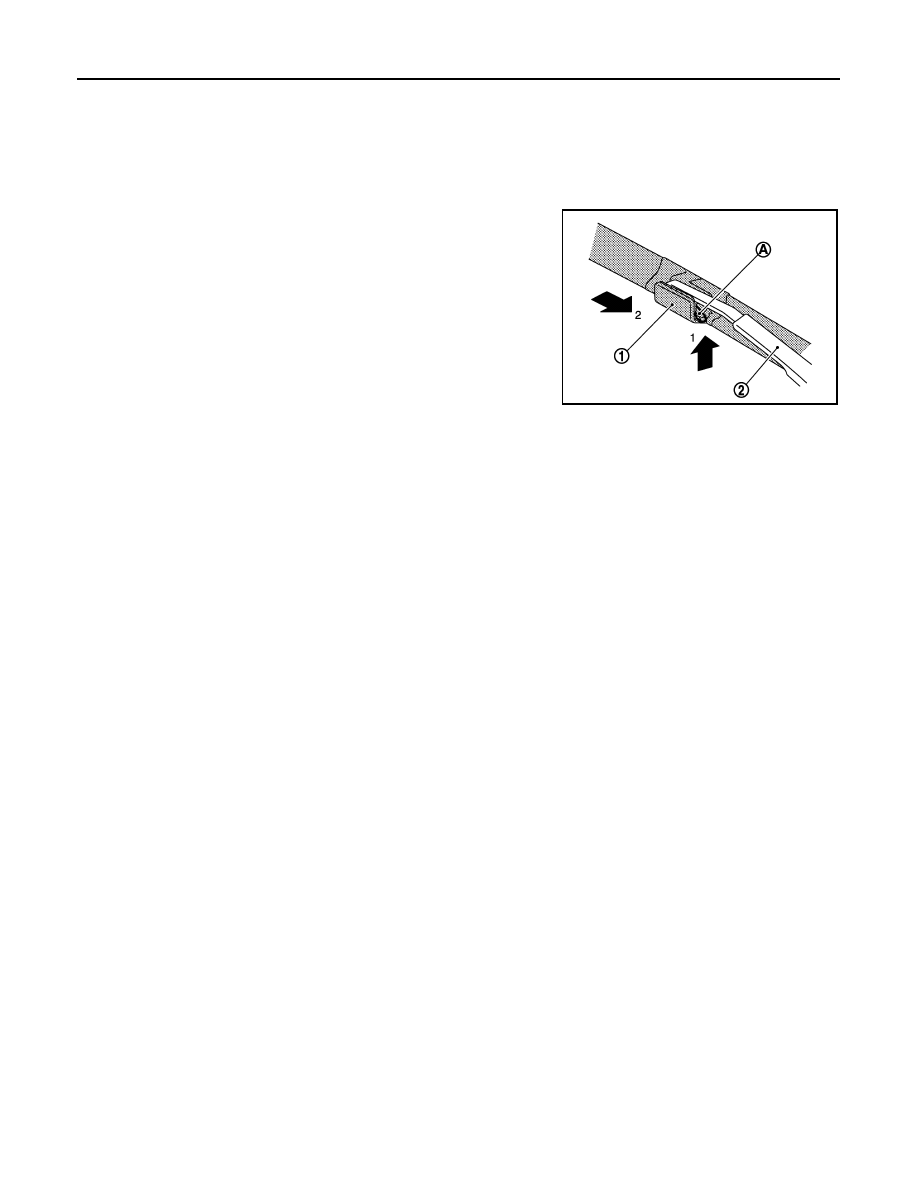

1. Lift the rear wiper arm and blade assembly away from the back window glass.
2. Push the release tab (A) of the rear wiper blade (1), then move

the rear wiper blade down the rear wiper arm (2) to remove.

INSTALLATION

1. Insert the rear wiper blade onto the rear wiper arm until it clicks into place.

JMLIA1044ZZ
