Nissan Note E12. Manual - part 690

SYSTEM

WW-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER AND WASHER SYSTEM : Fail-Safe

INFOID:0000000009541134

FAIL

−SAFE OPERATION

IPDM E/R performs the fail-safe function when the front wiper auto stop circuit is malfunctioning. Refer to

PCS-18, "Fail-safe"

.

REAR WIPER AND WASHER SYSTEM

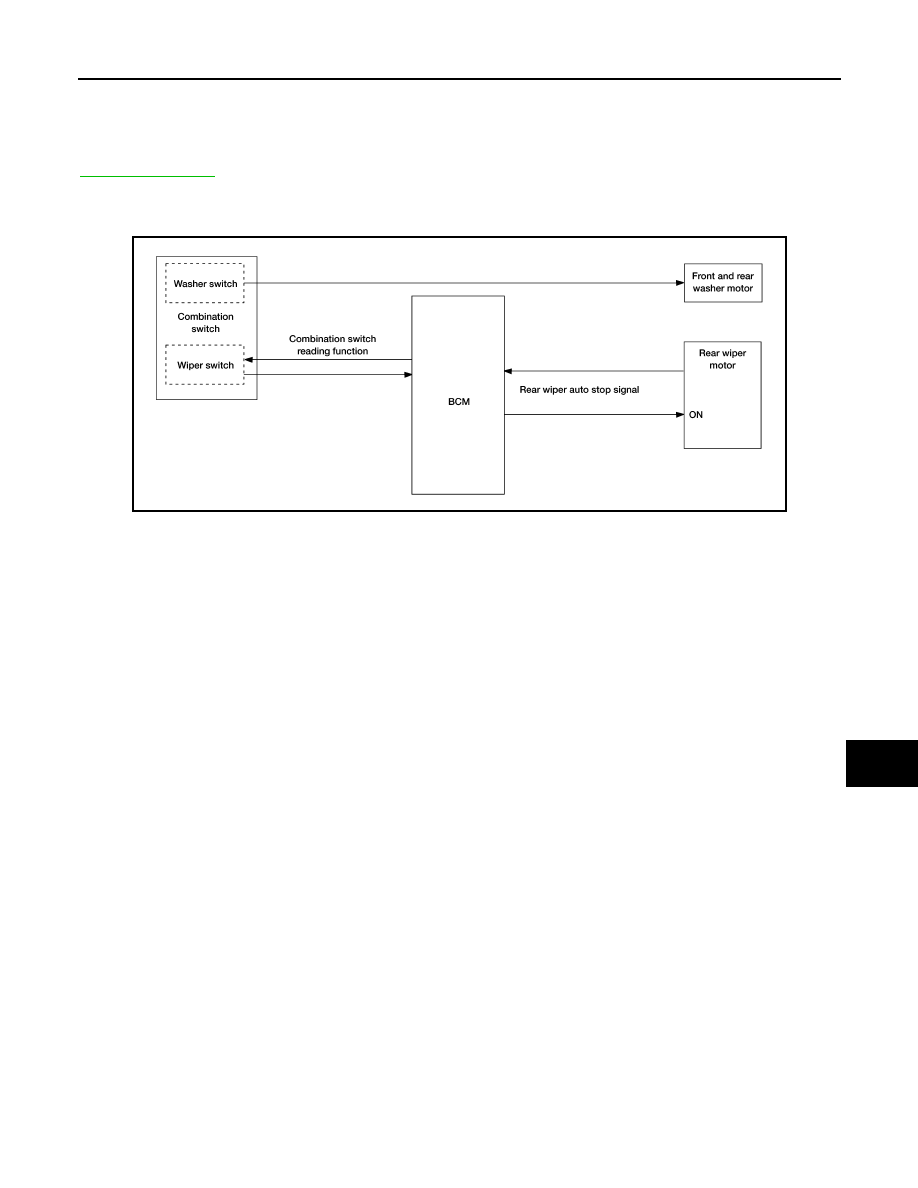

REAR WIPER AND WASHER SYSTEM : System Diagram

INFOID:0000000009567483

REAR WIPER AND WASHER SYSTEM : System Description

INFOID:0000000009567484

OUTLINE

The rear wiper is controlled by each function of BCM.

Control by BCM

• Combination switch reading function

• Rear wiper control function

REAR WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.

• BCM controls the rear wiper to start or stop.

REAR WIPER ON OPERATION

• BCM supplies power to the rear wiper motor according to the rear wiper ON operating condition.

Rear wiper ON operating condition

- Ignition switch ON

- Rear wiper switch ON

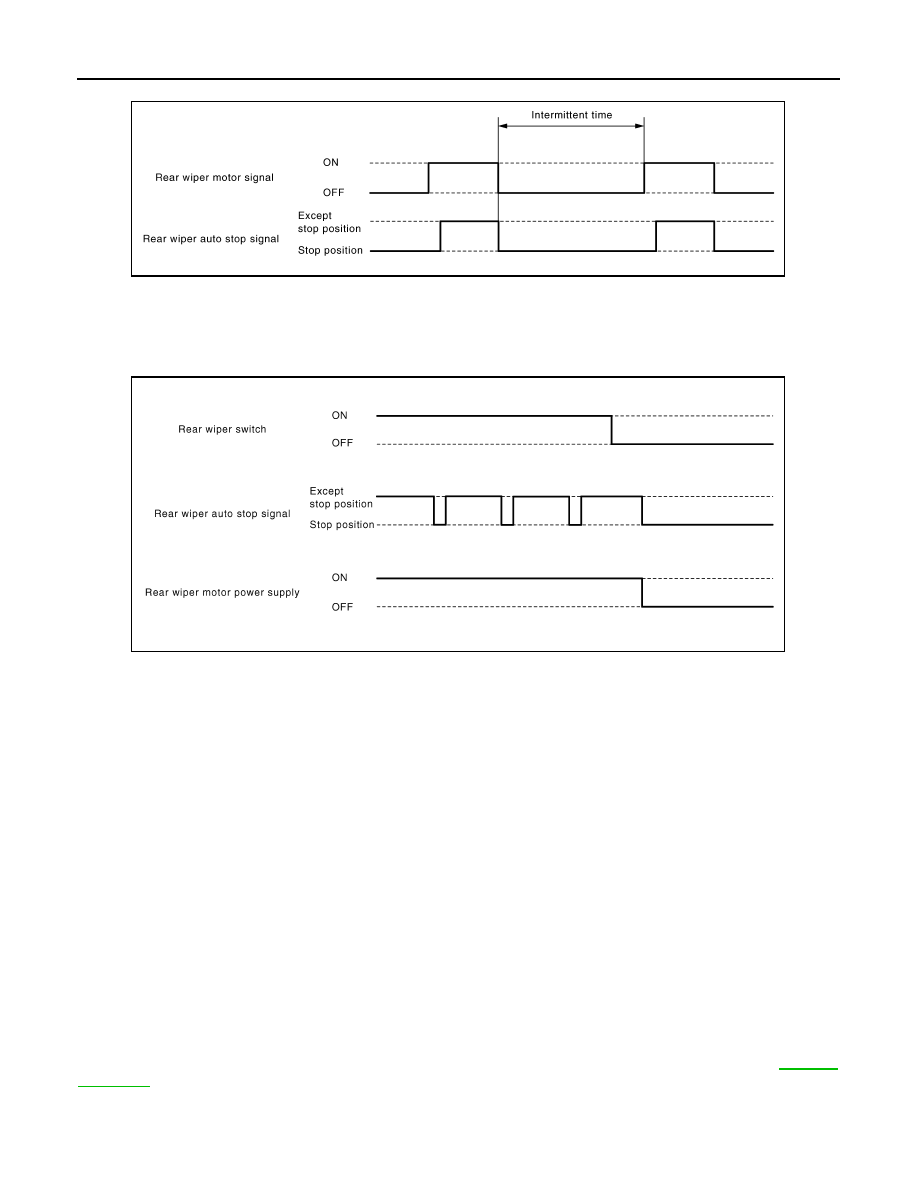

REAR WIPER INT OPERATION

• BCM supplies power to the rear wiper motor according to the INT operating condition.

Rear wiper INT operating condition

- Ignition switch ON

- Rear wiper switch INT

• BCM controls the rear wiper to operate once.

• BCM detects the rear wiper motor stopping position.

AWLIA2158GB

WW-12

< SYSTEM DESCRIPTION >

SYSTEM

• BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.

REAR WIPER AUTO STOP OPERATION

• BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF.

• BCM reads an auto stop signal from the rear wiper motor to detect a rear wiper motor position.

• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:

BCM stops supplying power to the rear wiper motor when the ignition switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately three

times.

Washer linked operating condition of rear wiper

- Ignition switch ON

- Rear washer switch ON (0.4 second or more)

• Front and rear washer motor becomes grounded through the combination switch (wiper and washer switch)

when the rear washer switch is turned ON.

REAR WIPER DROP WIPE OPERATION

• BCM controls the rear wiper to operate once according to the rear wiper drop wipe operating condition.

Rear wiper drop wipe operating condition

- Ignition switch ON

- Rear wiper switch OFF

- Rear washer switch OFF

• BCM controls the rear wiper so that it operates once time approximately three seconds later after the washer

interlocking operation of the rear wiper.

REAR WIPER FAIL

−SAFE OPERATION

BCM performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

BCS-44,

"Fail-safe"

.

JPLIA0165GB

JPLIA0166GB

SYSTEM

WW-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

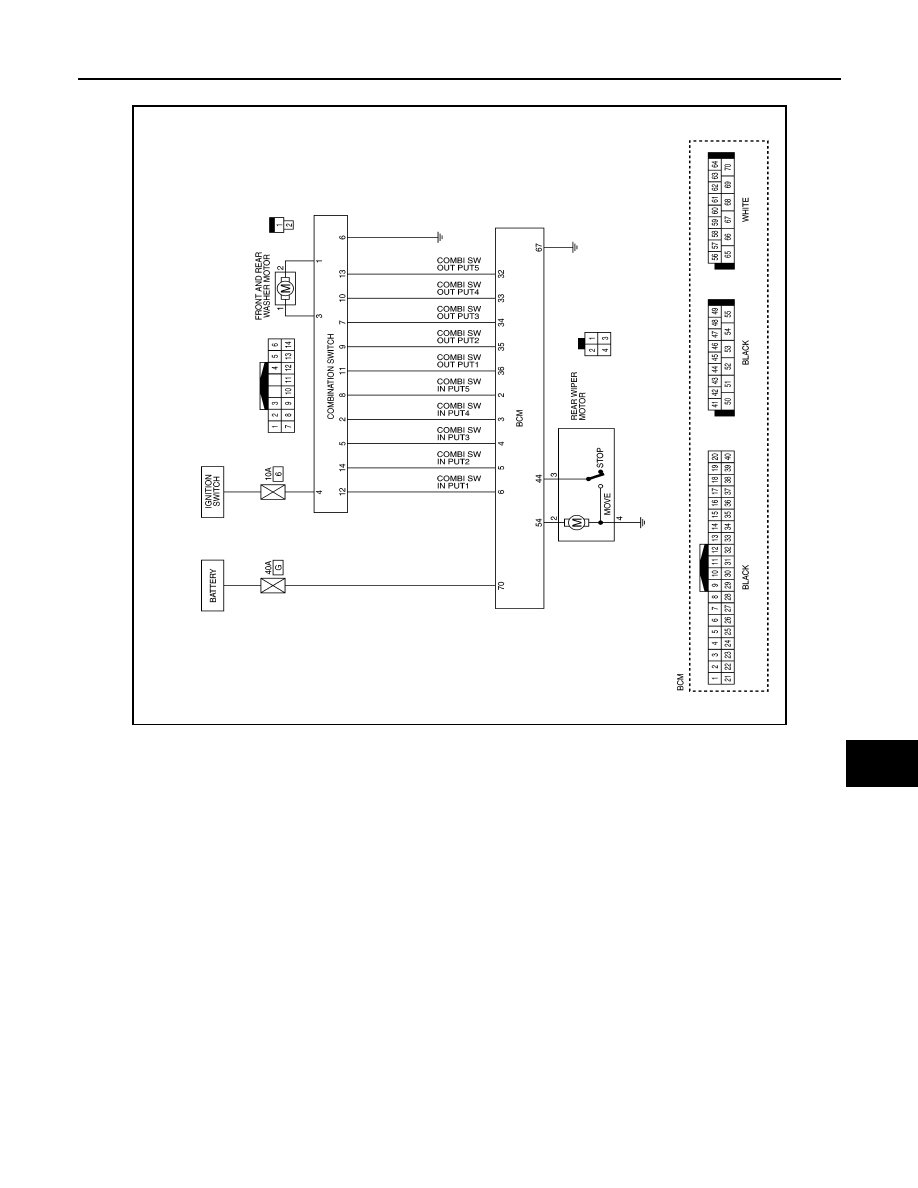

REAR WIPER AND WASHER SYSTEM : Circuit Diagram

INFOID:0000000009567486

ALLIA1300GB

WW-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009567679

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×
