TCM

REVERSE PROHIBIT CONTROL

DTC Inspection Priority Chart

INFOID:0000000009019880

If multiple malfunction codes are detected at the same time, check each code according to the DTC check pri-

ority list below.

Control

Engine output is controlled according to a vehicle speed while reversing the vehicle.

Vehicle behavior in
control

Power performance may be lowered while reversing the vehicle.

Normal return condi-
tion

Torque returns to normal by positioning the selector lever in a range other than “R” position.

Control

The reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while
driving in forward direction at more than the specified speed.

Vehicle behavior in
control

If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not
reverse.

Normal return condi-
tion

The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes
engaged.)

Priority

DTC (Diagnostic Trouble Code)

Reference

1

P0863 CONTROL UNIT (CAN)

TM-177

U0073 COMM BUS A OFF

TM-133

U0100 LOST COMM (ECM A)

TM-134

U0140 LOST COMM (BCM)

TM-135

U0141 LOST COMM (BCM A)

TM-136

U0155 LOST COMM (IPC)

TM-137

U0300 CAN COMM DATA

TM-138

U1000 CAN COMM CIRC

TM-139

U1117 LOST COMM (ABS)

TM-140

2

P0740 TORQUE CONVERTER

TM-163

P0743 TORQUE CONVERTER

TM-165

P0962 PC SOLENOID A

TM-180

P0963 PC SOLENOID A

TM-182

P0966 PC SOLENOID B

TM-185

P0967 PC SOLENOID B

TM-187

P0998 SHIFT SOLENOID F

TM-189

P0999 SHIFT SOLENOID F

TM-191

P099B SHIFT SOLENOID G

TM-193

P099C SHIFT SOLENOID G

TM-195

3

P0890 TCM

TM-178

TCM

TM-111

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC Index

INFOID:0000000009019881

NOTE:

• If multiple malfunction codes are detected at the same time, check each code according to the “DTC check

priority list”.

TM-110, "DTC Inspection Priority Chart"

.

• The ignition counter is displayed in “FFD”. Refer to

TM-92, "CONSULT Function"

.

4

P062F EEPROM

TM-141

P0705 T/M RANGE SENSOR A

TM-142

P0706 T/M RANGE SENSOR A

TM-148

P0711 FLUID TEMP SENSOR A

TM-151

P0712 FLUID TEMP SENSOR A

TM-153

P0713 FLUID TEMP SENSOR A

TM-155

P0715 INPUT SPEED SENSOR A

TM-157

P0847 FLUID PRESS SEN/SW B

TM-173

P0848 FLUID PRESS SEN/SW B

TM-175

P1586 G SENSOR

TM-197

P1588 G SENSOR

TM-200

P2765 OUTPUT SPEED SENSOR

TM-202

5

P0720 OUTPUT SPEED SENSOR

TM-160

6

P0746 PC SOLENOID A

TM-169

P2857 CLUTCH B PRESSURE

TM-205

P2858 CLUTCH A PRESSURE

TM-206

P2859 CLUTCH A PRESSURE

TM-207

P285A CLUTCH B PRESSURE

TM-209

7

P0744 TORQUE CONVERTER

TM-167

P0846 FLUID PRESS SEN/SW B

TM-171

P0965 PC SOLENOID B

TM-184

Priority

DTC (Diagnostic Trouble Code)

Reference

DTC

*1, *2

Items

(CONSULT screen terms)

Trip

MIL

Reference

GST

CONSULT

(TRANSMISSION)

P062F

P062F

EEPROM

1

ON

TM-141

P0705

P0705

T/M RANGE SENSOR A

2

ON

TM-142

P0706

P0706

T/M RANGE SENSOR A

2

ON

TM-148

P0711

P0711

FLUID TEMP SENSOR A

2

ON

TM-151

P0712

P0712

FLUID TEMP SENSOR A

2

ON

TM-153

P0713

P0713

FLUID TEMP SENSOR A

2

ON

TM-155

P0715

P0715

INPUT SPEED SENSOR A

2

ON

TM-157

P0720

P0720

OUTPUT SPEED SENSOR

2

ON

TM-160

P0740

P0740

TORQUE CONVERTER

2

ON

TM-163

P0743

P0743

TORQUE CONVERTER

2

ON

TM-165

P0744

P0744

TORQUE CONVERTER

2

ON

TM-167

P0746

P0746

PC SOLENOID A

2

ON

TM-169

P0846

P0846

FLUID PRESS SEN/SW B

2

ON

TM-171

P0847

P0847

FLUID PRESS SEN/SW B

2

ON

TM-173

P0848

P0848

FLUID PRESS SEN/SW B

2

ON

TM-175

TM-112

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F11A]

TCM

*1: These numbers are specified by SAE J2012/ISO 15031-6.

*2: The DTC number of the 1st trip is the same as the DTC number.

P0863

P0863

CONTROL UNIT (CAN)

1

ON

TM-177

P0890

P0890

TCM

1

ON

TM-178

P0962

P0962

PC SOLENOID A

2

ON

TM-180

P0963

P0963

PC SOLENOID A

2

ON

TM-182

P0965

P0965

PC SOLENOID B

2

ON

TM-184

P0966

P0966

PC SOLENOID B

2

ON

TM-185

P0967

P0967

PC SOLENOID B

2

ON

TM-187

P0998

P0998

SHIFT SOLENOID F

2

ON

TM-189

P0999

P0999

SHIFT SOLENOID F

2

ON

TM-191

P099B

P099B

SHIFT SOLENOID G

2

ON

TM-193

P099C

P099C

SHIFT SOLENOID G

2

ON

TM-195

—

P1586

G SENSOR

1

—

TM-197

—

P1588

G SENSOR

1

—

TM-200

P2765

P2765

OUTPUT SPEED SENSOR

2

ON

TM-202

P2857

P2857

CLUTCH A PRESSURE

2

ON

TM-205

P2858

P2858

CLUTCH B PRESSURE

2

ON

TM-206

P2859

P2859

CLUTCH A PRESSURE

2

ON

TM-207

P285A

P285A

CLUTCH B PRESSURE

2

ON

TM-209

U0073

U0073

COMM BUS A OFF

1

ON

TM-133

U0100

U0100

LOST COMM (ECM A)

1

ON

TM-134

—

U0140

LOST COMM (BCM)

1

—

TM-135

—

U0141

LOST COMM (BCM A)

1

—

TM-136

—

U0155

LOST COMM (IPC)

1

—

TM-137

—

U0300

CAN COMM DATA

1

—

TM-138

—

U1000

CAN COMM CIRC

1

—

TM-139

—

U1117

LOST COMM (ABS)

1

—

TM-140

DTC

*1, *2

Items

(CONSULT screen terms)

Trip

MIL

Reference

GST

CONSULT

(TRANSMISSION)

CVT CONTROL SYSTEM

TM-113

< WIRING DIAGRAM >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

WIRING DIAGRAM

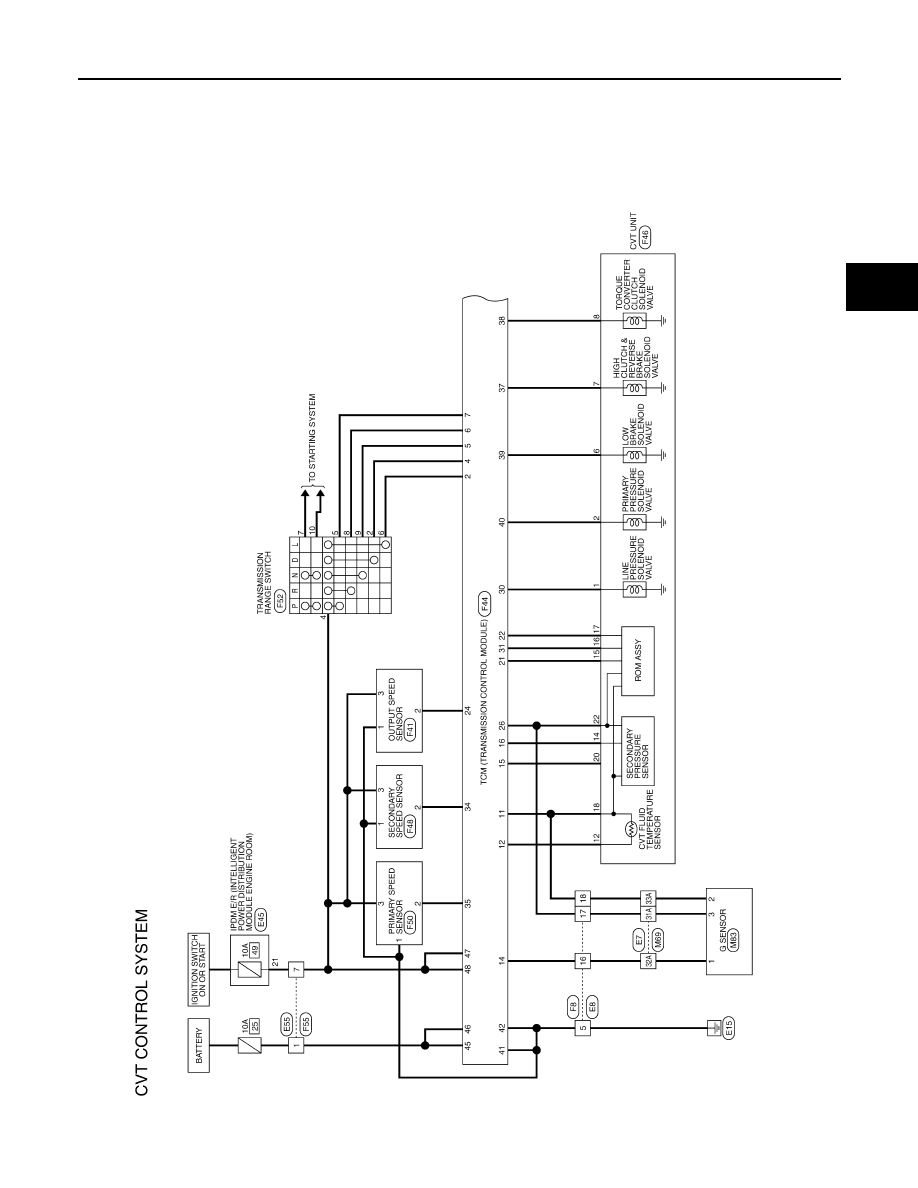

CVT CONTROL SYSTEM
