Nissan Note E12. Manual - part 616

TM-22

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

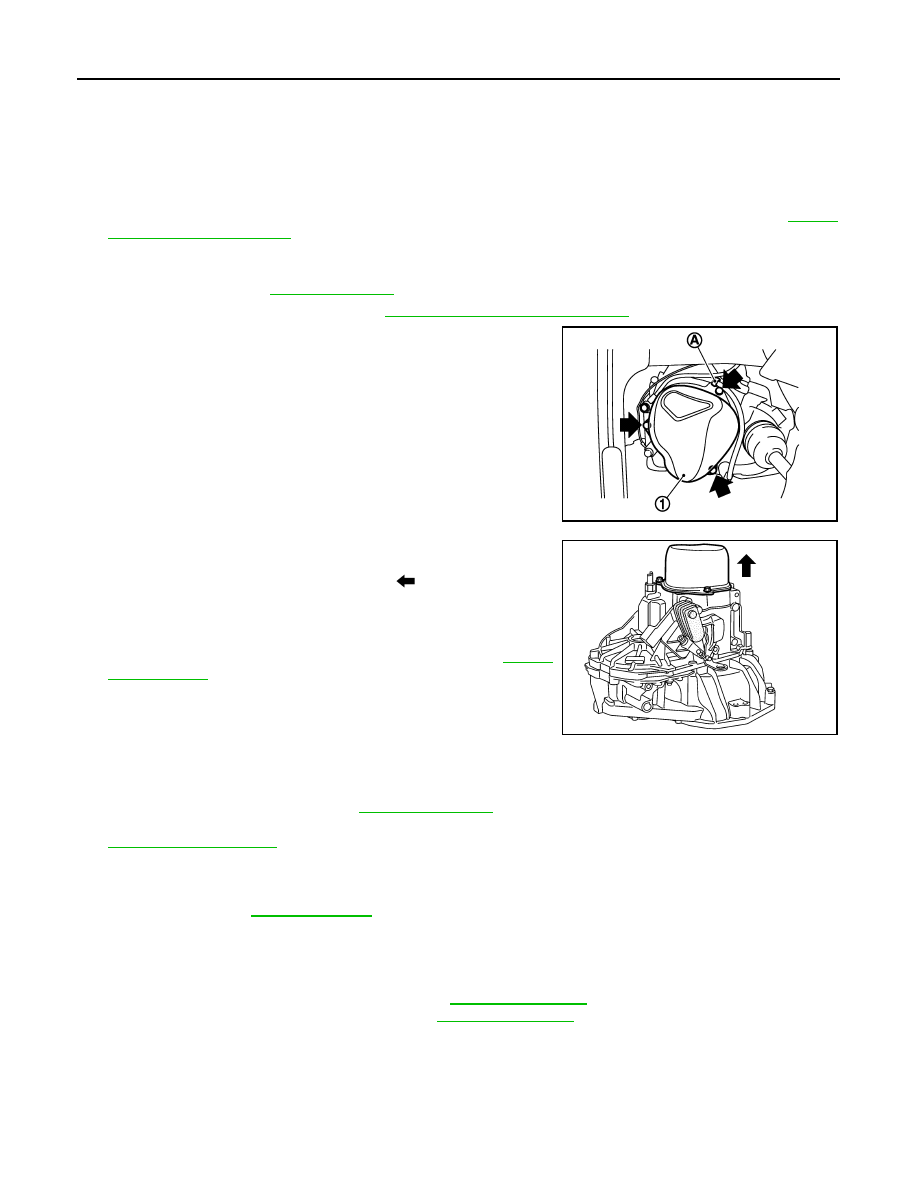

5TH MAIN GEAR ASSEMBLY

5TH MAIN GEAR ASSEMBLY

Removal and Installation

INFOID:0000000009417599

REMOVAL

1. Move the shift selector to the 3rd gear position.
2. Disconnect the shifter cable and the selector cable from shifter lever A and selector lever. Refer to

TM-19,

"Removal and Installation"

.

CAUTION:

Do not move shifter lever A and selector lever to disconnect each cable.

3. Drain gear oil. Refer to

TM-16, "Draining"

.

4. Remove fender protector (LH). Refer to

EXT-24, "Removal and Installation"

.

5. Remove the harness clamp (A) from rear housing (1).

6. Remove rear housing and O-ring.

CAUTION:

Remove in direction of input shaft (

) as shown. Rear

housing gear oil channel is inserted to input shaft center

hole.

7. Remove 5th main gear assembly. Refer to step 5 through 8 of

“Disassembly of TRANSAXLE ASSEMBLY”. Refer to

TM-29,

"Disassembly"

.

INSTALLATION

Installation is in the reverse order of removal.

• Shift into 3rd with shifter lever to install the 5th main gear assembly, referring to Step 36 to 39 of “Assembly

of TRANSAXLE ASSEMBLY” Refer to

TM-35, "Assembly"

.

• Install O-ring and the rear housing to the transaxle case and tighten the bolts to the specified torque. Refer

to

TM-25, "Exploded View"

.

CAUTION:

• Do not reuse O-ring.

• Do not pinch O-ring when installing rear housing.

• Refill gear oil. Refer to

TM-16, "Refilling"

.

Inspection

INFOID:0000000009417600

INSPECTION AFTER INSTALLATION

• Check the operation of the control linkage. Refer to

TM-20, "Inspection"

.

• Check the gear oil level and for oil leaks. Refer to

TM-16, "Inspection"

.

JPDIC0734ZZ

SCIA1709J

TRANSAXLE ASSEMBLY

TM-23

< UNIT REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

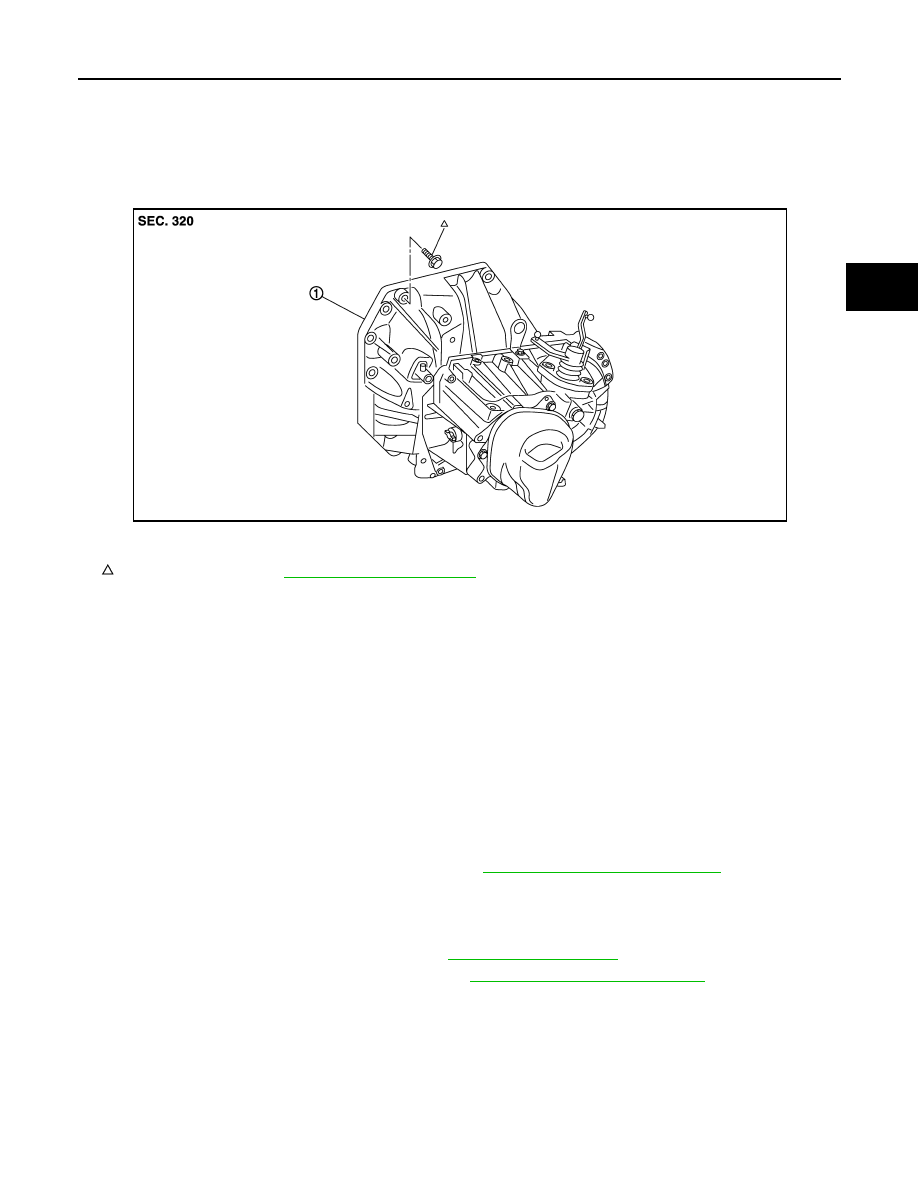

Exploded View

INFOID:0000000009417601

Removal and Installation

INFOID:0000000009417602

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to

allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Do not reuse CSC (Concentric Slave Cylinder). The CSC slides back to the original position every time

the transaxle assembly is removed. This action may allow dust or contaminants to gather on the slid-

ing parts and damage a seal of CSC causing clutch fluid leakage.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the engine and transaxle assembly. Refer to

EM-86, "Removal and Installation"

.

2. Disconnect the reverse lamp switch harness connector.
3. Remove the bolts that fasten the transaxle assembly and engine assembly.
4. Remove transaxle assembly from the engine assembly.
5. Remove engine mounting bracket (LH). Refer to

EM-85, "Exploded View"

.

6. Remove CSC (Concentric Slave Cylinder). Refer to

CL-16, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Secure transaxle assembly to a suitable jack.

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

• When installing transaxle assembly, do not bring input shaft into contact with clutch cover.

• Bolt hole is not threaded on new clutch housing. Self-tapping bolt is used to attach lock plate to

clutch housing.

1.

Transaxle assembly

: Refer to "INSTALLATION" in

TM-23, "Removal and Installation"

 for the locations and tightening torque.

JPDIC0478ZZ

TM-24

< UNIT REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

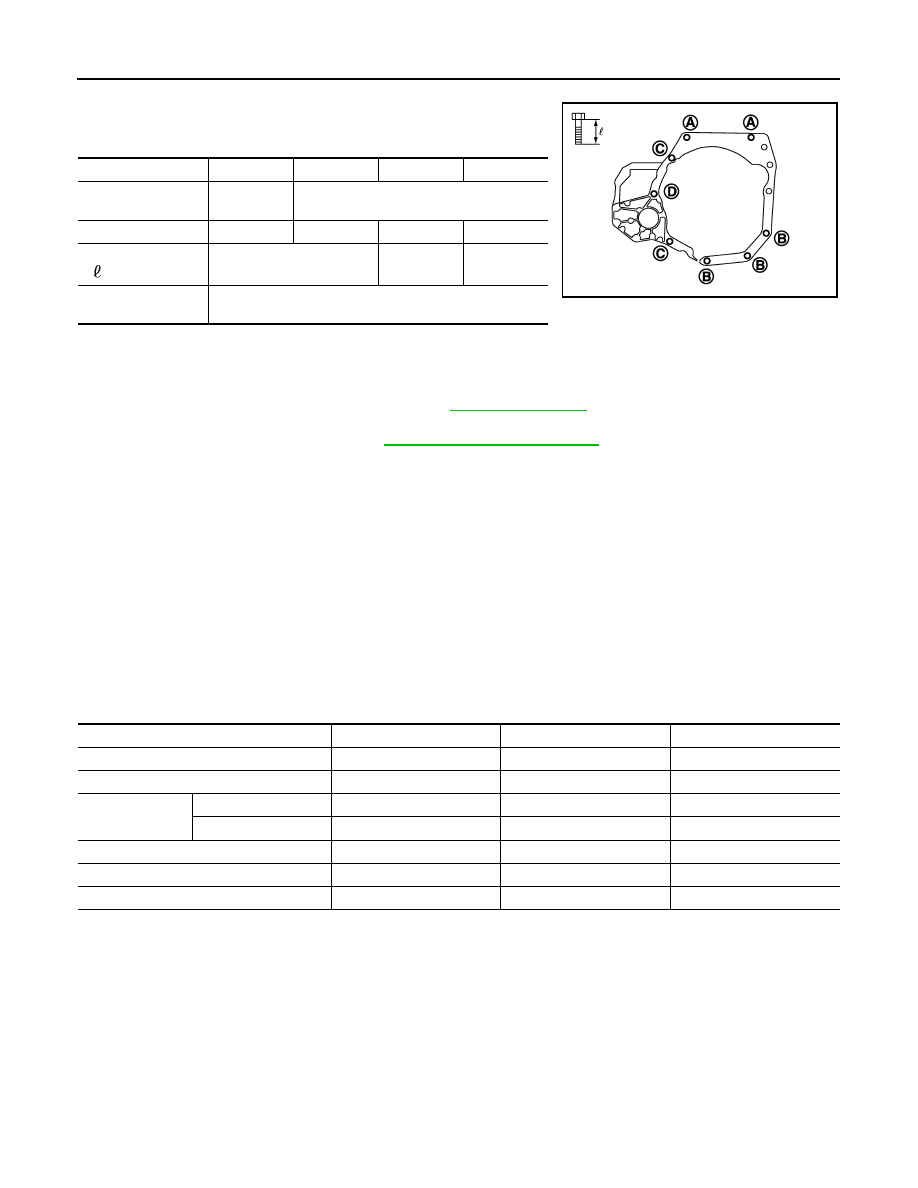

• Do not reuse self-tapping bolt.

• Tighten transaxle assembly bolts to the specified torque. The illus-

tration is the view from the engine.

Inspection

INFOID:0000000009417603

INSPECTION AFTER INSTALLATION

• Check the operation of the control linkage. Refer to

TM-20, "Inspection"

.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-12, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leaks.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leaks

at connection points.

• Start engine. With engine speed increased, check again for fuel leaks at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leaks of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

Bolt symbol

A

B

C

D

Insertion direction

Transaxle to

engine

Engine to transaxle

Quantity

2

3

2

1

Bolt length
( ) mm (in)

55 (2.17)

49 (1.93)

69 (2.72)

Tightening torque
 N·m (kg-m, ft-lb)

48.0 (4.9, 35)

JPDIC0813ZZ

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leaks

Level

Engine oil

Level

Leaks

Level

Transmission/
transaxle fluid

CVT Models

Leaks

Level/Leaks

Leaks

M/T Models

Level/Leaks

Leaks

Level/Leaks

Other oils and fluids*

Level

Leaks

Level

Fuel

Leaks

Leaks

Leaks

Exhaust gas

—

Leaks

—

TRANSAXLE ASSEMBLY

TM-25

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

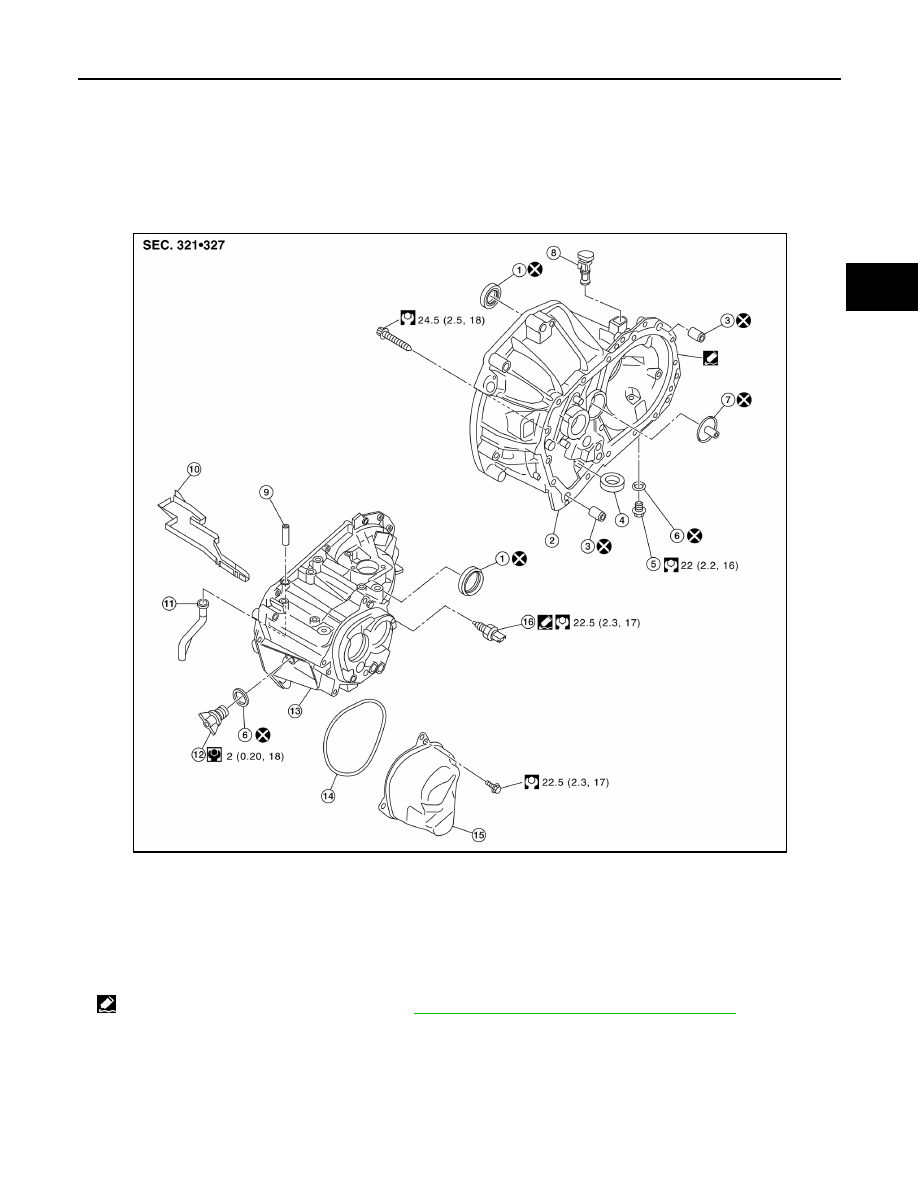

Exploded View

INFOID:0000000009417604

CASE AND HOUSING

INPUT SHAFT AND GEAR

1.

Differential side oil seal

2.

Clutch housing

3.

Dowel pin

4.

Magnet

5.

Drain plug

6.

Gasket

7.

Oil channel

8.

Plug

9.

2-way connector

10. Oil gutter

11. Air breather inner tube

12. Filler plug

13. Transaxle case

14. O-ring

15. Rear housing

16. Position switch

: Apply Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

AWDIA0945GB
