FRONT PASSENGER AIR BAG MODULE

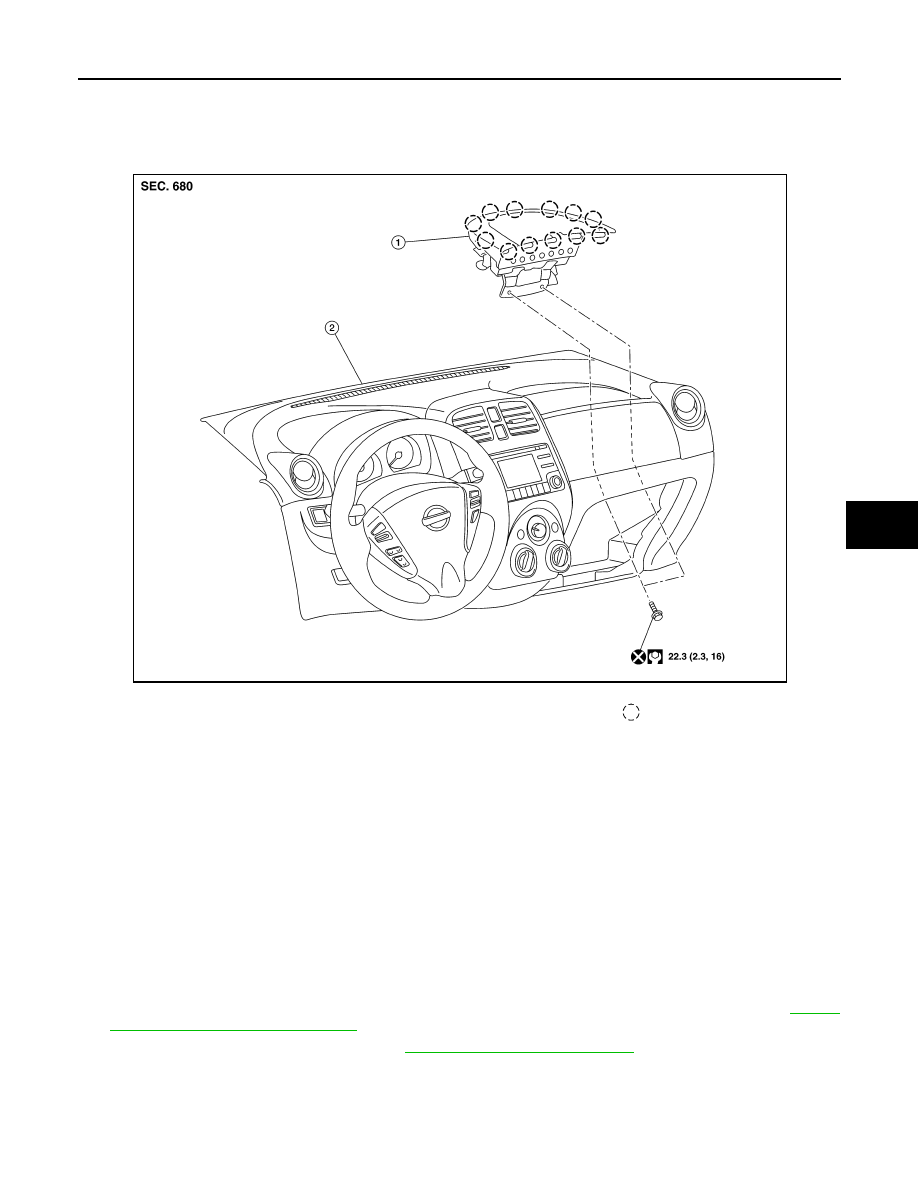

Exploded View

INFOID:0000000009015623

Removal and Installation

INFOID:0000000009015624

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Do not expose the front passenger air bag module to temperatures exceeding 90

°C (194°F).

• Do not attempt to disassemble the front passenger air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.

• Do not use air tools or electric tools for servicing.

CAUTION:

• Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

2. Remove the glove box assembly. Refer to

IP-25, "Removal and Installation"

.

1.

Front passenger air bag module

2.

Instrument panel assembly

Pawl

AWHIA0529ZZ

SR-18

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

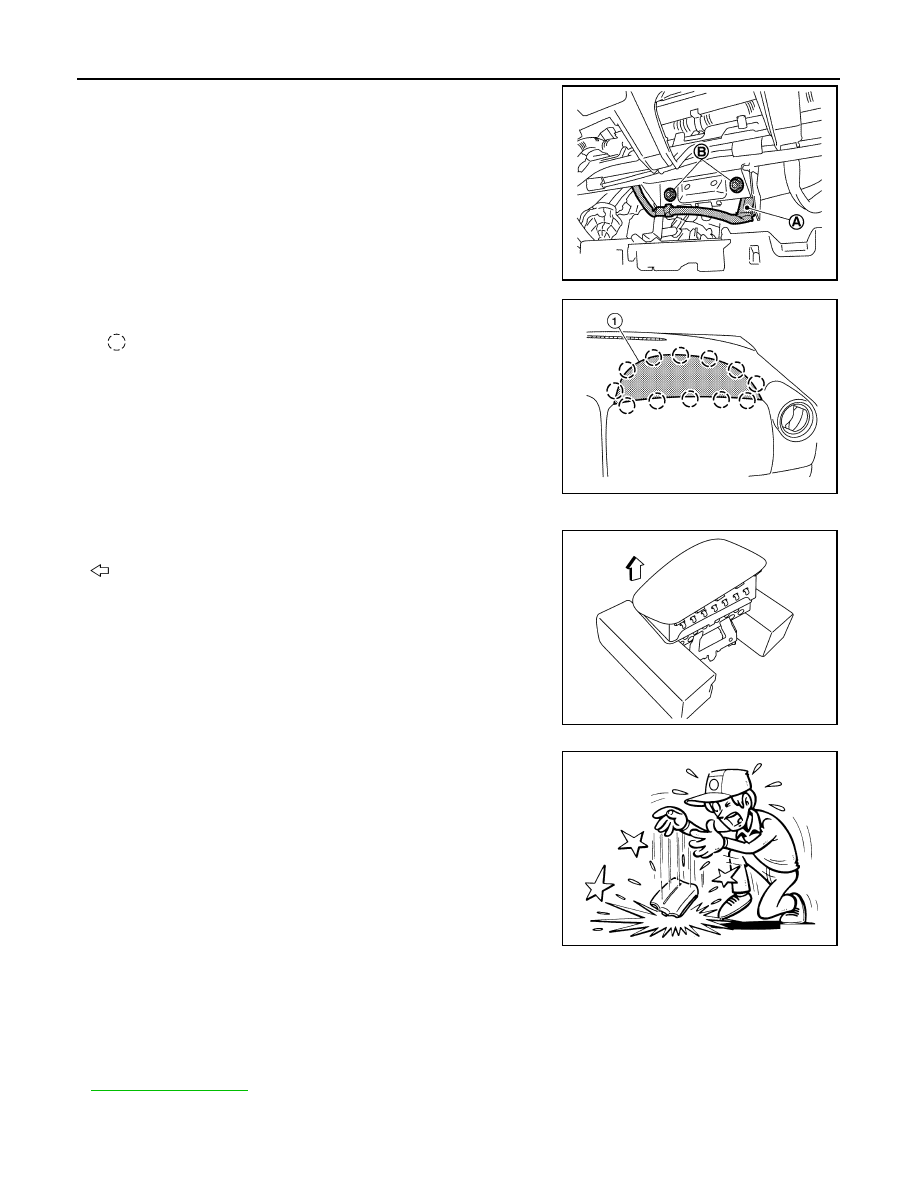

3. Disconnect the harness connector (A) from front passenger air

bag module.

4. Remove and discard the front passenger air bag module bolts

(B).

CAUTION:

Do not reuse front passenger air bag module bolts.

5. Release pawls using a suitable tool and remove front passenger

air bag module (1).

: Pawl

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

: Upward

• Do not strike the front passenger air bag module.

• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the front passenger air bag module bolts.

• Do not damage the front passenger air bag module harness during installation.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-9, "Description"

.

JMHIA2022ZZ

AWHIA0527ZZ

JMHIA2461ZZ

JMHIA0009ZZ

CRASH ZONE SENSOR

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CRASH ZONE SENSOR

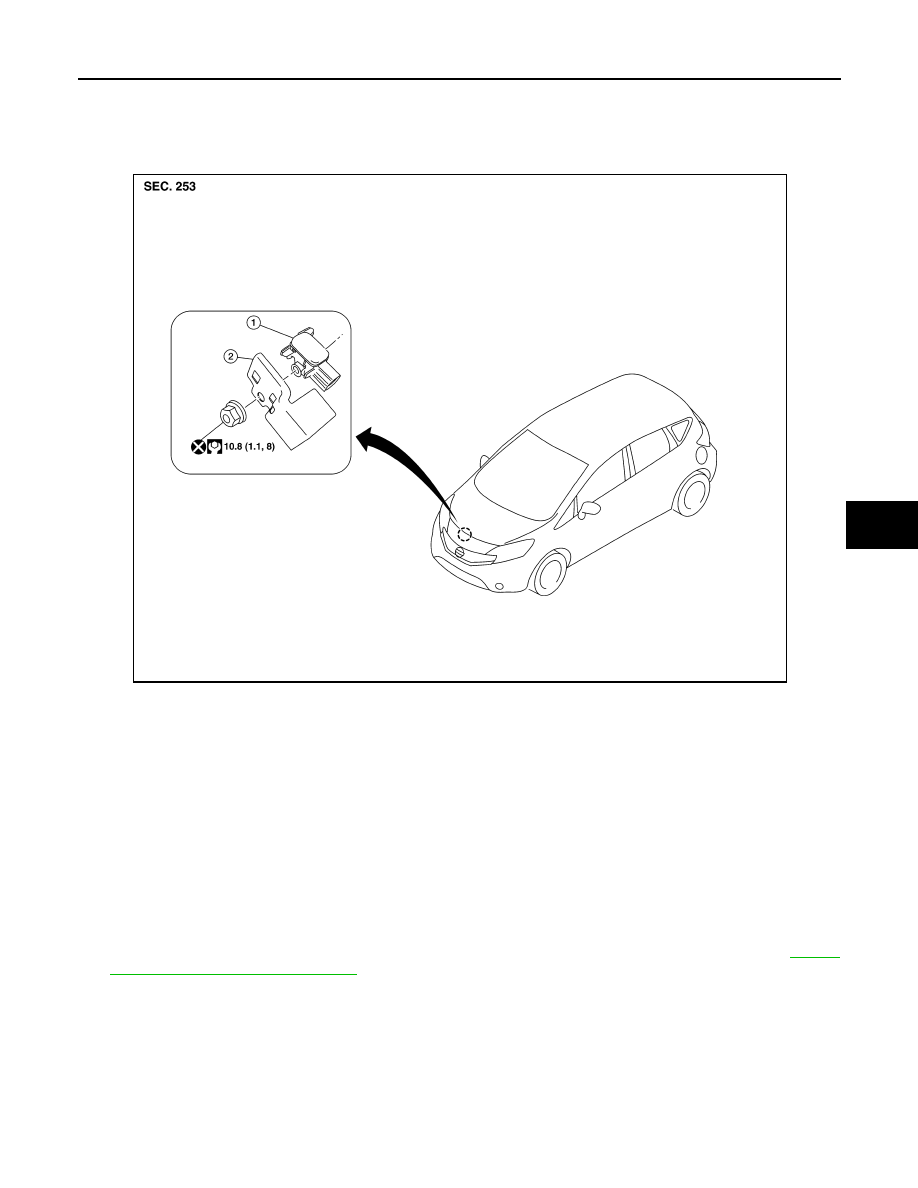

Exploded View

INFOID:0000000009486784

Removal and Installation

INFOID:0000000009486785

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Replace the crash zone sensor if it has been dropped or sustained an impact.

• Replace the crash zone sensor if either the driver air bag module, the front passenger air bag mod-

ule, or a front seat belt pre-tensioner has been deployed.

• Do not strike the crash zone sensor.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

1. Crash zone sensor

2. Bracket

ALHIA0305ZZ

SR-20

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

2. Remove and discard crash zone sensor nut (A).

CAUTION:

Do not reuse crash zone sensor nut.

3. Remove bracket (1) and crash zone sensor (2).

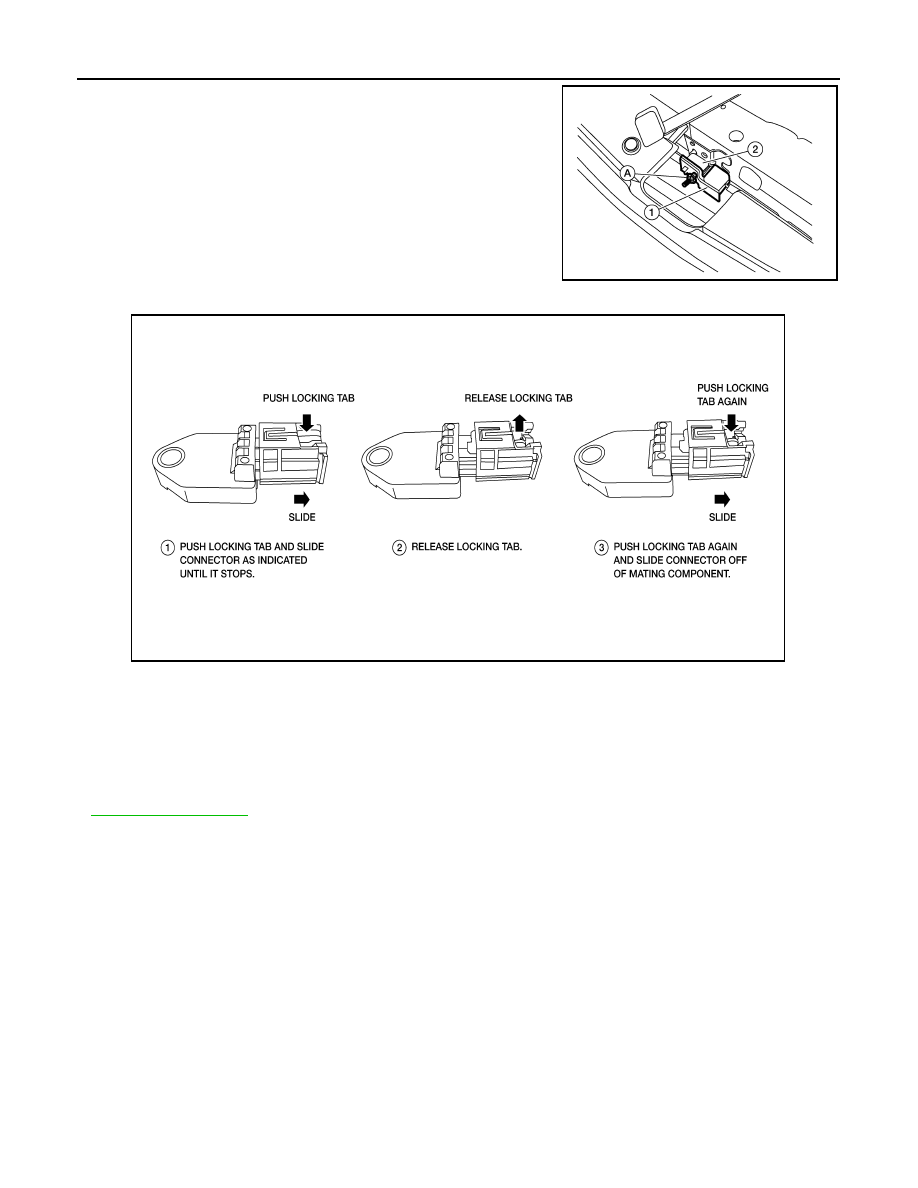

4. Disconnect the slide double locking type harness connector from the crash zone sensor, as shown.

INSTALLATION

Installation is in the reverse order of removal.

Position the crash zone sensor using the locating pin before tightening the nut to specification.

CAUTION:

• Do not reuse the crash zone sensor nut.

• Do not damage the harness connector during installation.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-9, "Description"

.

ALHIA0306ZZ
