Nissan Note E12. Manual - part 546

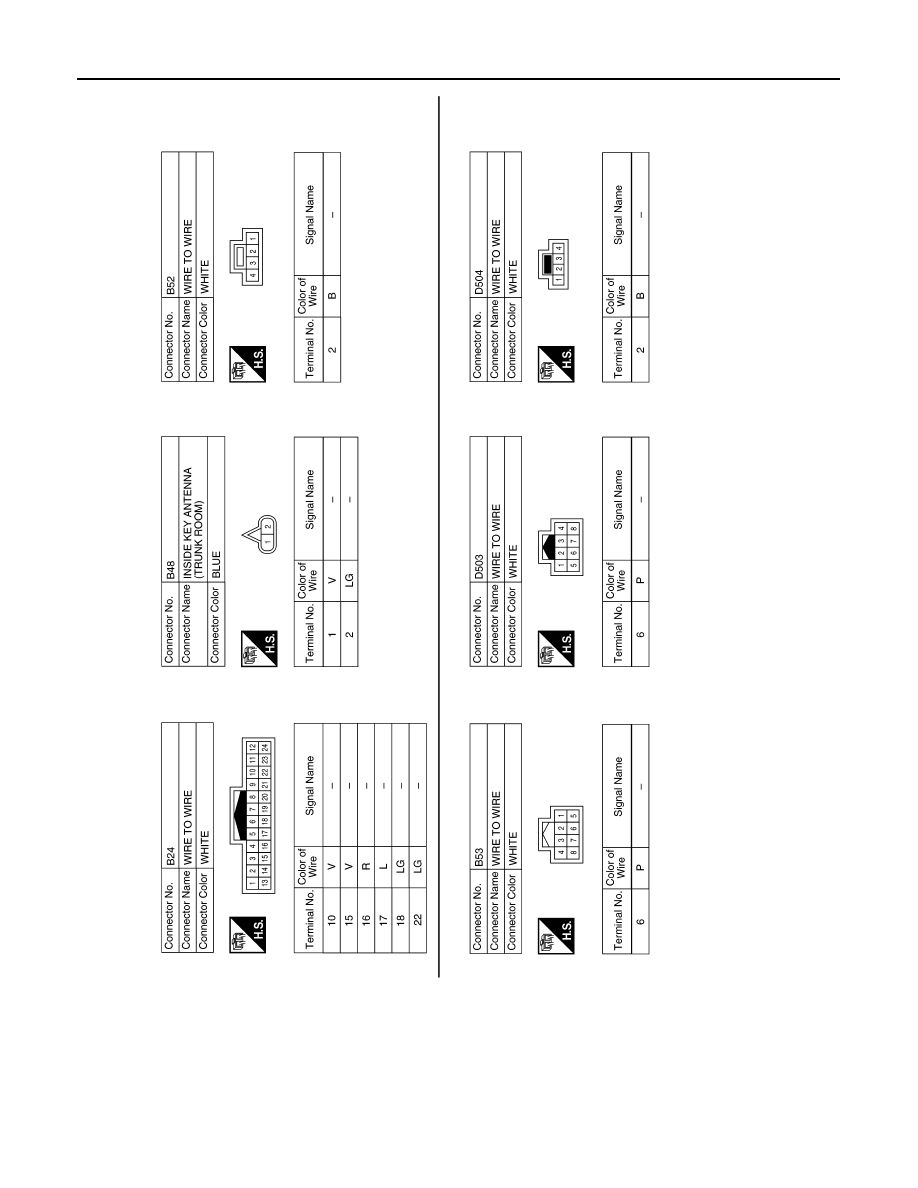

SEC-36

< WIRING DIAGRAM >

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

AAKIA1273GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

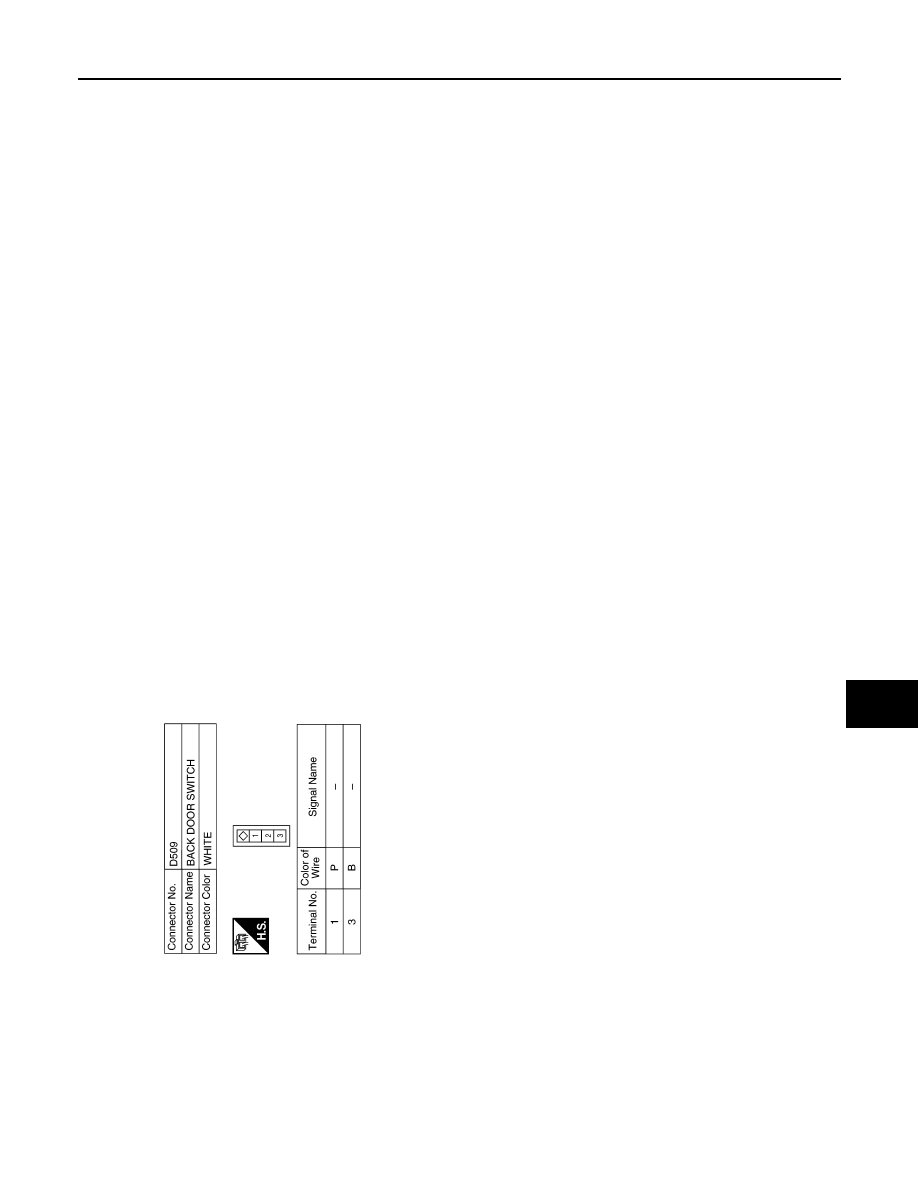

SEC-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1274GB

SEC-38

< WIRING DIAGRAM >

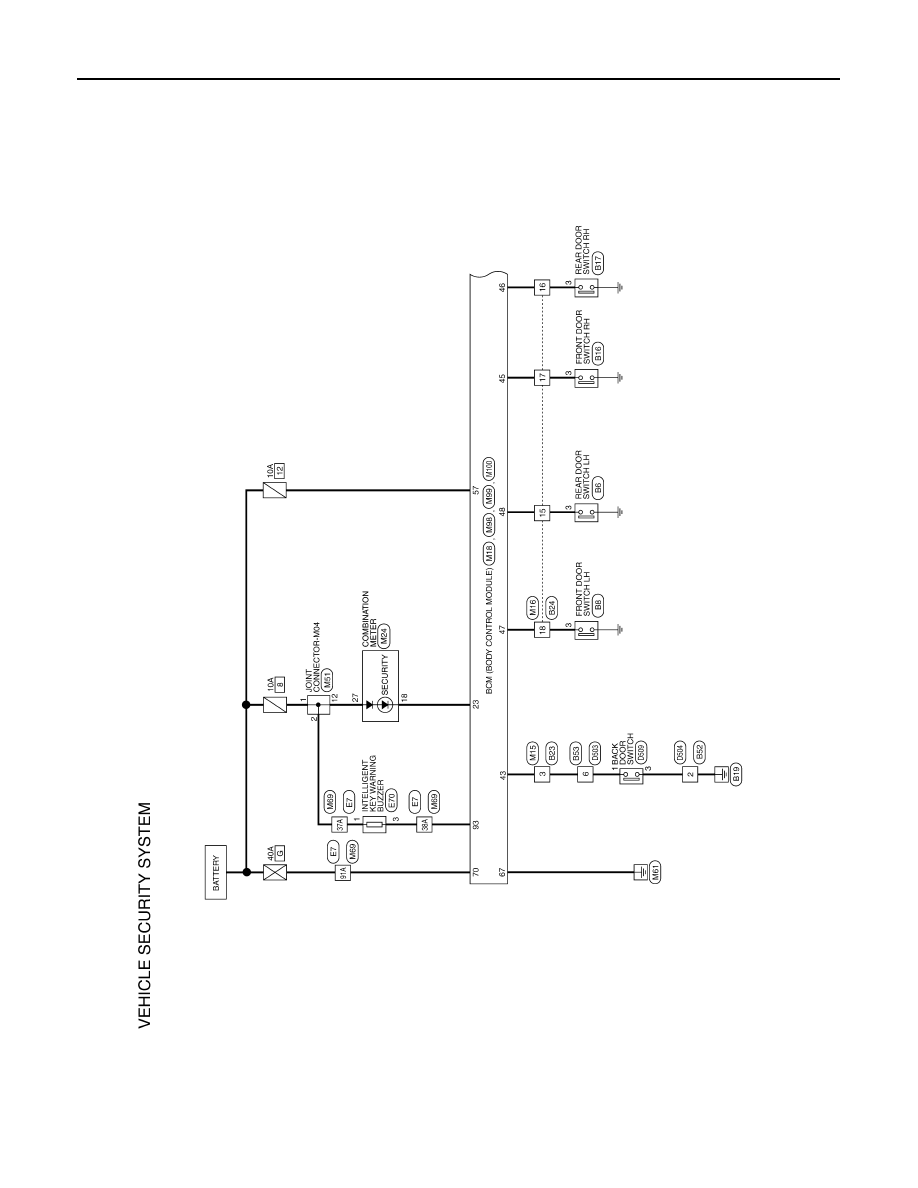

SECURITY CONTROL SYSTEM

SECURITY CONTROL SYSTEM

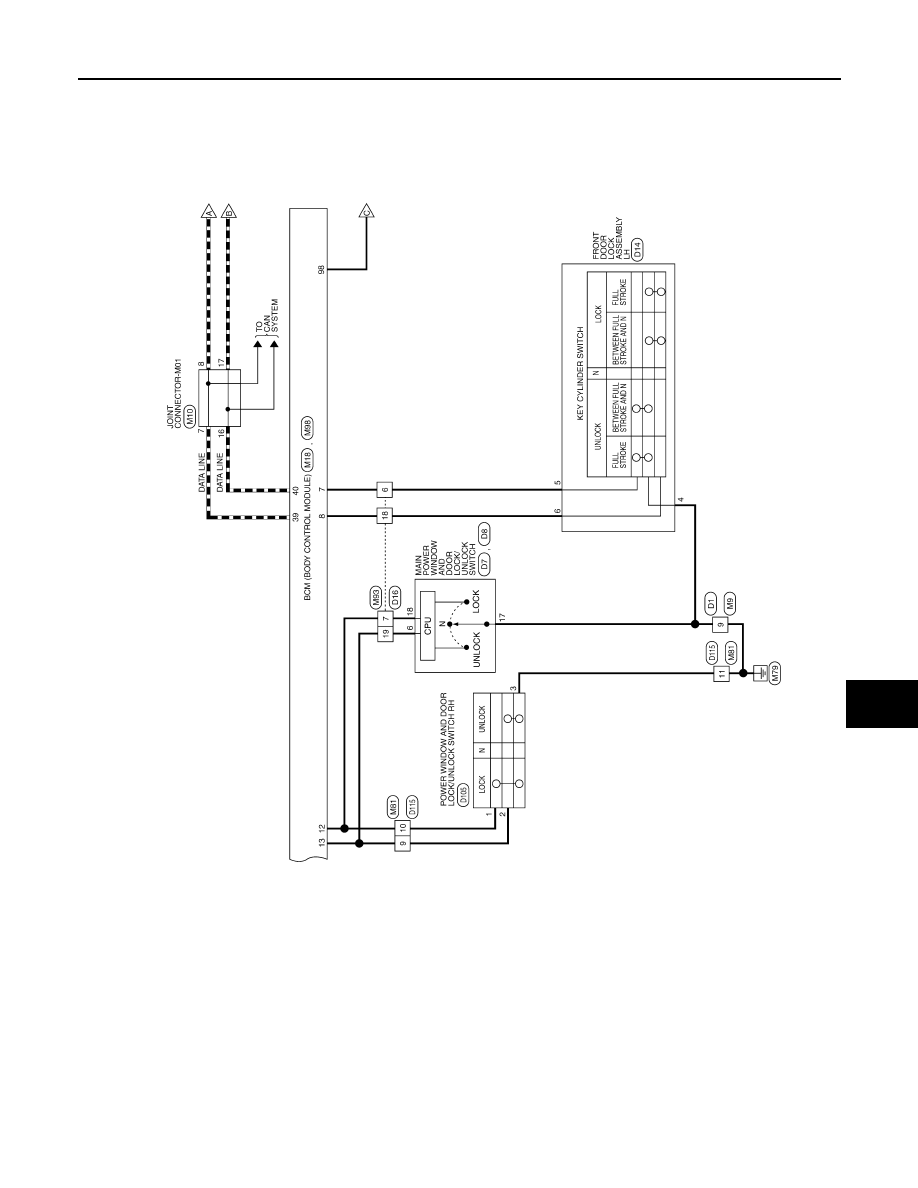

Wiring Diagram

INFOID:0000000009016102

AAKWA0640GB

SECURITY CONTROL SYSTEM

SEC-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0641GB
