Nissan Note E12. Manual - part 526

COMPONENT INSPECTION

SB-7

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

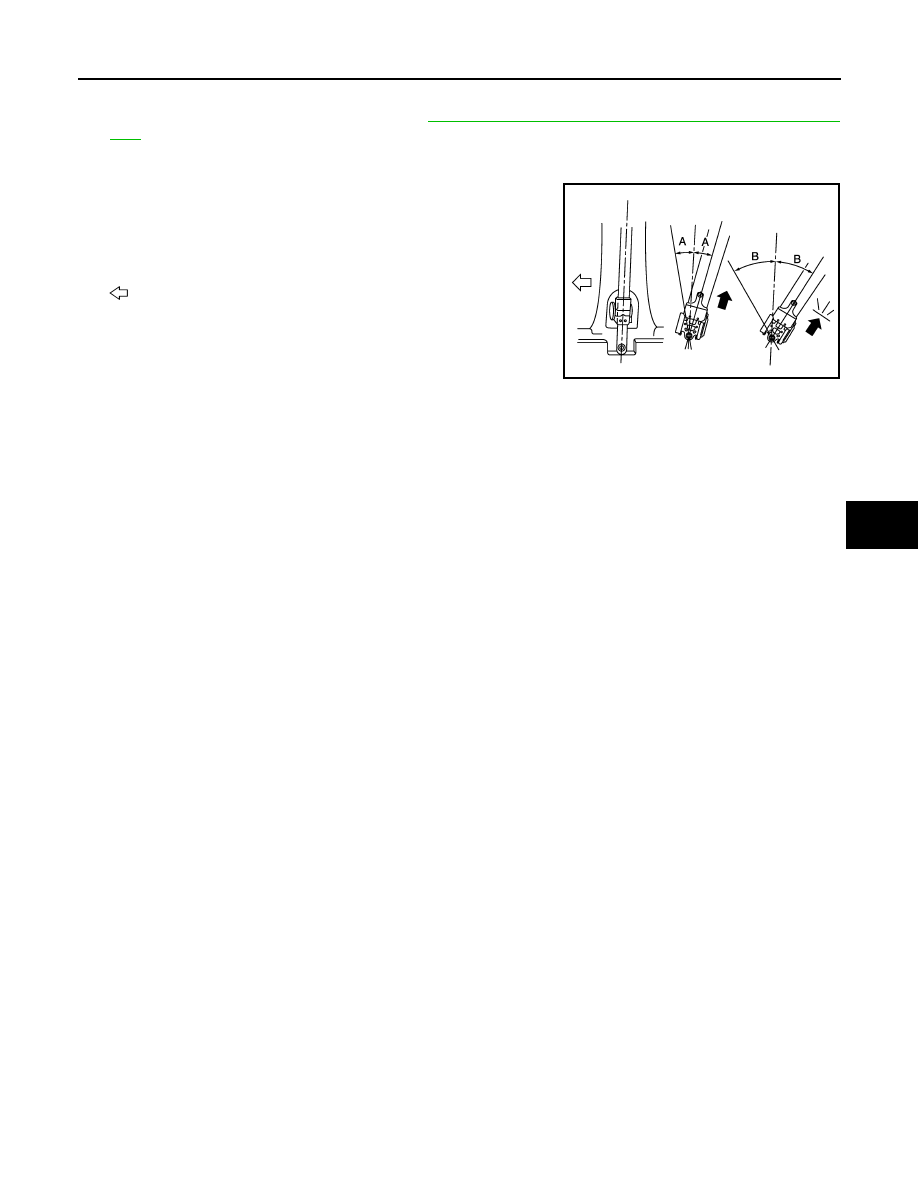

REAR SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1. Remove the rear seat belt retractor. Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2. Slowly pull out webbing while tilting the seat belt retractor forward from the mounted position without twist-

ing the seat belt retractor as shown.

A : The webbing can be pulled out if the retractor is tilted 17

°

degree or less.

B : The webbing can not be pulled out if the retractor is tilted 27

°

degrees or more.

NOTE:

A and B show tilting angles.

: Front

3. Replace the seat belt retractor if it does not operate within specifications.

JMHIA1056ZZ

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

REMOVAL AND INSTALLATION

FRONT SEAT BELT

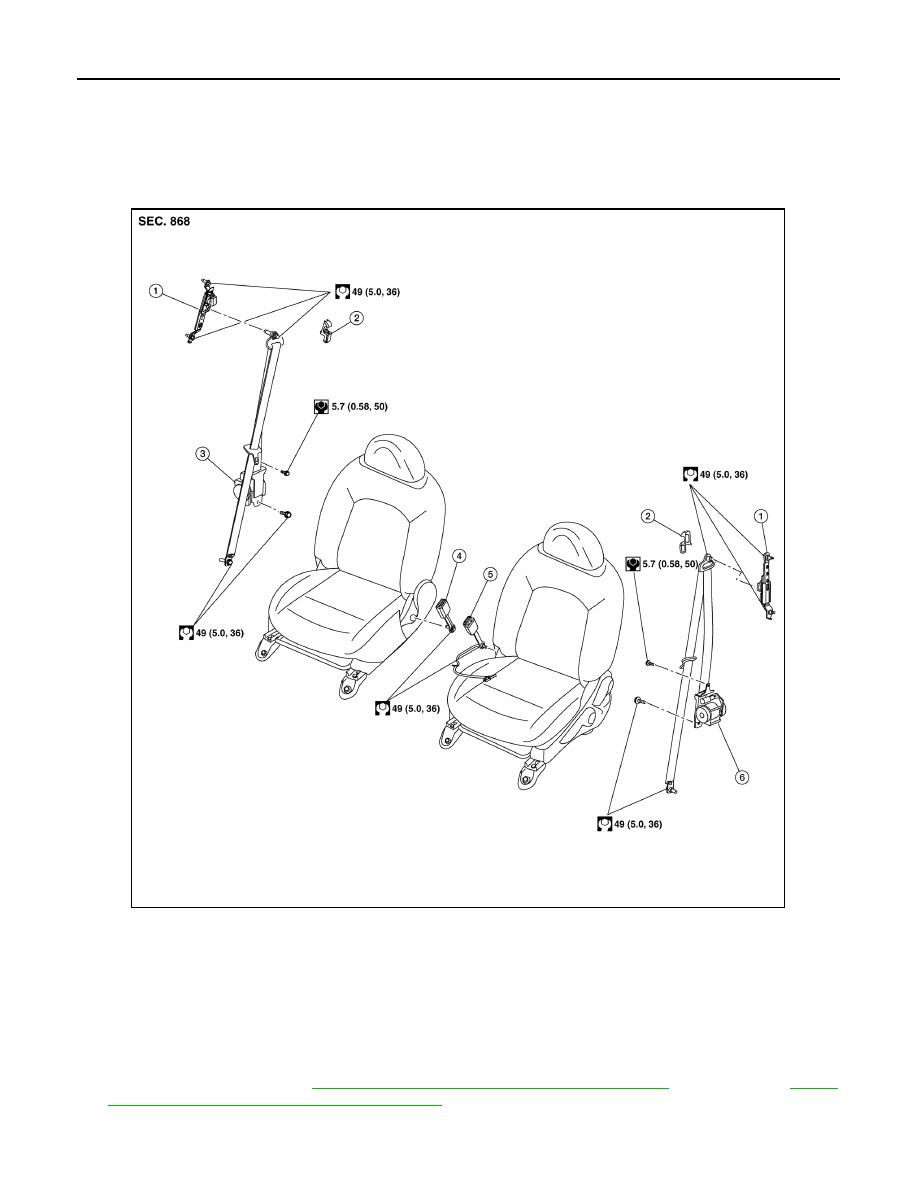

Exploded View

INFOID:0000000009561088

FRONT SEAT BELT BUCKLE
FRONT SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009654081

REMOVAL

1. Remove front seat. Refer to

SE-14, "DRIVER SIDE : Removal and Installation"

 (Driver Side) or

SE-16,

"PASSENGER SIDE : Removal and Installation"

 (Passenger Side).

2. Unclip seat belt buckle harness from the seat frame (driver side only).

1. Seat belt height adjuster (LH/RH) 2. Seat belt height adjuster finisher (LH/RH)

3. Seat belt retractor (RH)

4. Seat belt buckle (RH)

5. Seat belt buckle (LH)

6. Seat belt retractor (LH)

AWHIA0542ZZ

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

3. Remove seat belt buckle anchor bolt and the seat belt buckle.

CAUTION:

Before removing the seat belt buckle anchor bolt, note the positions of washers and spacers for

correct installation.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-8, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009561090

WARNING:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait at

least three minutes.

• Do not drop the seat belt retractor. Always handle it with care.

• Always point pretensioner cylinder away from body when handling.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

2. Slide front seat to the full forward position.
3. Remove center pillar lower finisher. Refer to

INT-23, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

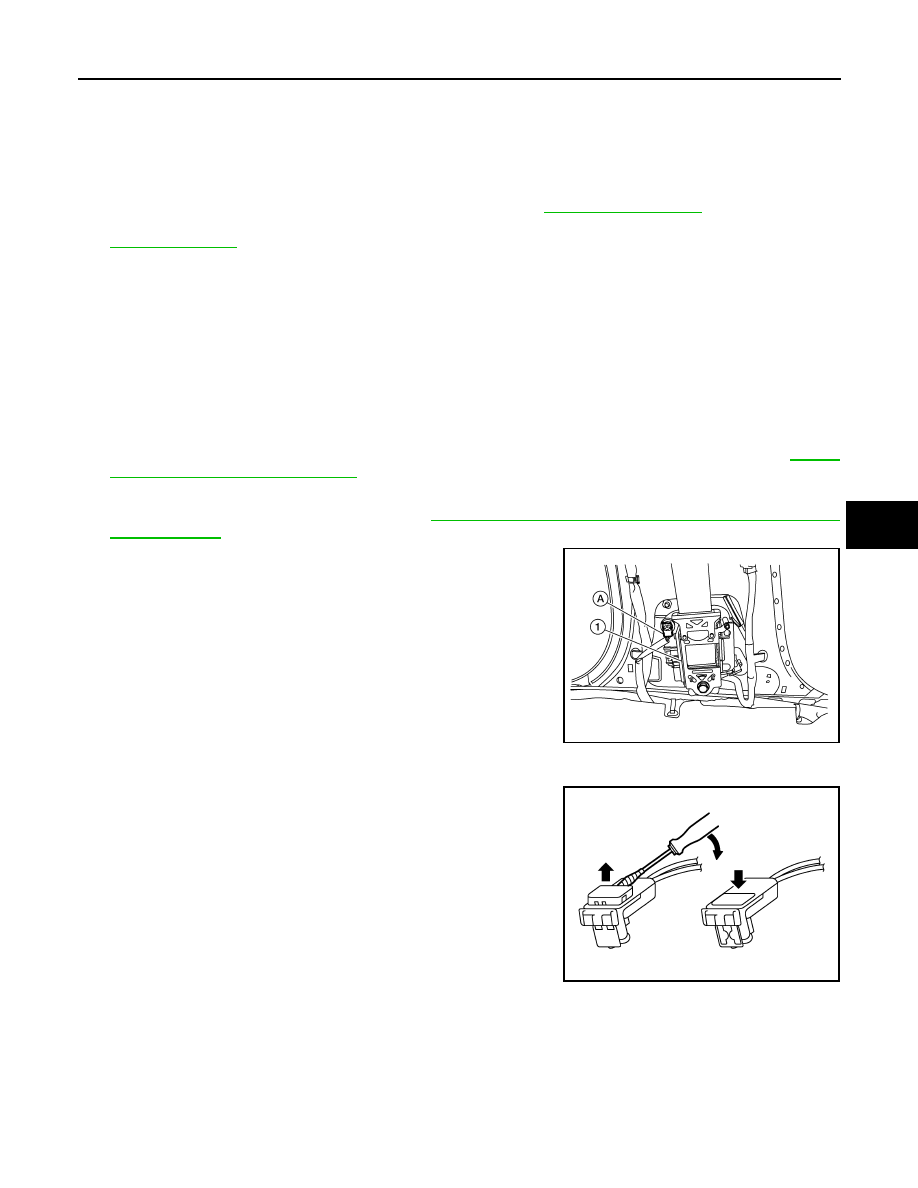

4. Disconnect the harness connector (A) from the seat belt retrac-

tor (1).

CAUTION:

• For removing/installing the shoulder belt pre-tensioner

harness connector, insert a thin screwdriver wrapped in

tape into the notch, then lift the lock and remove the har-

ness connector as shown.

• Install the harness connector with the lock raised, and

push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock

is pushed in securely.

5. Remove seat belt lower anchor bolt.

CAUTION:

Before removing the seat belt lower anchor bolt, note the positions of washers and spacers for

correct installation.

ALHIA0316ZZ

PHIA0953J

SB-10

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

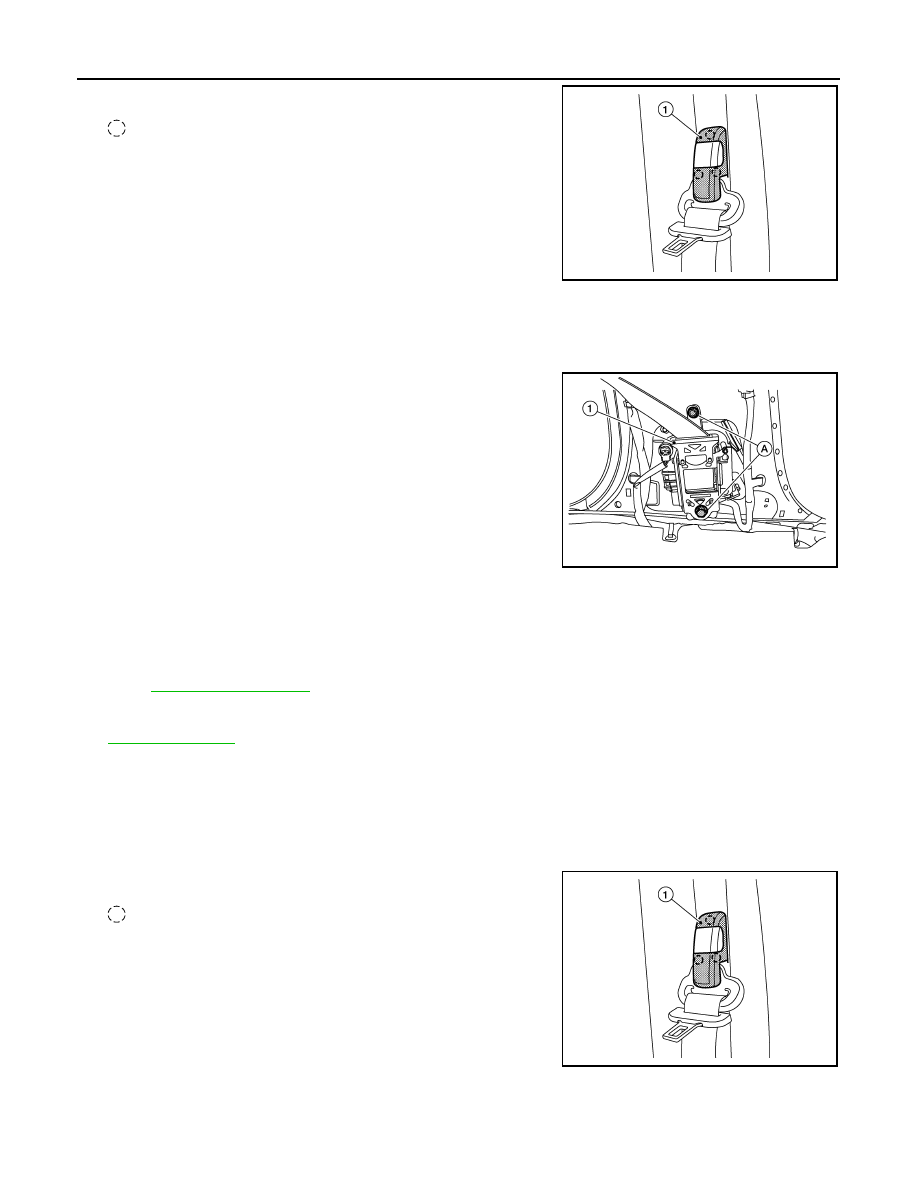

6. Release pawls, using a suitable tool and remove the seat belt

height adjuster finisher (1).

: Pawl

7. Remove D-ring anchor bolt.

CAUTION:

Before removing the D-ring anchor bolt, note the positions of washers and spacers for correct

installation.

8. Remove bolts (A) and the seat belt retractor (1).

INSTALLATION

Installation is in the reverse order of removal.

• Make sure the seat belt height adjuster is locked in the lowest position during installation.

• Install the seat belt retractor upper bolt first.

• Tighten the D-ring anchor bolt, seat belt lower anchor bolt, and the seat belt retractor bolts to specification.

Refer to

SB-8, "Exploded View"

.

• Make sure both the D-ring anchors and seat belt height adjuster operate freely.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SEAT BELT HEIGHT ADJUSTER
SEAT BELT HEIGHT ADJUSTER : Removal and Installation

INFOID:0000000009561091

REMOVAL

1. Slide front seat to the full forward position.
2. Release pawls, using a suitable tool and remove the seat belt

height adjuster finisher (1).

: Pawl

3. Remove D-ring anchor bolt.

CAUTION:

AWHIA0539ZZ

ALHIA0317ZZ

AWHIA0539ZZ
