Nissan Note E12. Manual - part 518

PWO

SERVICE DATA AND SPECIFICATIONS (SDS)

PWO-7

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Power Socket

INFOID:0000000009578840

Rated voltage

DC 12 V

Maximum electric capacity

120 W or less (Total)

Maximum current

10 A or less (Total)

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precautions for Wheel Hub .......................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tools ................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE  .........................

5

REAR WHEEL HUB ...........................................

5

Inspection .................................................................

5

REMOVAL AND INSTALLATION ................

6

REAR WHEEL HUB ...........................................

6

Exploded View ..........................................................

6

Removal and Installation  ..........................................

6

Disassembly and Assembly ......................................

7

Inspection .................................................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

10

Wheel Bearing  .........................................................

10

Wheel Hub ...............................................................

10

RAX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009499770

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precautions for Wheel Hub

INFOID:0000000009499771

Observe the following precautions when assembling wheel hub.

• Perform work in a location that is free from dust, dirt and debris.

• Use paper shop towels while performing repairs. Fabric shop cloths must not be used because of the danger

of lint adhering to parts.

• Do not drop any of the components such as the brake drum, wheel bearing, spindle, or wheel hub lock nut. If

any of these parts have been dropped, they must be replaced.

• Always check that the tools used to press-fit the wheel bearing to the brake drum have no wear and defor-

mation. Damaged tools will not guarantee that pressure can be applied vertically and damage parts.

PREPARATION

RAX-3

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PREPARATION

PREPARATION

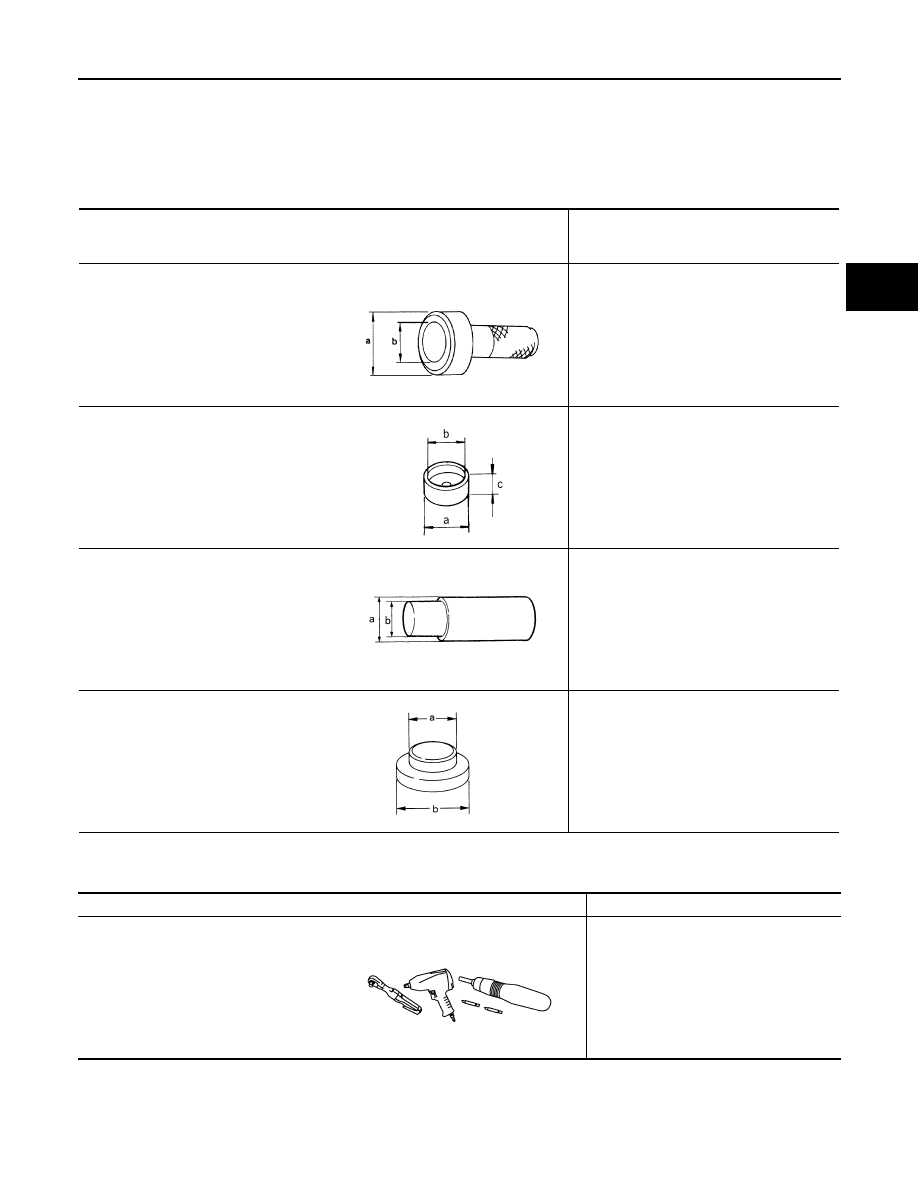

Special Service Tools

INFOID:0000000009499772

The actual shapes of Kent-Moore tools may differ from those of special tools illustrated here.

Commercial Service Tool

INFOID:0000000009499773

Tool number
(Kent-Moore No.)
Tool name

Description

ST30720000
(

—

)

Drift

Installing hub cap
a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.

KV40104730
(

—

)

Drift

Installing wheel bearing
a: 53.7 mm (2.114 in) dia.
b: 47 mm (1.85 in) dia.
c: 15 mm (0.59 in).

ST33710000
(

—

)

Drift

Removing wheel bearing
a: 30 mm (1.18 in) dia.
b: 23 mm (0.91 in) dia.

ST30032000
(

—

)

Drift

Installing sensor rotor
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.

ZZA0701D

ZZA1133D

ZZA1234D

ZZA0881D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E
