Nissan Note E12. Manual - part 486

PCS

PUSH-BUTTON IGNITION SWITCH

PCS-71

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NO

>> Replace push-button ignition switch. Refer to

PCS-74, "Removal and Installation"

.

PCS-72

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

SYMPTOM DIAGNOSIS

PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE

Description

INFOID:0000000009567621

Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check

each symptom.

NOTE:

The engine start function, door lock function, power distribution system, and NATS-IVIS/NVIS in the Intelligent

Key system are closely related to each other regarding control. The vehicle security function can operate only

when the door lock and power distribution system are operating normally.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT.

• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000009567622

1.

PERFORM WORK SUPPORT

Perform INSIDE ANT DIAGNOSIS in Work Support of INTELLIGENT KEY.

Refer to

PCS-37, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS RESULT

Perform Self Diagnostic Result of BCM.
Is any DTCs displayed?

YES

>> Refer to

BCS-46, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK PUSH-BUTTON IGNITION SWITCH

Check push-button ignition switch.

Refer to

PCS-69, "Component Function Check"

.

Is the operation normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

.

NO

>> GO TO 1.

PCS

BCM (BODY CONTROL MODULE)

PCS-73

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000009607422

For removal and installation of the BCM (Body Control Module), refer to

BCS-67, "Removal and Installation"

.

PCS-74

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000009607424

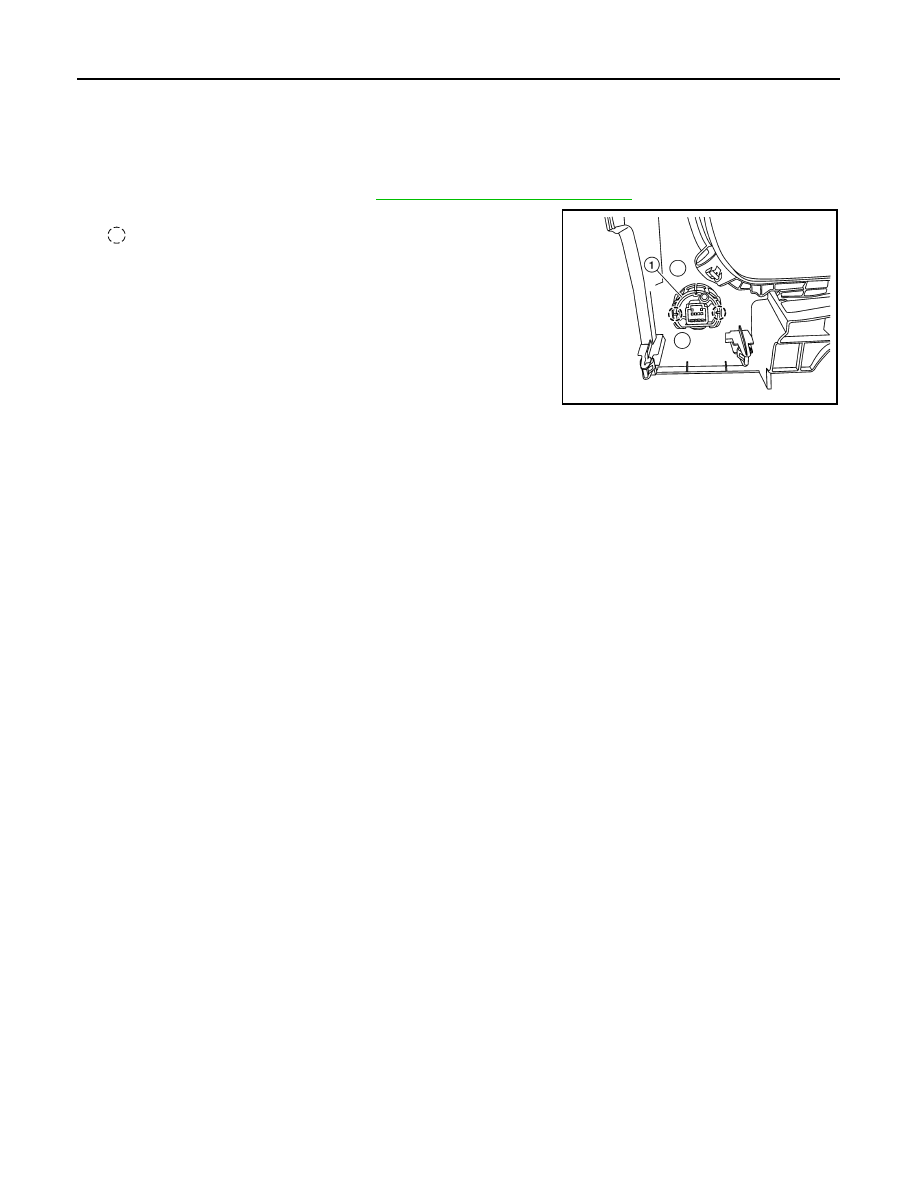

REMOVAL

1. Remove NATS antenna amp. Refer to

SEC-121, "Removal and Installation"

.

2. Release pawls and remove the push-button ignition switch (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3180ZZ
