Nissan Note E12. Manual - part 482

PCS

B2615 BLOWER RELAY CIRCUIT

PCS-55

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2615 BLOWER RELAY CIRCUIT

DTC Logic

INFOID:0000000009567602

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON, and wait for 1 second or more.

2. Perform Self-diagnosis result with CONSULT.
Is DTC B2615 displayed?

YES

>> Go to

PCS-57, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009567603

Regarding Wiring Diagram information, refer to

PCS-41, "Wiring Diagram"

.

1.

 CHECK BLOWER RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Remove blower relay.

3. Disconnect BCM connector M98.

4. Check continuity between blower relay connector J-1 and BCM connector M98.

5. Check continuity between Blower relay connector J-1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

 CHECK BLOWER RELAY GROUND CIRCUIT

Check continuity between Blower relay connector J-1 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

CONSULT Display

DTC Detection Condition

Possible Cause

BLOWER RELAY CIRCUIT
[B2615]

An immediate operation of front blower motor re-
lay is requested by BCM, but there is no re-
sponse for more than 1 second.

• Harness or connectors.
• Blower relay.
• Fuse block J/B.
• BCM.

Blower relay

BCM

Continuity

Connector

Terminal

Connector

Terminal

J-1

2

M98

106

Yes

Blower relay

Ground

Continuity

Connector

Terminal

J-1

2

—

No

Blower relay

Ground

Continuity

Connector

Terminal

J-1

1

—

Yes

PCS-56

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2615 BLOWER RELAY CIRCUIT

3.

 CHECK BLOWER RELAY

Perform the relay component inspection. Refer to

PCS-56, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace blower relay.

4.

 CHECK BLOWER RELAY POWER SUPPLY (BCM)

1. Turn ignition switch ON.

2. Check voltage between BCM connector M98 and ground.

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

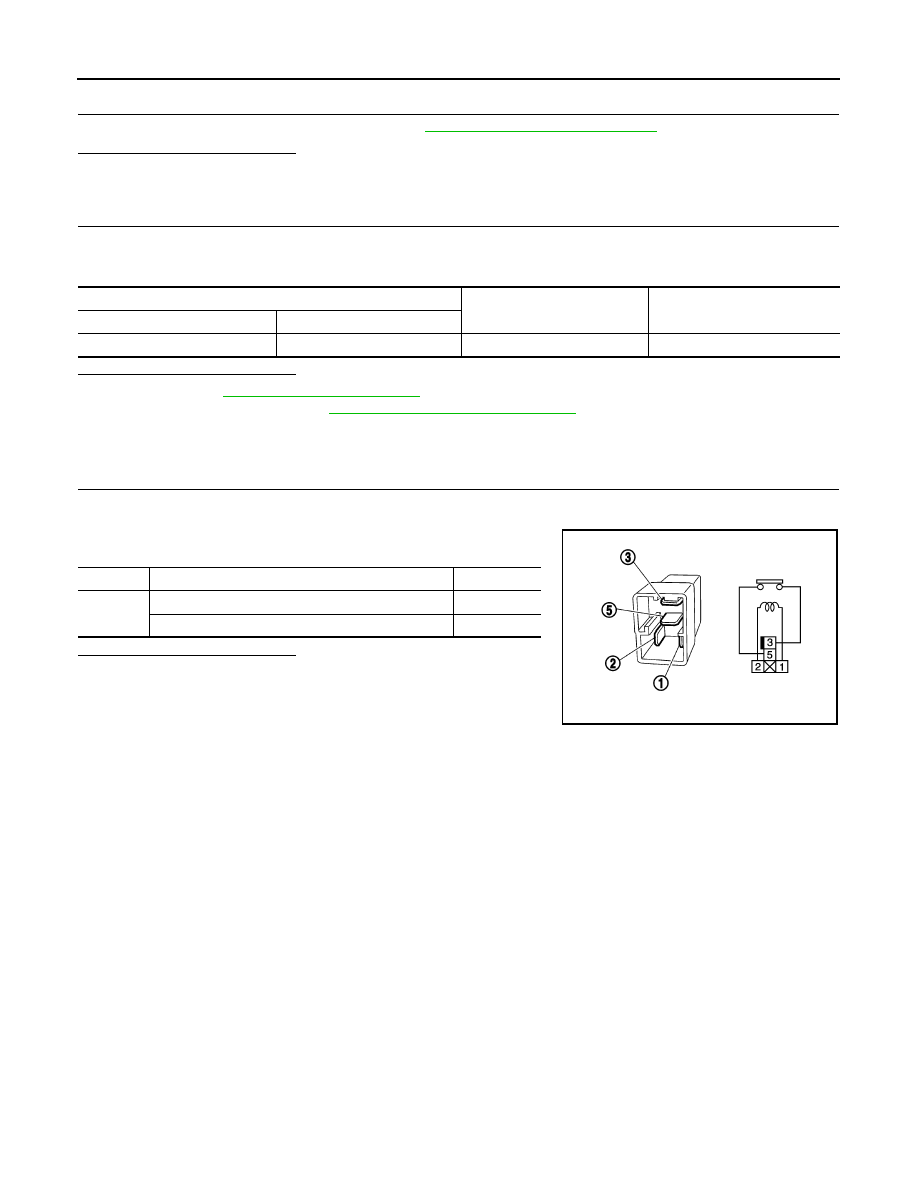

Component Inspection

INFOID:0000000009567604

1.

CHECK BLOWER RELAY

1. Turn blower switch OFF.

2. Remove blower relay.

3. Check continuity between blower relay terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace blower relay.

BCM

Ground

Voltage

(Approx.)

Connector

Terminal

M98

106

—

Battery voltage

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Yes

No current supply

No

PBIB0098E

PCS

B2616 IGNITION RELAY CIRCUIT

PCS-57

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2616 IGNITION RELAY CIRCUIT

DTC Logic

INFOID:0000000009567605

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

 PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

CVT selector lever is in the P (park) or N (neutral) position.

-

Release brake pedal

2. Perform Self Diagnostic Result of BCM with CONSULT.
Is DTC B2616 displayed?

YES

>> Refer to

PCS-57, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009567606

Regarding Wiring Diagram information, refer to

PCS-41, "Wiring Diagram"

.

1.

 CHECK IGNITION RELAY-2 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Remove ignition relay-2.

3. Disconnect BCM connector M98.

4. Check continuity between ignition relay-2 connector J-3 and BCM connector M98.

5. Check continuity between ignition relay-2 connector J-3 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

 CHECK IGNITION RELAY-2 GROUND CIRCUIT

Check continuity between ignition relay-2 connector J-3 and ground.

Is the inspection result normal?

CONSULT Display

DTC Detection Condition

Possible Cause

IGN RELAY2 CIRCUIT
[B2616]

An immediate operation of ignition relay-2 is re-
quested by BCM, but there is no response for
more than 1 second.

• Harness or connectors.
• Ignition relay-2.
• Fuse block J/B.
• BCM.

Ignition relay-2

BCM

Continuity

Connector

Terminal

Connector

Terminal

J-3

1

M98

99

Yes

Ignition relay-2

Ground

Continuity

Connector

Terminal

J-3

1

—

No

Ignition relay-2

Ground

Continuity

Connector

Terminal

J-3

2

—

Yes

PCS-58

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2616 IGNITION RELAY CIRCUIT

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

 CHECK IGNITION RELAY-2

Perform the relay component inspection. Refer to

PCS-58, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace ignition relay-2.

4.

 CHECK IGNITION RELAY-2 POWER SUPPLY (BCM)

1. Turn ignition switch ON.

2. Check voltage between BCM connector M98 and ground.

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

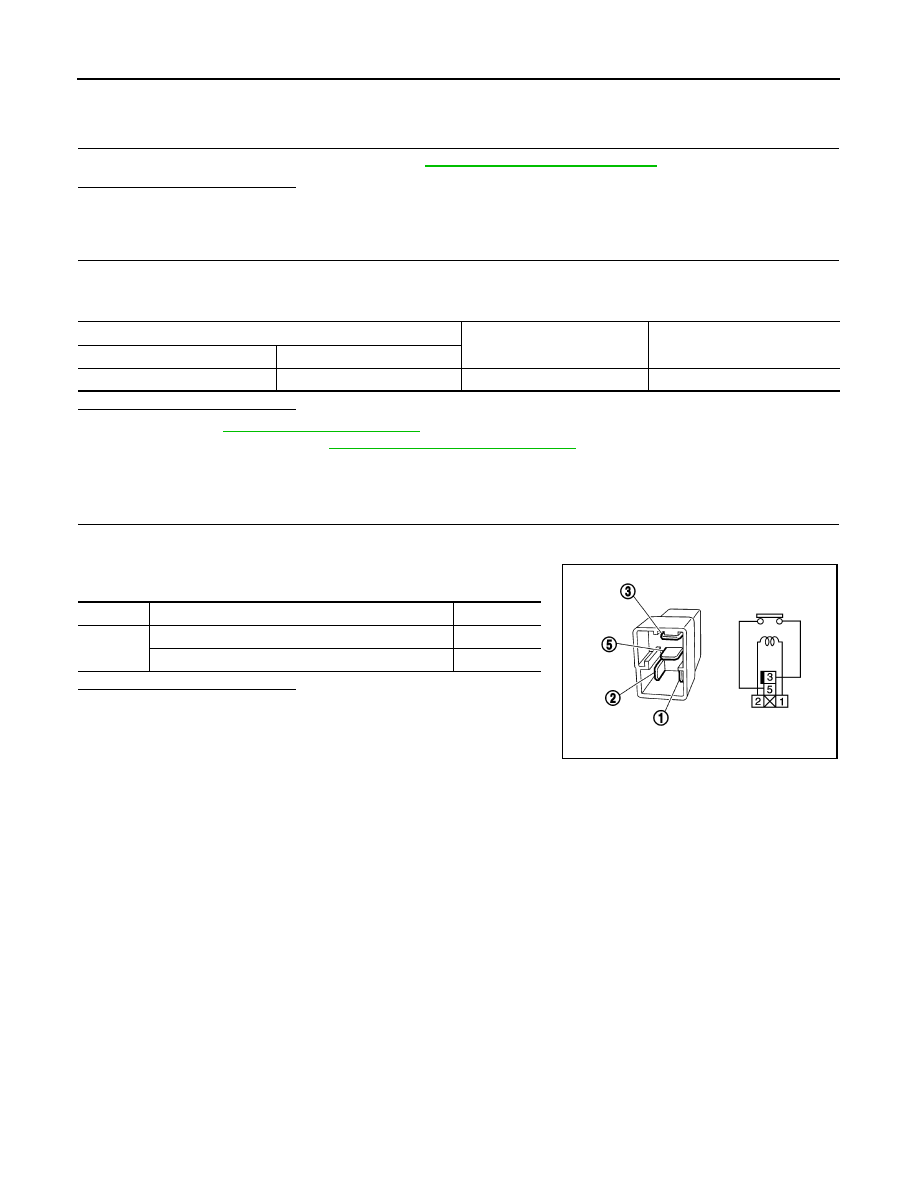

Component Inspection

INFOID:0000000009567607

1.

CHECK IGNITION RELAY

1. Turn ignition switch OFF.

2. Remove ignition relay-2.

3. Check the continuity between ignition relay-2 terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace ignition relay-2.

BCM

Ground

Voltage

(Approx.)

Connector

Terminal

M98

99

—

Battery voltage

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Yes

No current supply

No

PBIB0098E
