Nissan Note E12. Manual - part 446

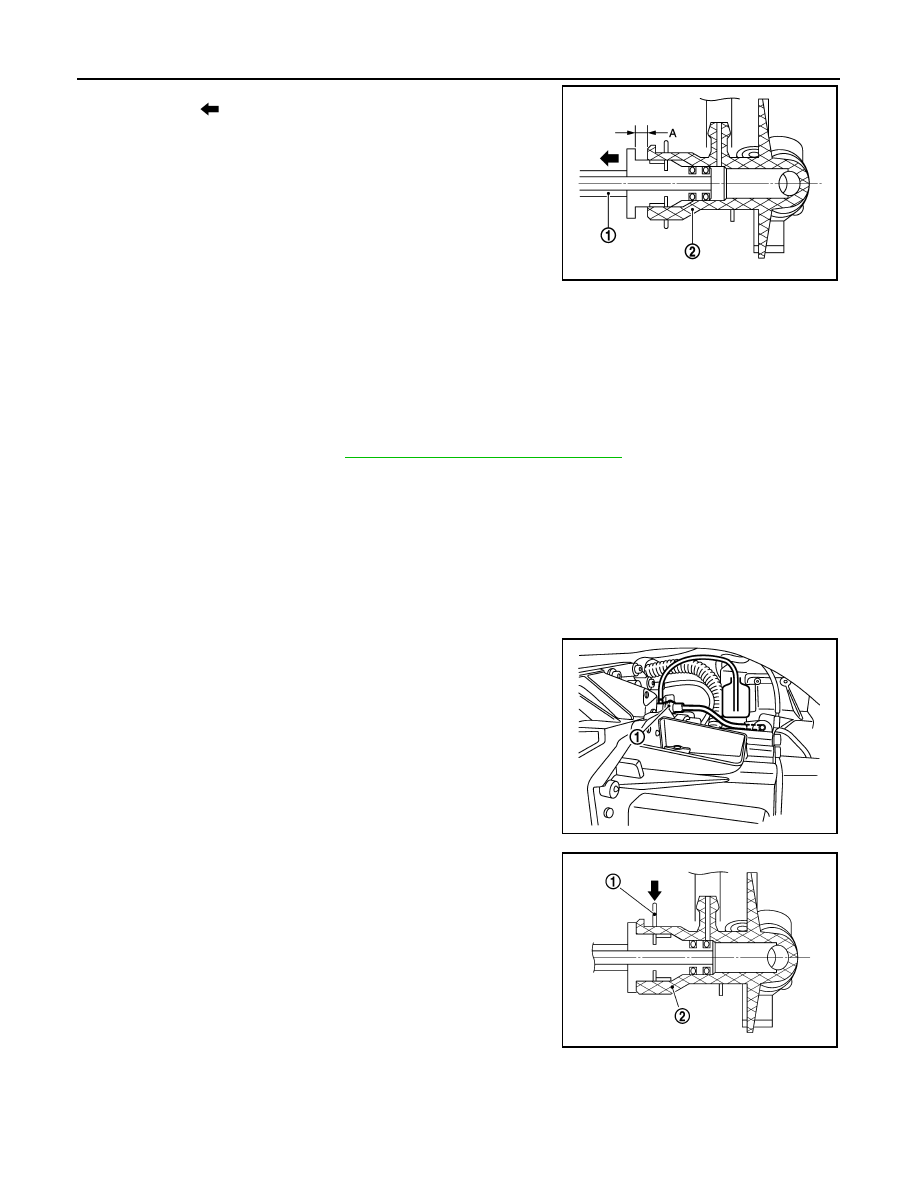

MA-32

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

4. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown.

5. Slowly depress clutch pedal to the full stroke position and then release the pedal.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the

bleeding connector.

6. Repeat step 5 at intervals of 2 or 3 seconds until new clutch fluid is discharged.

CAUTION:

Monitor clutch fluid level in reservoir tank so as not to empty the tank.

7. Return clutch tube and lock pin in their original positions while clutch pedal is depressed.
8. Perform the air bleeding. Refer to

MA-32, "CLUTCH FLUID : Air Bleeding"

CLUTCH FLUID : Air Bleeding

INFOID:0000000009670510

CAUTION:

• Monitor clutch fluid level in reservoir tank so as not to empty the tank.

• Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash

the affected area with water.

1. Fill reservoir tank with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

2. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

3. Depress and release the clutch pedal slowly and fully 15 times

at an interval of 2 to 3 seconds and release the clutch pedal.

4. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the

clutch tube to disconnect from the bleeding connector.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

JPDIB0144ZZ

PCIB1495E

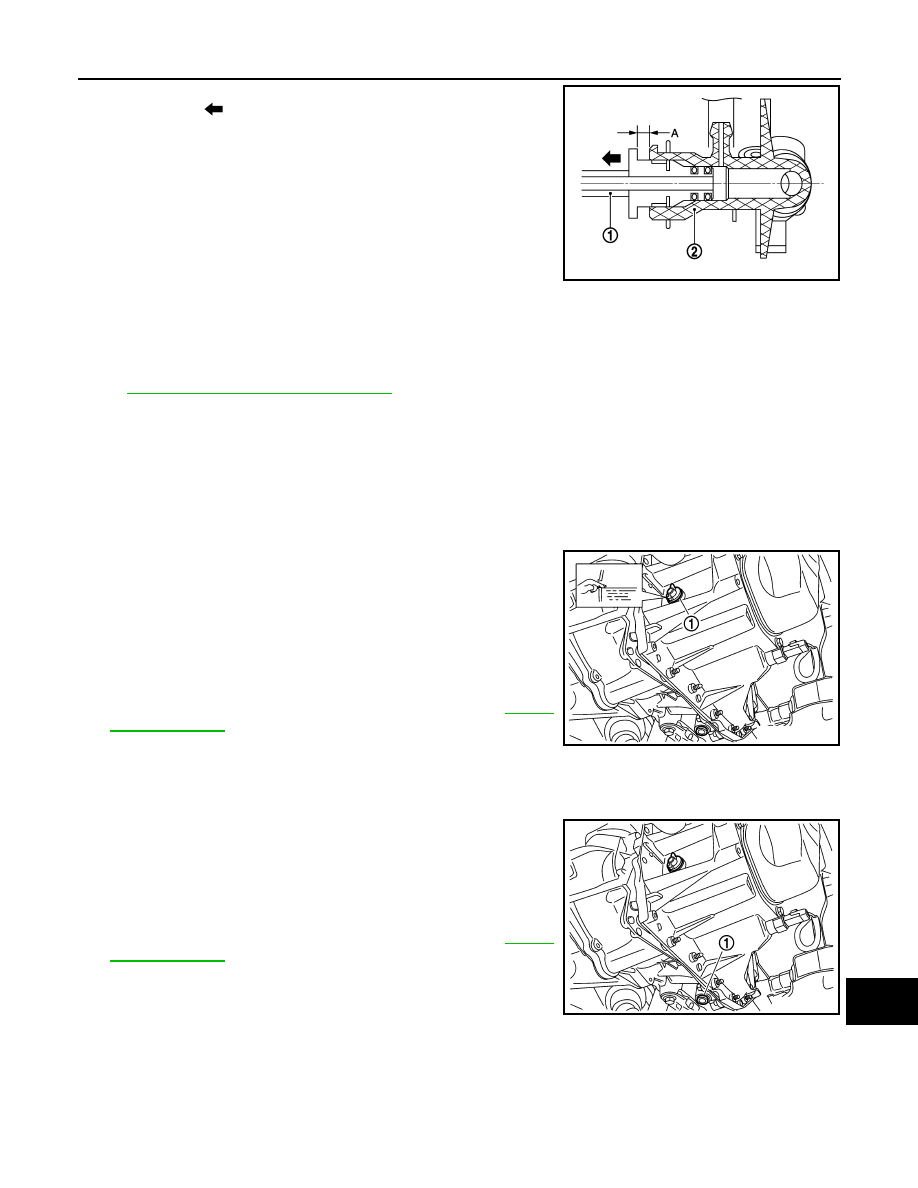

CHASSIS AND BODY MAINTENANCE

MA-33

< PERIODIC MAINTENANCE >

5. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown and immediately depress the clutch

pedal and hold it, to bleed the air from the system.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the

clutch tube to disconnect from the bleeding connector.

6. Return clutch tube and lock pin in their original positions.
7. Release clutch pedal and wait for 5 seconds.
8. Repeat steps 3 to 7 until no bubbles are observed in the clutch fluid.
9. Check that the clutch fluid level in the reservoir tank is within the specified range after air bleeding. Refer

MA-30, "CLUTCH FLUID : Inspection"

GEAR OIL
GEAR OIL : Inspection

INFOID:0000000009670511

GEAR OIL LEAKS

Make sure that gear oil is not leaking from transaxle or around it.

GEAR OIL LEVEL

1. Remove filler plug (1) and gasket from transaxle case.
2. Check the gear oil level from filler plug hole as shown.

CAUTION:

Do not start engine while checking gear oil level.

3. Install a new gasket on filler plug and then install filler plug to

transaxle case.

CAUTION:

Do not reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-25,

"Exploded View"

GEAR OIL : Draining

INFOID:0000000009670512

1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug (1) and gasket, using suitable

tool and then drain gear oil.

3. Install a new gasket on drain plug (1) and install drain plug to

clutch housing, using suitable tool.

CAUTION:

Do not reuse gasket.

4. Tighten drain plug (1) to the specified torque. Refer to

TM-25,

"Exploded View"

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

SCIA7119E

PCIB1504E

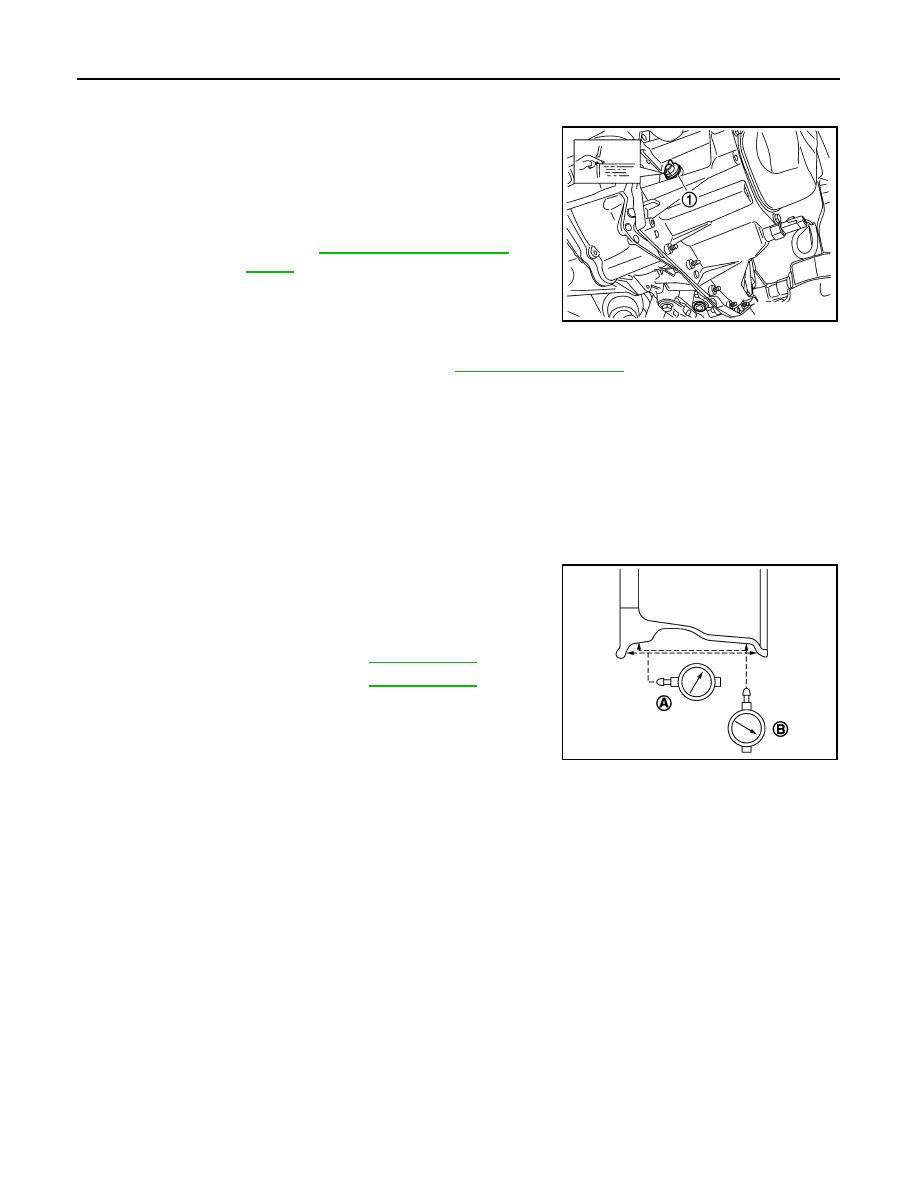

MA-34

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

GEAR OIL : Refilling

INFOID:0000000009670513

1. Remove filler plug (1) and gasket from transaxle case.
2. Fill with new gear oil until gear oil level reaches the specified

limit at filler plug hole as shown.

CAUTION:

Do not start engine while checking gear oil level.

3. Install a new gasket on filler plug and then install filler plug to

transaxle case.

CAUTION:

Do not reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-25, "Exploded View"

ROAD WHEEL
ROAD WHEEL : Inspection

INFOID:0000000009670515

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from wheel and mount wheel on a balancer machine.
b. Set dial indicator as shown.
c.

Check runout, if runout value exceeds the limit, replace wheel.

ROAD WHEEL : Adjustment

INFOID:0000000009670514

BALANCING WHEELS (ADHESIVE WEIGHT TYPE)

Preparation Before Adjustment

Remove inner and outer balance weights from the wheel and tire. Using releasing agent, remove double-faced

adhesive tape from the wheel and tire.

CAUTION:

• Be careful not to scratch the wheel and tire during removal.

• After removing double-faced adhesive tape, wipe clean all traces of releasing agent from the wheel

and tire.

Wheel Balance Adjustment

CAUTION:

• DO NOT use center hole cone-type clamping machines to hold the wheel during tire removal/installa-

tion or balancing or damage to the wheel paint, cladding or chrome may result. Use only rim-type or

universal lug-type clamping machines to hold the wheel during servicing.

• If a balancer machine has an adhesive weight mode setting, select the adhesive weight mode setting and

skip Step 2 below. If a balancer machine only has the clip-on (rim flange) weight mode setting, follow Step 2

to calculate the correct size adhesive weight.

1. Set wheel and tire on balancer machine using the center hole as a guide. Start the balancer machine.

Oil capacity
and viscosity

: Refer to

MA-12, "Fluids and Lubri-

cants"

SCIA7119E

Limit
Axial Runout (A)

Refer to

WT-9, "Wheel"

Radial Runout (B)

Refer to

WT-9, "Wheel"

SEIA0737E

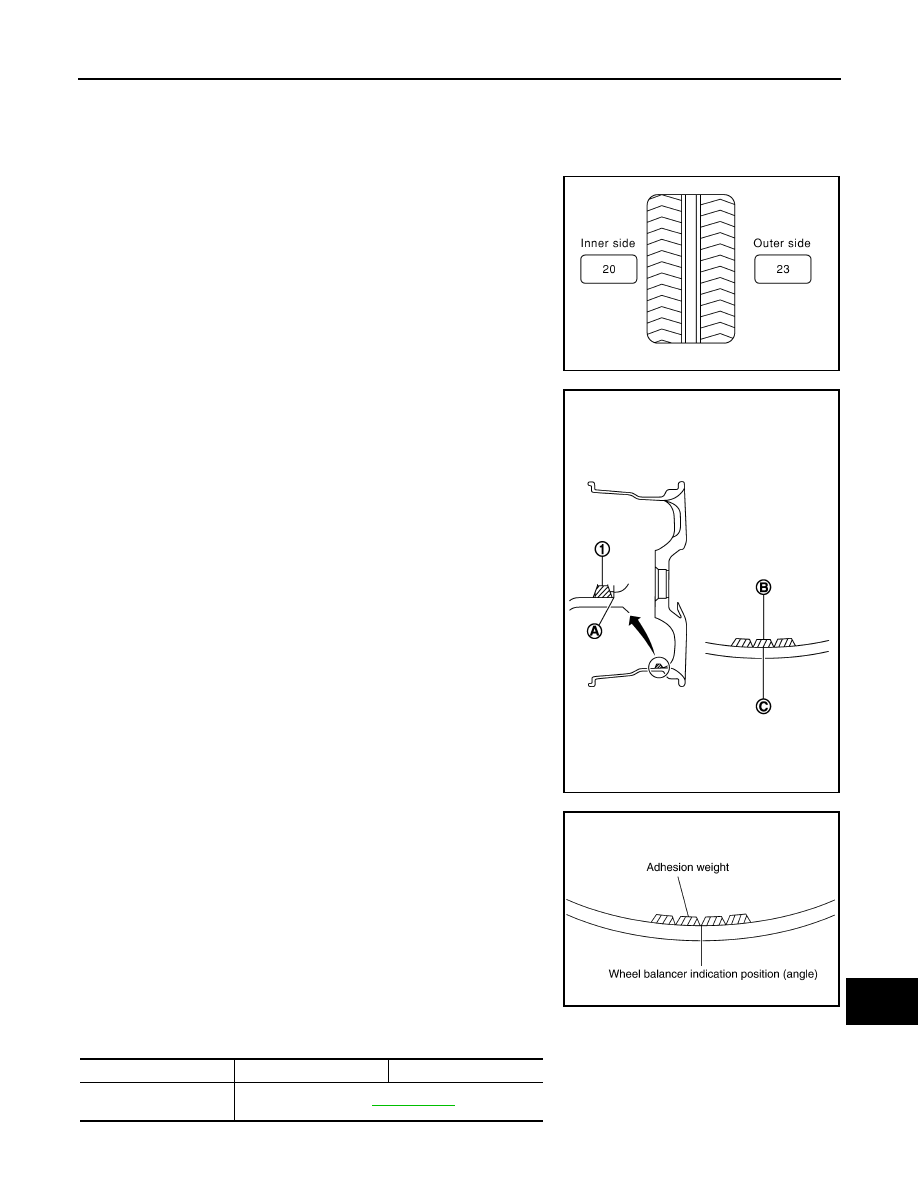

CHASSIS AND BODY MAINTENANCE

MA-35

< PERIODIC MAINTENANCE >

2. For balancer machines that only have a clip-on (rim flange) weight mode setting, follow this step to calcu-

late the correct size adhesive weight to use. When inner and outer imbalance values are shown on the

balancer machine indicator, multiply outer imbalance value by 5/3 (1.67) to determine balance weight that

should be used. Select the outer balance weight with a value closest to the calculated value above and

install in to the designated outer position of or at the designated angle in relation to the wheel and tire.

a. Indicated imbalance value

× 5/3 (1.67) = balance weight to be

installed

Calculation example:

23 g (0.81 oz)

× 5/3 (1.67) = 38.33 g (1.35 oz) ⇒ 40 g (1.41 oz)

balance weight (closer to calculated balance weight value)

NOTE:

Note that balance weight value must be closer to the calculated

balance weight value.

Example:

37.4

⇒ 35 g (1.23 oz)

37.5

⇒ 40 g (1.41 oz)

3. Install balance weight in the position shown.

CAUTION:

• Do not install the inner balance weight before installing

the outer balance weight.

• Before installing the balance weight, be sure to clean the

mating surface of the wheel and tire.

• When installing balance weight (1) to wheel and tire, set it into

the grooved area (A) on the inner wall of the wheel and tire as

shown so that the balance weight center (B) is aligned with the

balancer machine indication position (angle) (C).

CAUTION:

• Always use Genuine NISSAN adhesive balance weights.

• Balance weights are non-reusable; always replace with

new ones.

• Do not install more than three sheets of balance

weights.

4. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top of another.

5. Start balancer machine again.
6. Install balance weight on inner side of wheel and tire in the bal-

ancer machine indication position (angle).

CAUTION:

Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual

imbalance values are 5 g (0.17 oz) each or below.

8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

SMA054D

JPEIC0040ZZ

Wheel balance

Dynamic (At flange)

Static (At flange)

Maximum allowable im-
balance

Refer to

WT-9, "Wheel"

PEIA0033E
