CENTER CONSOLE ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

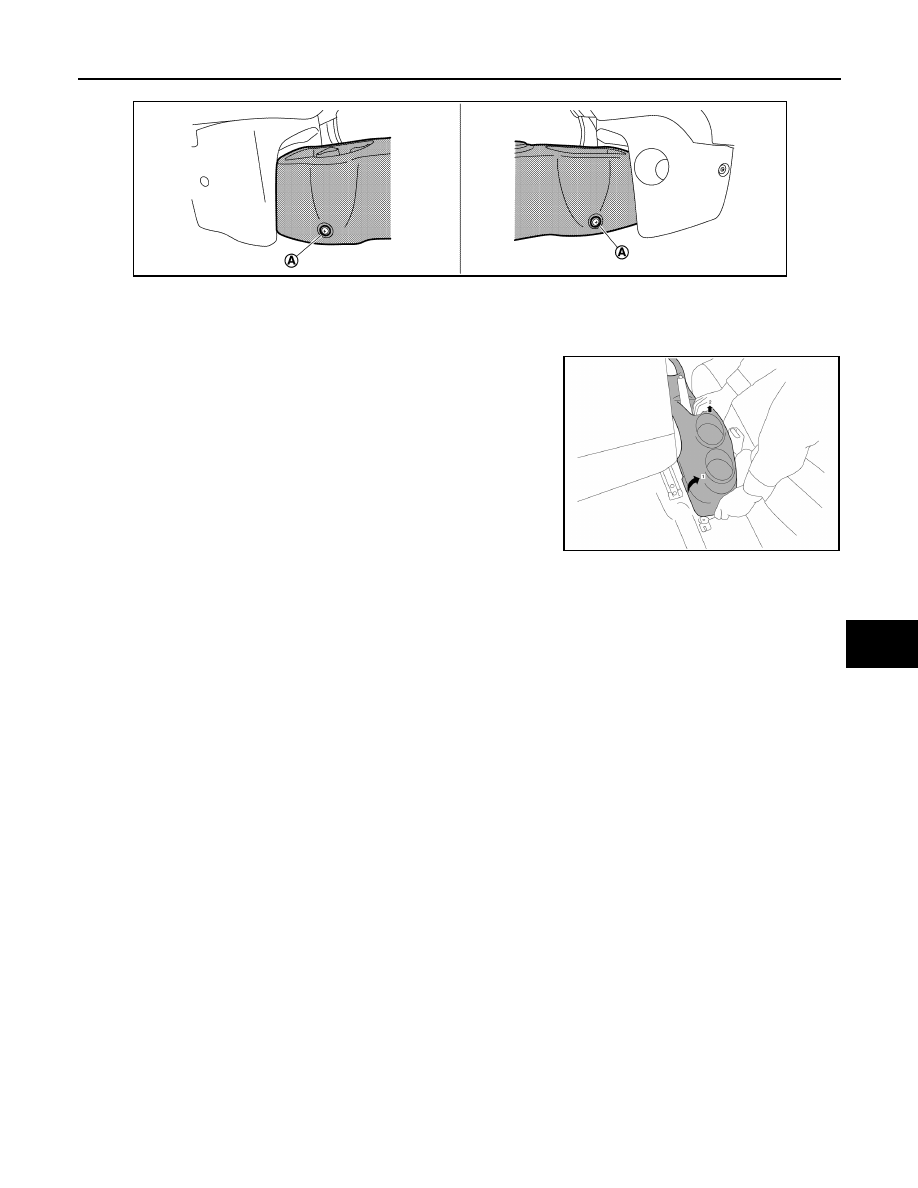

4. Remove center console assembly clips (A).

5. Remove the center console assembly rear screws.
6. Slide driver side seat to the full rearward position and recline.
7. Slide passenger side seat to the full rearward position and recline.
8. Lift rear right corner of center console assembly, rotating slightly,

making sure to lift assembly upward over the parking brake han-

dle.

9. Disconnect the harness connectors from the center console

assembly.

10. Remove center console assembly.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6093ZZ

AWJIA0695ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE LOWER

CENTER CONSOLE LOWER

Removal and Installation

INFOID:0000000009567645

REMOVAL

1. Remove center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove center console lower.

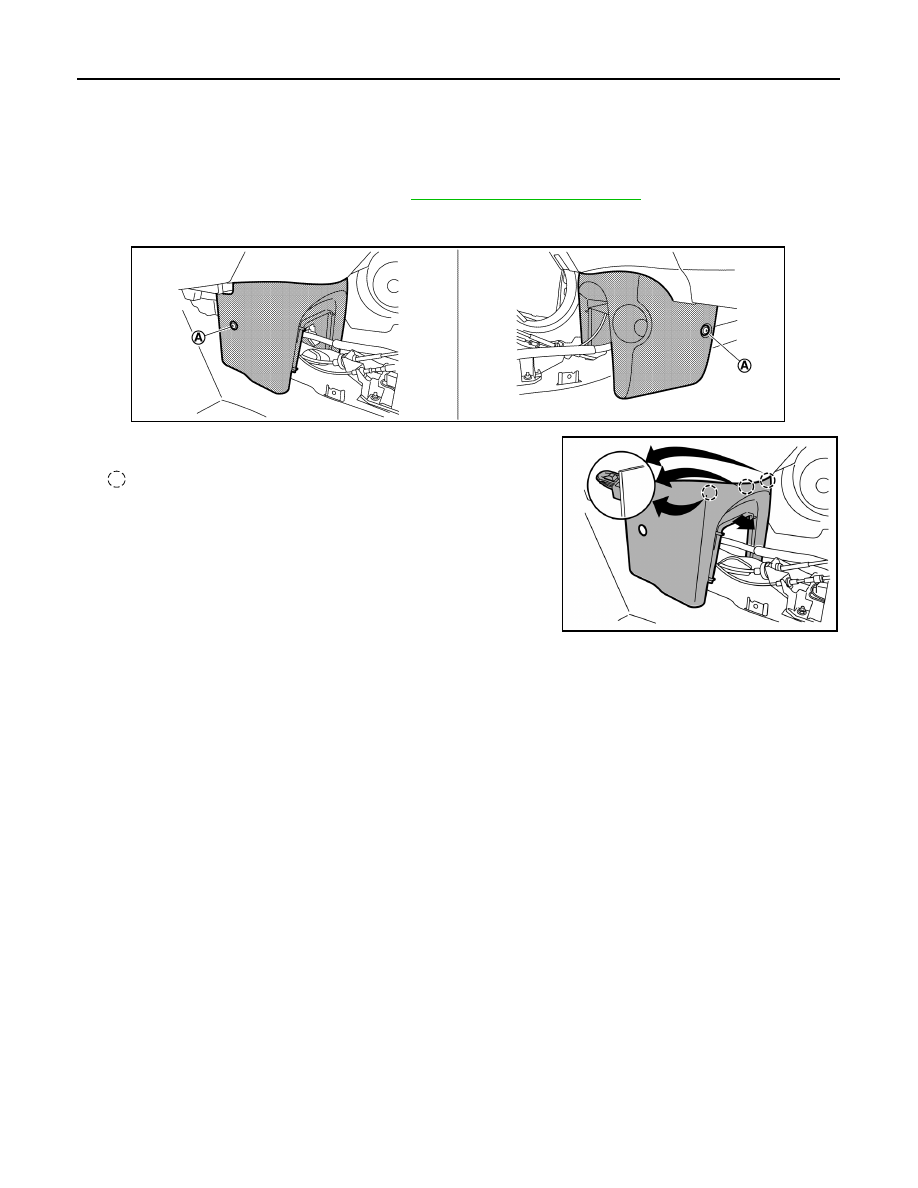

a. Remove center console lower clips (LH/RH) (A).

b. Release center console lower pawls using a suitable tool and

remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6052ZZ

AWJIA0706ZZ

CLUSTER LID A

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal and Installation

INFOID:0000000009567646

REMOVAL

1. Remove steering column covers. Refer to

IP-17, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

3. Remove cluster lid A.

a. Remove combination meter finisher and cluster lid A as an assembly by pulling rearward to release pawls

and metal clips.

b. Disconnect the harness connector and remove cluster lid A.

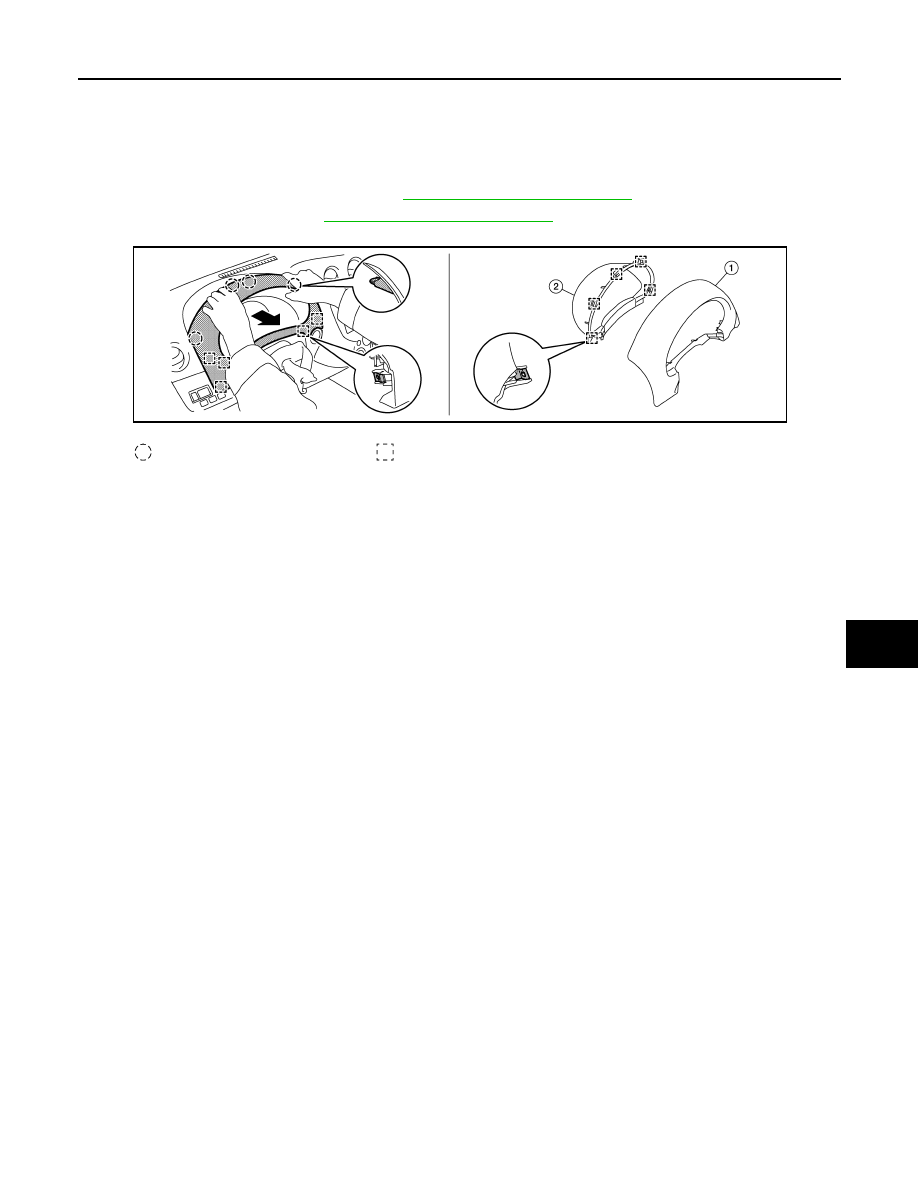

c. Separate cluster lid A (2) from combination meter finisher (1) by releasing the metal clips (If necessary).

INSTALLATION

Installation is in the reverse order of removal.

Pawl

Metal clip

AWJIA1075ZZ

IP-22

< REMOVAL AND INSTALLATION >

CLUSTER LID C

CLUSTER LID C

Removal and Installation

INFOID:0000000009567647

REMOVAL

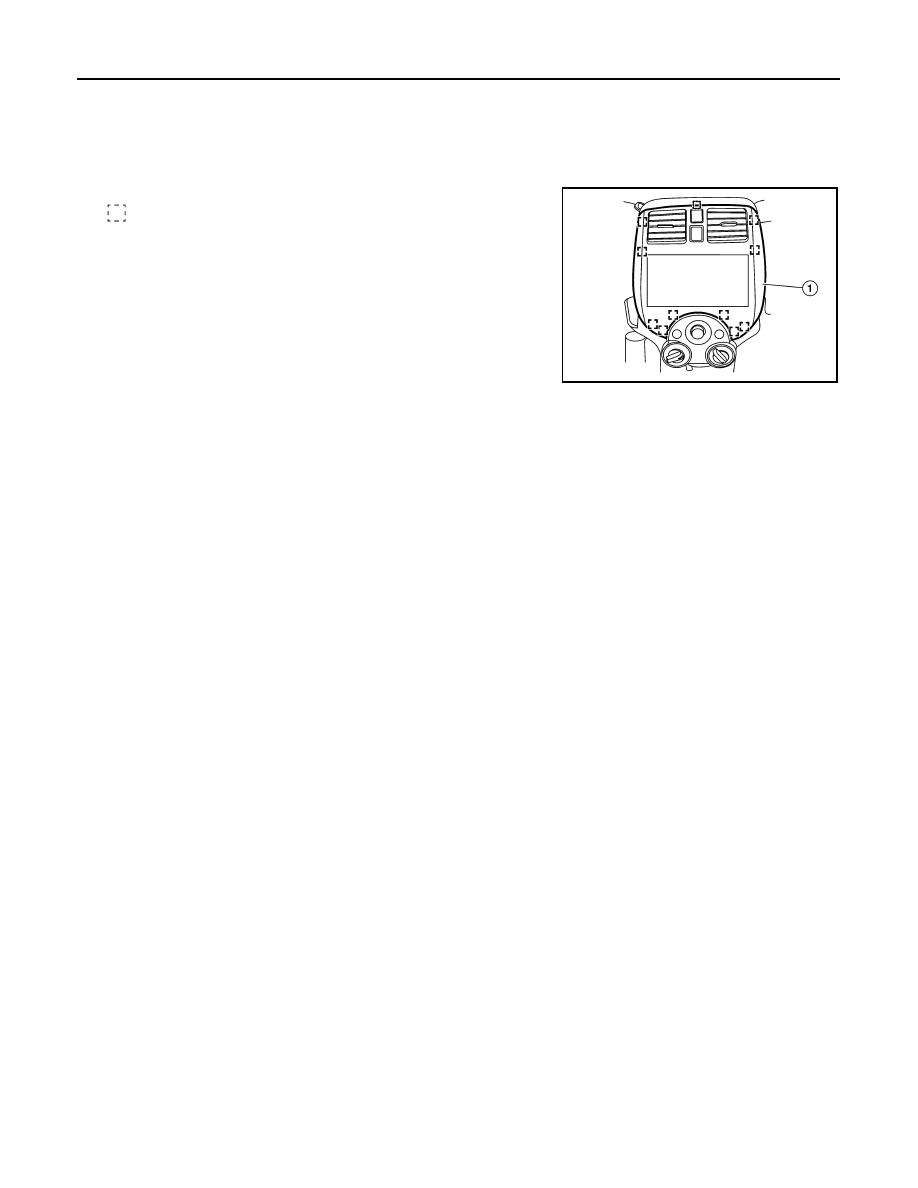

1. Release the cluster lid C (1) clips using a suitable tool.

: Metal clip

2. Disconnect harness connectors from cluster lid C and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1231ZZ
