REAR DOOR FINISHER

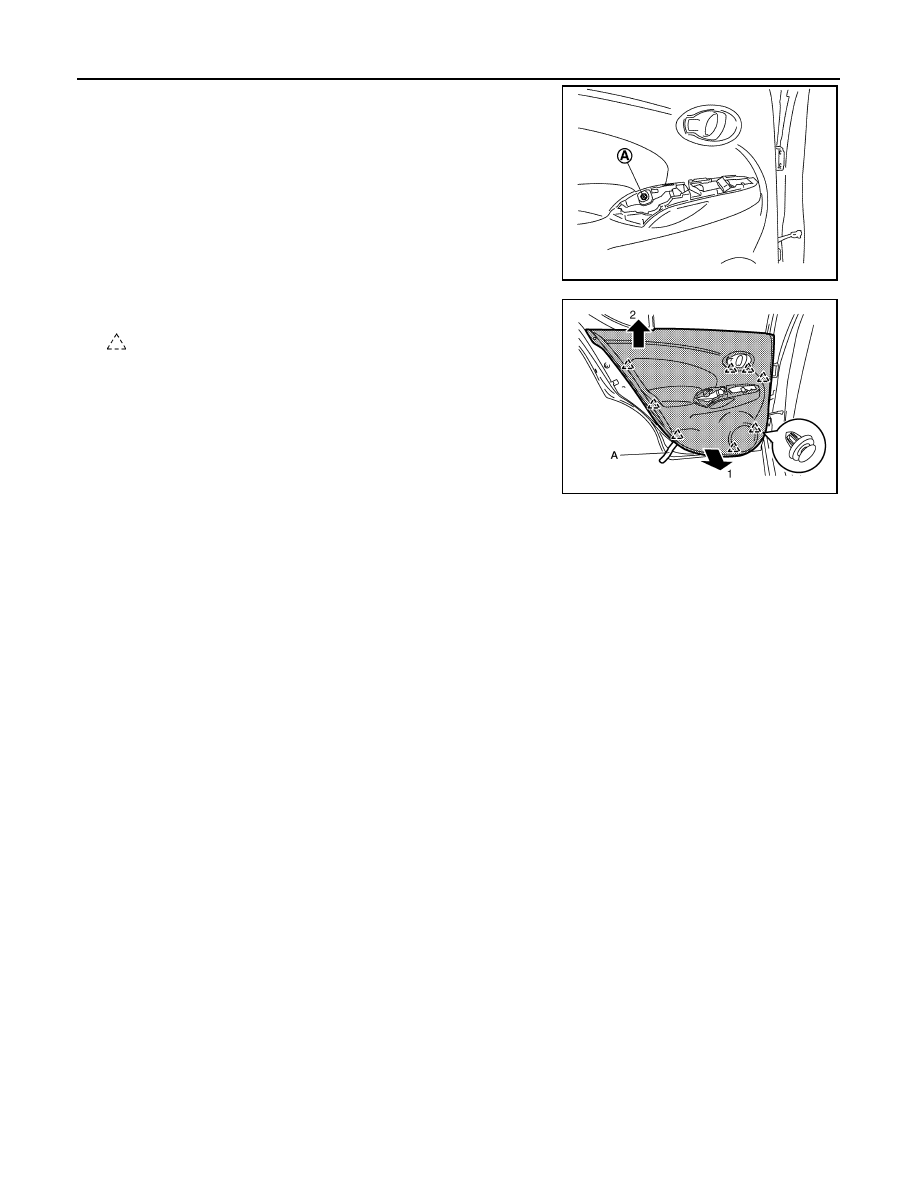

6. Remove rear door finisher bolt (A).

7. Release rear door finisher clips using a suitable tool (A) and

remove rear door finisher as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing rear door finisher, check that clips and pawls are securely placed into door panel

holes.

JMJIA6028ZZ

AWJIA1121ZZ

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

Exploded View

INFOID:0000000009016040

FRONT PILLAR FINISHER
FRONT PILLAR FINISHER : Removal and Installation

INFOID:0000000009016041

REMOVAL

1. Remove front pillar portion of front body side welt.

1. Center pillar upper finisher (RH)

2. Front body side welt (RH)

3. Front pillar finisher (RH)

4. Dash side finisher (RH)

5. Front kicking plate (RH)

6. Center pillar lower finisher (RH)

7. Rear kicking plate (RH)

8. Rear body side welt (RH)

Front

Clip

Pawl

AWJIA1141ZZ

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

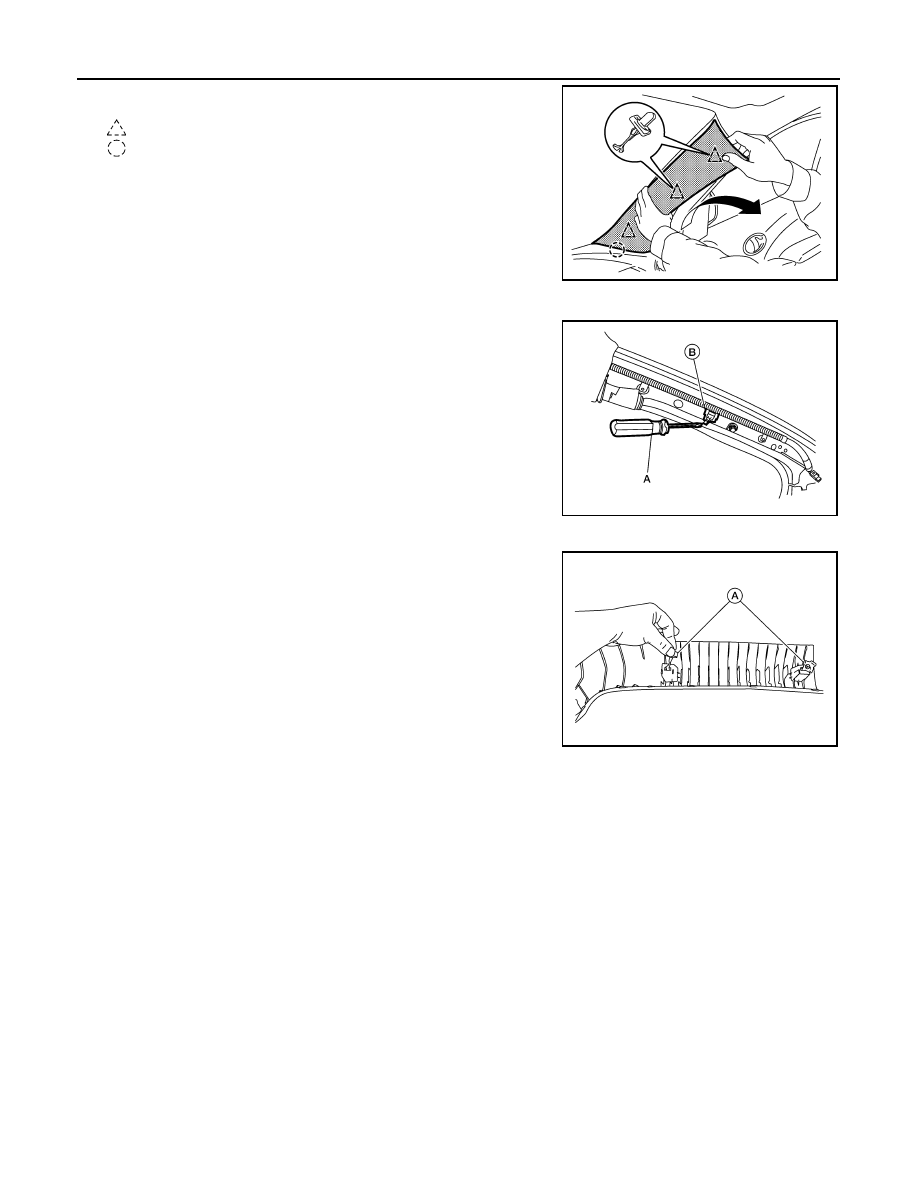

2. Pull front pillar finisher downward as shown to release the front

pillar finisher clip (bottom).

: Clip
: Pawl

3. Cut and discard front pillar finisher tether clips.
4. Remove the remaining piece of the tether clip (B) using a suit-

able tool (A).

INSTALLATION

1. Install new front pillar finisher tether clips (A) to the front pillar

finisher by inserting clip end and rotating 90 degrees to fit.

CAUTION:

• Do not reuse tether clips. Replace with new part after

removal.

• Make sure to install tether clip to front pillar finisher

before installing front pillar finisher.

• When installing tether clip to front pillar finisher, be sure

to install by aligning to the cutout.

• Visually check the clip for deformation and damage dur-

ing installation. Replace with new one if necessary.

• When installing front pillar finisher, check that clip and

tether clips are securely placed into body panel holes.

2. Install the front pillar finisher to the front pillar.

KICKING PLATE
KICKING PLATE : Removal and Installation

INFOID:0000000009016043

FRONT KICKING PLATE

Removal

AWJIA1124ZZ

AWJIA1111ZZ

AWJIA1088ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

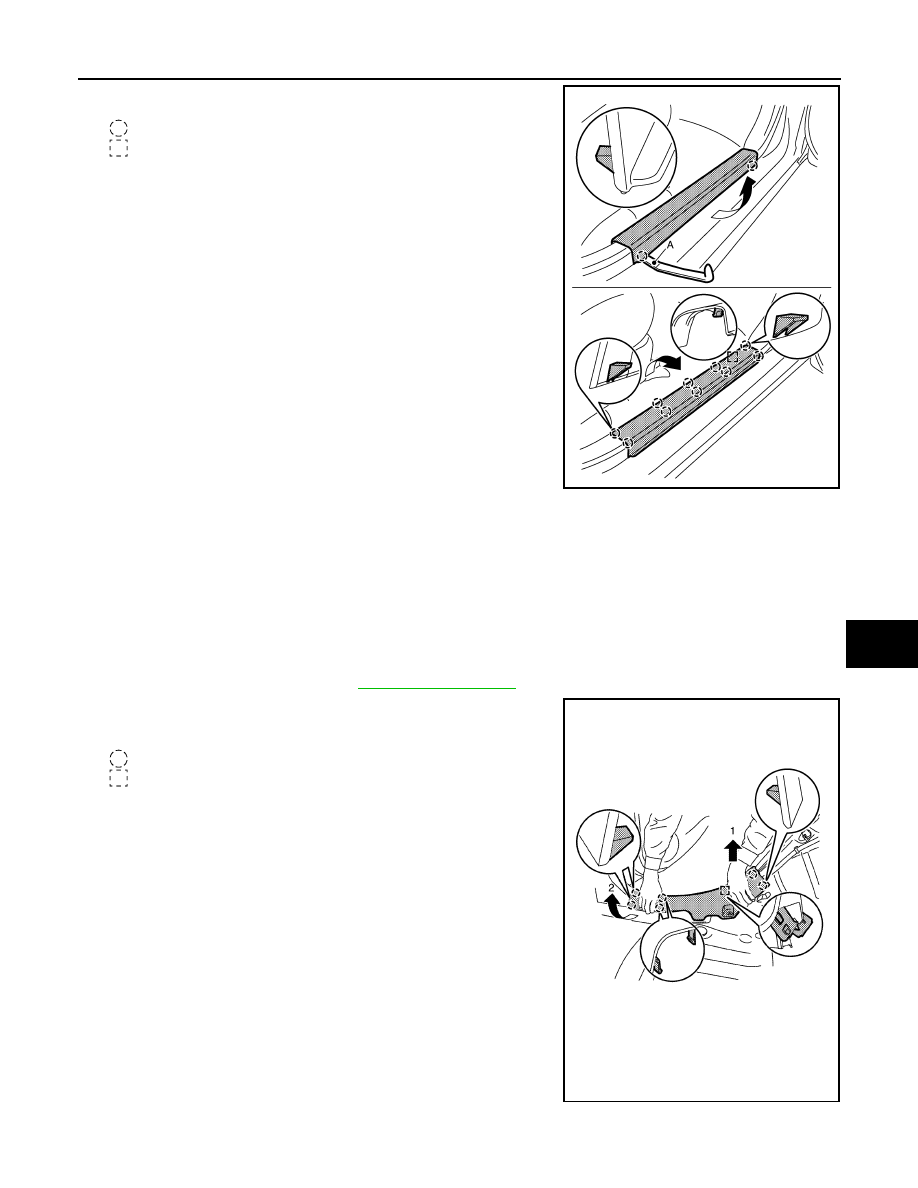

1. Release front kicking plate pawls and metal clip using a suitable

tool (A) and remove front kicking plate as shown.

: Pawl
: Metal clip

Installation

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing front kicking plate, check that clips and pawls are securely placed into body panel

holes.

REAR KICKING PLATE

Removal

1. Remove rear seat cushion. Refer to

SE-32, "Seat Cushion"

.

2. Lift rear end of rear kicking plate to release metal clip, then

rotate front end of rear kicking plate to release pawls and

remove.

: Pawl
: Metal clip

Installation

Installation is in the reverse order of removal.

AWJIA1123ZZ

AWJIA1091ZZ
