Nissan Note E12. Manual - part 308

EXL-100

< SYMPTOM DIAGNOSIS >

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000009472919

Both side headlamps (LO) are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000009472920

CHECK COMBINATION SWITCH

Check combination switch. Refer to

EXL-95, "WITH DAYTIME RUNNING LIGHT SYSTEM : Symptom Table"

(with DRL) or

EXL-94, "WITHOUT DAYTIME RUNNING LIGHT SYSTEM : Symptom Table"

(without DRL).

Is the inspection result normal?

YES

>> GO TO 2.

>> Repair or replace the malfunctioning part.

CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1. Select “HL LO REQ” of IPDM E/R data monitor item.

2. With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> GO TO 3.

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

HEADLAMP (LO) CIRCUIT INSPECTION

Check headlamp (LO) circuit. Refer to

EXL-75, "Component Function Check"

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL LO REQ

Lighting switch

2ND

OFF

Off

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT

TURNED ON

EXL-101

< SYMPTOM DIAGNOSIS >

EXL

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT
TURNED ON

Description

INFOID:0000000009472921

The parking, license plate, side marker, tail lamps and each illumination are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000009472922

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

EXL-101, "Diagnosis Procedure"

Is the combination switch normal?

YES

>> GO TO 2.

>> Repair or replace the malfunctioning part.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1. Select “TAIL & CLR REQ” of IPDM E/R data monitor item.

2. With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

Monitor item

Condition

Monitor status

TAIL & CLR REQ

Lighting switch

1ST

OFF

Off

EXL-102

< SYMPTOM DIAGNOSIS >

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000009472923

The front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000009472924

CHECK FRONT FOG LAMP FUSE

1. Turn ignition switch OFF.

2. Check that the following fuse is not fusing.

Is the inspection result normal?

YES

>> GO TO 3.

>> GO TO 2.

CHECK FRONT FOG LAMP SHORT CIRCUIT

1. Disconnect front fog connector and IPDM E/R connector.

2. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace fuse. (Replace IPDM E/R if the fuse is blown again.)

>> Repair or replace harness. And then replace the fuse.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

EXL-102, "Description"

Is the inspection result normal?

YES

>> GO TO 4.

>> Repair or replace the malfunctioning part.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1. Select “FR FOG REQ” of IPDM E/R data monitor item.

2. With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 5.

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-89, "Component Function Check"

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

>> Repair or replace the malfunctioning part.

Unit

Fuse No.

Capacity

Front fog lamp

#31

15 A

IPDM E/R

Ground

Continuity

Connector

Terminal

E46

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(With lighting switch 2ND)

OFF

Off

HEADLAMP AIMING ADJUSTMENT

EXL-103

< PERIODIC MAINTENANCE >

EXL

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Inspection

INFOID:0000000009445897

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following:

• Ensure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Confirm headlamp aiming switch is set to "0" (zero) position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired.

- The front combination lamp has been removed or replaced.

- Any outfitting has been installed.

- The vehicle’s standard load condition has been substantially increased.

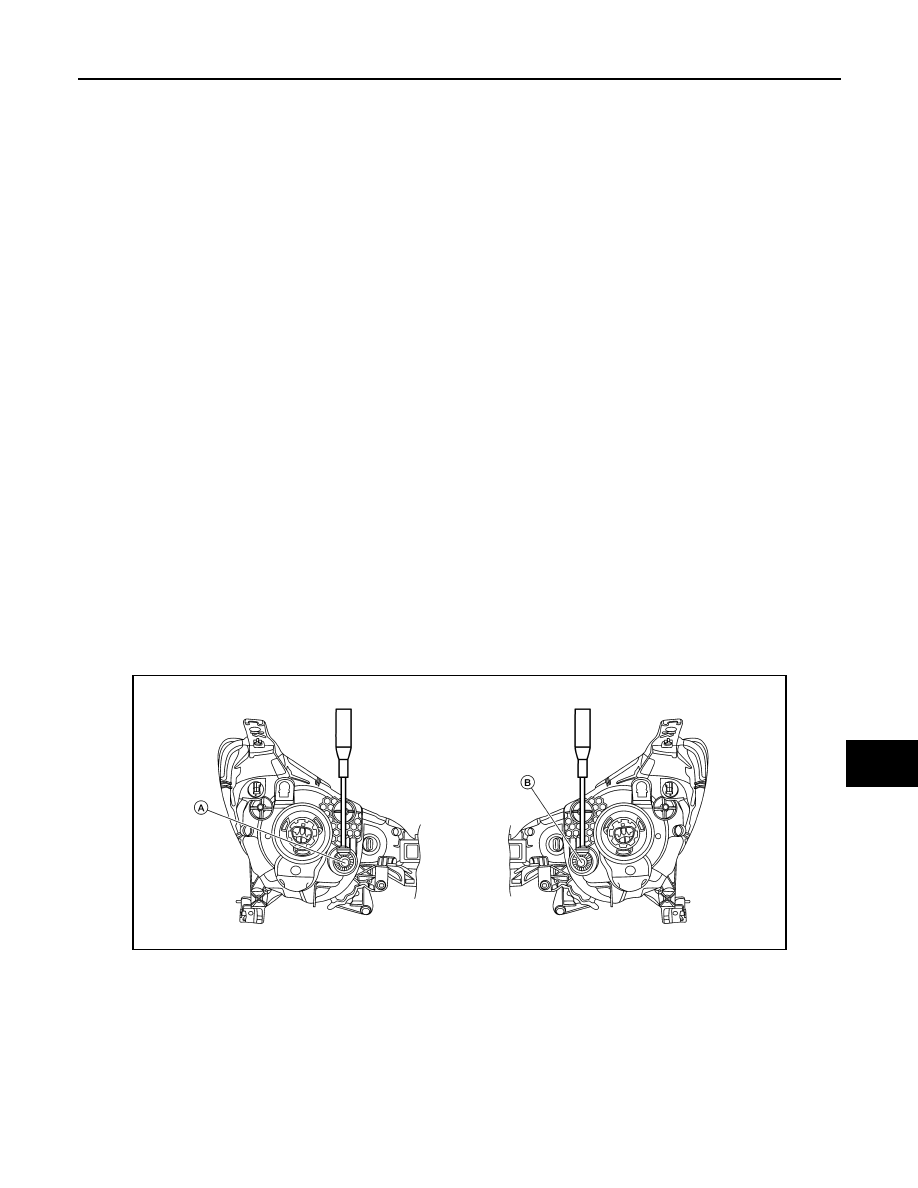

AIMING ADJUSTMENT SCREW

AWLIA2171ZZ

Headlamp (LH) (UP/DOWN)
adjustment screw

Headlamp (RH) (UP/DOWN)
adjustment screw
