Nissan Note E12. Manual - part 187

ENGINE CONTROL SYSTEM

EC-87

< WIRING DIAGRAM >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

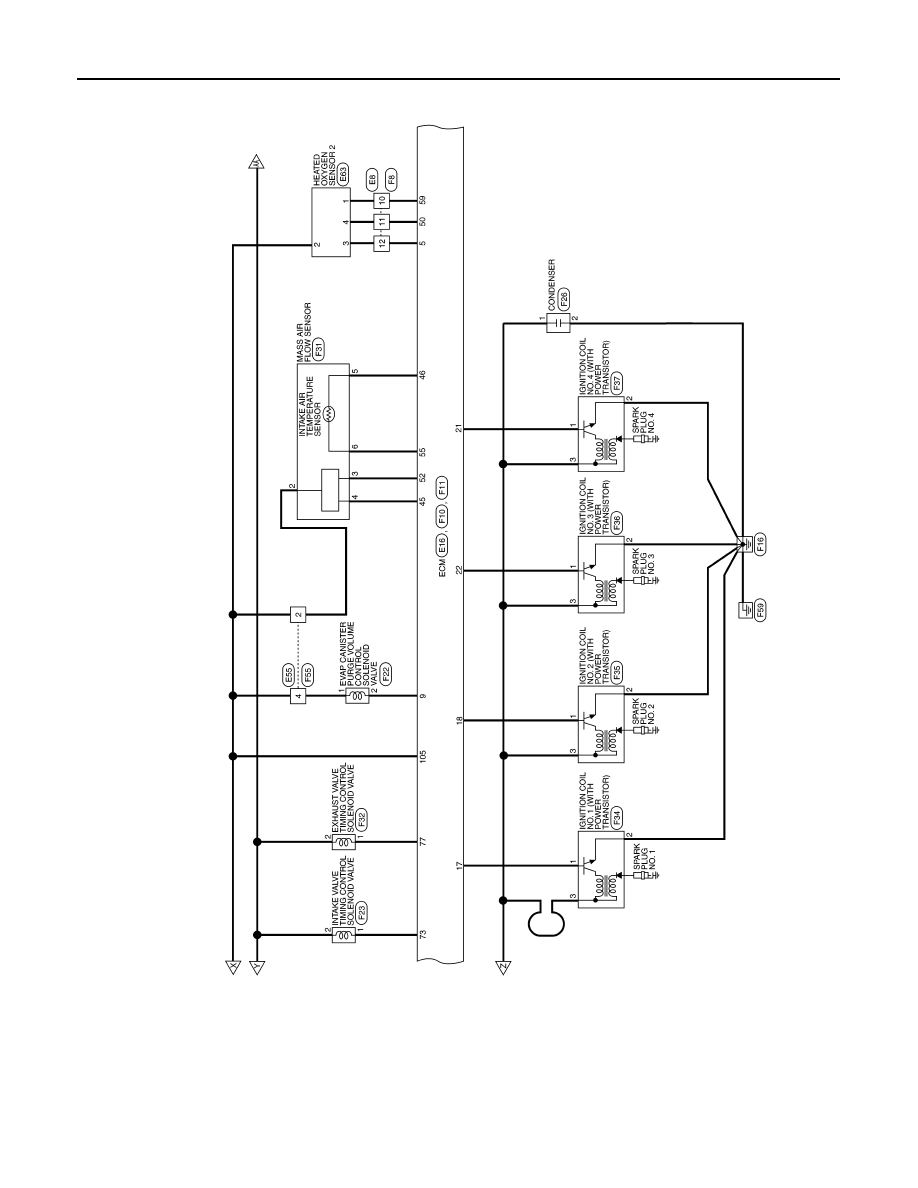

ABBWA1068GB

EC-88

< WIRING DIAGRAM >

[HR16DE]

ENGINE CONTROL SYSTEM

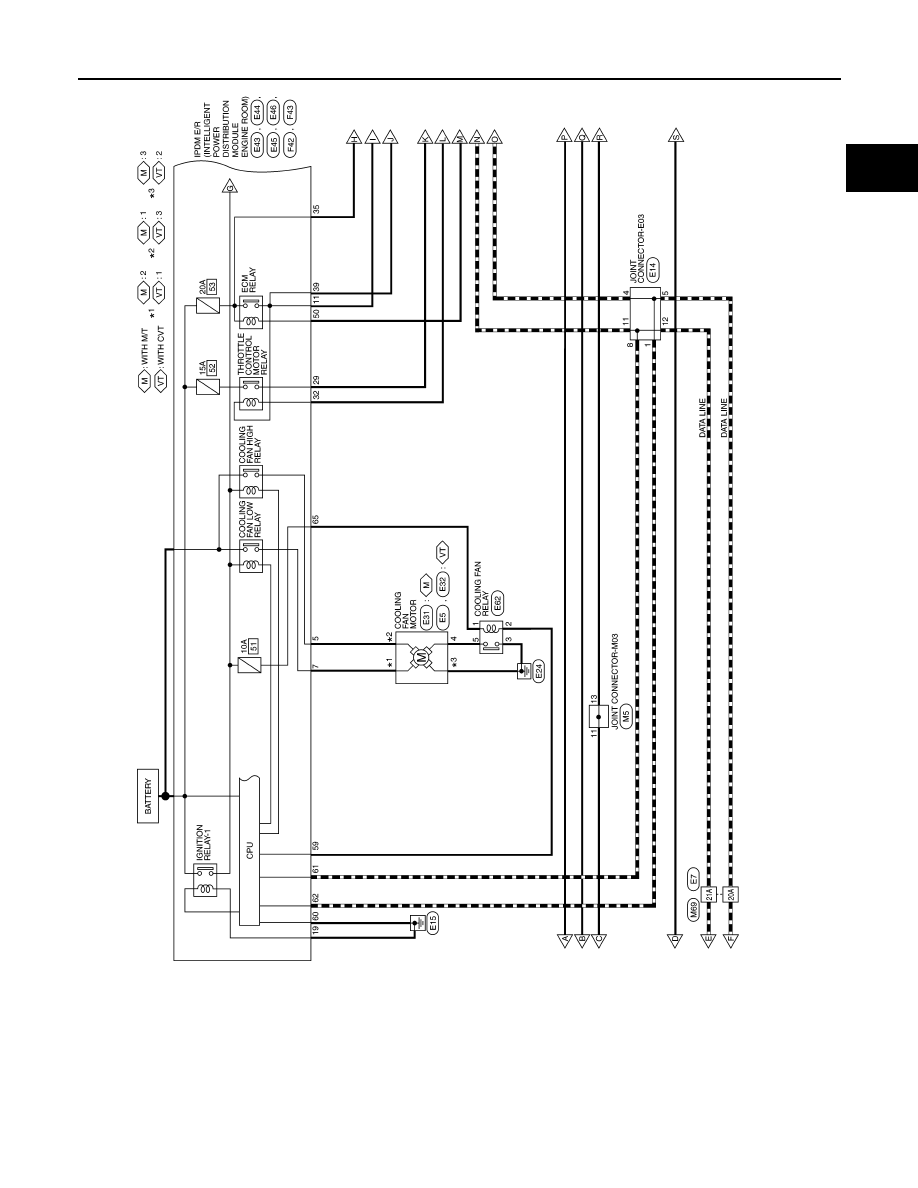

ABBWA1069GB

ENGINE CONTROL SYSTEM

EC-89

< WIRING DIAGRAM >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

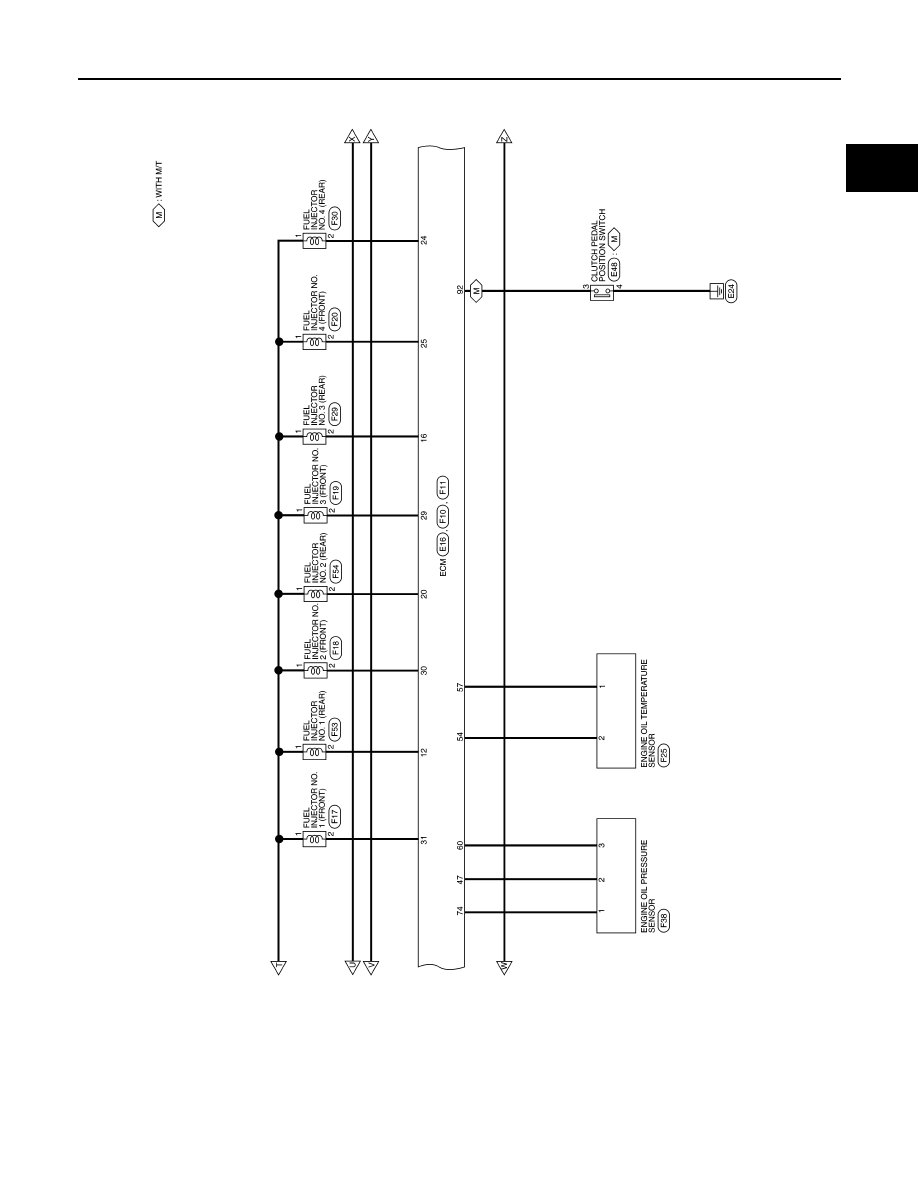

ABBWA1070GB

EC-90

< WIRING DIAGRAM >

[HR16DE]

ENGINE CONTROL SYSTEM

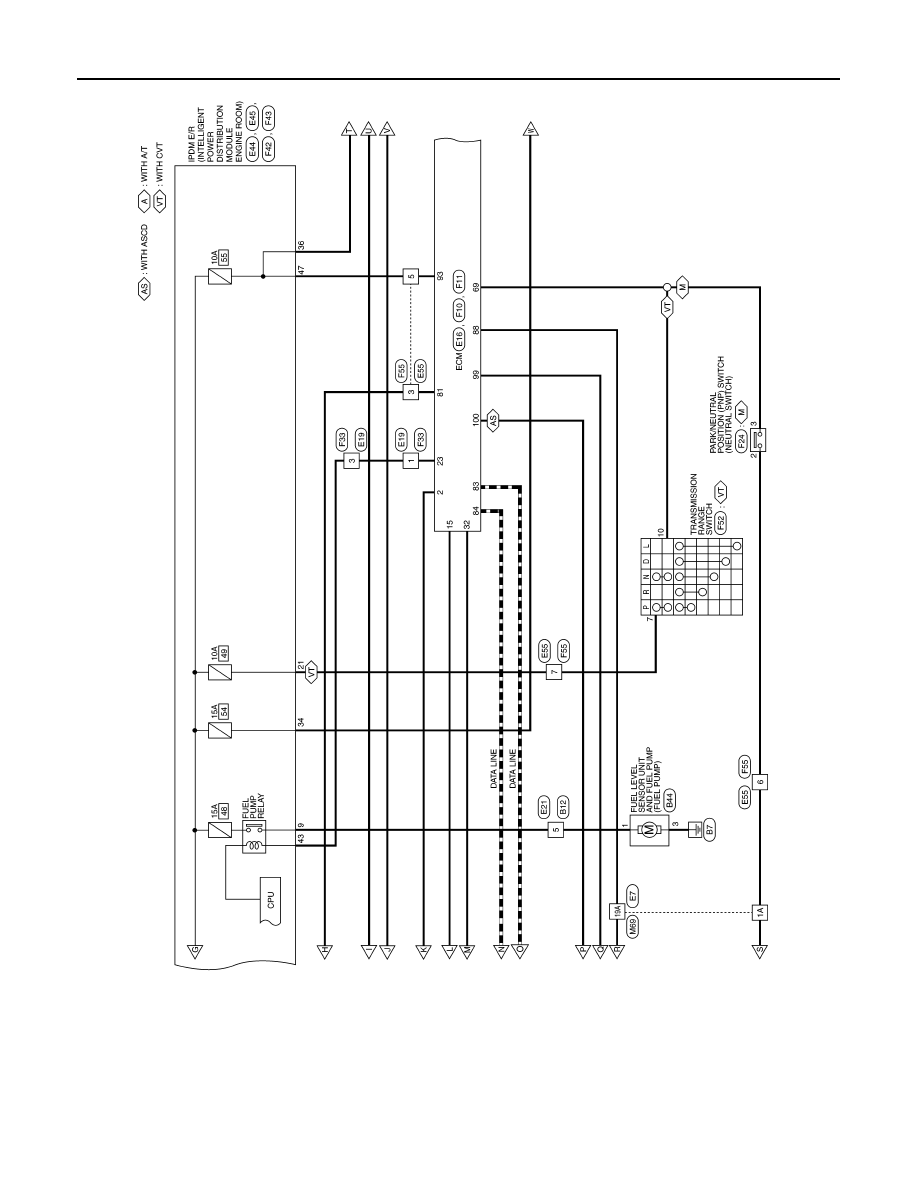

ABBWA1071GB
