Nissan Note E12. Manual - part 172

SYSTEM

EC-27

< SYSTEM DESCRIPTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SYSTEM

ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM : System Description

INFOID:0000000009022448

SYSTEM DIAGRAM

NOTE:

JPBIA5483GB

EC-28

< SYSTEM DESCRIPTION >

[HR16DE]

SYSTEM

Buttery current sensor is not apply.

SYSTEM DESCRIPTION

ECM controls the engine by various functions.

ENGINE CONTROL SYSTEM : Fail Safe

INFOID:0000000009582428

NON DTC RELATED ITEM

DTC RELATED ITEM

Function

Reference

Fuel injection control

EC-30, "MULTIPORT FUEL INJECTION SYSTEM : System De-
scription"

Electric ignition control

EC-32, "ELECTRIC IGNITION SYSTEM : System Description"

Intake valve timing control

EC-37, "INTAKE VALVE TIMING CONTROL : System Description"

Exhaust valve timing control

EC-38, "EXHAUST VALVE TIMING CONTROL : System Descrip-
tion"

Engine protection control (Low engine oil pressure)

EC-38, "ENGINE PROTECTION CONTROL AT LOW ENGINE
OIL PRESSURE : System Description"

Air conditioning cut control

EC-33, "AIR CONDITIONING CUT CONTROL : System Descrip-
tion"

Cooling fan control

EC-35, "COOLING FAN CONTROL : System Description"

Evaporative emission

EC-36, "EVAPORATIVE EMISSION SYSTEM : System Descrip-
tion"

Warning/Indicator/Chime control

EC-39, "WARNING/INDICATOR/CHIME LIST : Warning lamps/In-
dicator lamps"

CAN communication

EC-34, "CAN COMMUNICATION : System Description"

Detected

items

Engine operating condition

in fail-safe mode

Remarks

Reference page

Malfunction
indicator
lamp circuit

Engine speed will not rise
more than 2,500 rpm due
to the fuel cut

When there is an open circuit on MIL circuit, the ECM cannot warn the
driver by lighting up MIL when there is malfunction on engine control
system.
Therefore, when electrical controlled throttle and part of ECM related
diagnoses are continuously detected as NG for 5 trips, ECM warns the
driver that engine control system malfunctions and MIL circuit is open
by means of operating fail safe function.
The fail safe function also operates when above diagnoses except MIL
circuit are detected and demands the driver to repair the malfunction.

EC-324, "Compo-

nent Function

Check"

DTC No.

Detected items

Engine operating condition in fail safe mode

P0011

Intake valve timing control

The signal is not energized to the intake valve timing control solenoid valve and the valve
control does not function.

P0014

Exhaust valve timing control

The signal is not energized to the exhaust valve timing control solenoid valve and the valve
control does not function.

P0102
P0103

Mass air flow sensor circuit

Engine speed will not rise more than 2,400 rpm due to the fuel cut.

SYSTEM

EC-29

< SYSTEM DESCRIPTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

MULTIPORT FUEL INJECTION SYSTEM

P0117
P0118

Engine coolant temperature
sensor circuit

Engine coolant temperature will be determined by ECM based on the following conditions.
CONSULT displays the engine coolant temperature decided by ECM.

Condition

Engine coolant temperature decided

(CONSULT display)

Just as ignition switch is turned ON or START

40

°C (104°F)

Approx. 4 minutes or more after engine starting

80

°C (176°F)

Except as shown above

40 - 80

°C (104 - 176°F)

(Depends on the time)

When the fail safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.

P0122
P0123
P0222
P0223
P2135

Throttle position sensor

The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.

P0197
P0198

Engine oil temperature sensor

Exhaust valve timing control does not function.

P0500

Vehicle speed sensor

The cooling fan operates (Highest) while engine is running.

P0605

ECM

(When ECM calculation function is malfunctioning:)
ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P0643

Sensor power supply

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P1805

Brake switch

ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.

Vehicle condition

Driving condition

When engine is idling

Normal

When accelerating

Poor acceleration

P2100
P2103

Throttle control motor relay

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P2101

Electric throttle control function

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P2118

Throttle control motor

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P2119

Electric throttle control actuator

(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.

(When throttle valve opening angle in fail safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.

(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in the Neutral position, and engine speed will not exceed 1,000 rpm
or more.

P2122
P2123
P2127
P2128
P2138

Accelerator pedal position sen-
sor

The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.

DTC No.

Detected items

Engine operating condition in fail safe mode

EC-30

< SYSTEM DESCRIPTION >

[HR16DE]

SYSTEM

MULTIPORT FUEL INJECTION SYSTEM : System Description

INFOID:0000000009022451

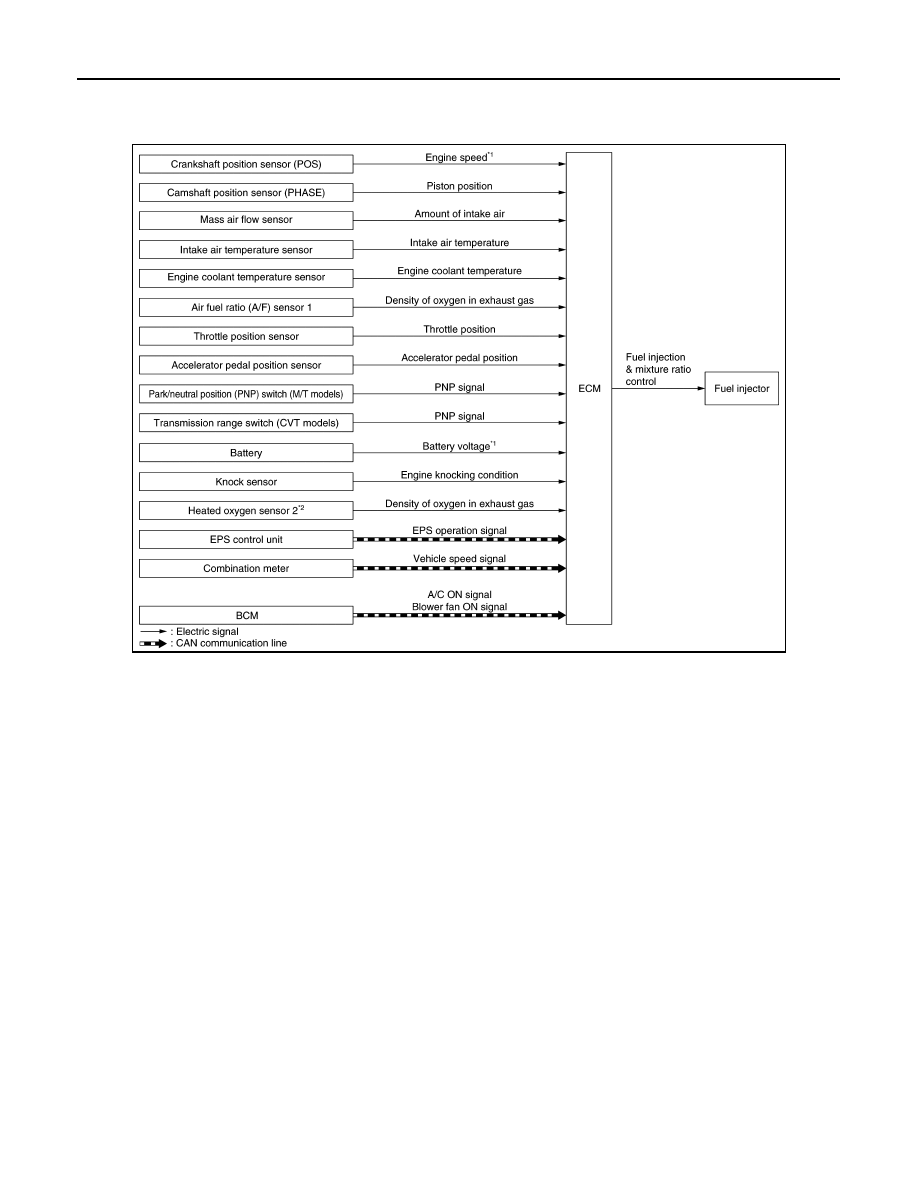

SYSTEM DIAGRAM

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This sensor is not used to control the engine system under normal conditions.

SYSTEM DESCRIPTION

The amount of fuel injected from the fuel injector is determined by the ECM. The ECM controls the length of

time the valve remains open (injection pulse duration). The amount of fuel injected is a program value in the

ECM memory. The program value is preset by engine operating conditions. These conditions are determined

by input signals (for engine speed and intake air) from the crankshaft position sensor, camshaft position sen-

sor and the mass air flow sensor.

VARIOUS FUEL INJECTION INCREASE/DECREASE COMPENSATION

In addition, the amount of fuel injected is compensated to improve engine performance under various operat-

ing conditions as listed below.

<Fuel increase>

• During warm-up

• When starting the engine

• During acceleration

• Hot-engine operation

• When selector lever position is changed from N to D (CVT models)

• High-load, high-speed operation

<Fuel decrease>

• During deceleration

• During high engine speed operation

JSBIA3075GB
