DLK-60

< DTC/CIRCUIT DIAGNOSIS >

B2626 OUTSIDE ANTENNA

B2626 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000009515840

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self Diagnostic Result” mode of “BCM” using CONSULT.
Is DTC detected?

YES

>> Refer to

DLK-60, "Diagnosis Procedure"

.

NO

>> Outside key antenna (LH) is OK.

Diagnosis Procedure

INFOID:0000000009515841

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and outside key antenna (LH) connector.

3. Check continuity between BCM harness connector and outside key antenna (LH) harness connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2626

OUTSIDE ANTENNA
1

An excessive high or low voltage from outside key
antenna (LH) is sent to BCM

• Outside key antenna (LH)
• Between BCM Outside key anten-

na (LH)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

78
79

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF

When Intelligent
Key is in the an-
tenna detection
area (The dis-
tance between
Intelligent Key
and antenna: 80
cm or less)

When Intelligent
Key is not in the
antenna detec-
tion area (The
distance be-
tween Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

B2626 OUTSIDE ANTENNA

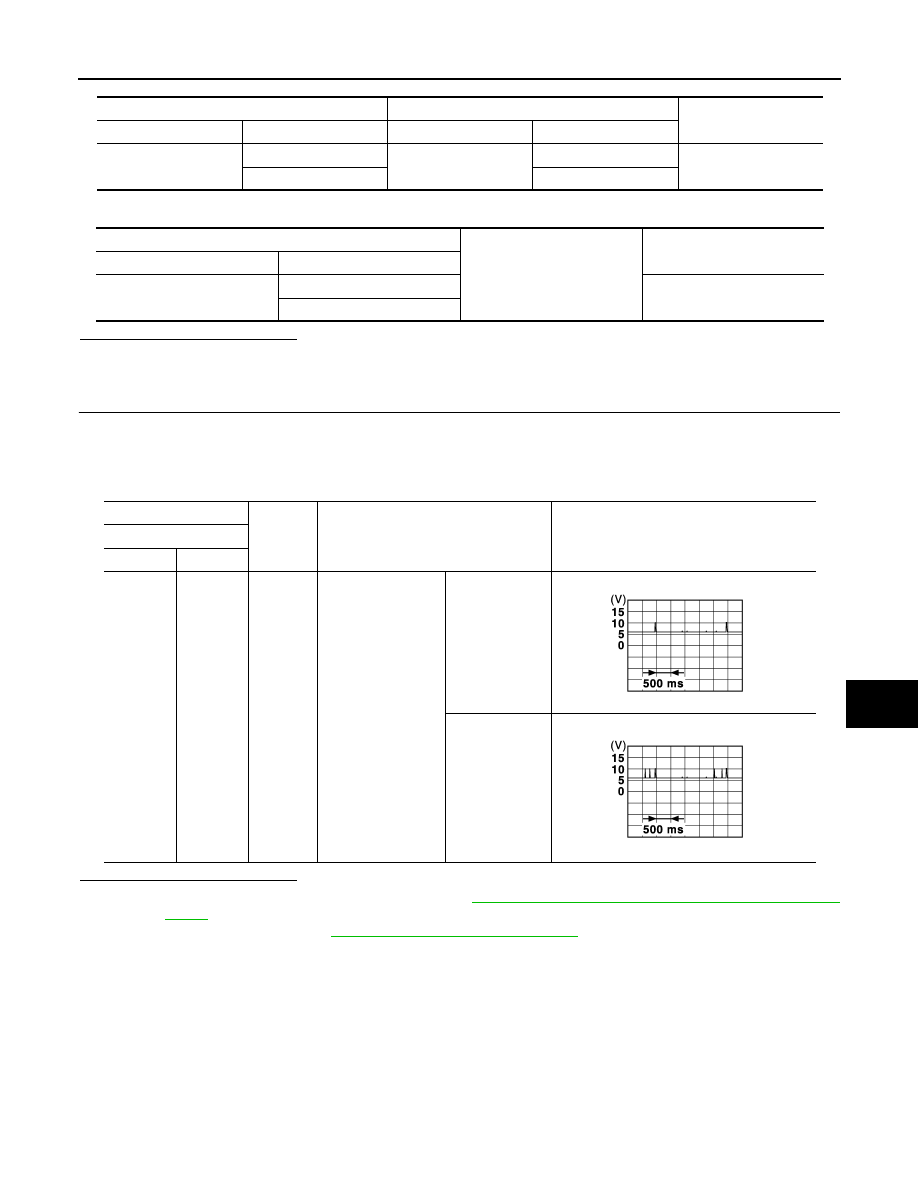

DLK-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (LH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (LH) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (LH). Refer to

DLK-161, "OUTSIDE HANDLE : Removal and Instal-

lation"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

BCM

Outside key antenna (LH)

Continuity

Connector

Terminal

Connector

Terminal

M98

78

D6

1

Yes

79

2

BCM

Ground

Continuity

Connector

Terminal

M98

78

No

79

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

78
79

Ground

When the driver
door request switch
is operated with igni-
tion switch OFF

When Intelligent
Key is in the an-
tenna detection
area (The dis-
tance between
Intelligent Key
and antenna: 80
cm or less)

When Intelligent
Key is not in the
antenna detec-
tion area (The
distance be-
tween Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

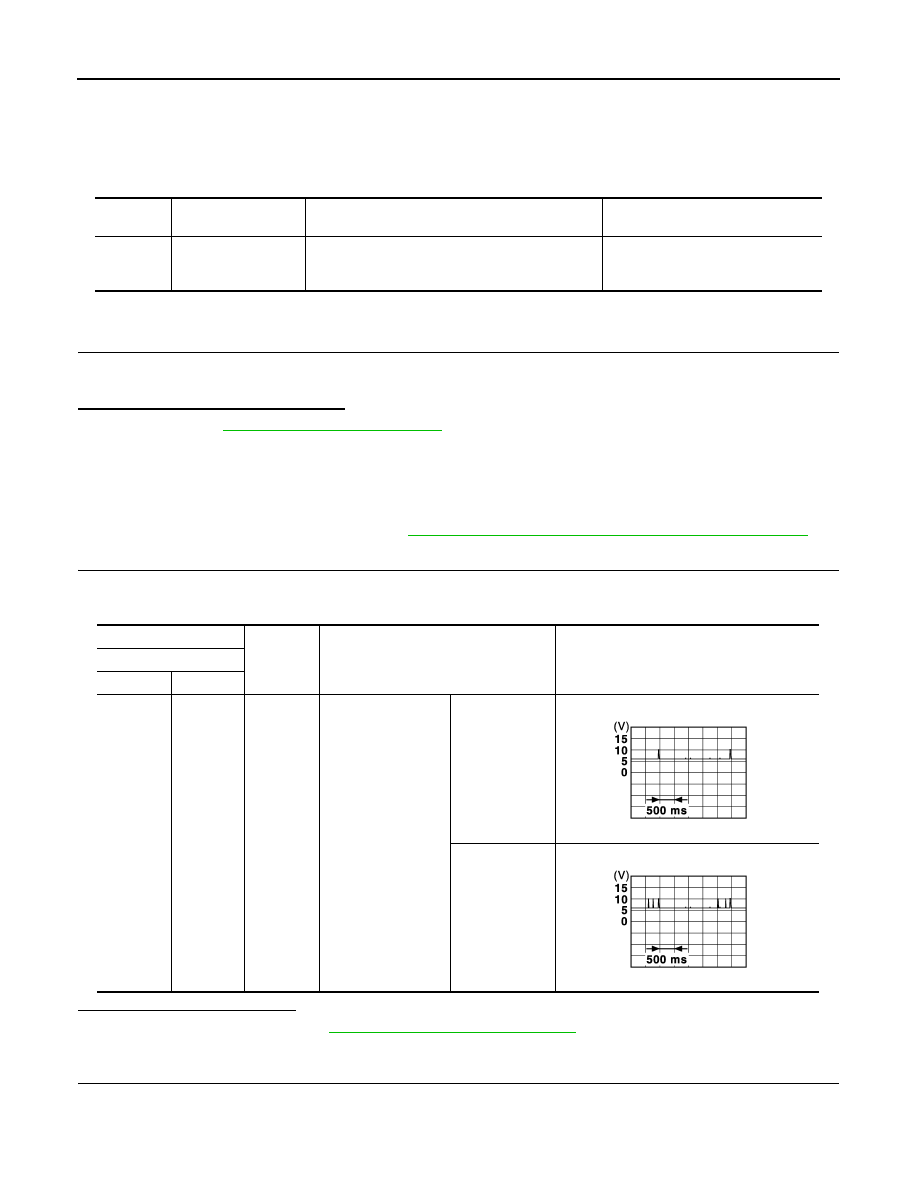

DLK-62

< DTC/CIRCUIT DIAGNOSIS >

B2627 OUTSIDE ANTENNA

B2627 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000009515842

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check Self Diagnostic Result mode of BCM using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-62, "Diagnosis Procedure"

.

NO

>> Outside key antenna (RH) is OK.

Diagnosis Procedure

INFOID:0000000009515843

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and outside key antenna (RH) connector.

3. Check continuity between BCM harness connector and outside key antenna (RH) harness connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2627

OUTSIDE ANTENNA
2

An excessive high or low voltage from outside key
antenna (RH) is sent to BCM

• Outside key antenna (RH)
• Between BCM Outside key anten-

na (RH)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

80
81

Ground

When the passenger
side door request
switch is operated
with ignition switch
OFF

When Intelli-
gent Key is in
the antenna de-
tection area
(The distance
between Intelli-
gent Key and
antenna: 80 cm
or less)

When Intelli-
gent Key is not
in the antenna
detection area
(The distance
between Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB

B2627 OUTSIDE ANTENNA

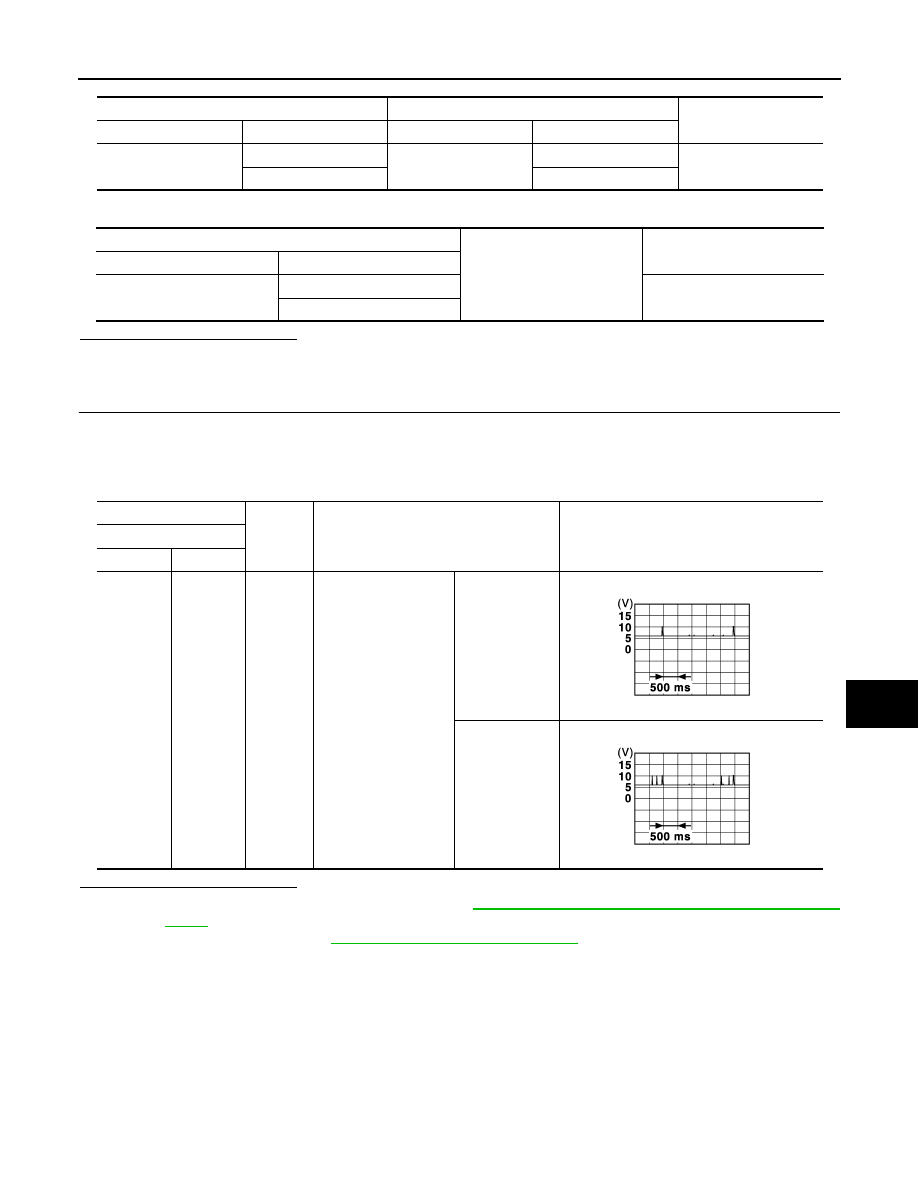

DLK-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (RH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (RH) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (RH). Refer to

DLK-161, "OUTSIDE HANDLE : Removal and Instal-

lation"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

BCM

Outside key antenna (RH)

Continuity

Connector

Terminal

Connector

Terminal

M98

80

D106

1

Yes

81

2

BCM

Ground

Continuity

Connector

Terminal

M98

80

No

81

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

80
81

Ground

When the passenger
side door request
switch is operated with
ignition switch OFF

When Intelli-
gent Key is in
the antenna de-
tection area
(The distance
between Intelli-
gent Key and
antenna: 80 cm
or less)

When Intelli-
gent Key is not
in the antenna
detection area
(The distance
between Intelli-
gent Key and
antenna: Ap-
prox. 2 m)

JMKIA5955GB

JMKIA5954GB
