Nissan Note E12. Manual - part 127

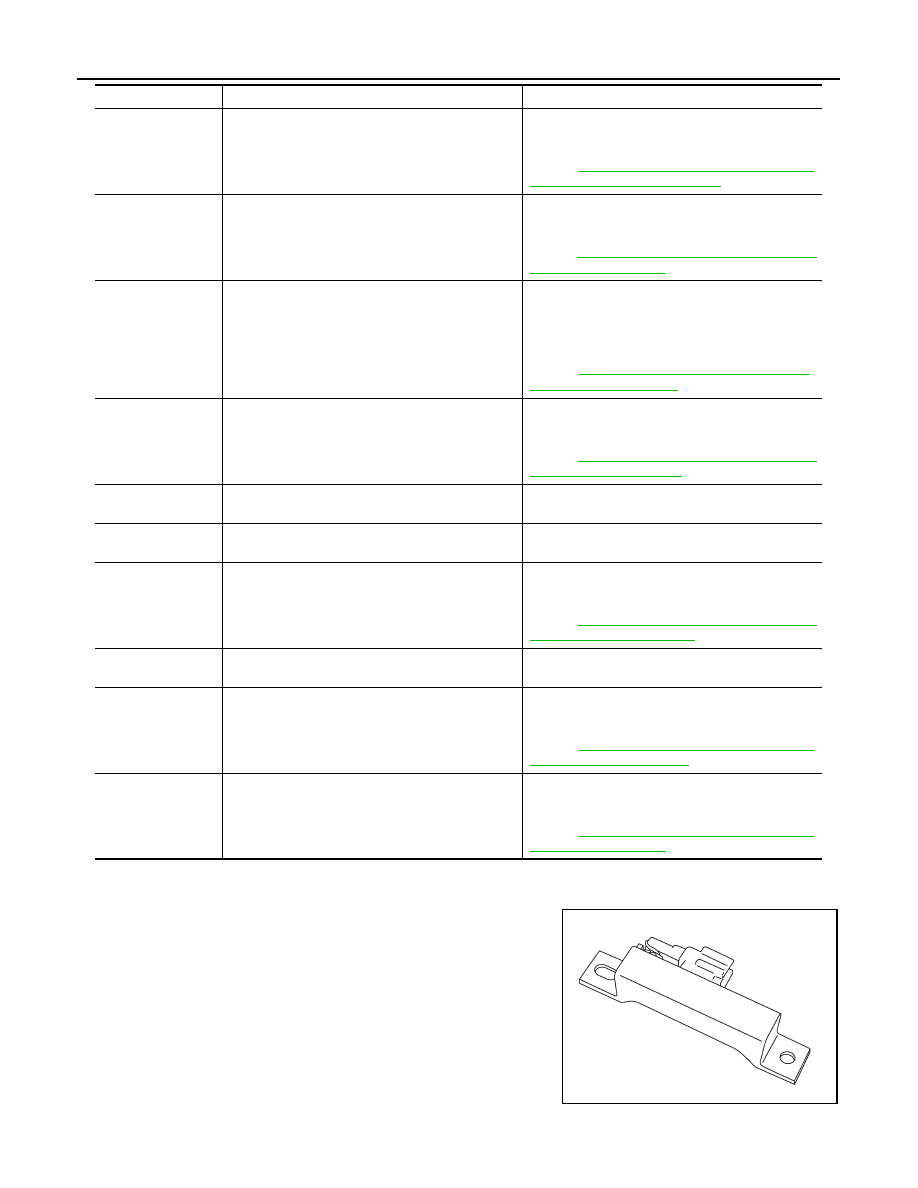

DLK-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

DOOR LOCK SYSTEM : Inside Key Antenna (Instrument Center)

INFOID:0000000009516557

• Inside key antenna (instrument center) detects that Intelligent Key

is within the inside detection area, and then transmits detection

status to BCM.

• Inside key antenna (instrument center) is installed in the rear of

cluster lid C of instrument center.

8.

Inside key antenna (instrument center)

Inside key antenna (instrument center) detects
whether Intelligent Key is inside the vehicle or not,
and then transmits the signal to the BCM.
Refer to

DLK-12, "DOOR LOCK SYSTEM : Inside

Key Antenna (Instrument Center)"

.

9.

Remote keyless entry receiver

Remote keyless entry receiver receives button op-
eration signal and key ID signal of Intelligent Key,
and them transmits them to the BCM.
Refer to

DLK-14, "DOOR LOCK SYSTEM : Remote

Keyless Entry Receiver"

.

10.

Intelligent Key warning buzzer

Intelligent Key warning buzzer warns the user, who
is outside the vehicle, of operation confirmation ac-
cording to Intelligent Key operation and door re-
quest switch operation, or of an inappropriate
operation.
Refer to

DLK-14, "DOOR LOCK SYSTEM : Intelli-

gent Key Warning Buzzer"

.

11.

Outside key antenna LH

Outside key antenna (LH) detects whether Intelli-
gent Key is outside the vehicle or not, and then
transmits the signal to the BCM.
Refer to

DLK-13, "DOOR LOCK SYSTEM : Outside

Key Antenna (Driver Side)"

.

12.

Door request switch

Door request switch transmits door lock/unlock re-
quest signal to the BCM.

13.

Door switch

Door switch detects door open/close condition and
then transmits ON/OFF signal to BCM.

14.

Outside key antenna (rear bumper)

Outside key antenna (Rear bumper) detects wheth-
er Intelligent Key is outside the vehicle or not, and
then transmits the signal to the BCM.
Refer to

DLK-13, "DOOR LOCK SYSTEM : Outside

Key Antenna (Rear Bumper)"

.

15.

Back door request switch

Back door request switch transmits door lock/unlock
request signal to the BCM.

16.

Inside key antenna (trunk room)

Inside key antenna (trunk room) detects whether In-
telligent Key is inside the vehicle or not, and then
transmits the signal to the BCM.
Refer to

DLK-13, "DOOR LOCK SYSTEM : Inside

Key Antenna (Trunk Room)"

.

17.

Inside key antenna (console)

Inside key antenna (console) detects whether Intel-
ligent Key is inside the vehicle or not, and then
transmits the signal to the BCM.
Refer to

DLK-13, "DOOR LOCK SYSTEM : Inside

Key Antenna (Console)"

.

No.

Component

Function

JMKIA8646ZZ

COMPONENT PARTS

DLK-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

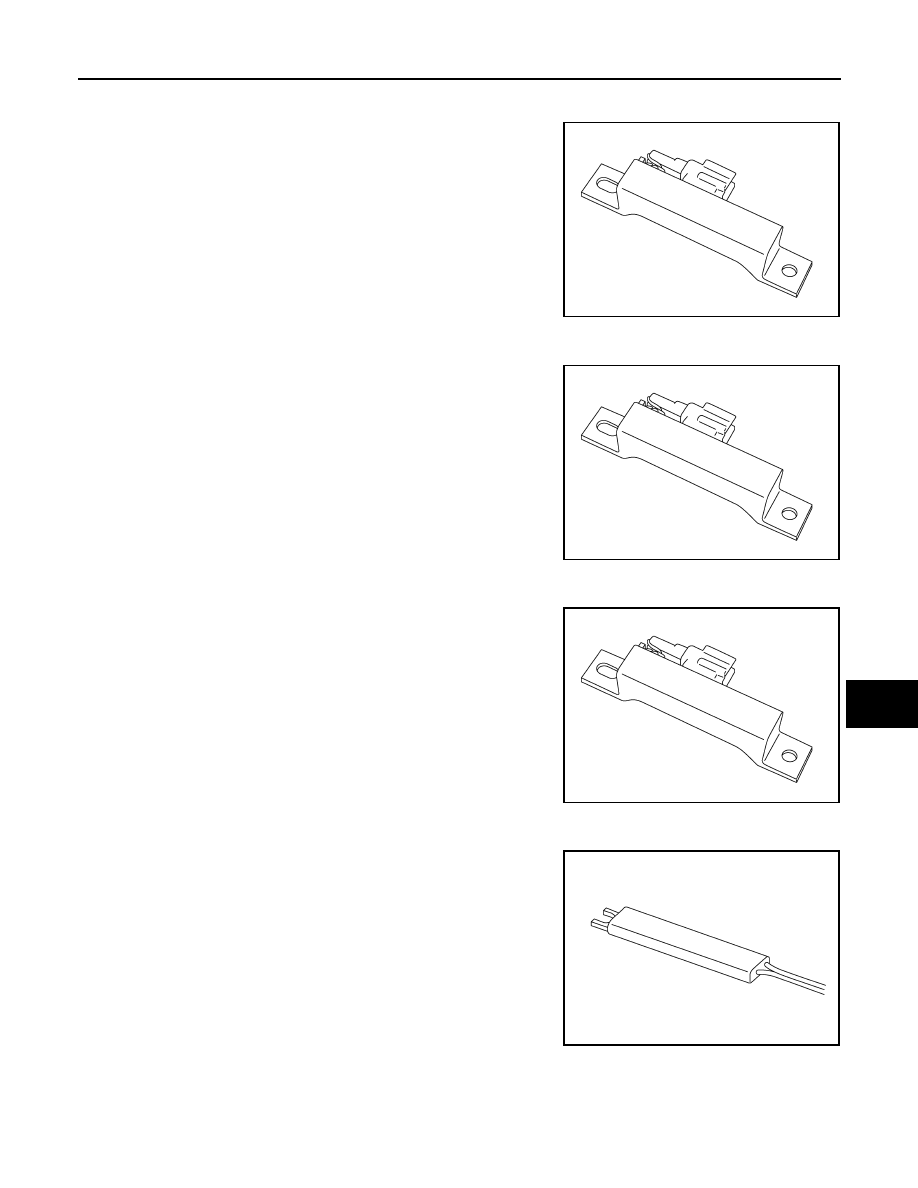

DOOR LOCK SYSTEM : Inside Key Antenna (Console)

INFOID:0000000009516558

• Inside key antenna (console) detects that Intelligent Key is within

the inside detection area, and then transmits detection status to

BCM.

• Inside key antenna (console) is installed underneath the center

console.

DOOR LOCK SYSTEM : Inside Key Antenna (Trunk Room)

INFOID:0000000009516559

• Inside key antenna (trunk room) detects that Intelligent Key is

within the inside detection area, and then transmits detection sta-

tus to BCM.

• Inside key antenna (trunk room) is installed under the rear seat

cushion.

DOOR LOCK SYSTEM : Outside Key Antenna (Rear Bumper)

INFOID:0000000009516560

• Outside key antenna (rear bumper) detects that Intelligent Key is

within the outside detection area, and then transmits detection sta-

tus to BCM. Request signal is transmitted simultaneously to Intelli-

gent Key.

• Outside key antenna (rear bumper) is installed in the rear of rear

bumper.

DOOR LOCK SYSTEM : Outside Key Antenna (Driver Side)

INFOID:0000000009516561

• Outside key antenna (driver side) detects that Intelligent Key is

within the outside detection area, and then transmits detection sta-

tus to BCM. Request signal is transmitted simultaneously to Intelli-

gent Key.

• Outside key antenna (driver side) is installed in driver side outside

handle.

JMKIA8646ZZ

JMKIA8646ZZ

JMKIA8646ZZ

JMKIA8648ZZ

DLK-14

< SYSTEM DESCRIPTION >

COMPONENT PARTS

DOOR LOCK SYSTEM : Outside Key Antenna (Passenger Side)

INFOID:0000000009516562

• Outside key antenna (passenger side) detects that Intelligent Key

is within the outside detection area, and then transmits detection

status to BCM. Request signal is transmitted simultaneously to

Intelligent Key.

• Outside key antenna (passenger side) is installed in driver side

outside handle.

DOOR LOCK SYSTEM : Front Door Lock Assembly (Driver Side)

INFOID:0000000009516563

• Door lock actuator and unlock sensor are Integrated in driver door

lock assembly.

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks driver door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver seat to

BCM.

DOOR LOCK SYSTEM : Remote Keyless Entry Receiver

INFOID:0000000009516564

• Remote keyless entry receiver receives button operation signal

and key ID signal of Intelligent Key, and then transmits them to

BCM.

• Remote keyless entry receiver is installed in the rear of glove box

lid.

DOOR LOCK SYSTEM : Intelligent Key Warning Buzzer

INFOID:0000000009516565

• Intelligent Key warning buzzer warns the user, who is outside vehi-

cle, of operation confirmation according to Intelligent Key operation

and door request switch operation, or of an inappropriate opera-

tion.

• Intelligent Key warning buzzer is installed in the rear of front

bumper and underneath headlight RH.

JMKIA8648ZZ

JMKIA8649ZZ

JMKIA8647ZZ

JMKIA8650ZZ

COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

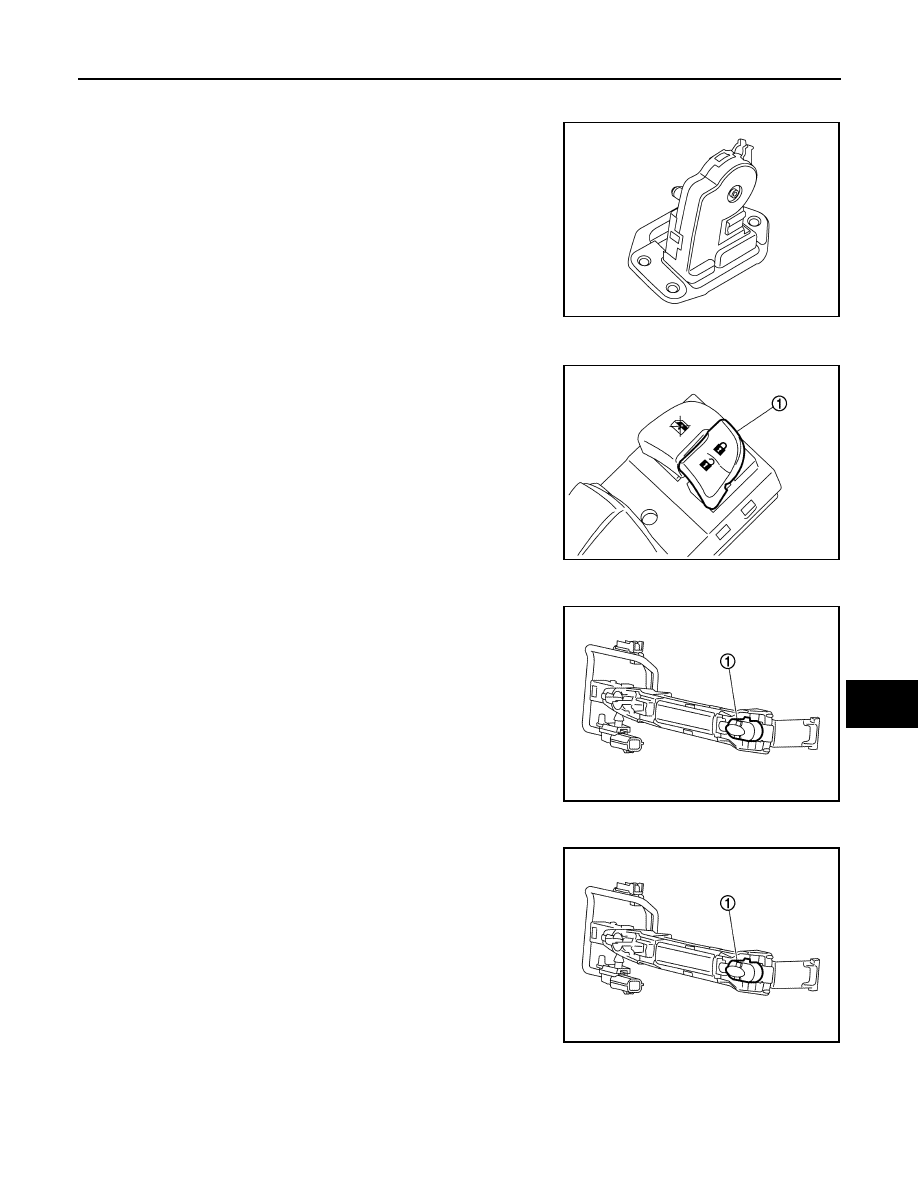

DOOR LOCK SYSTEM : Back Door Lock Assembly

INFOID:0000000009516566

• Back door lock assembly lock assembly integrates door lock actu-

ator and back door latch.

• Door lock actuator locks/unlocks the back door according to the

door lock/unlock signal from BCM.

DOOR LOCK SYSTEM : Door Lock and Unlock Switch

INFOID:0000000009516567

• Door lock and unlock switch transmits door lock/unlock signal

operation to BCM.

• Door lock and unlock switch (1) is integrated in the power window

main switch and front power window switch (passenger side).

DOOR LOCK SYSTEM : Front Door Request Switch (Driver Side)

INFOID:0000000009516568

• Front door request switch (driver side) transmits door request

switch signal to BCM.

• Front door request switch (driver side) (1) is integrated in driver

side outside handle.

DOOR LOCK SYSTEM : Front Door Request Switch (Passenger Side)

INFOID:0000000009516569

• Front door request switch (passenger side) transmits door request

switch signal to BCM.

• Front door request switch (passenger side) (1) is integrated in pas-

senger side outside handle.

JMKIA8651ZZ

JMKIA9352ZZ

JMKIA9353ZZ

JMKIA9353ZZ
