SERVICE DATA AND SPECIFICATIONS (SDS)

CL-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009417573

Unit: mm (in)

Clutch Pedal

INFOID:0000000009417574

Unit: mm (in)

Clutch Disc

INFOID:0000000009417575

Unit: mm (in)

Clutch Cover

INFOID:0000000009417576

Unit: mm (in)

Engine type

HR16DE

Type of clutch control

Hydraulic

Clutch disc

Facing size (Outer dia.

× Inner dia. × Thickness)

200

× 140 × 3.1 (7.87 × 5.51 × 0.122)

Recommended clutch fluid

Refer to

MA-12, "Fluids and Lubricants"

.

Engine type

HR16DE

Clearance between clutch pedal and clutch interlock switch
threaded end while clutch pedal is fully depressed.

0.2 – 1.96 (0.01 – 0.08)

Engine type

HR16DE

Clutch facing runout limit / diameter of the area to be measured

1.0 (0.039) / 190 (7.48) dia.

Maximum allowable spline backlash (at outer edge of disc)

0.8 (0.031)

Clutch facing wear limit (depth to the rivet head)

0.3 (0.012)

Engine type

HR16DE

Tolerance for diaphragm spring lever unevenness

0.7 (0.028) or less

CO-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

N

O

P

CONTENTS

ENGINE COOLING SYSTEM

HR16DE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYSTEM DESCRIPTION  ..............................

4

DESCRIPTION ....................................................

4

Engine Cooling System .............................................

4

Engine Cooling System Schematic  ...........................

5

SYMPTOM DIAGNOSIS  ...............................

6

OVERHEATING CAUSE ANALYSIS ..................

6

Troubleshooting Chart ...............................................

6

PERIODIC MAINTENANCE ..........................

8

ENGINE COOLANT  ............................................

8

Inspection ..................................................................

8

Draining Engine Coolant  ...........................................

8

Refilling .....................................................................

9

Flushing Cooling System  ........................................

11

RADIATOR .........................................................

12

RADIATOR CAP  ........................................................

12

RADIATOR CAP : Inspection  ..................................

12

RADIATOR .................................................................

12

RADIATOR : Inspection ...........................................

12

REMOVAL AND INSTALLATION ...............

14

RADIATOR ........................................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

COOLING FAN ..................................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Disassembly and Assembly .....................................

18

WATER PUMP  ..................................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

THERMOSTAT ..................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

WATER OUTLET  ..............................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

25

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

26

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

26

Standard and Limit  ..................................................

26

CO-2

< PRECAUTION >

[HR16DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009515764

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

PREPARATION

CO-3

< PREPARATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

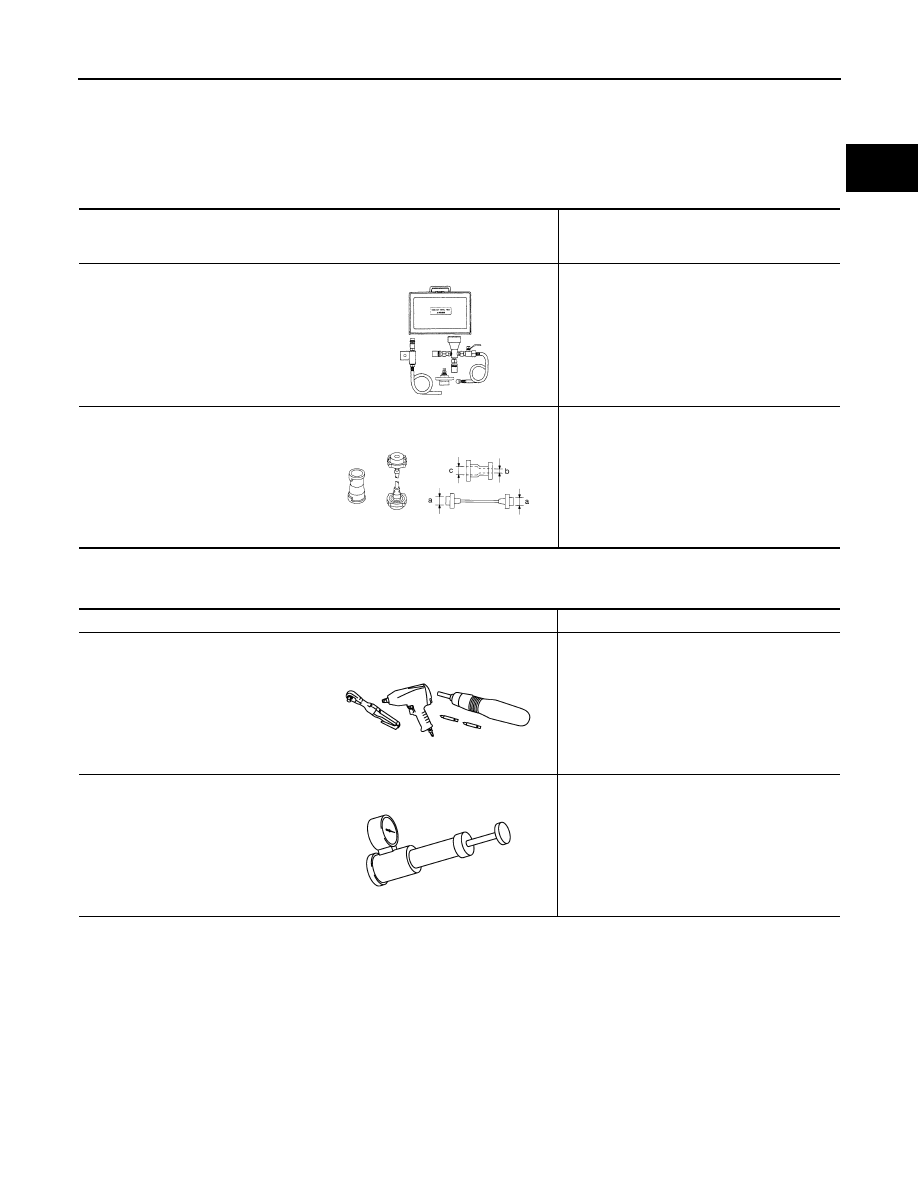

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009444910

The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009444911

Tool number
(Kent-Moore No.)
Tool name

Description

KV991J0070
(J-45695)
Coolant refill tool

Refilling engine cooling system

EG17650301
(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

LMA053

S-NT564

Tool name

Description

Power tool

Loosening nuts, screws and bolts

Radiator cap tester

Checking radiator and radiator cap

PIIB1407E

PBIC1982E
