CHARGING SYSTEM

SYMPTOM DIAGNOSIS

CHARGING SYSTEM

Symptom Table

INFOID:0000000009014847

Symptom

Reference

Battery discharged

Refer to

CHG-10, "Work Flow (With EXP-800 NI or GR8-1200 NI)"



or

CHG-13, "Work Flow (Without EXP-800 NI or GR8-1200 NI)"

.

The charge warning lamp does not illuminate when the ignition
switch is set to ON.

The charge warning lamp does not turn OFF after the engine
starts.

The charging warning lamp turns ON when increasing the engine
speed.

CHG

GENERATOR

CHG-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

GENERATOR

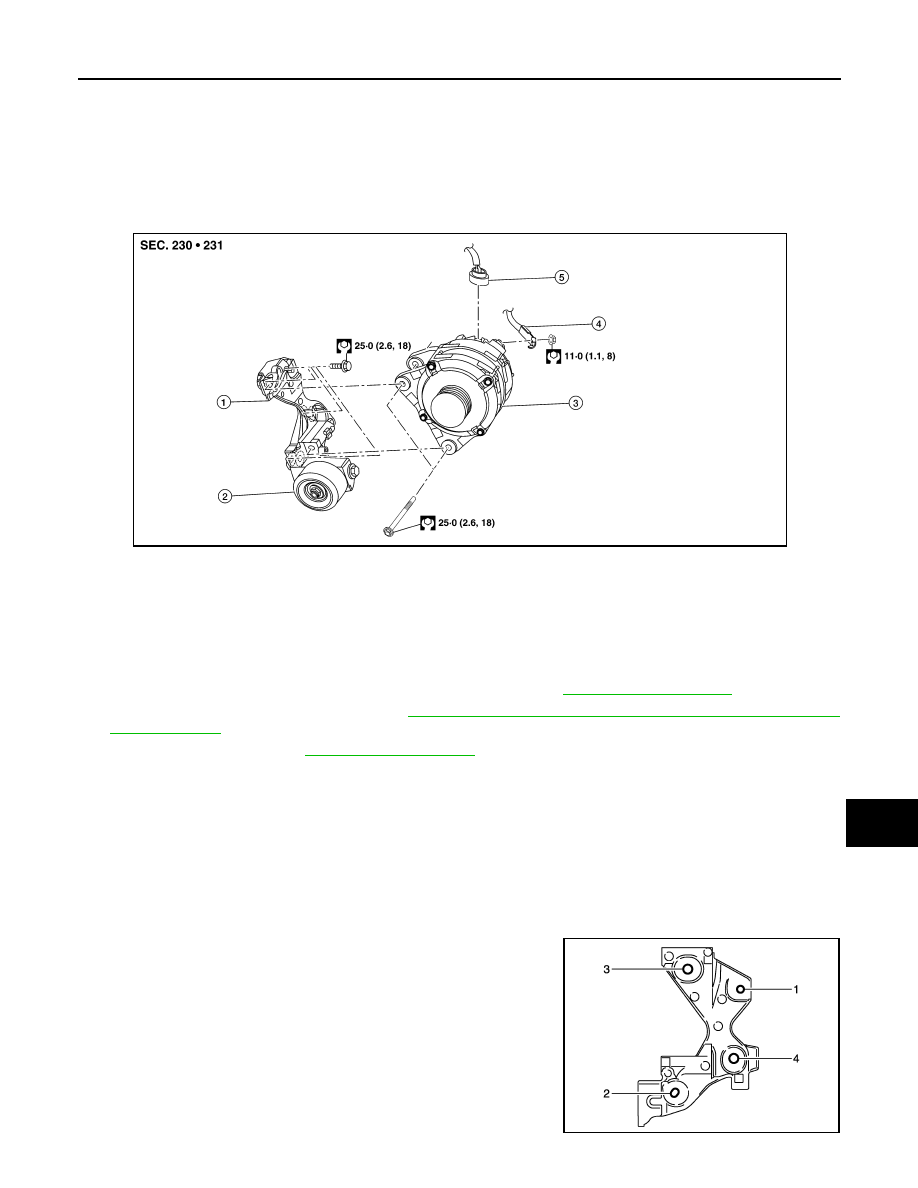

Exploded View

INFOID:0000000009385611

Removal and Installation

INFOID:0000000009385612

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-69, "Exploded View"

.

2. Remove the radiator core support upper.

DLK-122, "RADIATOR CORE SUPPORT UPPER : Removal

and Installation"

.

3. Remove drive belt. Refer to

EM-24, "Exploded View"

.

4. Disconnect generator harness connector.
5. Remove “B” terminal nut and disconnect “B” terminal harness.
6. Remove the generator bolts.
7. Remove the generator.

CAUTION:

Be careful not to damage surrounding parts when removing generator from the vehicle.

8. Remove bolts and remove generator bracket if necessary.

INSTALLATION

1. Install the generator bracket (if removed), using the following

procedure.

a. Temporarily tighten bolt (1).
b. Temporarily tighten bolt (2).
c. Tighten bolts to specification in numerical order as shown.

1.

Generator bracket

2.

Tensioner Idler pulley

3.

Generator

4.

“B” terminal harness

5.

Generator harness connector

AWGIA0293ZZ

JMMIA0463ZZ

CHG-24

< REMOVAL AND INSTALLATION >

GENERATOR

2. Install the generator using the following procedure.
a. Temporarily tighten the generator bolts in order from the lower to the upper.
b. Tighten the generator bolts to the specification starting with the top bolt.
c.

Install “B” terminal harness and "B" terminal nut.

CAUTION:

Be sure to tighten "B" terminal nut carefully.

Installation of the remaining components is the reverse order of removal.

CHG

SERVICE DATA AND SPECIFICATIONS (SDS)

CHG-25

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000009385613

* : Always check with the Parts Department for the latest parts information.

Model*

A002TJ1791ZC

Manufacturer

Mitsubishi

Nominal rating

13.5V - 110A

Ground polarity

Negative

Minimum revolution under no-load

1,000 rpm

Hot output current (When 13.5 V is applied)

More than 27A/1,300 rpm
More than 95A/2,500 rpm

More than 116A/5,000 rpm
