Nissan Note E12. Manual - part 70

BR-16

< PERIODIC MAINTENANCE >

FRONT DISC BRAKE

CAUTION:

If the thickness is less than wear thickness + 0.3 mm (0.012 in), replace the disc brake rotor. Refer

to

BR-36, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

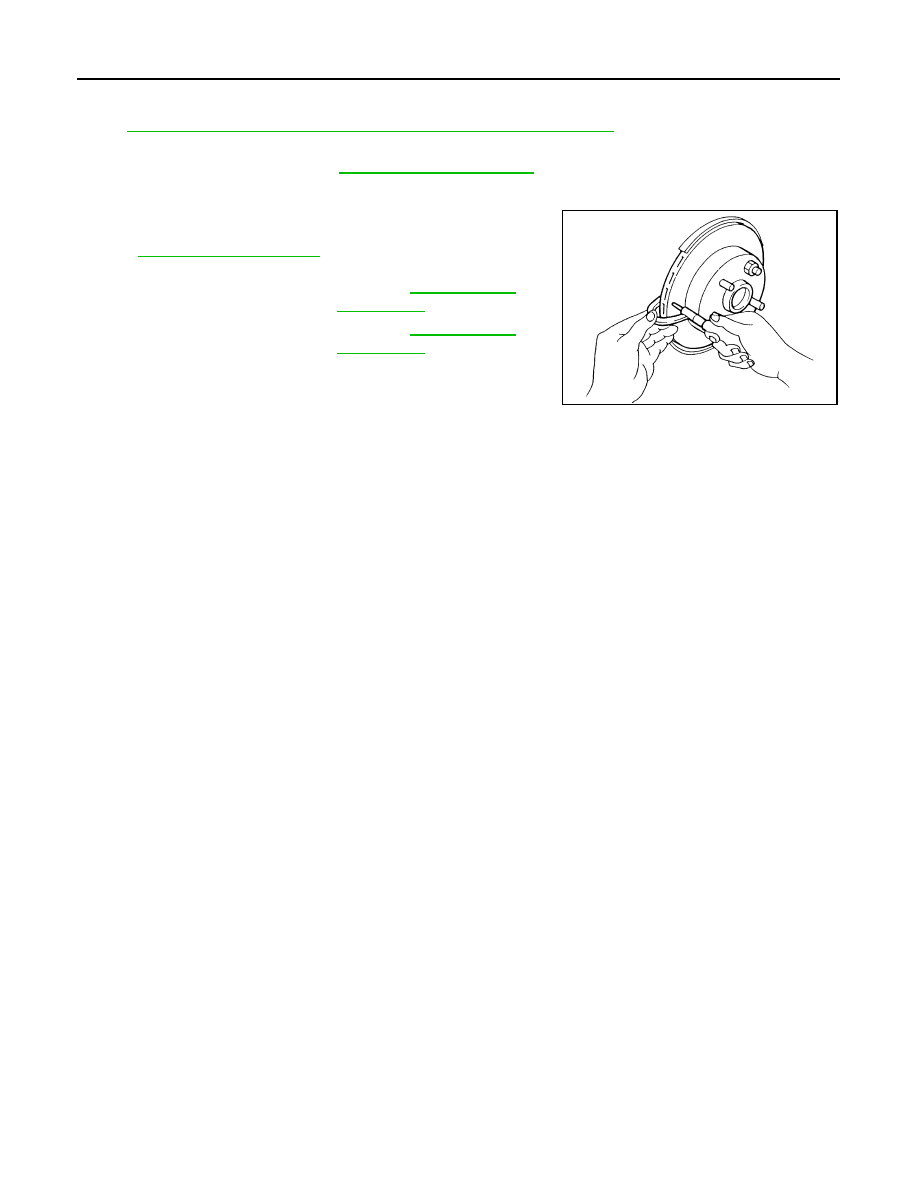

Thickness

Check the thickness of the disc brake rotor using a micrometer.

Replace the disc brake rotor if the thickness is below the wear limit.

Refer to

BR-44, "Front Disc Brake"

.

Wear thickness

: Refer to

BR-44, "Front Disc Brake"

.

Wear thickness

: Refer to

BR-44, "Front

Disc Brake"

.

Thickness variation (mea-
sured at 8 positions)

: Refer to

BR-44, "Front

Disc Brake"

.

SBR020B

REAR DRUM BRAKE

BR-17

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DRUM BRAKE

BRAKE LINING
BRAKE LINING : Inspection

INFOID:0000000009364998

INSPECTION

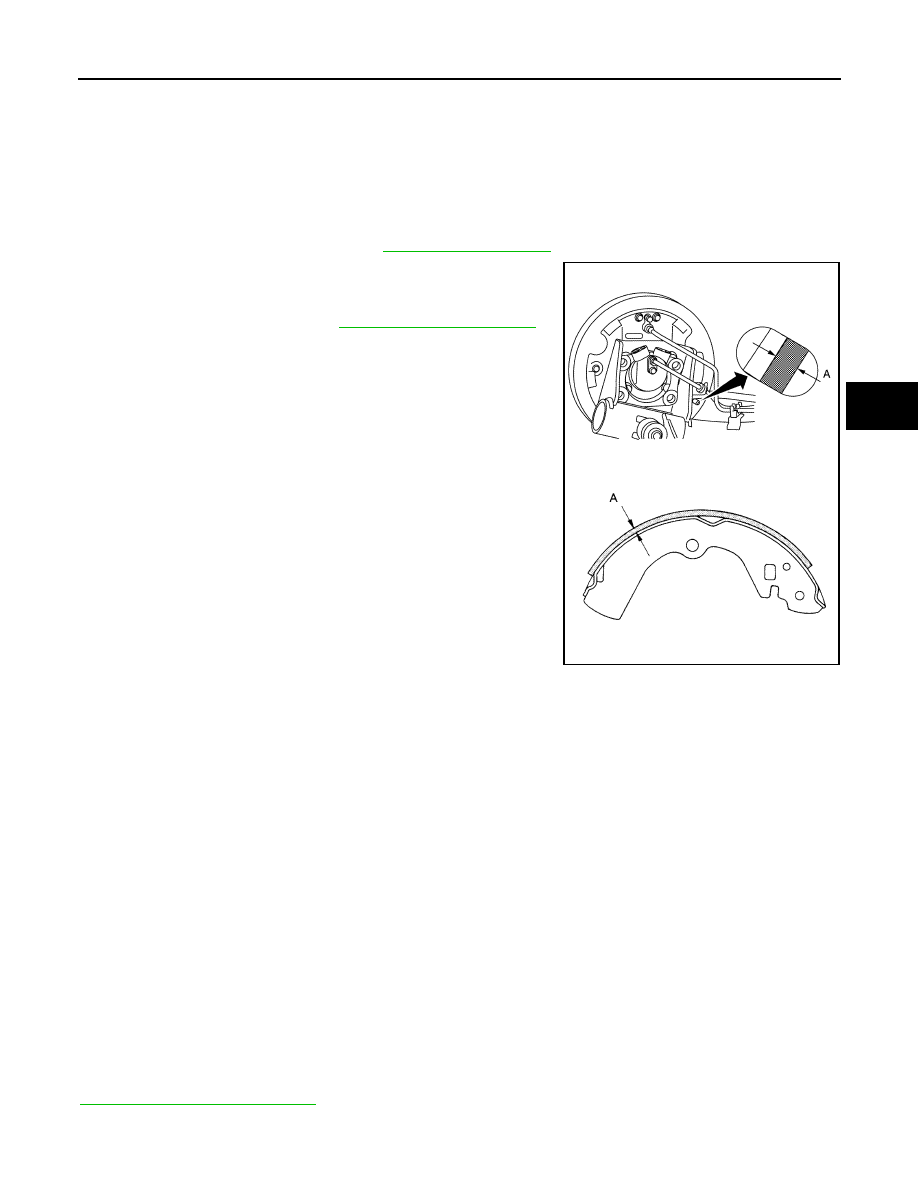

Brake Lining

1. Remove plug from back plate. Refer to

BR-40, "Exploded View"

.

2. Check brake lining wear thickness (A) from an inspection hole

on back plate. Check using a scale if necessary.

BRAKE LINING : Brake Burnishing

INFOID:0000000009671191

BRAKE BURNISHING

Burnish contact surfaces between brake lining and brake drum according to the following procedure after

refinishing brake drum, replacing brake drum, replacing brake lining, or if a soft pedal occurs at very low mile-

age:

CAUTION:

• Be careful of vehicle speed because the brake pedal does not operate firmly/securely until brake lin-

ing and brake drum are securely seated.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive vehicle on straight, flat road.
2. Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.
3. Drive without depressing brake pedal for a few minutes to cool the brake.
4. Repeat steps 1 to 3 until brake lining and brake drum are securely seated.

BRAKE DRUM
BRAKE DRUM : Inspection

INFOID:0000000009364999

INSPECTION

Appearance

Check surface of brake drum for uneven wear, cracks and serious damage. Replace it if necessary. Refer to

BR-40, "Removal and Installation"

.

NOTE:

• Make sure the parking brake control is fully released prior to removal of the brake drum.

Wear thickness

: Refer to

BR-45, "Rear Drum Brake"

.

JSFIA1039ZZ

BR-18

< PERIODIC MAINTENANCE >

REAR DRUM BRAKE

• The rear wheel hub is part of the brake drum.

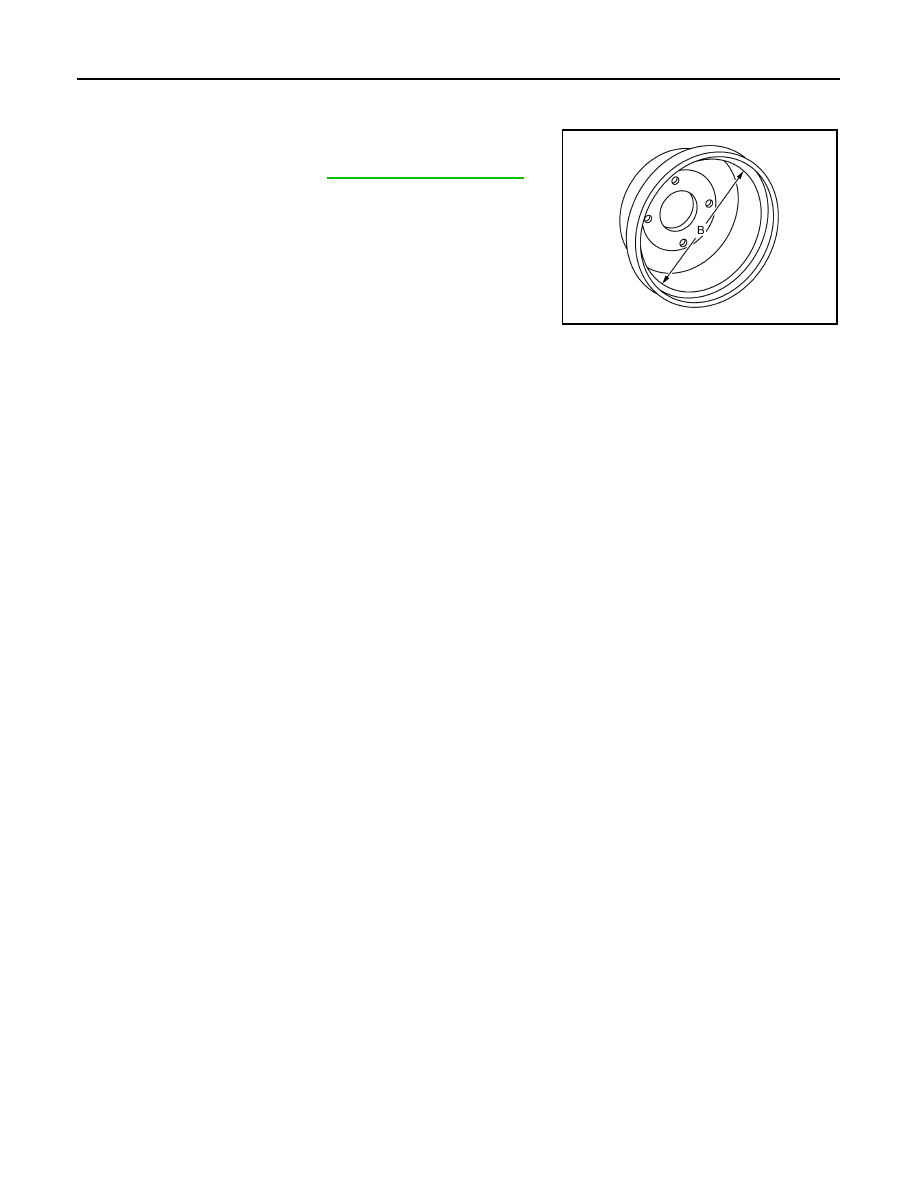

Brake Drum Inner Diameter

Check inner diameter (B) of the brake drum.

Inner diameter : Refer to

BR-45, "Rear Drum Brake"

.

JPFIA0113ZZ

BRAKE PEDAL

BR-19

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REMOVAL AND INSTALLATION

BRAKE PEDAL

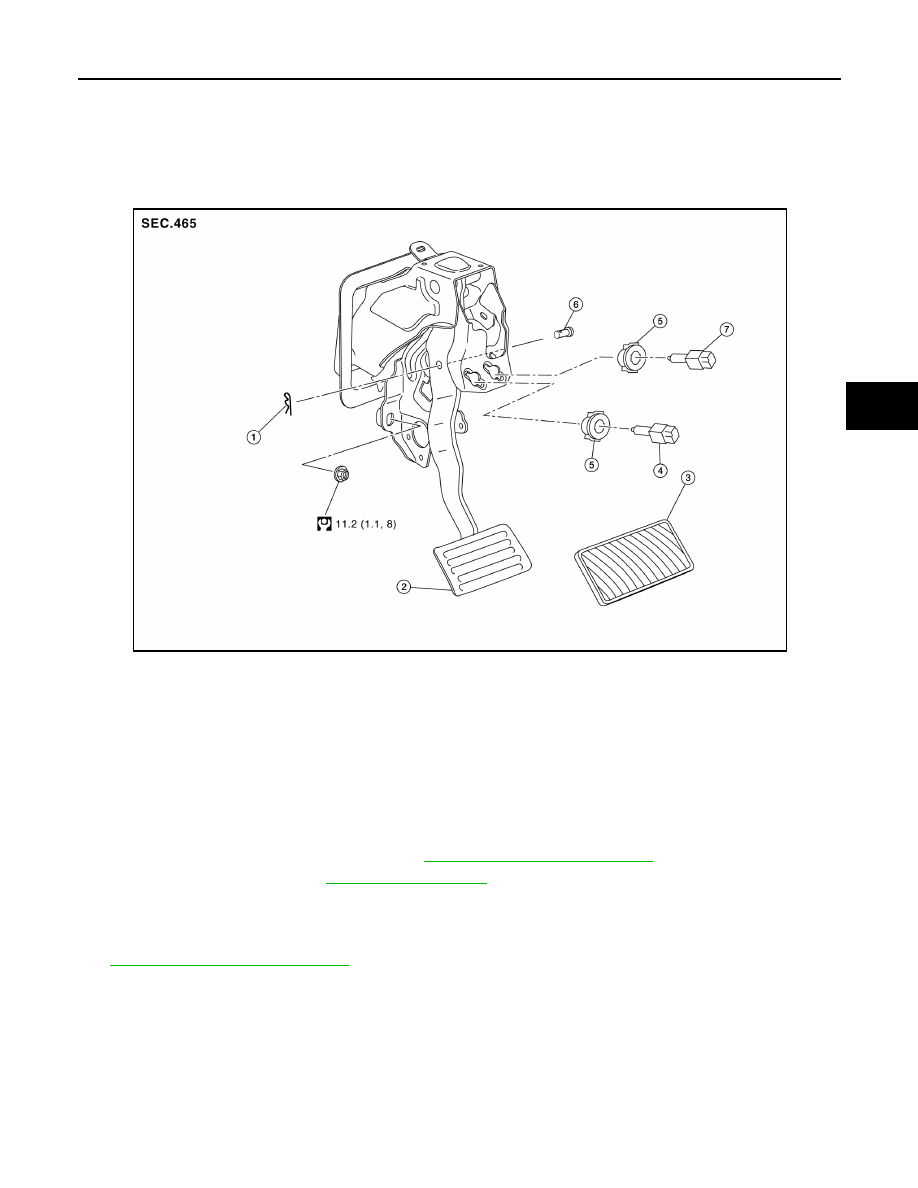

Exploded View

INFOID:0000000009365000

NOTE:

The CVT brake pedal is shown. The M/T brake pedal is similar.

Removal and Installation

INFOID:0000000009365001

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. Remove knee bolster. Refer to

IP-14, "Exploded View"

.

3. Disconnect the harness connector from the stop lamp switch.
4. Disconnect the harness connector from the ASCD cancel switch (if equipped).
5. Disconnect the harness connector from the accelerator pedal. Remove the accelerator pedal. Refer to

ACC-3, "Removal and Installation"

.

6. Separate the harness from brake pedal.
7. Rotate the stop lamp switch counter clockwise to remove.
8. Rotate the ASCD cancel switch (if equipped) counter clockwise to remove.
9. Remove snap pin and clevis pin from clevis.
10. Disconnect the power steering harness connector and position it aside.
11. Remove the brake pedal.

CAUTION:

Support the brake booster and master cylinder to prevent contact with other components.

1.

Snap pin

2.

Brake pedal

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Clevis pin

7.

ASCD cancel switch (if equipped)

AWFIA0875GB
