Nissan Note E12. Manual - part 67

BR-4

< PRECAUTION >

PRECAUTIONS

• Always loosen the brake tube flare nut with a flare nut wrench.

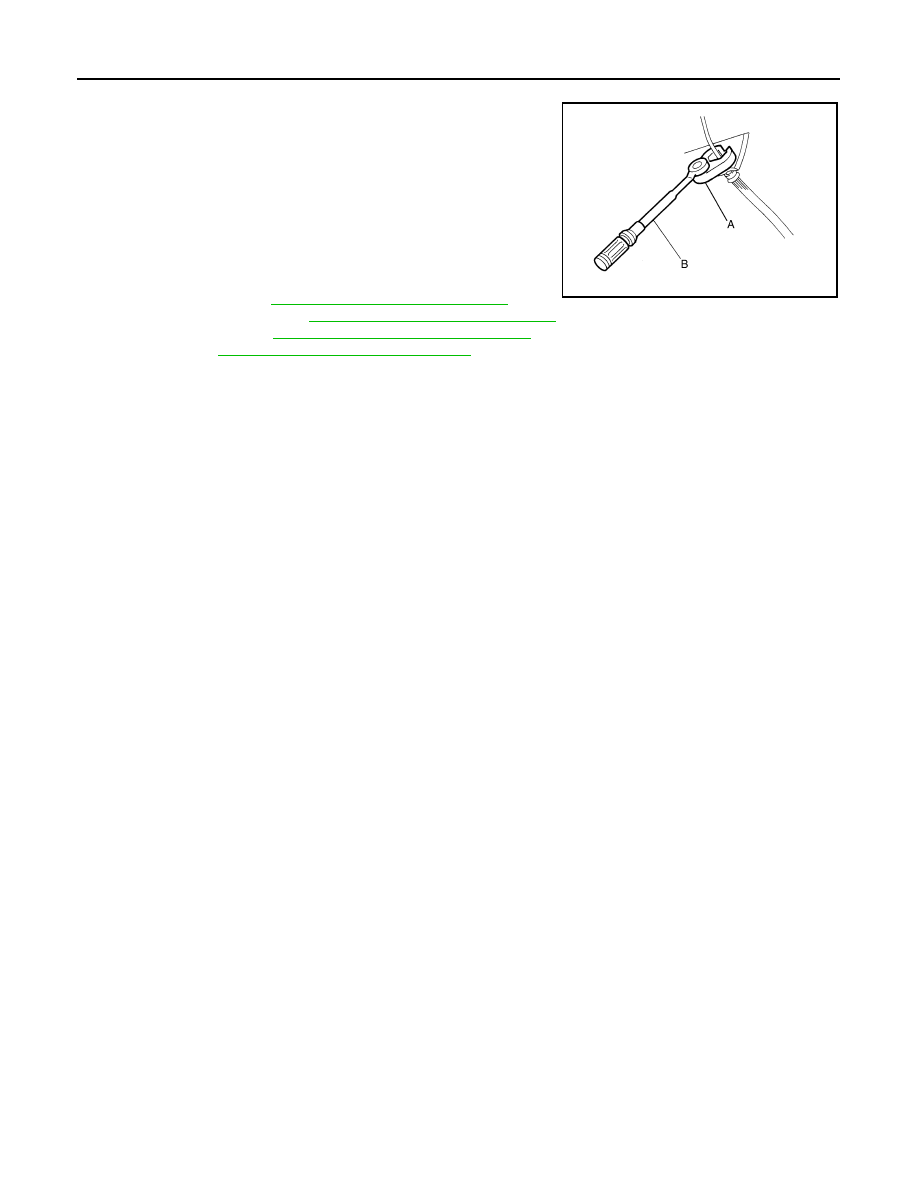

• Tighten the brake tube flare nut to the specified torque with a crow-

foot (A) and torque wrench (B).

• Brake system is an important safety part. If a brake fluid leak is

detected, always disassemble the affected part. If a malfunction is

detected, replace part with a new one.

• Always connect the battery terminals when moving the vehicle.

• Check that no brake fluid leakage is present after replacing the

parts.

• Burnish the brake contact surfaces after refinishing or replacing

disc brake rotors, after replacing brake pads, or if a soft pedal

occurs at very low mileage.

- Front brake pad: Refer to

BR-15, "BRAKE PAD : Inspection"

.

- Front disc brake rotor: Refer to

BR-15, "DISC ROTOR : Inspection"

.

- Rear brake lining: refer to

BR-17, "BRAKE LINING : Inspection"

.

- Rear brake drum:

BR-17, "BRAKE DRUM : Inspection"

.

JPFIA0001ZZ

PREPARATION

BR-5

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009364986

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009364987

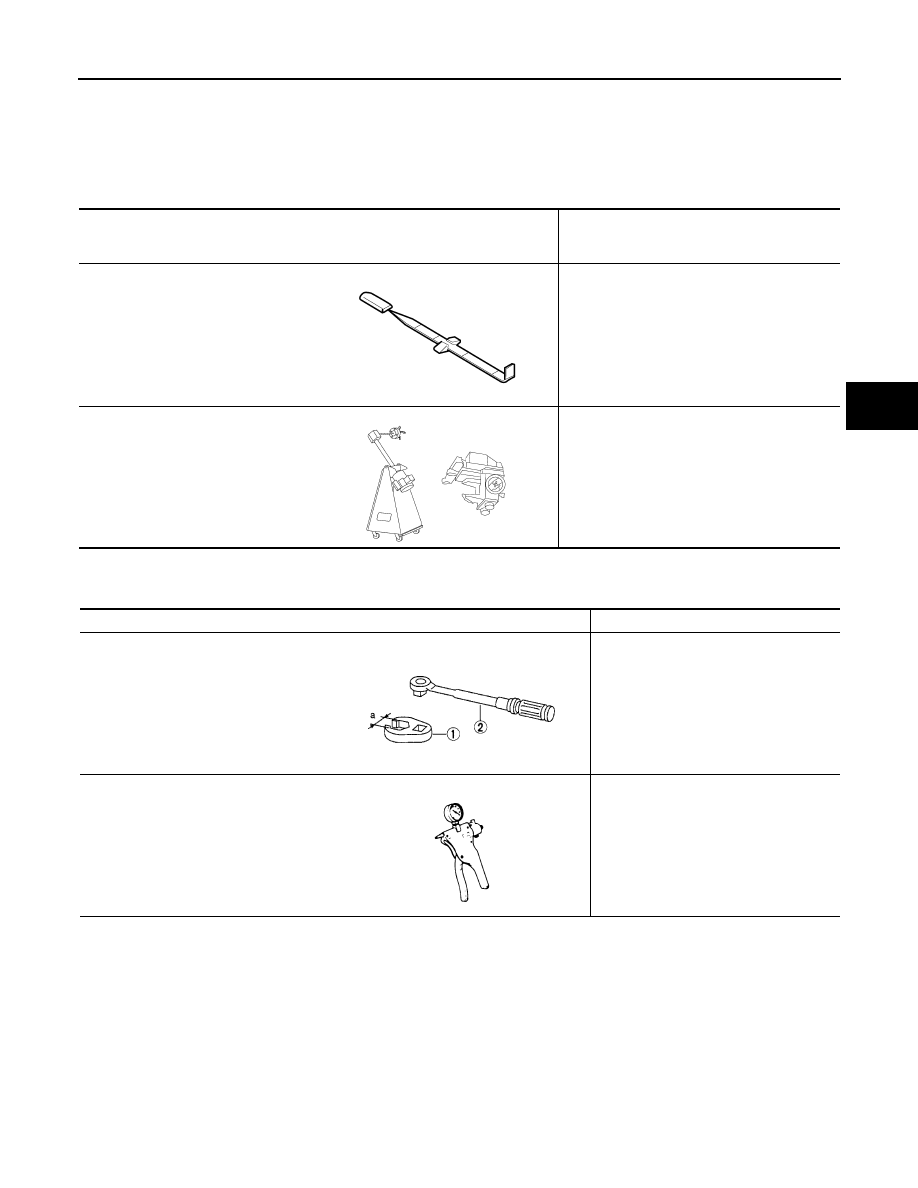

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46532)
Brake height tool

Measuring brake pedal height

38-PFM92-GYX/5
( — )
On-car brake lathe

Turning disc brake rotors

LFIA0227E

ALFIA0092ZZ

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Removing and installing brake pipe and
hose flare nuts

a:10 mm (0.39 in) / 12 mm (0.47 in)

Vacuum pump

• Air tight
• Inspection of check valve

NT360

ZZC1313D

BR-6

< PREPARATION >

PREPARATION

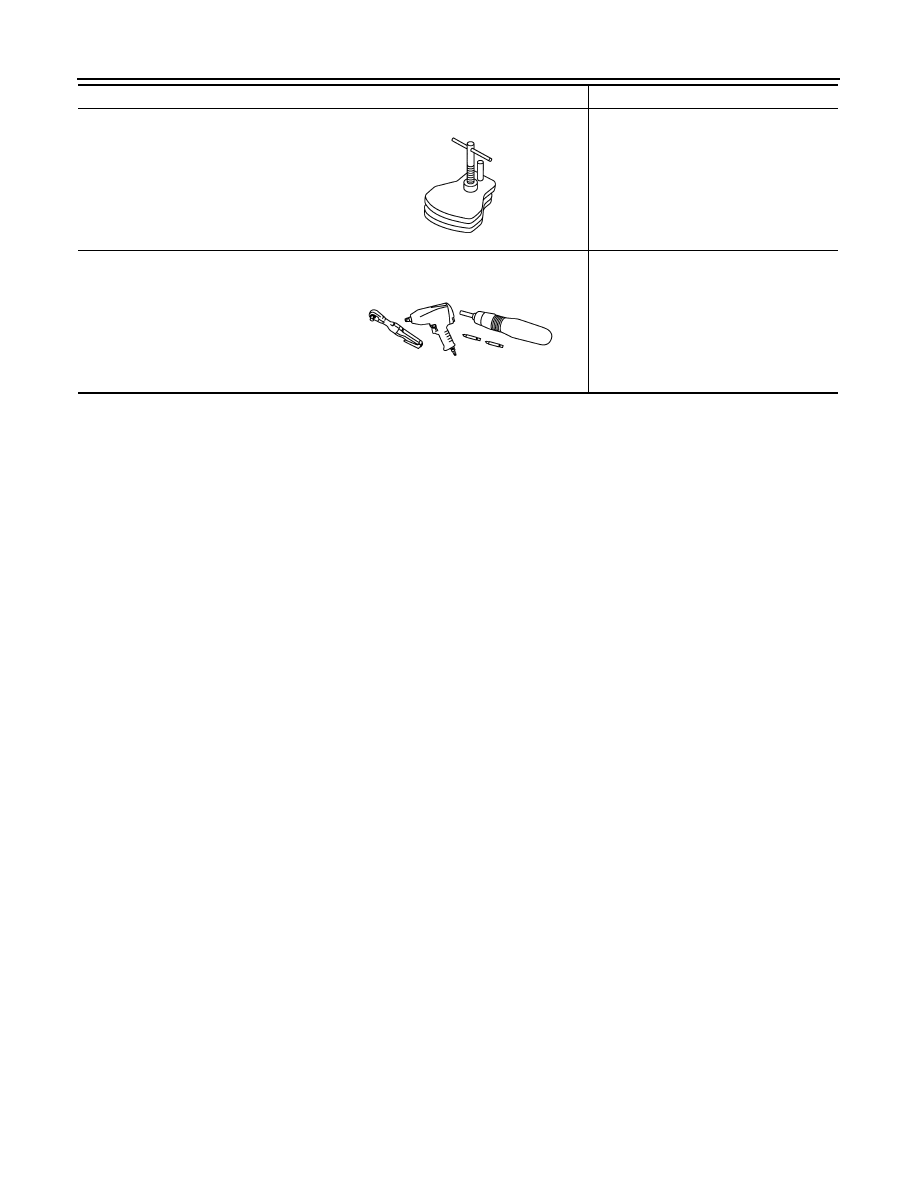

Brake caliper wrench (front)

Return the piston

Power tool

Loosening nuts, screws and bolts

Tool name

Description

NNFIA0040ZZ

PIIB1407E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
