BCS-28

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

Reference Value

INFOID:0000000009567536

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

BRAKE SW 1

When the brake pedal is released

On

When the brake pedal is depressed

Off

BRAKE SW2

Brake pedal released

Off

Brake pedal depressed

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

CONFRM ID ALL

The key ID does not match any key ID registered to BCM.

Yet

The key ID matches any key ID registered to BCM.

DONE

CONFIRM ID4

The key ID does not match the fourth key ID registered to BCM.

Yet

The key ID matches the fourth key ID registered to BCM.

DONE

CONFIRM ID3

The key ID does not match the third key ID registered to BCM.

Yet

The key ID matches the third key ID registered to BCM.

DONE

CONFIRM ID2

The key ID does not match the second key ID registered to BCM.

Yet

The key ID matches the second key ID registered to BCM.

DONE

CONFIRM ID1

The key ID does not match the first key ID registered to BCM.

Yet

The key ID matches the first key ID registered to BCM.

DONE

DETE SW -IPDM

When selector lever is in P position

Off

When selector lever is in any position other than P

On

DETE/CANCL SW

When selector lever is in P position

Off

When selector lever is in any position other than P

On

DOOR STAT-AS

Passenger door LOCK status

LOCK

Passenger door UNLOCK status

UNLK

Wait with selective UNLOCK operation (5 seconds)

READY

DOOR STAT-DR

Driver door LOCK status

LOCK

Driver door UNLOCK status

UNLK

Wait with selective UNLOCK operation (5 seconds)

READY

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-BK

Back door closed

Off

Back door opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

BCS

BCM

BCS-29

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

ENGINE STATE

Engine stopped

Stop

While the engine stalls

Stall

At engine cranking

Crank

Engine running

Run

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On

FR WIPER HI

Front wiper switch OFF

Off

Front wiper switch HI

On

FR WIPER INT

Front wiper switch OFF

Off

Front wiper switch INT

On

FR WIPER STOP

Any position other than front wiper stop position

Off

Front wiper stop position

On

HAZARD SW

When hazard switch is not pressed

Off

When hazard switch is pressed

On

HEAD LAMP SW 1

Headlamp switch OFF

Off

Headlamp switch 1st

On

HEAD LAMP SW 2

Headlamp switch OFF

Off

Headlamp switch 1st

On

HI BEAM SW

High beam switch OFF

Off

High beam switch HI

On

ID OK FLAG

Ignition switch ACC or ON

Reset

Ignition switch OFF

Set

IGN RLY1 F/B

Ignition switch OFF or ACC

Off

Ignition switch ON

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

KEY CYL LK-SW

Door key cylinder LOCK position

Off

Door key cylinder other than LOCK position

On

KEY CYL UN-SW

Door key cylinder UNLOCK position

Off

Door key cylinder other than UNLOCK position

On

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

PRMT ENG STRT

When the engine start is prohibited

Reset

When the engine start is permitted

Set

PUSH SW

Return ignition switch to LOCK position

Off

Press ignition switch

On

Monitor Item

Condition

Value/Status

BCS-30

< ECU DIAGNOSIS INFORMATION >

BCM

PUSH SW-IPDM

When engine switch (push switch) is not pressed

Off

When engine switch (push switch) is pressed

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

REQ SW-AS

When passenger door request switch is not pressed

Off

When passenger door request switch is pressed

On

REQ SW-BD/TR

When back door request switch is not pressed

Off

When back door request switch is pressed

On

REQ SW-DR

When driver door request switch is not pressed

Off

When driver door request switch is pressed

On

RKE-LOCK

When LOCK button of Intelligent Key is not pressed

Off

When LOCK button of Intelligent Key is pressed

On

RKE-MODE CHG

When LOCK/UNLOCK button of Intelligent Key is not pressed and
held simultaneously

Off

When LOCK/UNLOCK button of Intelligent Key is pressed and held
simultaneously

On

RKE OPE COUN1

Operation frequency of Intelligent Key

0-19

RKE OPE COUN2

Operation frequency of Intelligent Key

0-19

RKE-UNLOCK

When UNLOCK button of Intelligent Key is not pressed

Off

When UNLOCK button of Intelligent Key is pressed

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER INT

Rear wiper switch OFF

Off

Rear wiper switch INT

On

RR WIPER ON

Rear wiper switch OFF

Off

Rear wiper switch ON

On

RR WIPER STOP

Any position other than rear wiper stop position

Off

Rear wiper stop position

On

SFT N-MET

When selector lever is in any position other than N

Off

When selector lever is in N position

On

SFT P-MET

When selector lever is in any position other than P

Off

When selector lever is in P position

On

SFT PN -IPDM

When selector lever is in any position other than P or N

Off

When selector lever is in P or N position

On

SFT PN/N SW

When selector lever is in any position other than P or N

Off

When selector lever is in P or N position

On

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

Off

Lighting switch 1ST or 2ND

On

TP 4

The ID of fourth key is not registered to BCM

Yet

The ID of fourth key is registered to BCM

DONE

TP 3

The ID of third key is not registered to BCM

Yet

The ID of third key is registered to BCM

DONE

TP 2

The ID of second key is not registered to BCM

Yet

The ID of second key is registered to BCM

DONE

Monitor Item

Condition

Value/Status

BCS

BCM

BCS-31

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

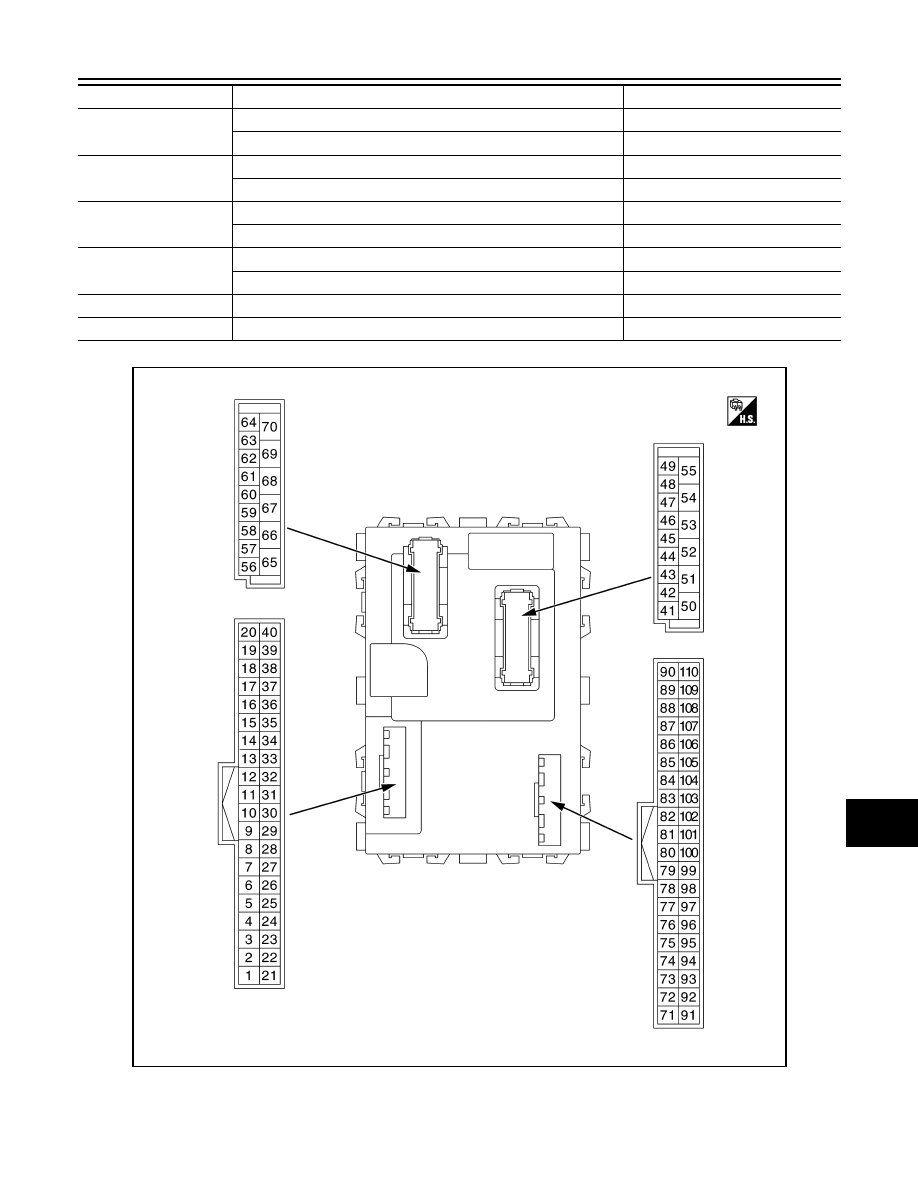

TERMINAL LAYOUT

PHYSICAL VALUES

TP 1

The ID of first key is not registered to BCM

Yet

The ID of first key is registered to BCM

DONE

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

UNLK SEN-DR

Driver door UNLOCK status

Off

Driver door LOCK status

On

VEH SPEED 1

While driving, equivalent to speedometer reading

mph, km/h

VEH SPEED 2

While driving, equivalent to speedometer reading

mph, km/h

Monitor Item

Condition

Value/Status

JMMIA1063ZZ
