AV-184

< REMOVAL AND INSTALLATION >

[NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009640353

REMOVAL

1. Remove the microphone from the headlining by releasing pawls using a suitable tool.
2. Disconnect the harness connector from microphone and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV

REAR VIEW CAMERA

AV-185

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009640356

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-34, "Removal and Installation"

.

2. Disconnect the harness connector from rear view camera.

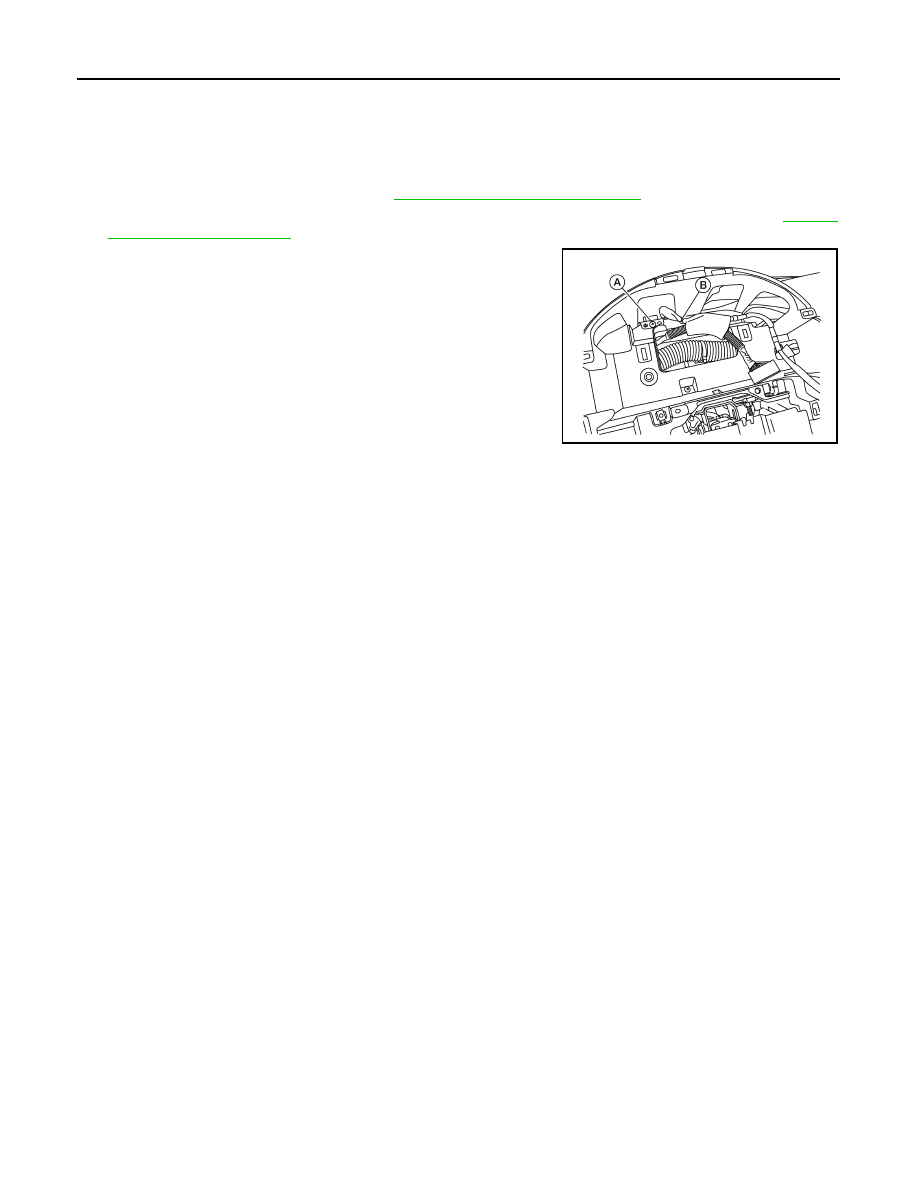

3. Remove the nuts (A) from the rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3070ZZ

AV-186

< REMOVAL AND INSTALLATION >

[NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000009640358

REMOVAL

1. Remove the combination meter. Refer to

MWI-48, "Removal and Installation"

.

2. Remove the AV control unit in order to disconnect the GPS antenna harness connector. Refer to

AV-178,

"Removal and Installation"

.

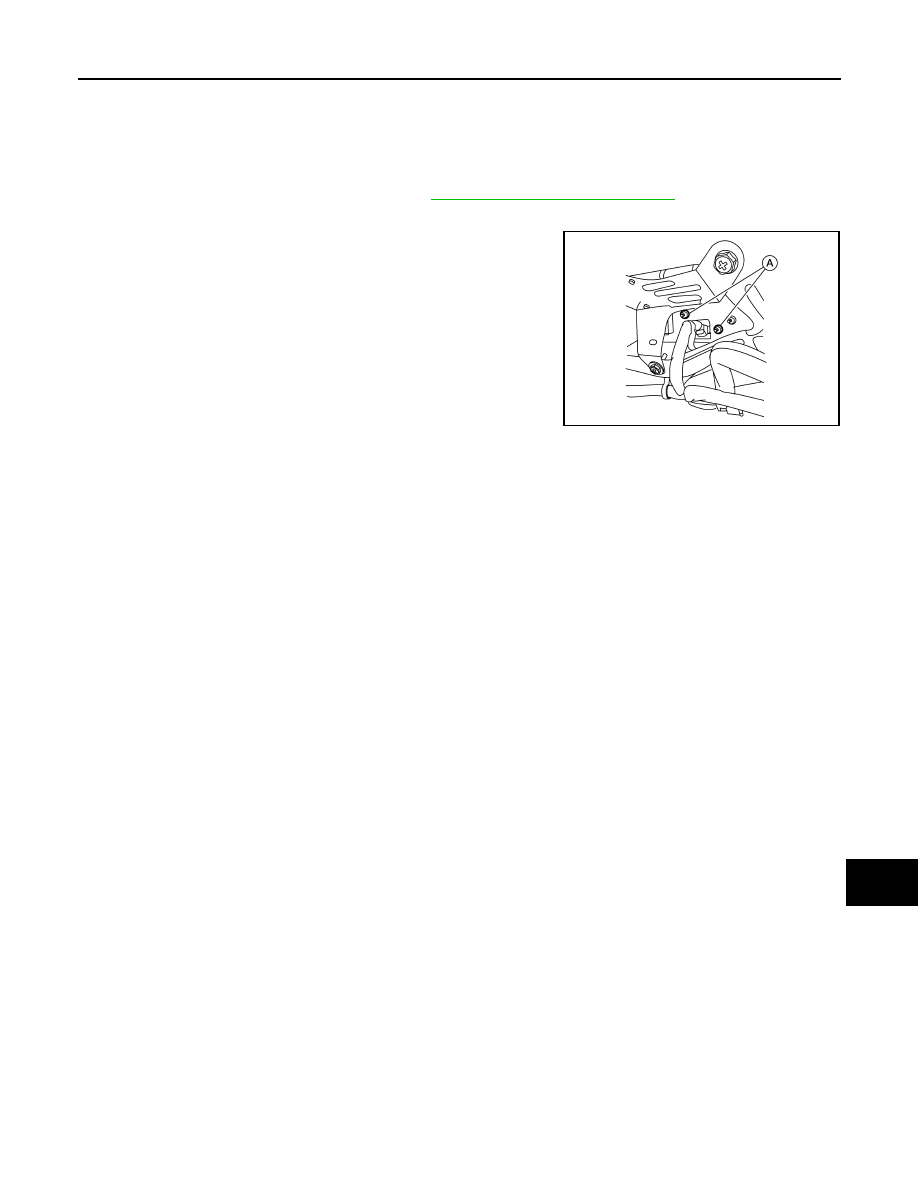

3. Remove the GPS antenna screw (A) from the GPS antenna.
4. Disconnect the harness clip (B) and remove the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3076ZZ

AV

ROD ANTENNA

AV-187

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ROD ANTENNA

Exploded View

INFOID:0000000009667932

Removal and Installation

INFOID:0000000009667933

REMOVAL

1. Lower the rear portion of the headlining. Refer to

INT-29, "Removal and Installation"

.

2. Disconnect the harness connectors from the antenna (satellite radio model shown).
3. Remove the antenna nut (A) and remove the antenna.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the antenna nut is tightened looser than the specified torque this will lower the sensitivity of the

antenna. If the antenna nut is tightened tighter than the specified torque this will deform the roof

panel.

AWNIA3124ZZ

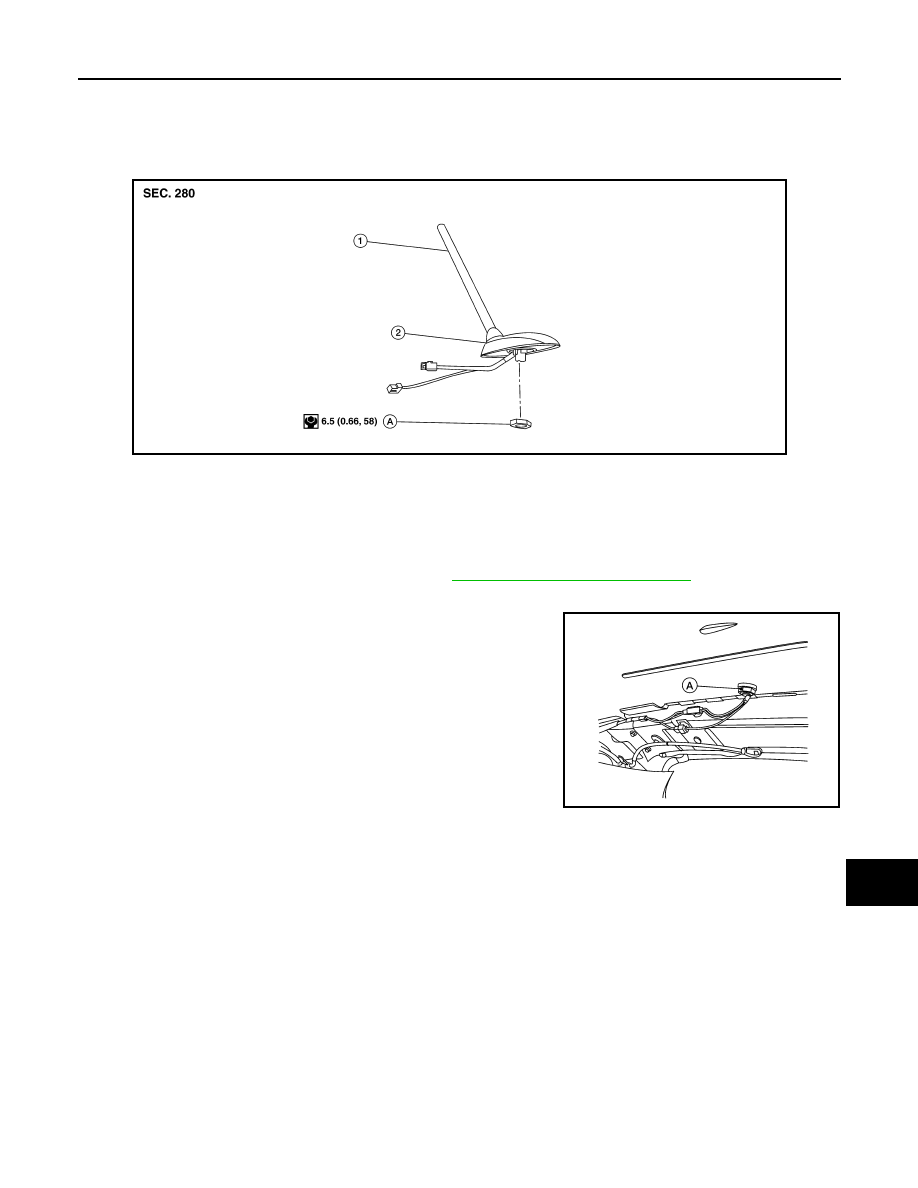

1. Antenna rod

2. Antenna base

A. Antenna nut

AWNIA3115ZZ
