POWER SUPPLY ROUTING CIRCUIT

PG-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

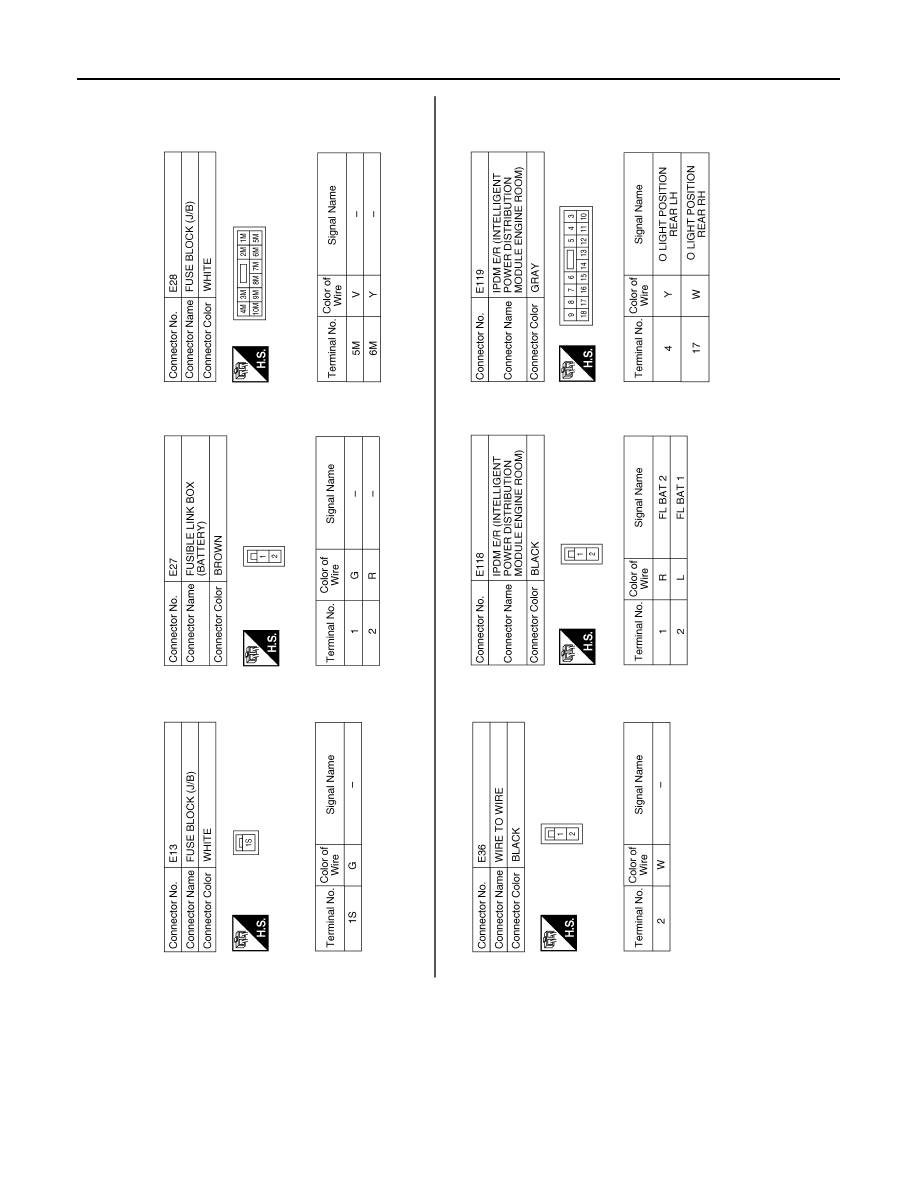

AAMWA1444GB

PG-16

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

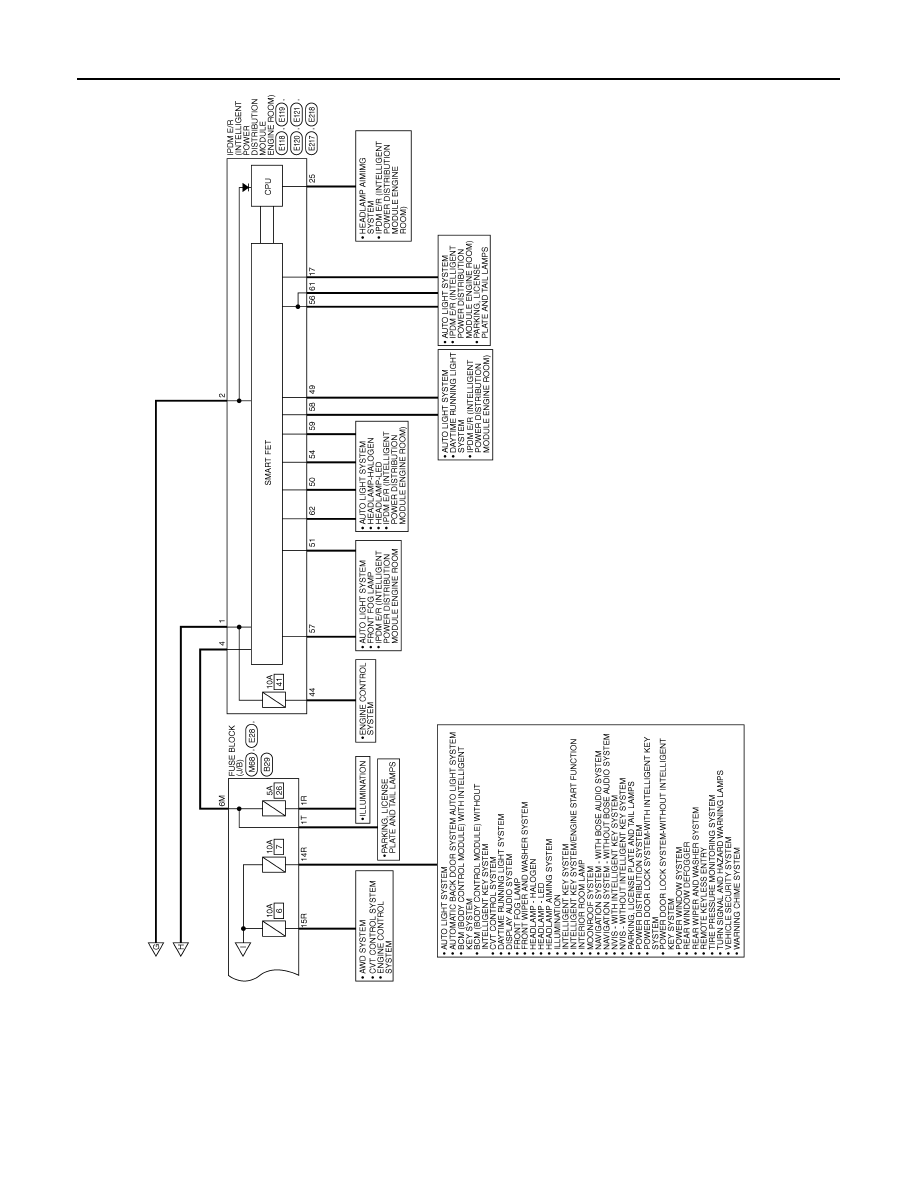

AAMWA1445GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

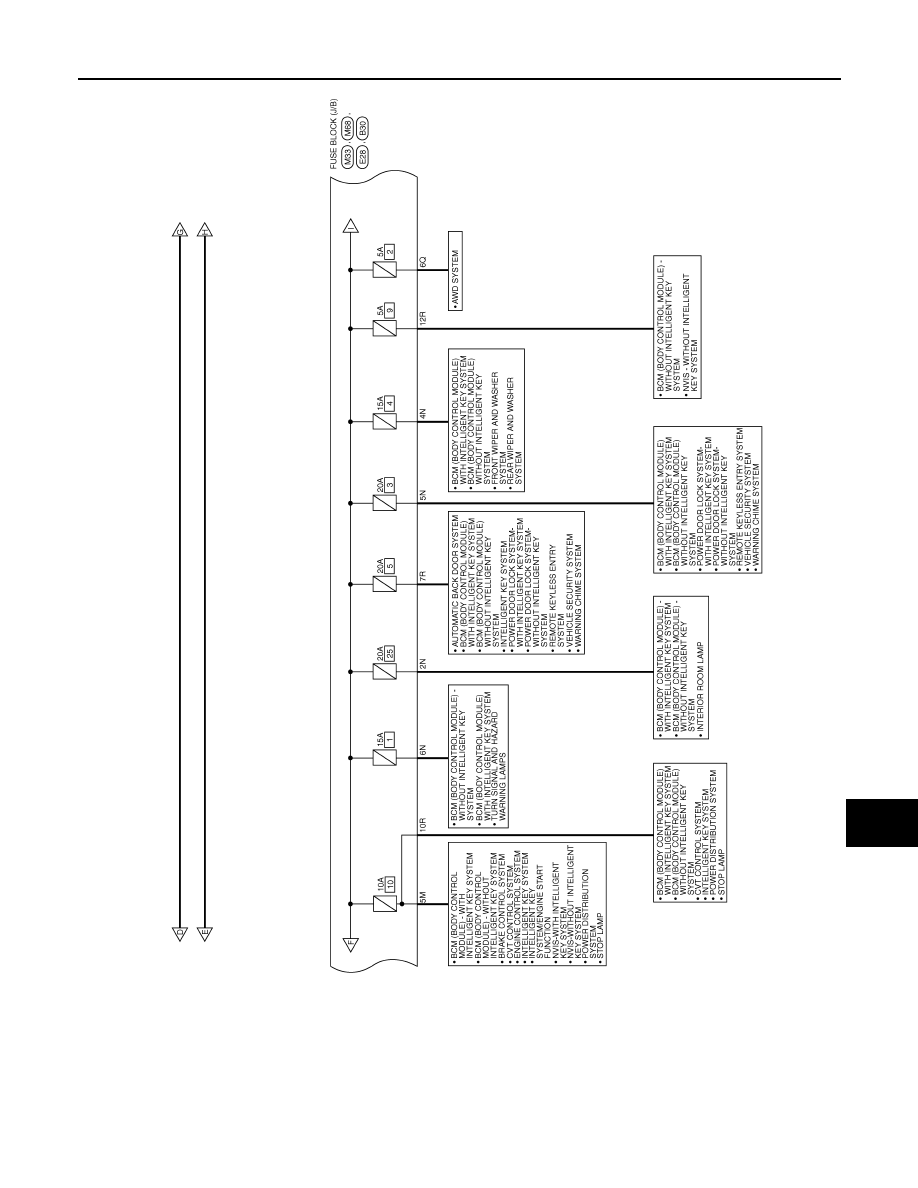

AAMIA2847GB

PG-18

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

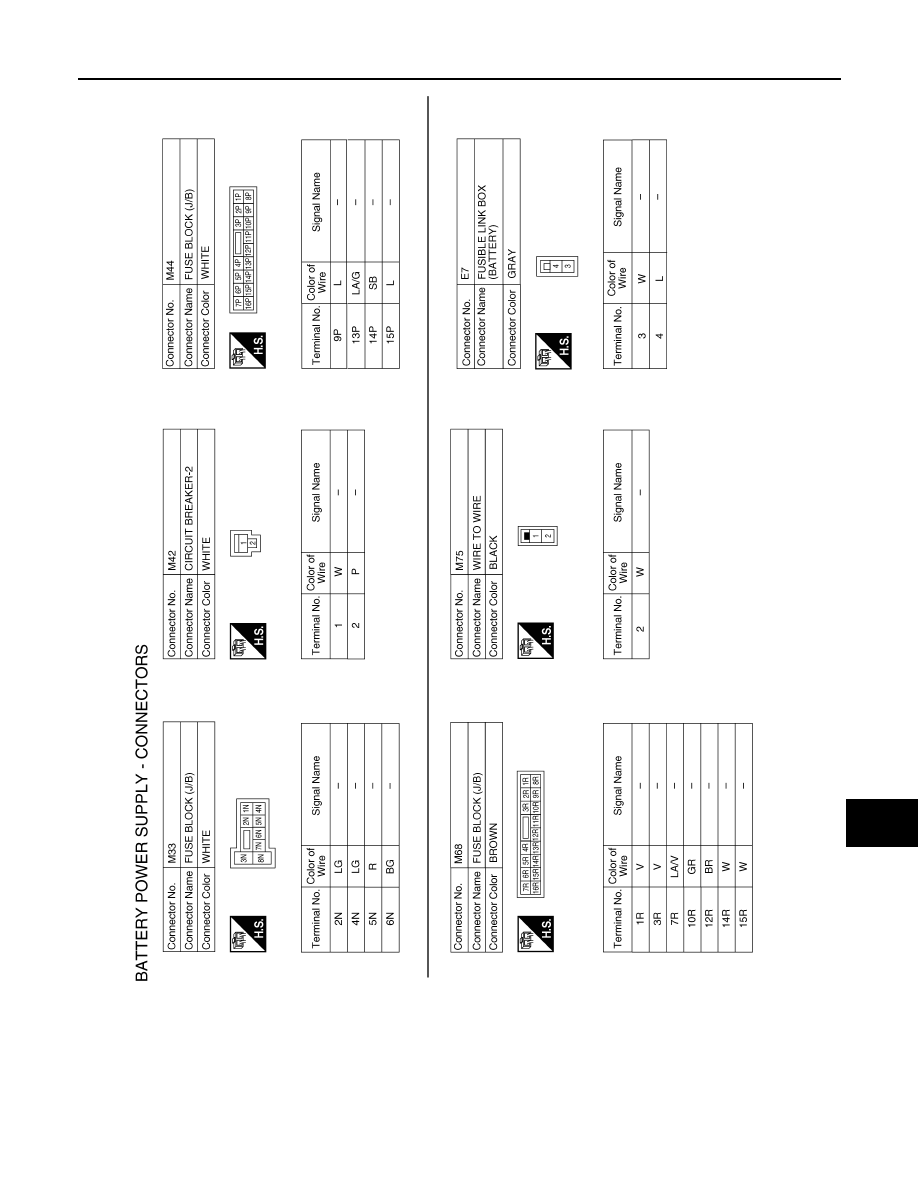

AAMIA2848GB
