FUEL LEVEL SENSOR SIGNAL CIRCUIT

Component Function Check

INFOID:0000000011279813

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” using CONSULT.

2. Select “FUEL METER” in “Data Monitor”.

3. Check the “FUEL METER” value and compare with the fuel gauge of the combination meter. Fuel gauge

and Data Monitor indications should be close.

Does the data monitor value approximately match the fuel gauge indication?

YES

>> Inspection End.

NO

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000011279814

1.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter connector and fuel level sensor unit and fuel pump (fuel level sensor) con-

nector.

3. Check continuity between combination meter harness connector and fuel level sensor unit and fuel pump

(fuel level sensor) harness connector.

4. Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) GROUND CIRCUIT

Check continuity between fuel level sensor unit and fuel pump (fuel level sensor) harness connector and com-

bination meter harness connector.

Is the inspection result normal?

Combination meter

Monitor item

Fuel gauge

FUEL METER [L]

(Approx.)

Full

55

3/4

41.2

1/2

27.5

1/4

13.7

Empty

0.0

Combination meter

Fuel level sensor unit and fuel pump (fuel level sensor)

Continuity

Connector

Terminal

Connector

Terminal

M77

51

B103

5

Yes

Combination meter

Ground

Continuity

Connector

Terminal

M77

51

No

Fuel level sensor unit and fuel pump (fuel level sensor)

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

B103

2

M77

44

Yes

MWI-64

< DTC/CIRCUIT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

YES

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000011279815

1.

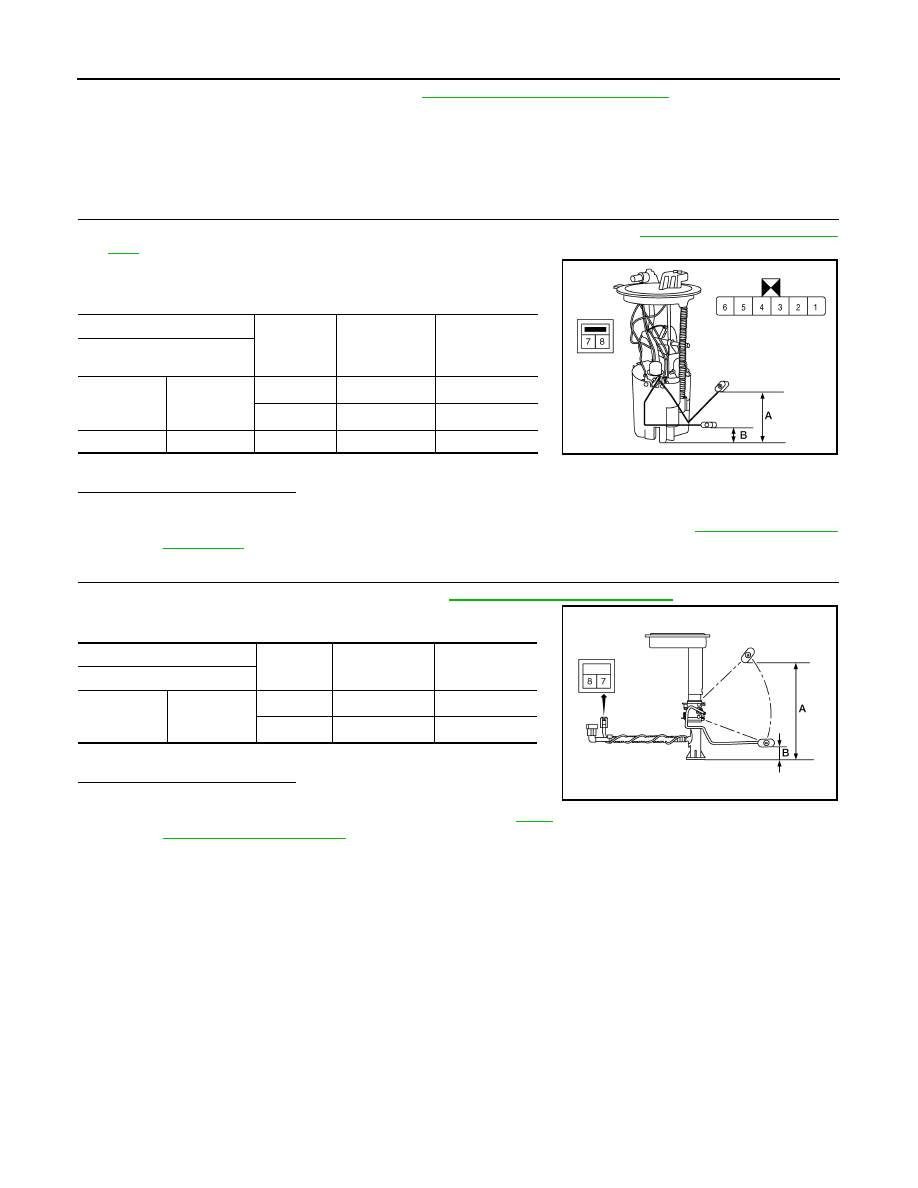

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)

1. Remove the fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-5, "Removal and Installa-

tion"

.

2. Check the resistance between fuel level sensor unit and fuel

pump (fuel level sensor).

*: When float rod is contact with stopper.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-5, "Removal and

Installation"

.

2.

CHECK FUEL LEVEL SENSOR UNIT (SUB)

1. Remove the fuel level sensor unit (sub). Refer to

FL-5, "Removal and Installation"

.

2. Check the resistance between fuel level sensor unit (sub).

*: When float rod is contact with stopper.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace fuel level sensor unit (sub). Refer to

FL-5,

"Removal and Installation"

.

Terminals

Condition

Resistance (

Ω)

(Approx.)

Height [mm (in)]

Fuel level sensor unit and

fuel pump (fuel level sensor)

2

8

Full

*

 (A)

45

171.4 (6.7)

Empty

*

 (B)

141

20.5 (0.8)

5

7

—

0

—

AWNIA3403ZZ

Terminals

Condition

Resistance (

Ω)

(Approx.)

Height [mm (in)]

Fuel level sensor unit (sub)

7

8

Full

*

 (A)

6.0

194.1 (7.6)

Empty

*

 (B)

141

18 (0.7)

AWNIA3404ZZ

MWI

PARKING BRAKE SWITCH SIGNAL CIRCUIT

MWI-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000011279816

Transmits the parking brake switch signal to the combination meter.

Component Function Check

INFOID:0000000011279817

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” using CONSULT.

2. Select “PKB SW” in “Data Monitor”.

3. Check the “PKB SW” status according to the following conditions:

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

MWI-65, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011279818

Regarding Wiring Diagram information, refer to

MWI-33, "Wiring Diagram"

.

1.

CHECK PARKING BRAKE SWITCH CIRCUIT

1. Disconnect combination meter harness connector M76 and parking brake switch harness connector E52.

2. Check continuity between combination meter harness connector M76 terminal 26 and parking brake

switch harness connector E52 terminal 1.

3. Check continuity between combination meter harness connector M76 terminal 26 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connector.

Component Inspection

INFOID:0000000011279819

1.

CHECK PARKING BRAKE SWITCH

Check continuity between parking brake switch terminal 1 and switch case ground.

Is the inspection result normal?

YES

>> Inspection End.

Monitor item

Condition

Status

PKB SW

Parking brake applied

On

Parking brake released

Off

Combination meter

Parking brake switch

Continuity

Connector

Terminal

Connector

Terminal

M76

26

E52

1

Yes

Combination meter

Ground

Continuity

Connector

Terminal

M76

26

No

Component

Terminal

Condition

Continuity

Parking brake switch

1

Parking brake applied

Yes

Parking brake released

No

MWI-66

< DTC/CIRCUIT DIAGNOSIS >

PARKING BRAKE SWITCH SIGNAL CIRCUIT

NO

>> Replace parking brake switch. Refer to

PB-7, "Exploded View"

.
