Nissan Rogue. Manual - part 915

MWI

COMPONENT PARTS

MWI-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Design

INFOID:0000000011279775

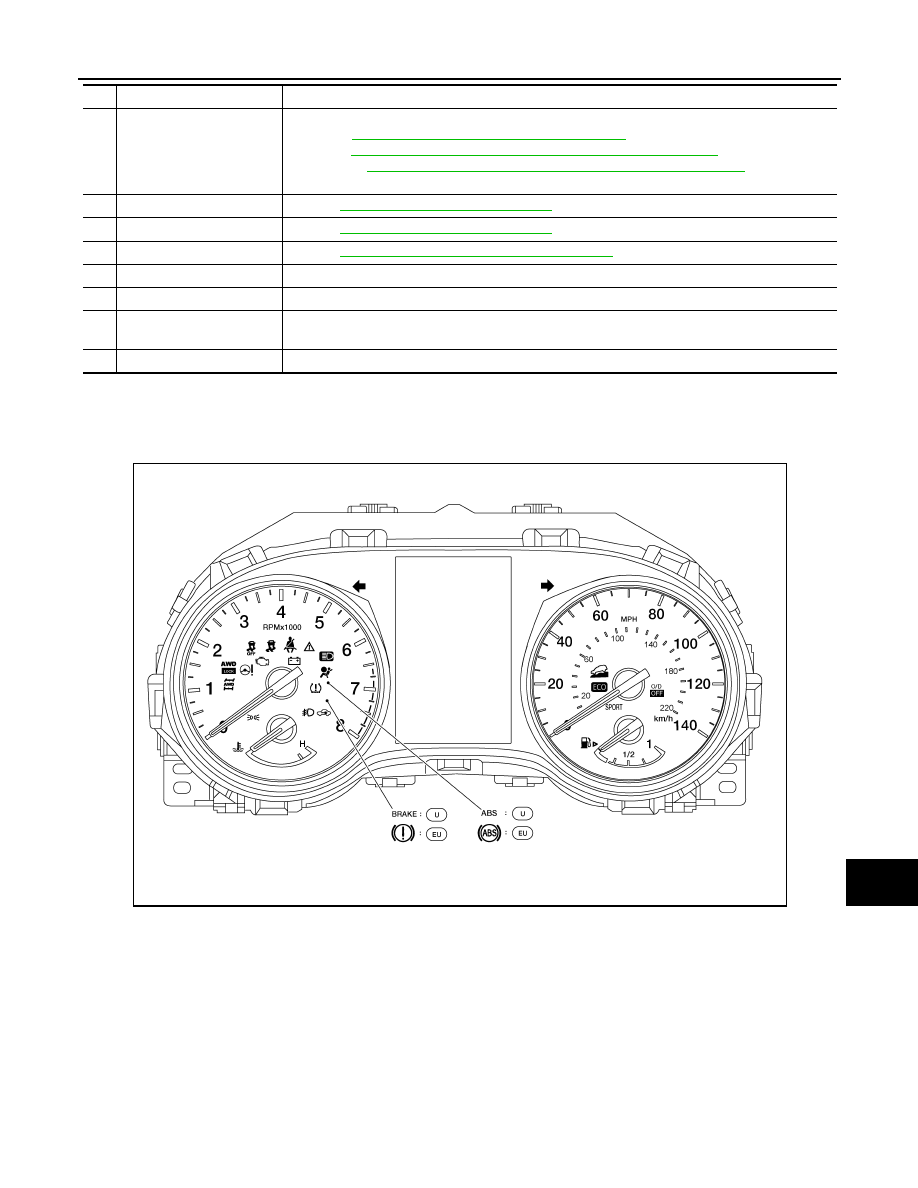

ARRANGEMENT OF COMBINATION METER

7.

BCM

• Transmits each signal to the combination meter via CAN communication.

Refer to

MWI-8, "METER SYSTEM : System Description"

.

• Refer  to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intelligent Key

system) or

BCS-79, "BODY CONTROL SYSTEM : Component Parts Location"

 (without Intelli-

gent Key system) for detailed installation location.

8.

Meter control switch

Refer to

MWI-18, "Switch Name and Function"

.

9.

Steering switches

Refer to

MWI-18, "Switch Name and Function"

.

10.

Combination meter

Refer to

MWI-8, "METER SYSTEM : System Description"

.

11.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

12.

Fuel level sensor unit (sub) Transmits the fuel level sensor signal to the combination meter.

13.

Fuel level sensor unit
(main)

Transmits the fuel level sensor signal to the combination meter.

14.

Engine oil pressure sensor

Transmits the engine oil pressure sensor signal to the ECM.

No.

Component

Function

U:

USA

EU: Except USA

AWNIA3716ZZ

MWI-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

METER SYSTEM
METER SYSTEM : System Description

INFOID:0000000011279776

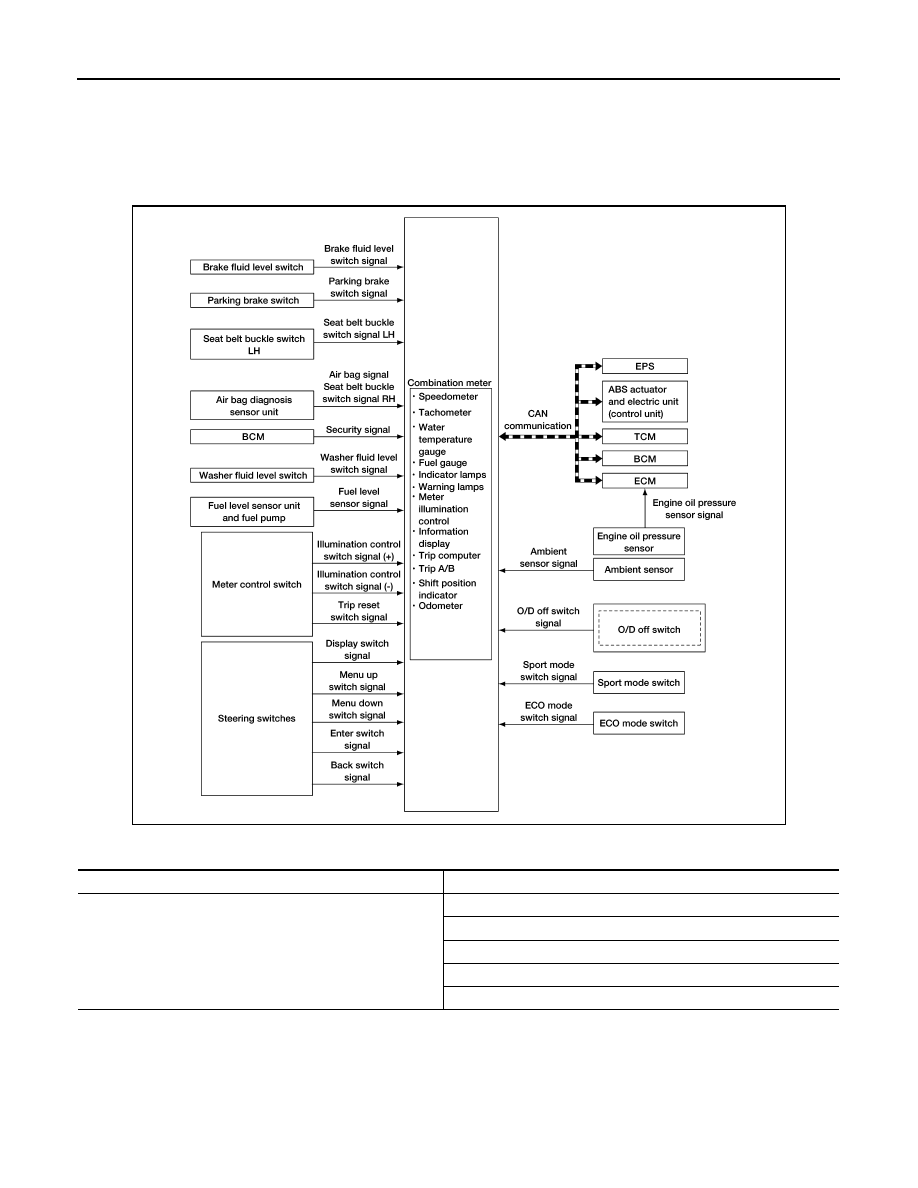

SYSTEM DIAGRAM

Combination Meter Input Signal (CAN Communication Signal)

AWNIA3718GB

Transmit unit

Signal name

ABS actuator and electric unit (control unit)

Vehicle speed signal

ABS warning lamp signal

VDC warning lamp signal

VDC OFF indicator lamp signal

Brake warning lamp signal

MWI

SYSTEM

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DESCRIPTION

Combination Meter

• The combination meter controls the following items according to the signals received from each unit via CAN

communication and the signals from switches and sensors:

- Measuring instruments

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

- Warning lamps

- Indicator lamps

- Meter illumination control

- Meter effect function

- Information display

• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer. Refer to

WCS-6, "WARNING CHIME SYSTEM : System Description"

 for further details.

• The combination meter includes an on board diagnosis function.

• The combination meter can be diagnosed with CONSULT.

METER CONTROL FUNCTION LIST

BCM

Dimmer signal

Position light request signal

Door switch signal

Front fog light request signal

High beam request signal

Meter display signal

Sleep wake up signal

Buzzer output signal

Tire pressure data signal

Key ID signal

Turn indicator signal

TPMS malfunction warning lamp signal

Starter relay status signal

Low tire pressure warning lamp signal

TCM

Shift position signal

CVT warning lamp signal

OD OFF indicator signal

ECM

Engine speed signal

ASCD status signal

Engine coolant temperature signal

Fuel consumption monitor signal

Malfunctioning indicator lamp signal

Engine status signal

Engine oil pressure sensor signal

Fuel filler cap warning display signal

SPORT mode indicator signal

ECO mode indicator signal

AWD control unit

AWD warning lamp signal

Transmit unit

Signal name

MWI-10

< SYSTEM DESCRIPTION >

SYSTEM

METER SYSTEM : Fail-safe

INFOID:0000000011406184

The combination meter activates the fail-safe control if the CAN communication lines between each unit are

malfunctioning.

System

Description

Reference

Measuring in-
struments

Speedometer

Indicates vehicle speed.

MWI-12,
"SPEEDOME-
TER : System
Description"

Tachometer

Indicates engine speed.

MWI-12, "TA-
CHOMETER :
System Descrip-
tion"

Engine coolant temperature gauge

Indicates engine coolant temperature.

MWI-12, "EN-
GINE COOLANT
TEMPERA-
TURE GAUGE :
System Descrip-
tion"

Fuel gauge

Indicates fuel level.

MWI-13, "FUEL
GAUGE : Sys-
tem Description"

Information display

The Information display displays status, according to
system malfunction or vehicle condition.

MWI-15, "IN-
FORMATION
DISPLAY : Sys-
tem Description"

Meter illumina-
tion control

Meter illumination control function

Switches back and forth between daytime mode and
nighttime mode, according to a light switch position.

MWI-13,
"METER ILLU-
MINATION
CONTROL :
System Descrip-
tion"

Back light illumination control function

The operation of the illumination control switch al-
lows the brightness adjustment of meter illumination.

Meter effect
function

Engine-start effect function

Controls pointers of combination meter, back light il-
lumination and information display at engine start to
produce illumination effects.

MWI-13,
"METER EF-
FECT FUNC-
TION : System
Description"

Driver welcome function

Controls meter illumination to produce illumination
effects when getting in the vehicle.

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Meter illumination control

When suspending communication, changes to nighttime mode.

Buzzer

Turns OFF by suspending communication.
