HA-24

< PERIODIC MAINTENANCE >

OIL

OIL

Description

INFOID:0000000011279485

MAINTENANCE OF OIL LEVEL

The compressor oil is circulating in the system together with the refrigerant. It is necessary to fill compressor

with oil when replacing A/C system parts or when a large amount of refrigerant leak is detected. It is important

to always maintain oil level within the specified level or otherwise the following conditions may occur:

• Insufficient oil amount: Stuck compressor

• Excessive oil amount: Insufficient cooling (caused by insufficient heat exchange)

Inspection

INFOID:0000000011279486

If a compressor is malfunctioning (internal noise, insufficient cooling), check the compressor oil.

1.

COMPRESSOR OIL JUDGMENT

1. Remove the compressor. Refer to

HA-29, "Removal and Installation"

.

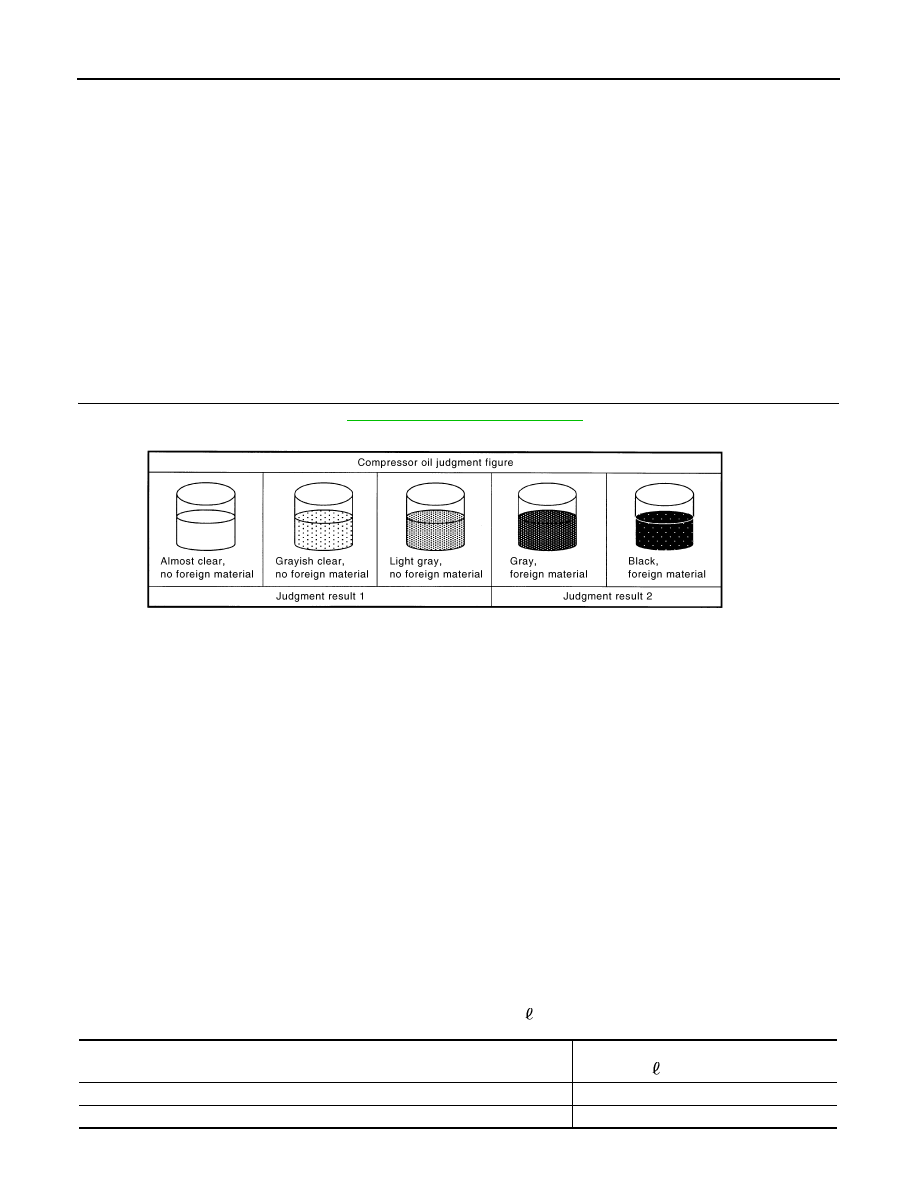

2. Sample compressor oil and judge below according to the figure.

Judgement result 1>>Replace compressor only.

Judgement result 2>>Replace compressor and condenser (includes liquid tank).

Perform Oil Return Operation

INFOID:0000000011279487

CAUTION:

If a large amount of refrigerant or oil leak is detected, do not perform oil return operation.
1. Start the engine and set to the following conditions:

• Engine speed: Idling to 1,200 rpm

• A/C switch: ON

• Fan (blower) speed: Maximum speed set

• Intake door position: Recirculation

• Temperature setting: Full cold

2. Perform oil return operation for approximately 10 minutes.
3. Stop the engine.
4. Oil return operation is complete.

Oil Adjusting Procedure for Components Replacement Except Compressor

INFOID:0000000011279488

Fill with oil for the amount that is calculated according to the following conditions.
Example: Oil amount to be added when replacing evaporator [m  (US fl oz, Imp fl oz)] = 75 (2.5, 2.6) +

α

Oil Type:

ND-OIL8 (PAG)

JSIIA0927GB

Conditions

Oil amount to be added to A/C system

m  (US fl oz, Imp fl oz)

Replace evaporator

75 (2.5, 2.6)

Replace condenser (includes liquid tank)

80 (2.7, 2.8)

OIL

HA-25

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Oil Adjusting Procedure for Compressor Replacement

INFOID:0000000011279489

1. Before connecting recovery/recycling equipment to vehicle, check recovery/recycling equipment gauges.

No refrigerant pressure should be displayed. If NG, recover refrigerant from equipment lines.

2. Connect recovery/recycling equipment to vehicle. Confirm refrigerant purity in supply tank using recovery/

recycling equipment and refrigerant identifier. If NG, refer to

HA-4, "Precautions For Refrigerant System

Service"

.

3. Confirm refrigerant purity in vehicle A/C system using recovery/recycling equipment and refrigerant identi-

fier. If NG, refer to

HA-4, "Precautions For Refrigerant System Service"

.

4. Discharge refrigerant into the refrigerant recovery/recycling equipment. Measure oil discharged into the

recovery/recycling equipment.

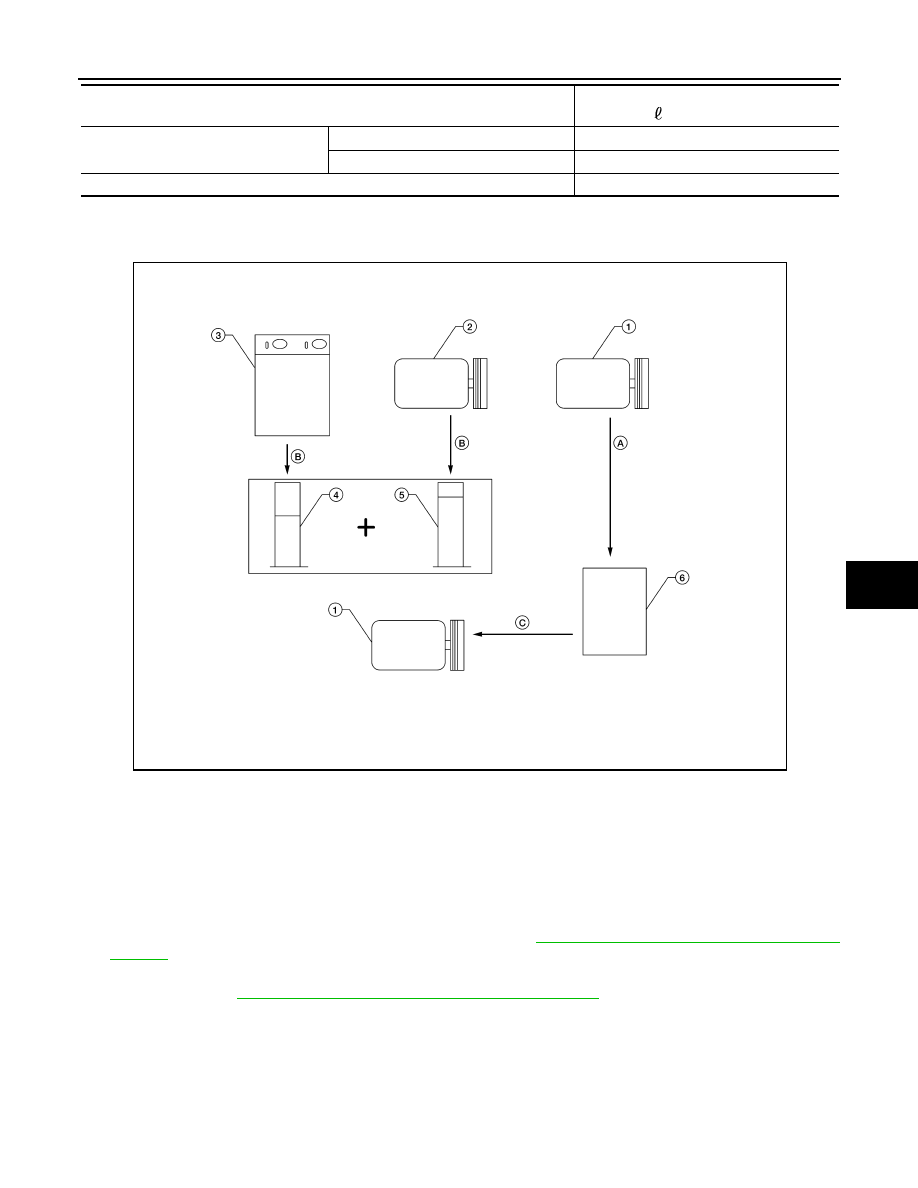

5. Drain the oil from the “old” (removed) compressor into a graduated container and recover the amount of

oil drained.

6. Drain the oil from the “new” compressor into a separate, clean container.
7. Measure an amount of new oil installed equal to amount drained from “old” compressor. Add this oil to

“new” compressor through the suction port opening.

Refrigerant leak is detected

Large amount leak

30 (1.0, 1.1)

Small amount leak

—

Oil amount that is recycled together with refrigerant during recycle operation

α

Conditions

Oil amount to be added to A/C system

m  (US fl oz, Imp fl oz)

1.

New compressor

2.

Old compressor

3.

Recovery/recycling equipment

4.

Measuring cup X

5.

Measuring cup Y

6.

New oil

A.

Drain oil from the new compressor
into clean container

B.

Record amount of oil recovered

C.

Install new oil equal to recorded
amounts in measuring cups X and Y

ALIIA0759ZZ

HA-26

< PERIODIC MAINTENANCE >

OIL

8. Measure an amount of new oil equal to the amount recovered during discharging. Add this oil to “new”

compressor through the suction port opening.

PERFORMANCE TEST

HA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PERFORMANCE TEST

Inspection

INFOID:0000000011279490

INSPECTION PROCEDURE

1. Connect recovery/recycling/recharging equipment (for HFC-134a) or manifold gauge.
2. Start the engine, and set to the following condition.

Test condition

3. Maintain test condition until A/C system becomes stable. (Approximately 10 minutes)
4. Check that test results of “recirculating-to-discharge air temperature” and “ambient air temperature-to-

operating pressure” are within the specified value.

5. When test results are within the specified value, inspection is complete.

If any of test result is out of the specified value, perform diagnosis by gauge pressure. Refer to

HA-17,

"Symptom Table"

.

RECIRCULATING-TO-DISCHARGE AIR TEMPERATURE TABLE

AMBIENT AIR TEMPERATURE-TO-OPERATING PRESSURE TABLE

Surrounding condition

Indoors or in the shade (in a well-ventilated place)

Vehicle condition

Door

Closed

Door glass

Full open

Hood

Open

Engine speed

Idle speed

A/C condition

Temperature control switch or dial

Full cold

A/C switch

ON

Air outlet

VENT (ventilation)

Intake door position

Recirculation

Fan (blower) speed

Maximum speed set

Inside air (Recirculating air) at blower assembly inlet

Discharge air temperature from center ventilator

°C (°F)

Relative humidity

%

Air temperature

°C (°F)

50 – 60

20 (68)

4.7 – 6.7 (40 – 44)

25 (77)

8.6 – 11.1 (47 – 52)

30 (86)

12.6 – 15.6 (55 – 60)

35 (95)

19.0 – 22.5 (66 – 73)

60 – 70

20 (68)

6.7 – 8.7 (44 – 48)

25 (77)

11.1 – 13.6 (52 – 56)

30 (86)

15.6 – 18.6 (60 – 65)

35 (95)

22.5 – 26.0 (73 – 79)
