REAR POWER WINDOW MOTOR

GW-25

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW MOTOR

Removal and Installation

INFOID:0000000011276520

REMOVAL

1. Remove rear door glass regulator. Refer to

GW-22, "Removal and Installation"

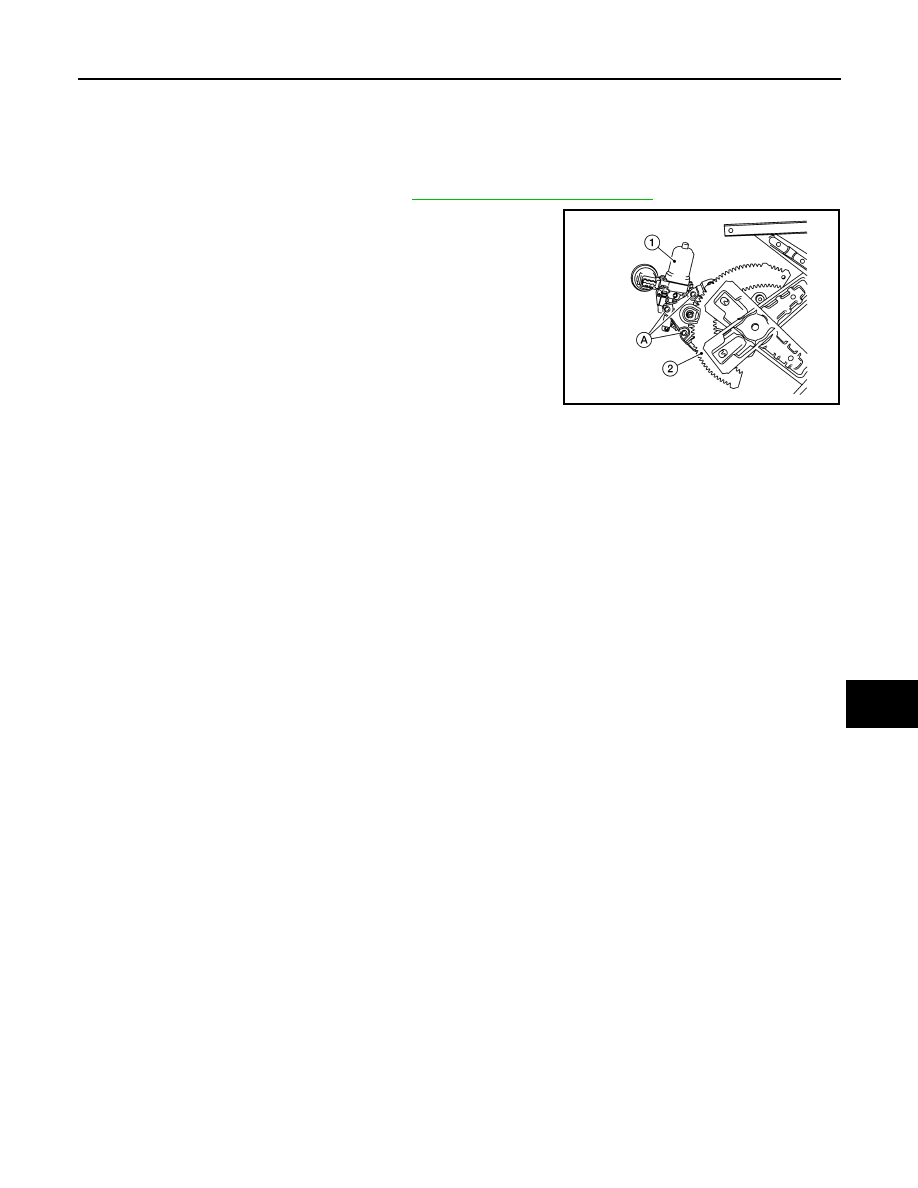

2. Remove screws (A) and rear door power window motor (1) from

rear door glass regulator (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3215ZZ

GW-26

< REMOVAL AND INSTALLATION >

QUARTER WINDOW GLASS

QUARTER WINDOW GLASS

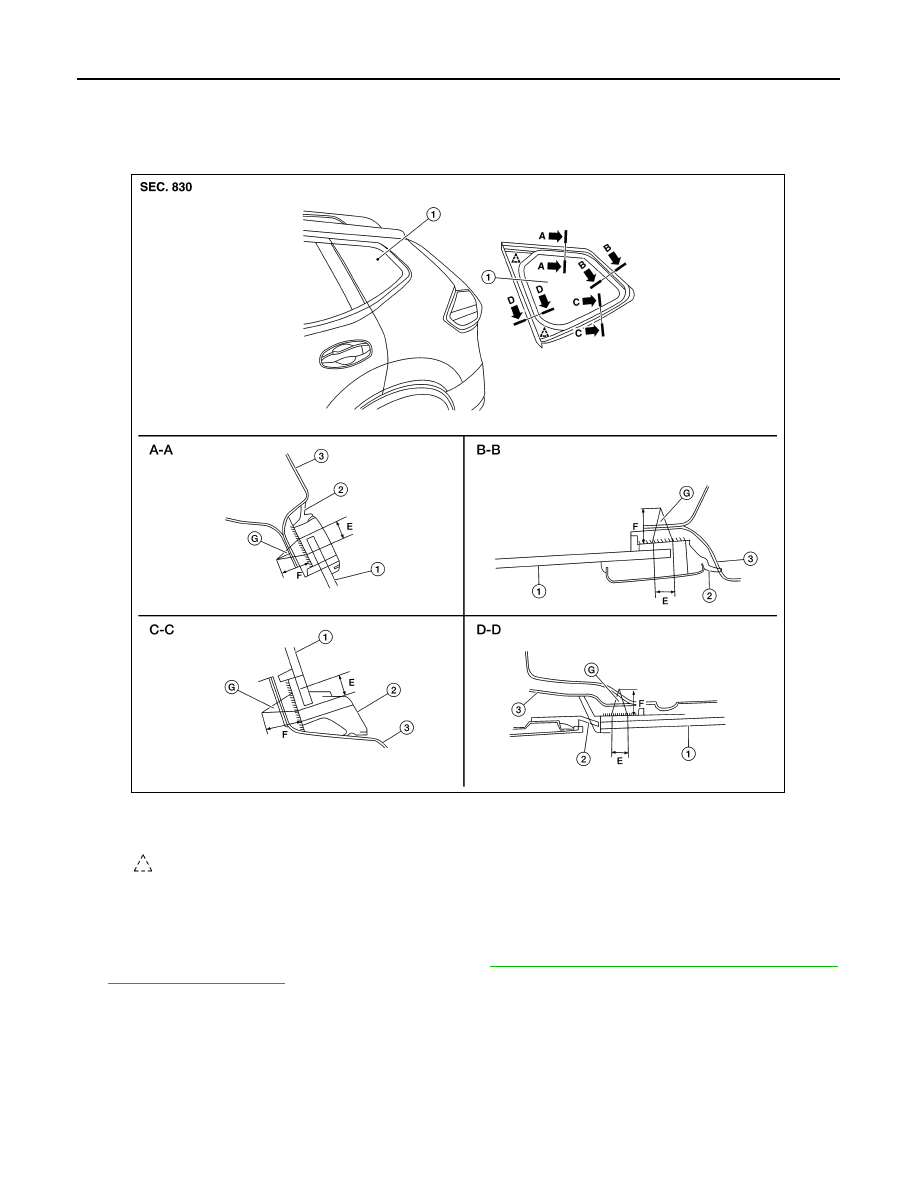

Exploded View

INFOID:0000000011276521

Removal and Installation

INFOID:0000000011276522

REMOVAL

1. Remove the luggage side upper finisher. Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

2. Remove quarter glass from the inside of vehicle using a piano wire or cutting tool and an inflatable bag.

WARNING:

When cutting the quarter window from the vehicle, always wear safety glasses and heavy gloves

to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Apply protective tape around the quarter glass to protect the painted surface.

• Be careful not to scratch the quarter window glass when removing.

• Do not set or stand the quarter window glass on its edge. Small chips may develop into cracks.

Quarter window glass

Quarter window glass molding 3.

Body side outer

7.0 mm (0.28 in)

12.0 (0.47 in)

Adhesive

Clip

AWBIA1977ZZ

QUARTER WINDOW GLASS

GW-27

< REMOVAL AND INSTALLATION >

INSTALLATION

Installation is in the reverse order of removal.

• Install the quarter glass from outside the vehicle to ensure that it is even around the top, bottom and sides of

the opening.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidity.

Inspection

INFOID:0000000011276523

REPAIRING WATER LEAKAGE FOR QUARTER WINDOW GLASS

Leakage can be repaired without removing glass.

Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

This can be done by applying water to the side window glass area while pushing glass outward.

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GW-28

< REMOVAL AND INSTALLATION >

BACK DOOR WINDOW GLASS

BACK DOOR WINDOW GLASS

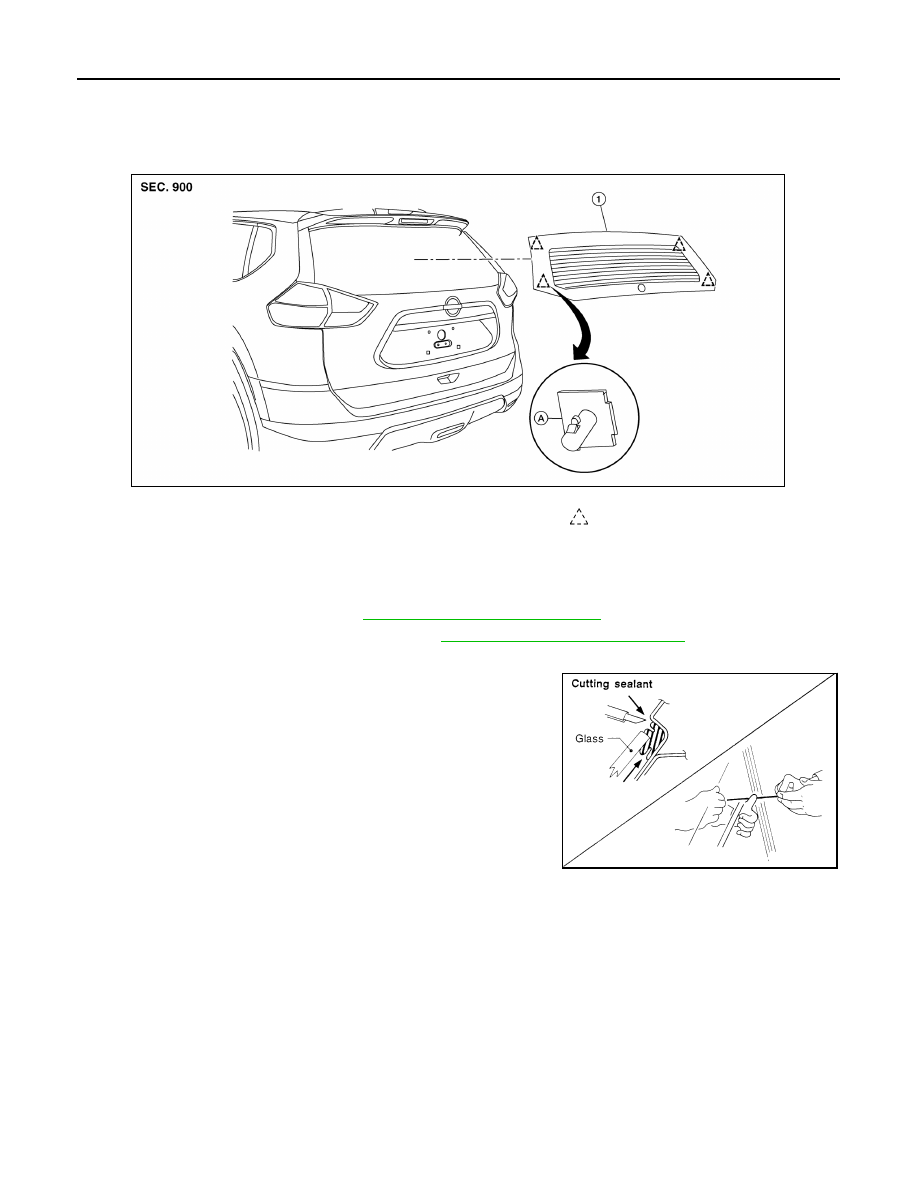

Exploded View

INFOID:0000000011276524

Removal and Installation

INFOID:0000000011276525

REMOVAL

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

2. Remove the rear wiper arm and motor. Refer to

WW-73, "Removal and Installation"

3. Disconnect harness connectors from back door window defogger.
4. Remove back door window glass using piano wire or power cut-

ting tool and an inflatable pump bag.

WARNING:

When cutting back door window glass from vehicle, always

wear safety glasses and heavy gloves to prevent glass

splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch glass when removing.

• Do not set or stand glass on its edge. Small chips may

develop into cracks.

• Apply protective tape around back door window glass to

protect painted surface from damage.

NOTE:

Mark body and glass with matching marks if back door window glass is to be reused.

INSTALLATION

Installation is in the reverse order of removal.

• Use genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

• Adhesive shall be continuously applied to assure watertightness. Glass installation shall be finished within

five minutes after applying adhesive.

• While urethane adhesive is curing, open door window. This will prevent glass from being forced out by pas-

senger compartment air pressure when door is closed.

• Start and finish urethane adhesive application at the bottom to assure watertightness.

• Inform customer that vehicle should remain stationary until urethane adhesive has completely cured (prefer-

ably 24 hours). Curing time varies with temperature and humidity.

WARNING:

Back door window glass

Clip

AWKIA3178ZZ

SBF034B
