Nissan Rogue. Manual - part 679

FRONT WHEEL HUB

FAX-9

< REMOVAL AND INSTALLATION >

[FWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

REMOVAL AND INSTALLATION

FRONT WHEEL HUB

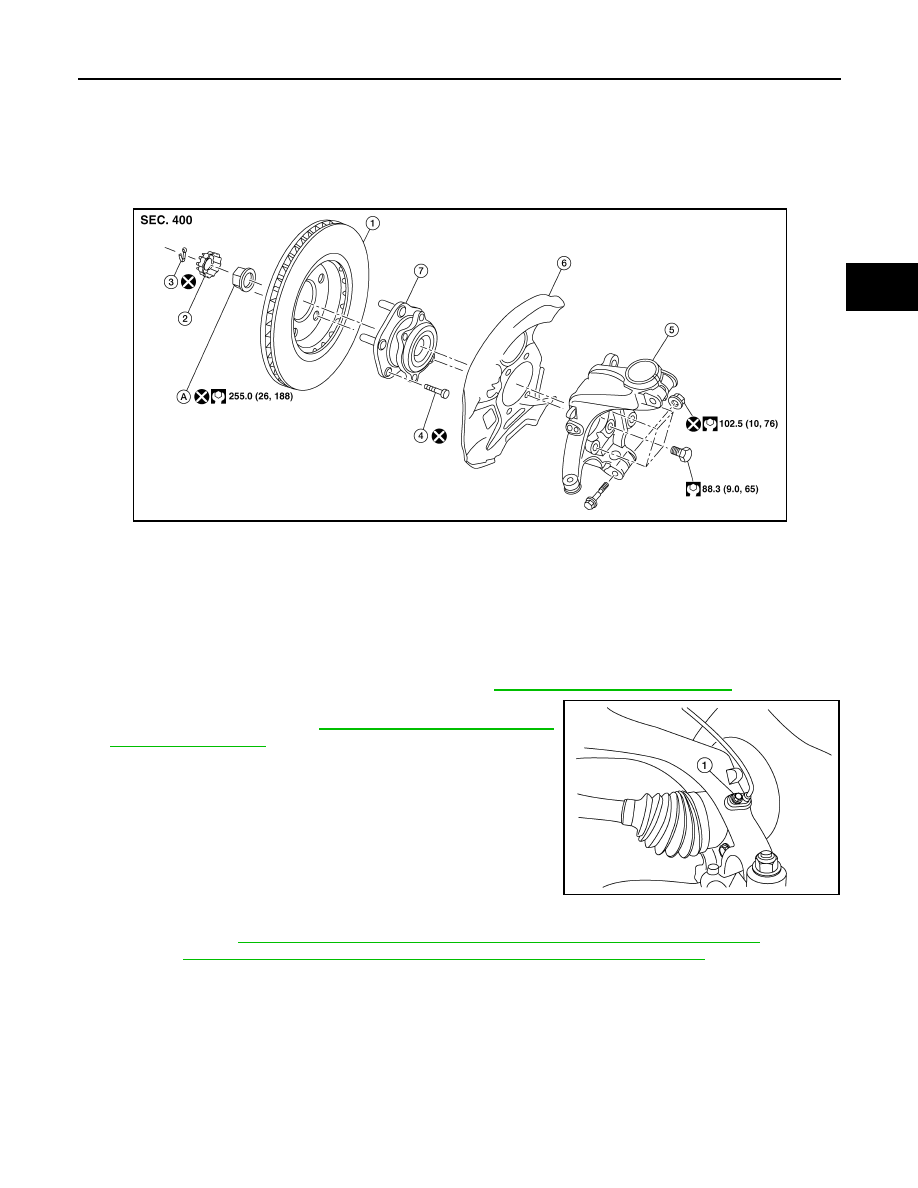

Exploded View

INFOID:0000000011278623

Removal and Installation

INFOID:0000000011278624

REMOVAL

1. Remove front wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

.

2. Remove the bolt (1) and separate the front wheel sensor from

the steering knuckle. Refer to

BRC-130, "FRONT WHEEL SEN-

SOR : Exploded View"

.

CAUTION:

• Failure to separate the front wheel sensor from the steer-

ing knuckle may result in damage to the front wheel sen-

sor.

• Pull out the front wheel sensor, being careful to turn it as

little as possible. Do not pull on wheel sensor harness.

3. Remove brake caliper torque member bolts, leaving brake hose attached. Position the brake caliper aside

with wire. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View"

 (1 PISTON

TYPE), or

BR-42, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Exploded View"

 (2 PISTON TYPE).

CAUTION:

Do not depress brake pedal while brake caliper is removed.

1.

Disc brake rotor

2.

Nut retainer

3.

Cotter pin

4.

Wheel stud

5.

Steering knuckle

6.

Splash guard

7.

Wheel hub and bearing

A. Wheel hub lock nut

ALDIA0488ZZ

ALDIA0526ZZ

FAX-10

< REMOVAL AND INSTALLATION >

[FWD]

FRONT WHEEL HUB

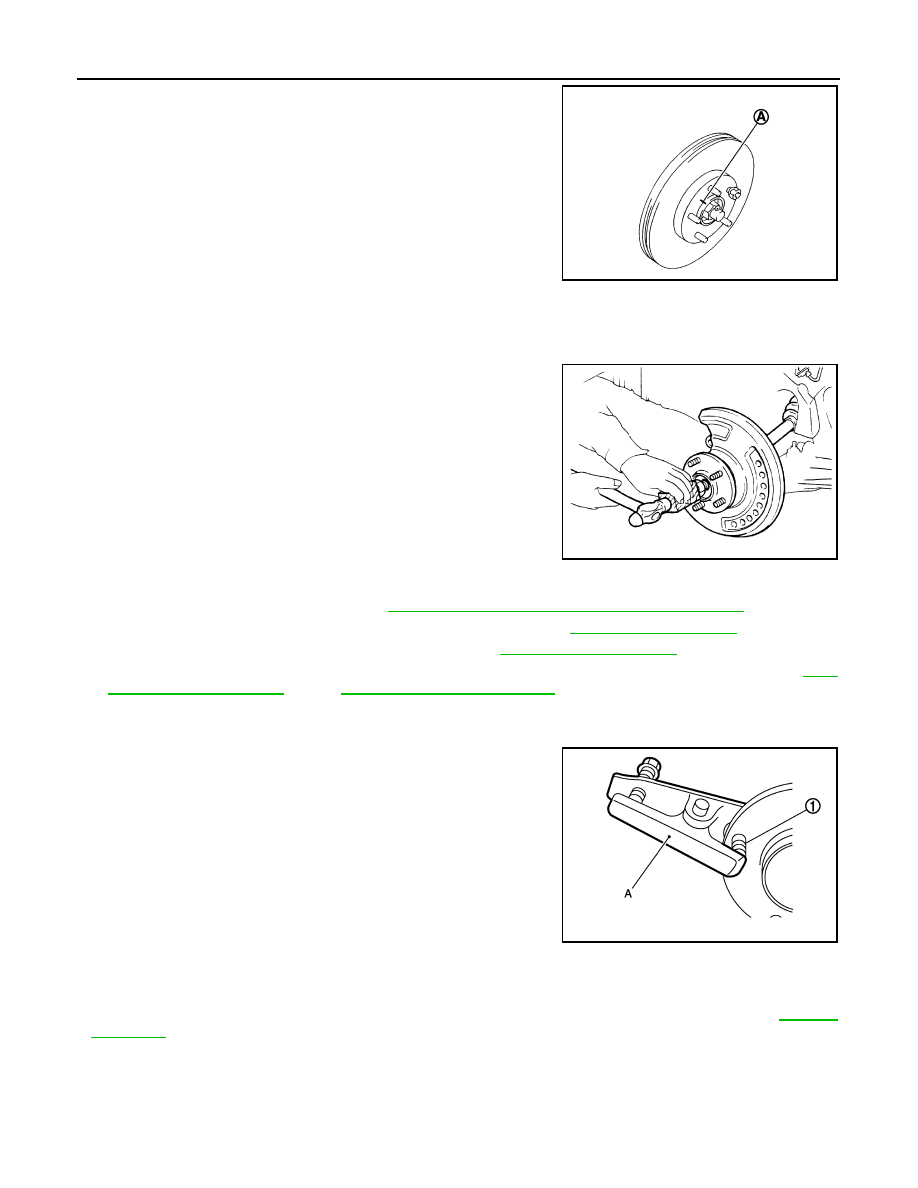

4. Put alignment marks (A) on disc brake rotor and wheel hub and

bearing. Remove disc brake rotor.

CAUTION:

Do not drop the disc brake rotor.

5. Remove cotter pin.
6. Remove the nut retainer.
7. Loosen the wheel hub lock nut from the drive shaft using power tool.
8. Using a piece of wood and a suitable tool, tap on the lock nut to

disengage the drive shaft from the wheel hub and bearing.

CAUTION:

• Do not place the drive shaft joint at an extreme angle. Be

careful not to over extend the slide joint.

• Do not allow the drive shaft to hang without support.

NOTE:

Use a suitable puller if drive shaft cannot be separated from the

wheel hub and bearing.

9. Remove the wheel hub lock nut.
10. Remove the engine side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

11. Remove the lower nut and bolt from the steering knuckle. Refer to

FAX-9, "Exploded View"

.

12. Separate transverse link from steering knuckle. Refer to

FSU-13, "Exploded View"

.

13. Separate drive shaft from wheel hub and bearing. Reposition the drive shaft aside with wire. Refer to

FAX-

19, "Exploded View (LH)"

 (LH) or

FAX-22, "Exploded View (RH)"

(RH).

14. Remove the wheel hub and bearing bolts using power tool.
15. Remove the splash guard and the wheel hub and bearing from the steering knuckle.
16. If necessary, remove the wheel studs (1) using a suitable tool

(A).

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.

• Check components for deformation, cracks, and other damage.

• Check boots of transverse link ball joint for cracks, axial end play, and swinging torque. Refer to

FSU-29,

"Ball Joint"

.

INSTALLATION

Installation is in the reverse order of the removal.

CAUTION:

• Do not reuse the wheel stud.

• Do not reuse the cotter pin.

JPDIG0066ZZ

JPDIG0070ZZ

JPDIF0299ZZ

FRONT WHEEL HUB

FAX-11

< REMOVAL AND INSTALLATION >

[FWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

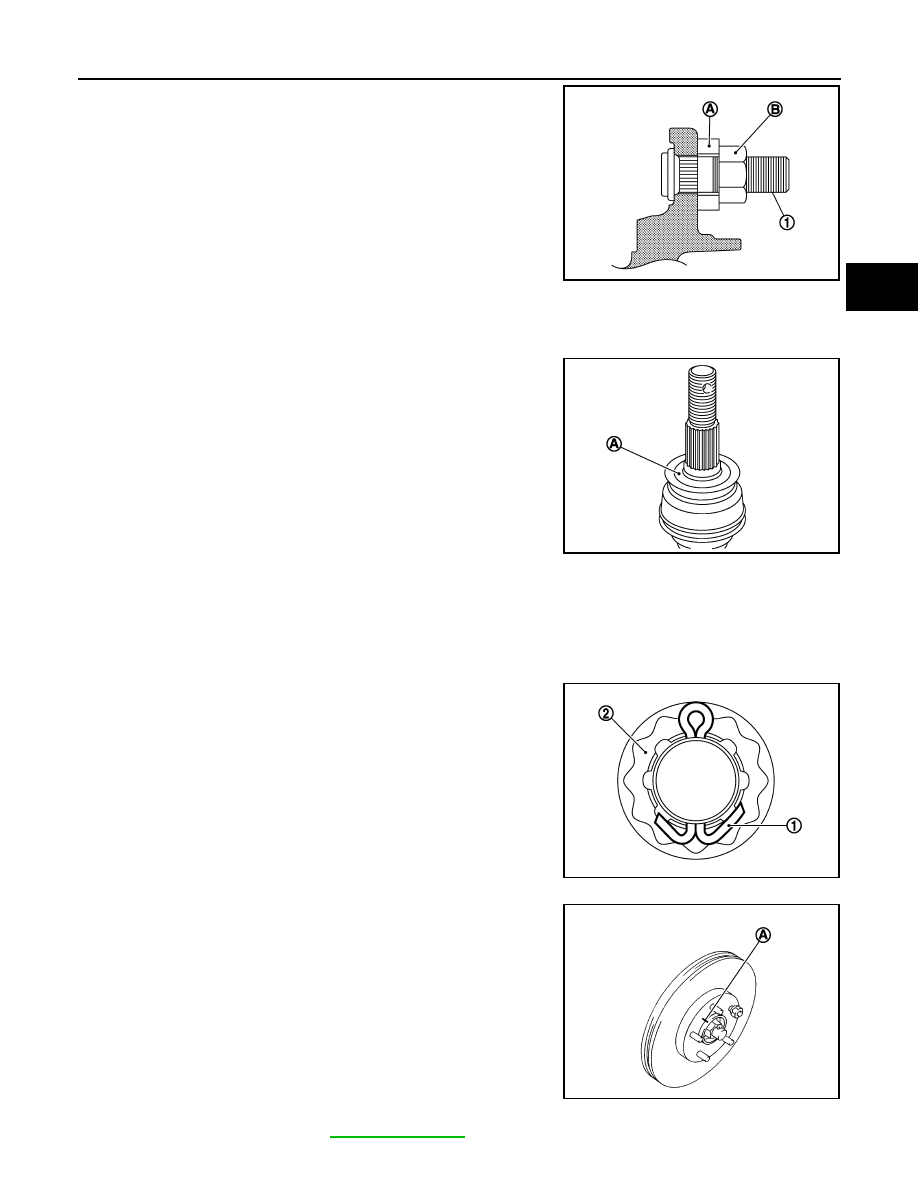

• Place a washer (A) as shown to install the wheel studs (1) by using

the tightening force of the nut (B).

CAUTION:

Check that there is no clearance between the wheel stud and

the wheel hub and bearing.

• Clean the mating surfaces of the wheel hub lock nut and the wheel hub and bearing.

CAUTION:

Do not apply lubricating oil to these mating surfaces.

• Clean the mating surfaces of the joint sub-assembly and the wheel

hub and bearing. Apply Molykote M77 lubricant to the surface (A)

of the joint sub-assembly.

CAUTION:

Apply lubricant to cover the entire flat mating surface of the

joint sub-assembly.

NOTE:

Always check with the Parts Department for the latest parts infor-

mation.

• Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub

lock nut. Do not use a power tool.

• Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the

wheel hub lock nut to the specification.

• When installing the cotter pin (1) and the nut retainer (2), securely

bend the cotter pin to prevent rattles.

• Align the matching marks (A) on the disc brake rotor and on the

wheel hub and bearing.

• Complete the inspection. Refer to

FAX-7, "Inspection"

.

JPDIF0300ZZ

JPDIG0122ZZ

JPDIF0295ZZ

JPDIG0066ZZ

FAX-12

< REMOVAL AND INSTALLATION >

[FWD]

FRONT WHEEL HUB

INSPECTION AFTER INSTALLATION

1. Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

2. Adjust neutral position of steering angle sensor. Refer to

BRC-68, "Work Procedure"

.
