PREPARATION

EXT-5

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011280021

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011280022

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

—

(J-46534)
Trim Tool Set

Removing trim components

SBT839

ALJIA1232ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

EXT-6

< PREPARATION >

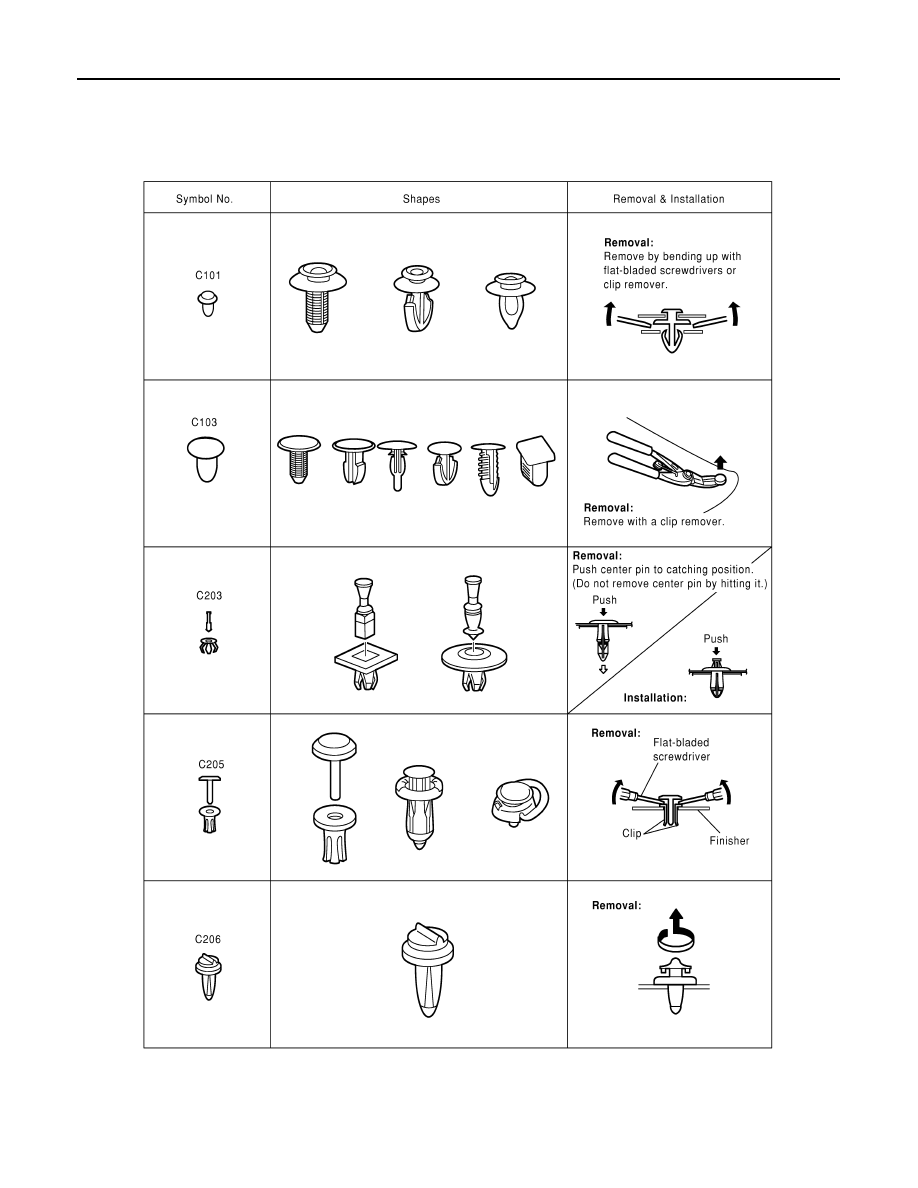

CLIP LIST

CLIP LIST

Descriptions for Clips

INFOID:0000000011280023

Replace any clips which are damaged during removal or installation.

SIIA0315E

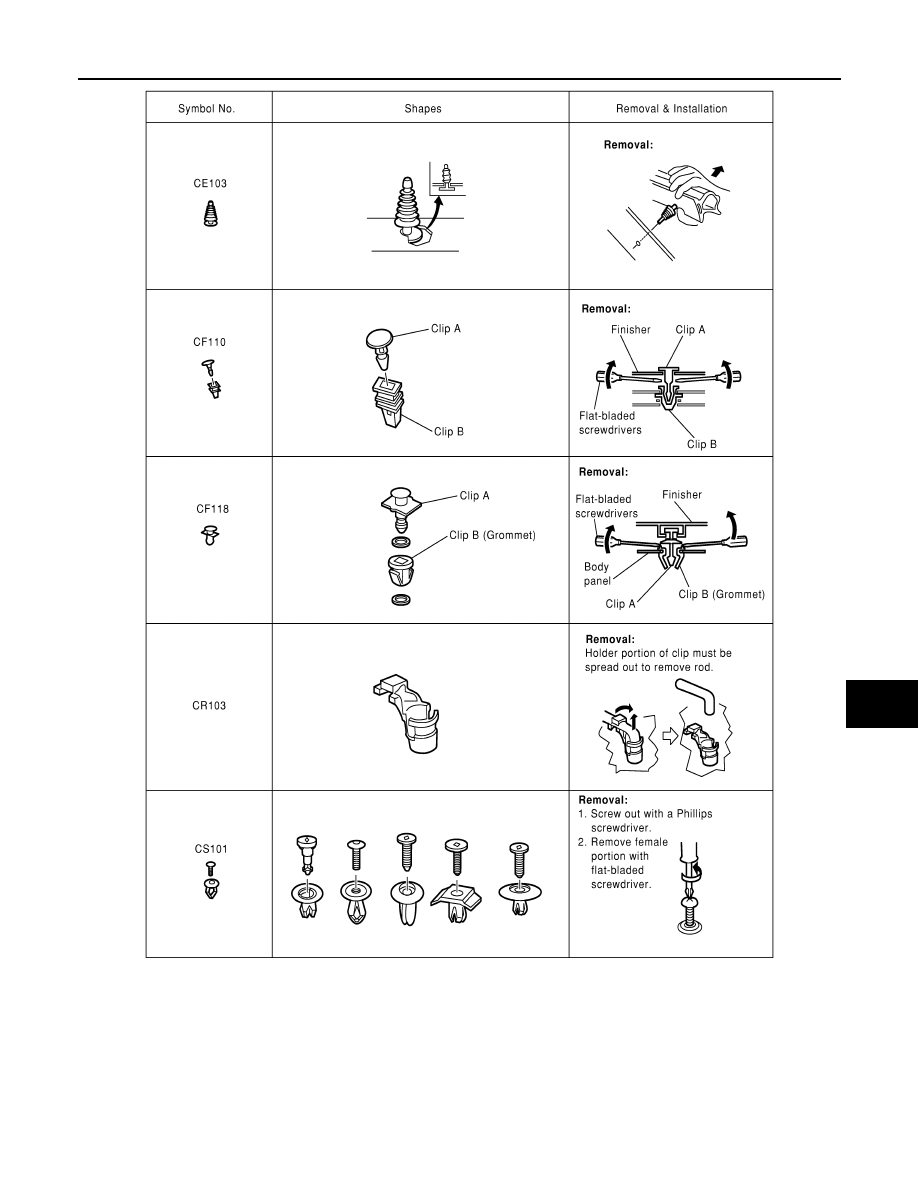

CLIP LIST

EXT-7

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SIIA0316E

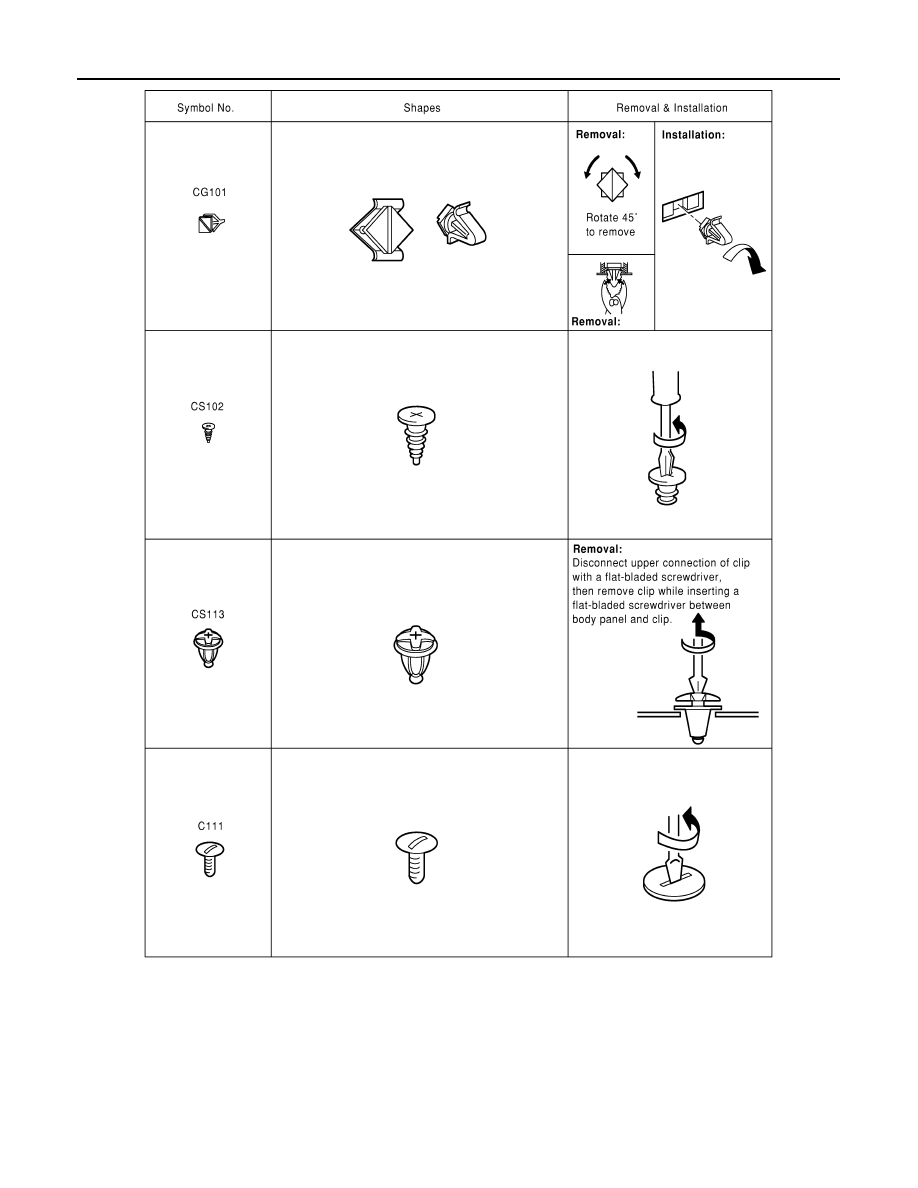

EXT-8

< PREPARATION >

CLIP LIST

SIIA0317E
