HIGH-MOUNTED STOP LAMP

EXL-277

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

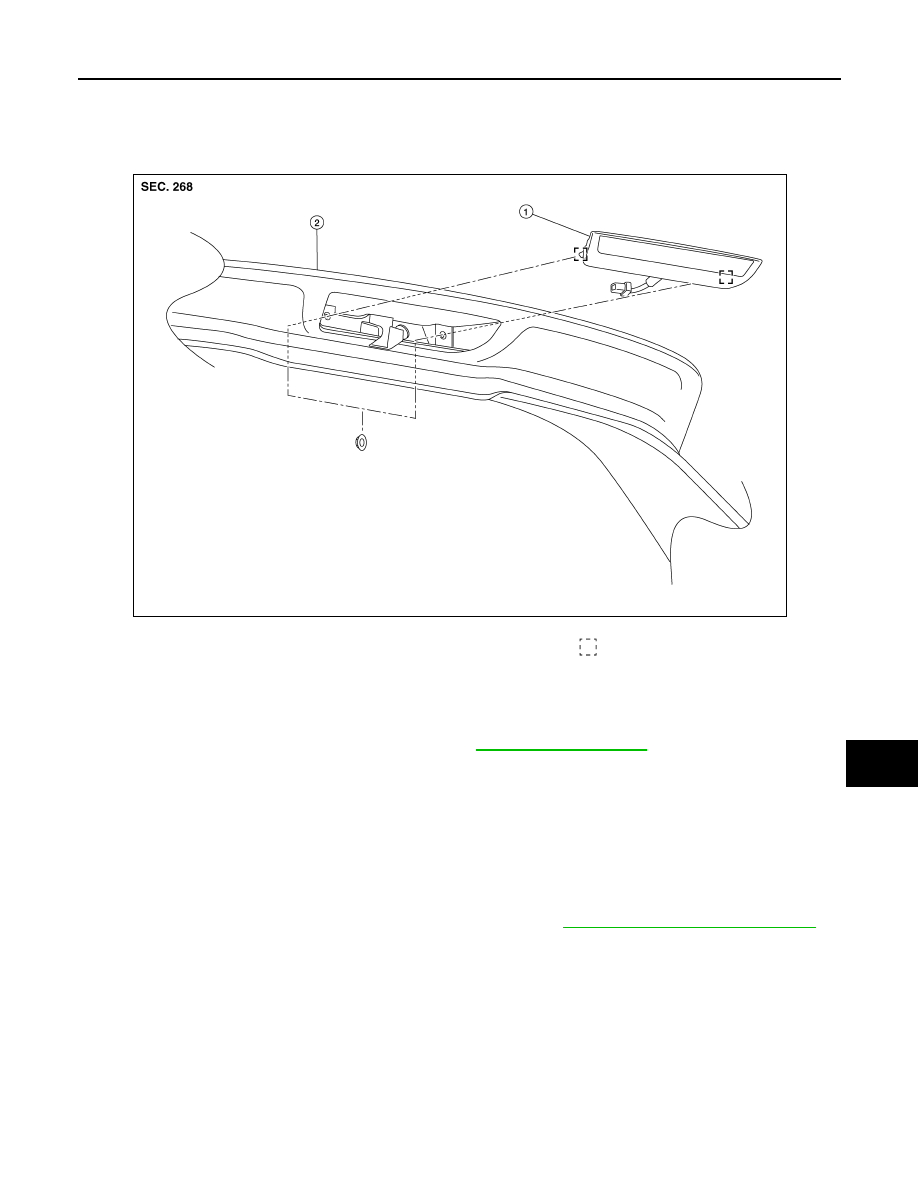

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000011280926

Removal and Installation

INFOID:0000000011280927

REMOVAL

1. Remove access cover using a suitable tool. Refer to

INT-38, "Exploded View"

.

2. Remove high-mounted stop lamp nuts.
3. Disconnect the harness connector from high-mounted stop lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011280928

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is not serviced separately. Refer to

EXL-129, "Removal and Installation"

.

1.

High-mounted stop lamp

2.

Back door

Stud

AWLIA2320ZZ

EXL-278

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

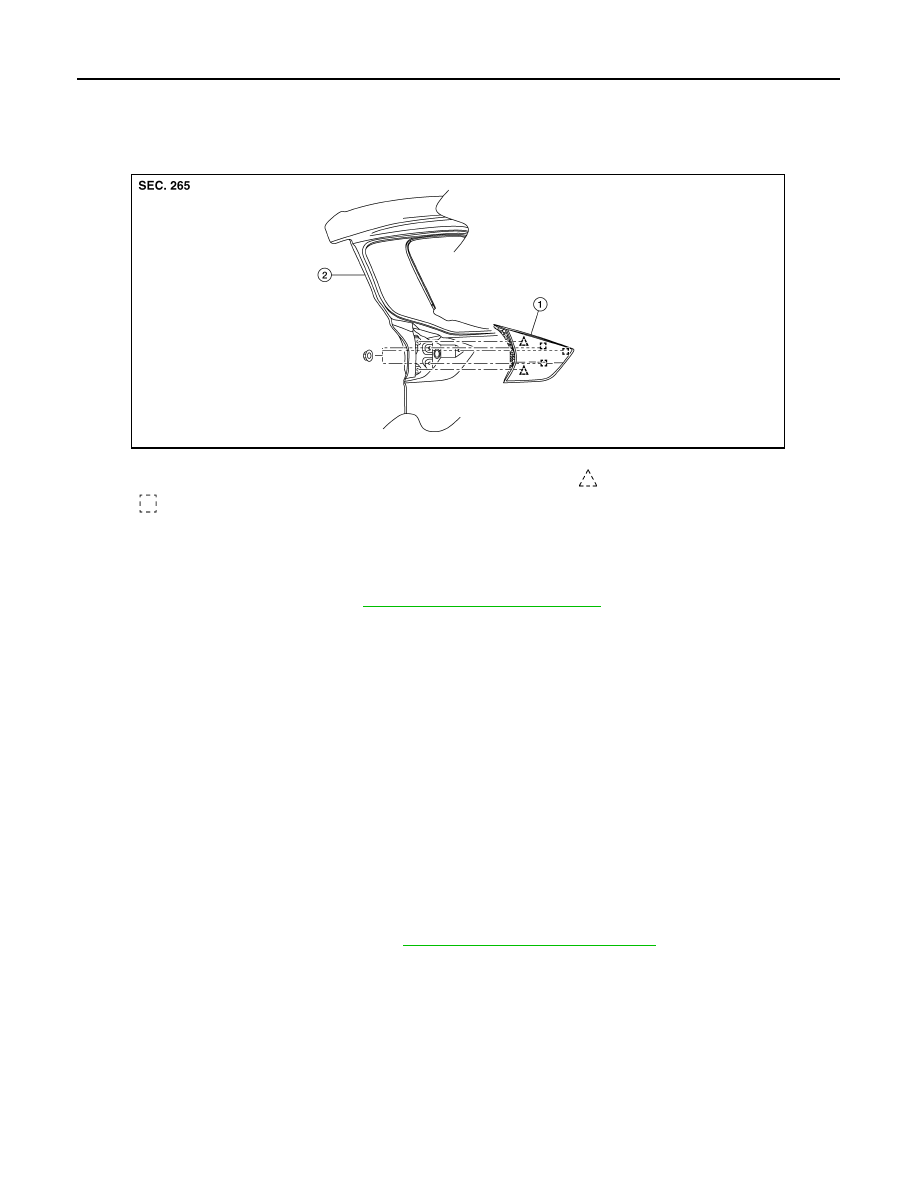

BACK-UP LAMP ASSEMBLY

BACK-UP LAMP ASSEMBLY

Exploded View

INFOID:0000000011280929

Removal and Installation

INFOID:0000000011280930

REMOVAL

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

2. Remove back-up lamp assembly nuts.
3. Pull back-up lamp assembly rearward, disconnect the harness connector and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011280931

WARNING:

Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

Removal

1. Remove back-up lamp assembly. Refer to

EXL-130, "Removal and Installation"

.

2. Rotate tail lamp bulb socket counterclockwise and remove.
3. Remove tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

BACK-UP LAMP BULB

Removal

1.

Back-up lamp assembly

2.

Back door

Clip

Stud

ALLIA1400ZZ

BACK-UP LAMP ASSEMBLY

EXL-279

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1. Remove back-up lamp assembly. Refer to

EXL-130, "Removal and Installation"

.

2. Rotate back-up lamp bulb socket counterclockwise and remove.
3. Remove back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

EXL-280

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

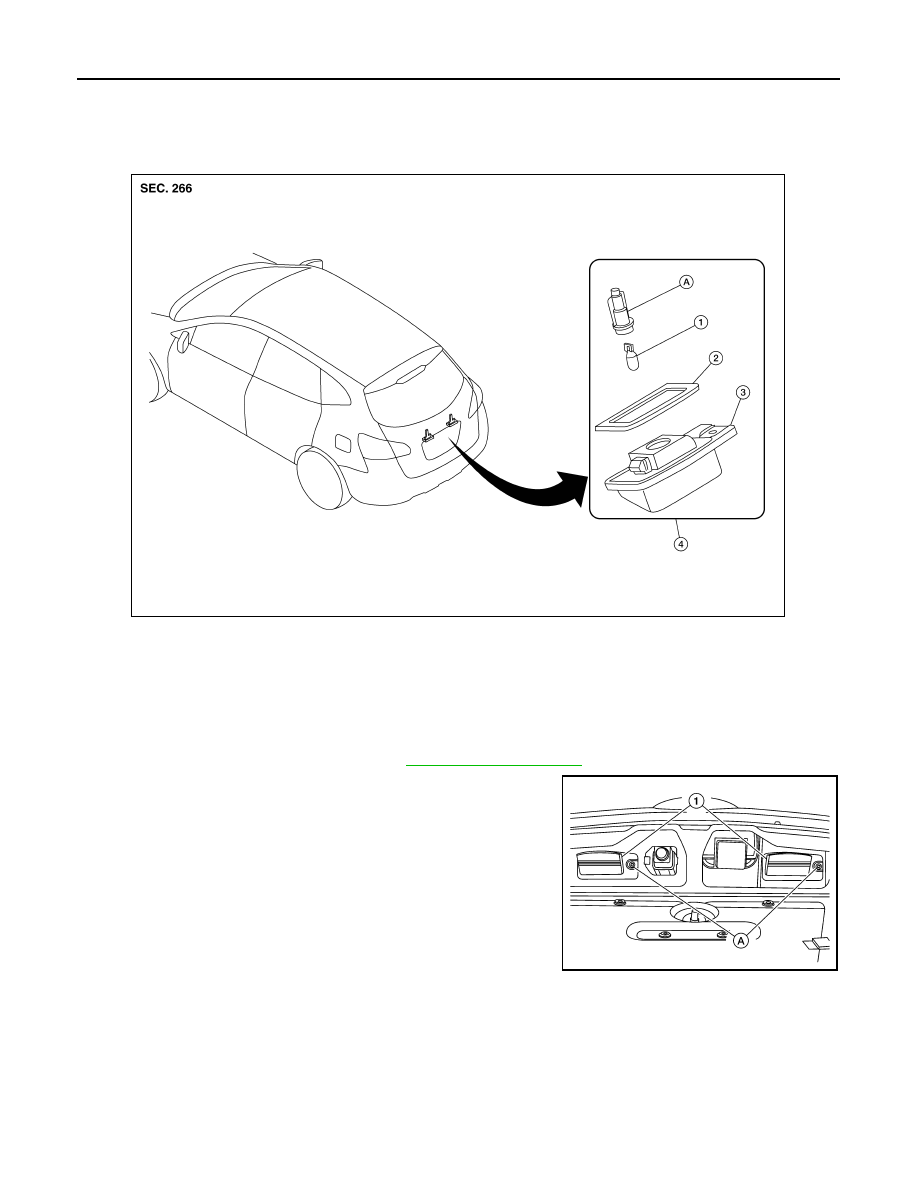

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000011280932

Removal and Installation

INFOID:0000000011280933

REMOVAL

1. Release the license lamp finisher. Refer to

EXT-51, "Exploded View"

.

2. Remove the screw (A) (LH or RH) and pull license plate lamp (1)

(LH or RH) rearward.

3. Disconnect the harness connector from the license plate lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011280934

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

1.

License plate lamp bulb

2.

License plate lamp seal

3.

License plate lamp

4.

License plate lamp assembly

A.

License plate lamp bulb socket

ALLIA1421ZZ

ALLIA1416ZZ
