EC-220

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0122, P0123 TP SENSOR

2.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect electric throttle control actuator harness connector.

3. Turn ignition switch ON.

4. Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

4.

CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT

1. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

+

−

Voltage

(Approx.)

Electric throttle control actuator

Connector

Terminal

F50

2

Ground

5 V

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F50

2

F52

80

Existed

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F50

4

F52

78

Existed

P0122, P0123 TP SENSOR

EC-221

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK THROTTLE POSITION SENSOR

Check the throttle position sensor. Refer to

EC-221, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace electric throttle control actuator. Refer to

EM-29, "Removal and Installation"

.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000011277969

1.

CHECK THROTTLE POSITION SENSOR

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Perform “ Throttle Valve Closed Position Learning”. Refer to

EC-143, "Work Procedure"

.

4. Turn ignition switch ON.

5. Set selector lever to D position.

6. Check the voltage between ECM harness connector terminals as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator. Refer to

EM-29, "Removal and Installation"

.

+

−

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F50

3

F52

77

Existed

ECM

Condition

Voltage

Connector

+

−

Terminal

Sensor 1

F52

79

78

Accelerator
pedal

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

Sensor 2

77

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

EC-222

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0125 ECT SENSOR

P0125 ECT SENSOR

DTC Description

INFOID:0000000011277970

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (High resistance in the circuit)

• Engine coolant temperature sensor

• Thermostat

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0125 is displayed with DTC P0116 or P0117, first perform the trouble diagnosis for DTC P0116 or

P0117.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 3.

3.

CHECK ENGINE COOLANT TEMPERATURE SENSOR FUNCTION

With CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Check that “COOLAN TEMP/S” is above 10

°C (50°F).

With GST

Follow the procedure “With CONSULT” above.
Is it above 5

°C (41°F)?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Start engine and run it for 65 minutes at idle speed.

2. Check 1st tip DTC.

If “COOLAN TEMP/S” indication increases to more than 10

°C (50°F) within 65 minutes, stop engine

because the test result will be OK.

CAUTION:

Be careful not to overheat engine.

With GST

Follow the procedure “With CONSULT” above.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0125

ECT SENSOR
(Insufficient coolant temperature for closed
loop fuel control)

• Voltage sent to ECM from the sensor is not practical, even when some

time has passed after starting the engine.

• Engine coolant temperature is insufficient for closed loop fuel control.

P0125 ECT SENSOR

EC-223

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is 1st trip DTC detected?

YES

>> Proceed to

EC-223, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000011277971

1.

CHECK DTC PRIORITY

If DTC P0125 is displayed with DTC P0116 or P0117, first perform the trouble diagnosis for DTC P0116 or

P0117.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check the engine coolant temperature sensor. Refer to

EC-215, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace engine coolant temperature sensor. Refer to

CO-23, "Exploded View"

.

3.

CHECK THERMOSTAT OPERATION

When the engine is cold [lower than 70

°C (158°F)] condition, grasp lower radiator hose and confirm the engine

coolant does not flow.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace thermostat. Refer to

CO-21, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000011277972

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECT sensor harness connector.

3. Remove ECT sensor.

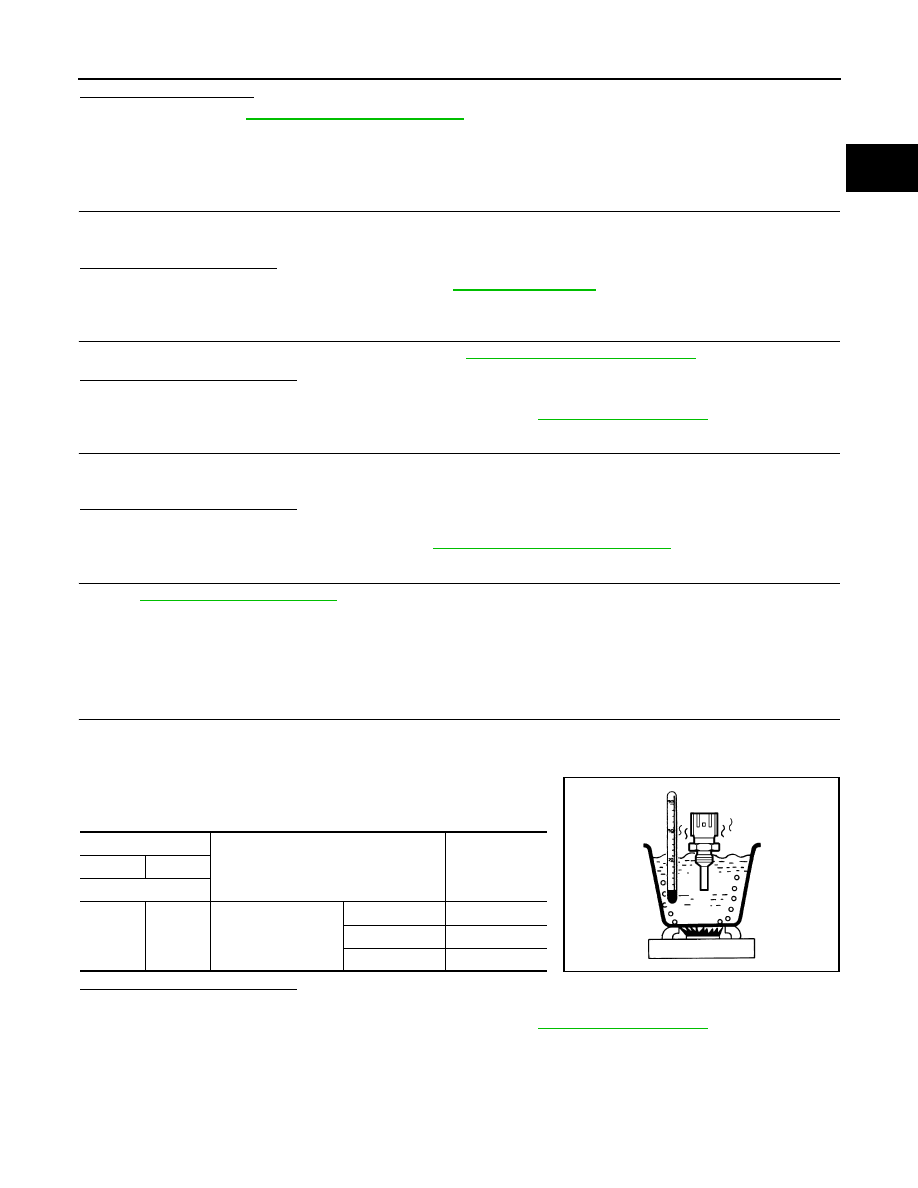

4. Check resistance between ECT sensor terminals by heating

with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor. Refer to

CO-23, "Exploded View"

.

ECT sensor

Condition

Resistance

(k

Ω)

+

−

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.37 - 2.63

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ
