DLK-294

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

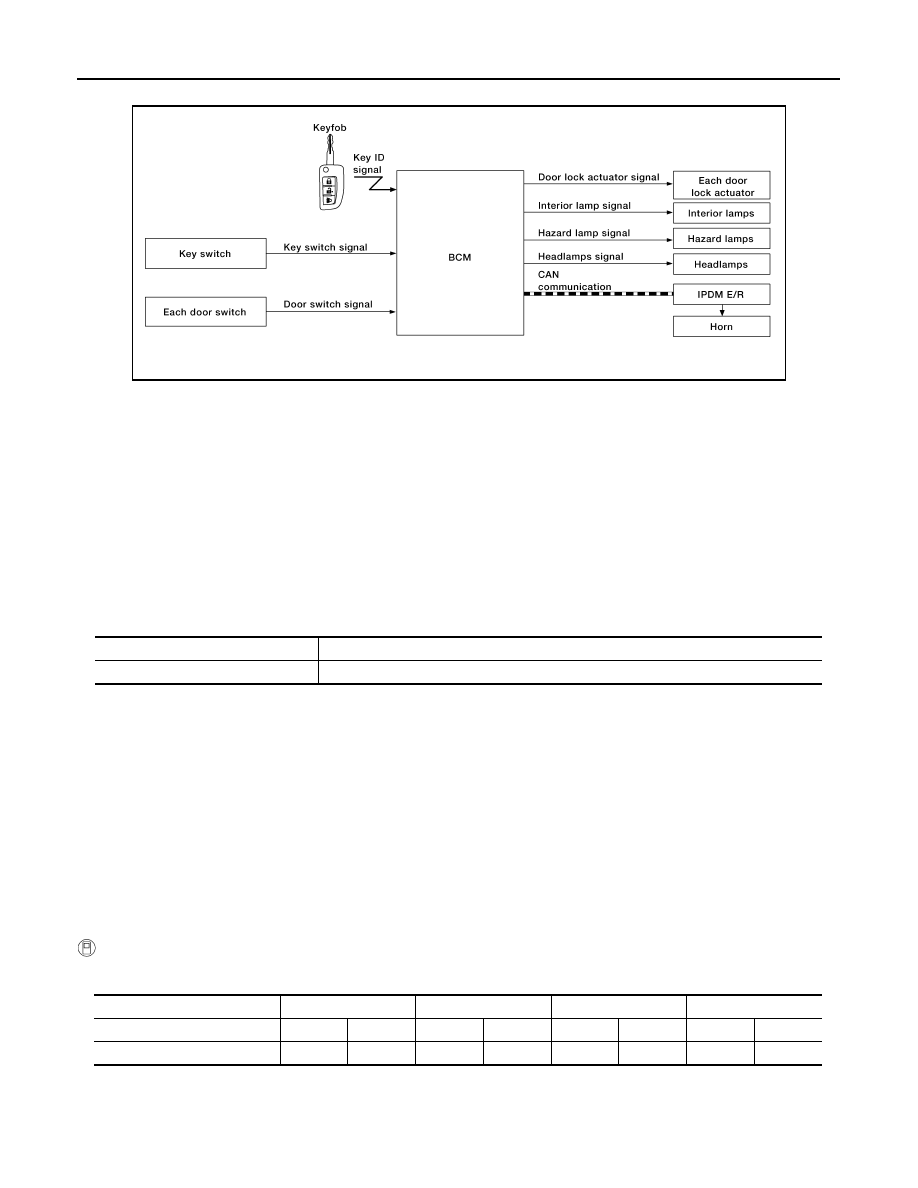

REMOTE KEYLESS ENTRY SYSTEM : System Diagram

INFOID:0000000011279077

REMOTE KEYLESS ENTRY SYSTEM : System Description

INFOID:0000000011279078

The remote keyless entry system can be locked and unlocked by pressing door lock and unlock button of key-

fob.

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, flashes the hazard lamp

(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 1 time) as a reminder.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 10 m (33ft) range of the vehicle, however the operable

range may differ according to surroundings.

SELECTIVE UNLOCK OPERATION

When door lock is unlocked, pressing LOCK button on keyfob once will lock all doors. When door lock is

locked, pressing UNLOCK button on keyfob will unlock driver side door. Pressing UNLOCK button on keyfob

second time within 5 seconds from the first time will unlock all doors.

HAZARD AND HORN REMINDER

When the doors are locked or unlocked by keyfob, power is supplied to sound horn and flash hazard warning

lamps as a reminder

The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

How to Change Hazard and Horn Reminder Modes

 With CONSULT

Hazard and horn reminders can be changed using “Work support” in “MULTI REMOTE ENT”.

ALKIA3501GB

Remote controller operation

Operation condition

Lock/unlock

Key switch is OFF. Mechanical key is removed from the ignition cylinder.

Hazard reminder setting

Mode 1

Mode 2

Mode 3

Mode 4

Keyfob operation

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Hazard warning lamp blink

—

—

—

Once

Twice

—

Twice

Once

2015 Rogue NAM

SYSTEM

DLK-295

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).

Hazard reminder can be changed using “HAZARD LAMP SET” in “Work support”.

Horn reminder can be changed using “HORN CHIRP SET” in “Work support”.

Refer to

BCS-90, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

 Without CONSULT

Refer to Owner’s Manual for instructions.

AUTO DOOR LOCK OPERATION

When all doors are locked, ignition switch is OFF and key switch is OFF (mechanical key is removed from the

ignition cylinder), doors are unlocked with keyfob button. When BCM does not receive the following signals

within 1 minute, all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON

• Key switch is ON (mechanical key is inserted in the ignition cylinder)

Auto door lock mode can be changed by “AUTO LOCK SET” in “Work support”. Refer to

BCS-90, "MULTI

REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

PANIC ALARM OPERATION

When key switch is OFF (mechanical key is removed from the ignition cylinder), BCM turns ON and OFF horn

and headlamp intermittently with input of PANIC ALARM signal from keyfob.

BCM outputs to headlamps and IPDM E/R for panic alarm signal (horn signal) via CAN communication lines.

The alarm automatically turns OFF after 25 seconds or when BCM receives any signal from keyfob.

Panic alarm operation mode can be changed using “PANIC ALARM SET” in “Work support”.

Refer to

BCS-90, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

INTERIOR LAMP TIMER OPERATION

When the following conditions occur, remote keyless entry system turns on interior lamp for 15 seconds with

input of UNLOCK signal from keyfob. For detailed description, refer to

INL-7, "INTERIOR ROOM LAMP CON-

TROL SYSTEM : System Description"

.

• Interior room lamp switch is in the DOOR position

• Door switch OFF (when all the doors are closed).

Horn reminder setting

ON

OFF

Keyfob operation

Lock

Unlock

Lock

Unlock

Horns sound

Once

—

—

—

2015 Rogue NAM

DLK-296

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011378202

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

DOOR LOCK
DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000011378203

SELF DIAGNOSTIC RESULT

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

Exterior lamp

HEADLAMP

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

2015 Rogue NAM

DIAGNOSIS SYSTEM (BCM)

DLK-297

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Refer to

BCS-108, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

MULTI REMOTE ENT
MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

INFOID:0000000011378204

WORK SUPPORT

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

DOOR SW-BK [On/Off]

Indicates condition of back door switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLK].

Support Item

Setting

Description

DOOR LOCK-UNLOCK SET

On*

Automatic door locks function ON.

Off

Automatic door locks function OFF.

AUTO UNLOCK TYPE

MODE2

Driver door only unlocks automatically.

MODE1*

All doors unlock automatically.

AUTO LOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors lock automatically when shifted out of P (park).

MODE1*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

Off

—

AUTO UNLOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors unlock automatically when shifted into P (park).

MODE1*

Doors unlock automatically when ignition is switched from ON to OFF.

Off

—

Support Item

Setting

Description

REMO CONT ID CONFIR

—

Keyfob ID code registration is displayed.
