DLK-58

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR CONTROL UNIT

B2419: OPEN SW

×

DLK-123, "DTC Logic"

B2420: CLOSE SW

×

DLK-126, "DTC Logic"

B2422: BACK DOOR STATE

×

DLK-129, "DTC Logic"

B2423: ABD MTR TIME OUT

×

DLK-132, "DTC Logic"

B2426: SPINDLE SENSOR LH

×

DLK-134, "DTC Logic"

B2427: SPINDLE SENSOR RH

×

DLK-137, "DTC Logic"

B2428: AUTO BACK DR CNT UNIT

×

DLK-140, "DTC Logic"

B242A: CLSR CONDITION

×

DLK-141, "DTC Logic"

CONSULT display

Fail-safe

Reference page

2015 Rogue NAM

BCM

DLK-59

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BCM

List of ECU Reference

INFOID:0000000011278803

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

2015 Rogue NAM

DLK-60

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

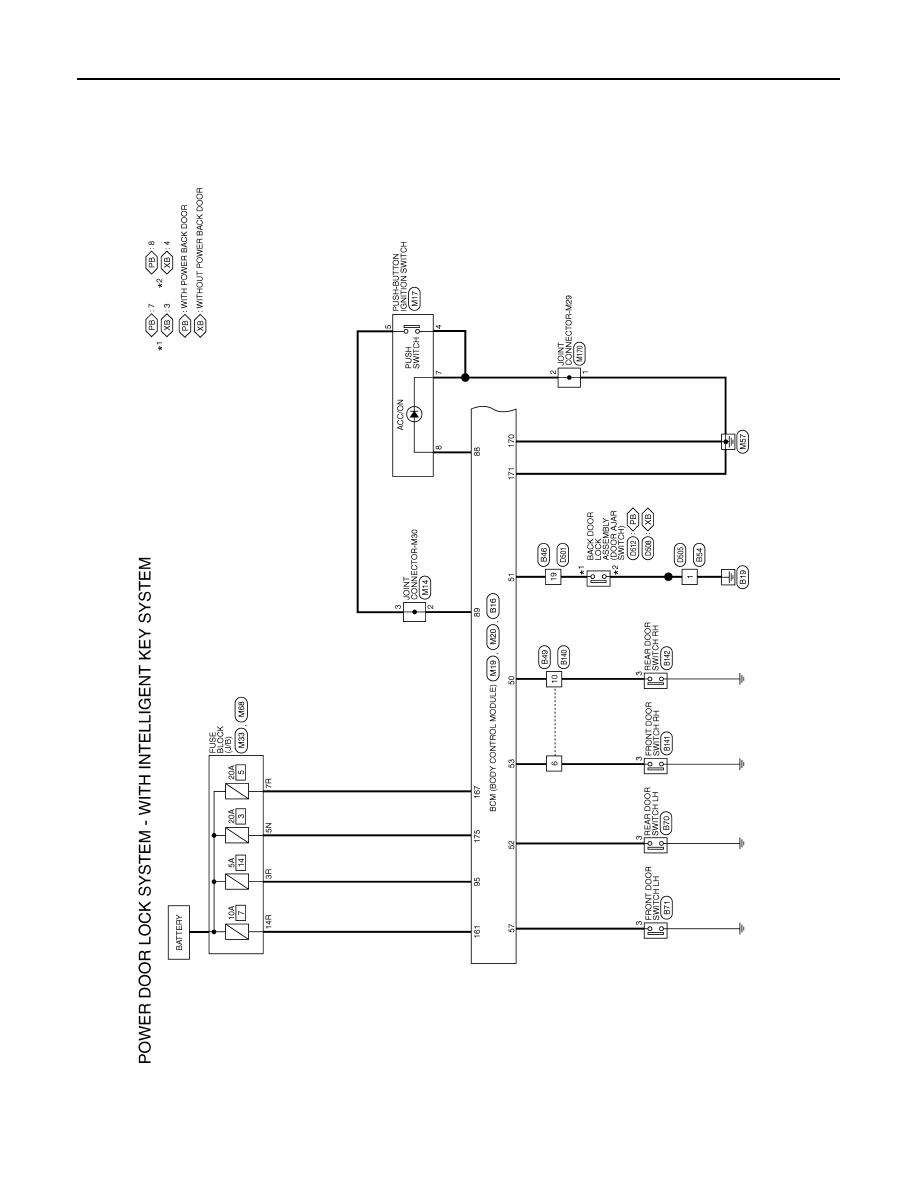

POWER DOOR LOCK SYSTEM

WIRING DIAGRAM

POWER DOOR LOCK SYSTEM

Wiring Diagram

INFOID:0000000011278804

AAKWA1008GB

2015 Rogue NAM

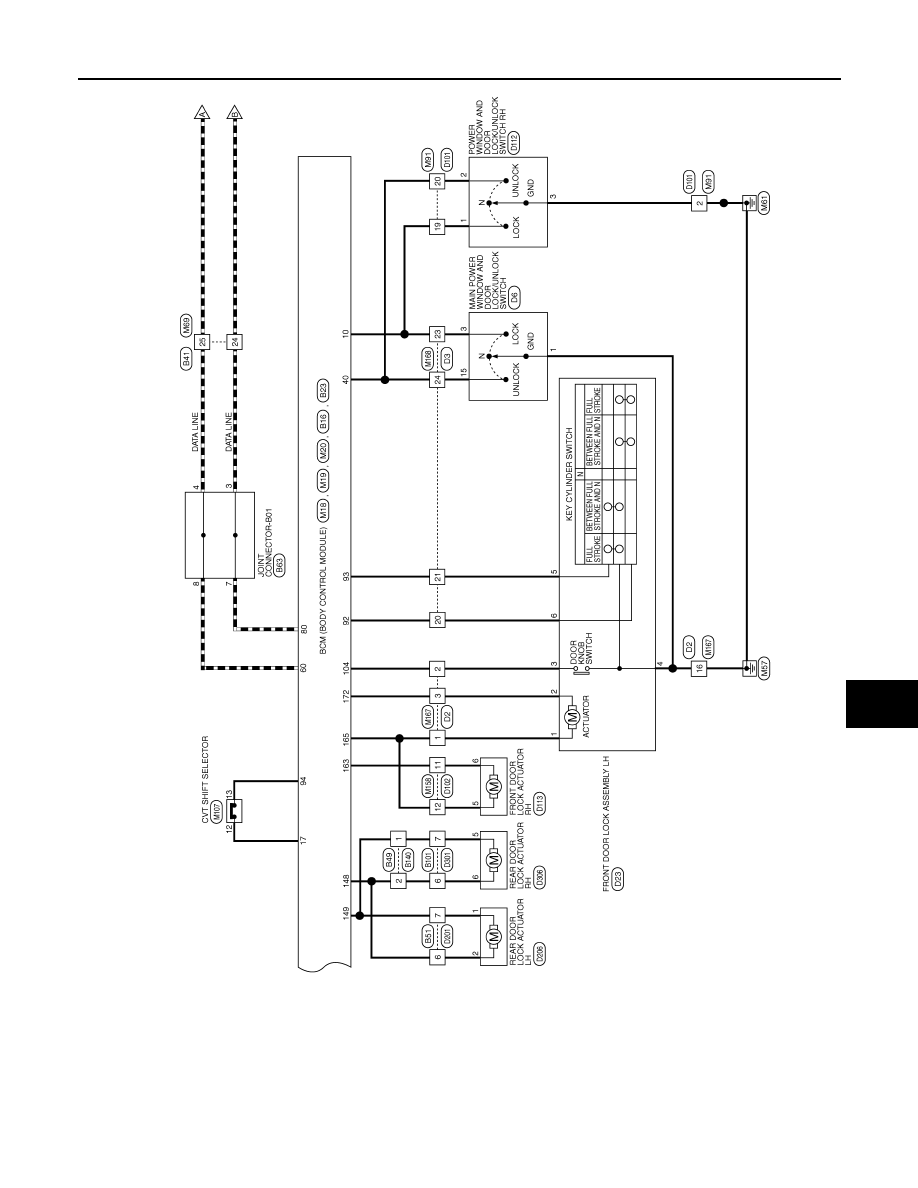

POWER DOOR LOCK SYSTEM

DLK-61

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AAKWA1009GB

2015 Rogue NAM
