Nissan Rogue. Manual - part 300

DLK-42

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

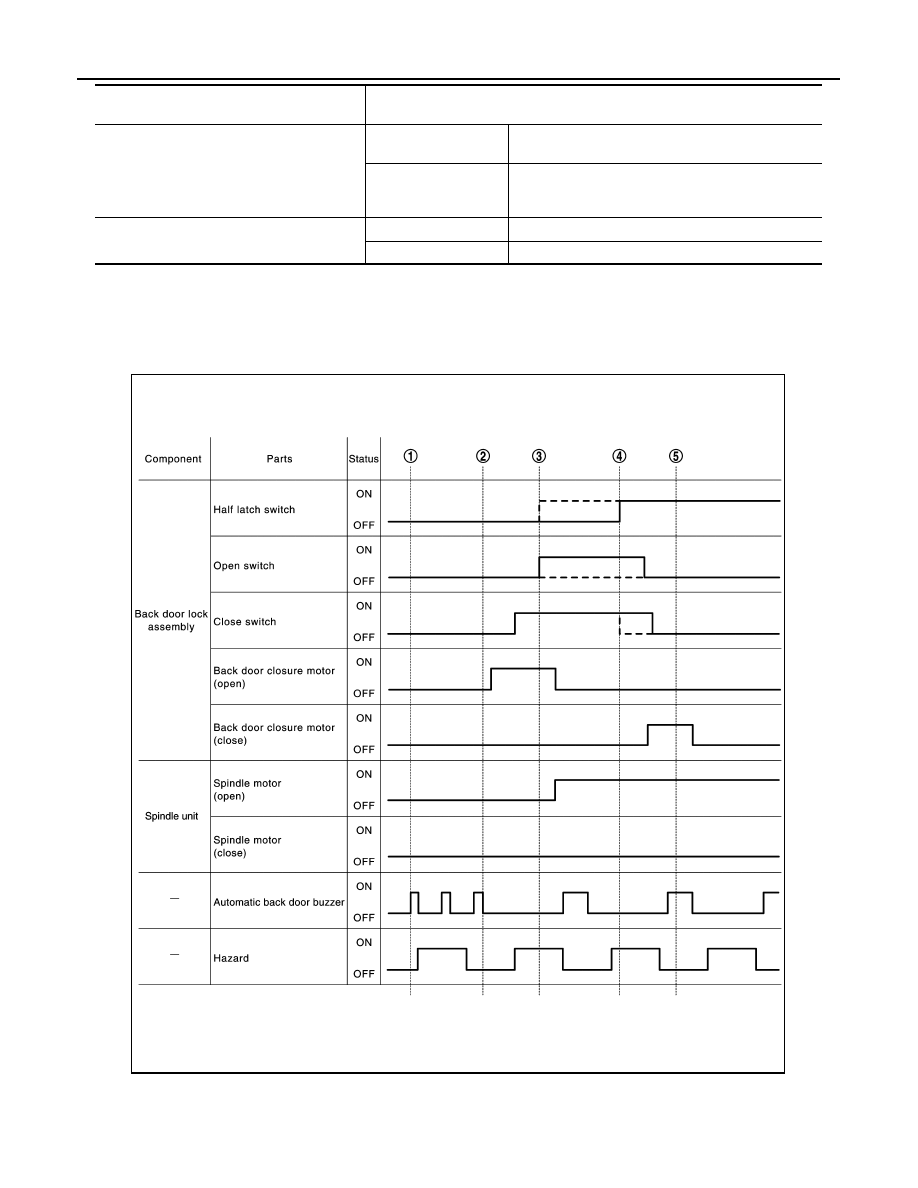

TIME CHART FOR AUTOMATIC BACK DOOR SYSTEM

Fully Closed to Fully Open Operation

When operating the automatic back door switch, automatic back door opener switch and Intelligent Key in the

fully closed position, the system operates as follows:

1. Operates the chime and hazard after the operation enable conditions are established.
2. The back door closure motor performs the open operation after the chime (pattern A) stops sounding.
3. Stops the back door closure motor open operation after turning the open switch to ON

Back door opener switch
(OFF

→ ON)

Closure (close) opera-
tion

Closure (open) operation and back door open.

Closure [open (return
the latch to the neutral
position)]

Back door open.

Malfunction detected

IGN circuit

Automatic open/close temporary stop function.

Half latch switch

Operation is possible up to 3 times.

Item

(Condition)

Back door condition

JMKIA6521GB

2015 Rogue NAM

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-43

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Then, operate the spindle motor to perform the back door open operation.

4. The back door closure motor performs the close operation after turning the half latch switch to ON.
5. Stop the back door closure motor close operation and return the latch to the neutral position after turning

the close switch to OFF.

NOTE:

In the operation of steps 3 and 4, the inputs of half latch switch, open switch, and close switch may be different

according to the reaction force of the back door weatherstrip. Refer to the area encircled by a broken line in

the Time chart (fully closed to fully open operation).

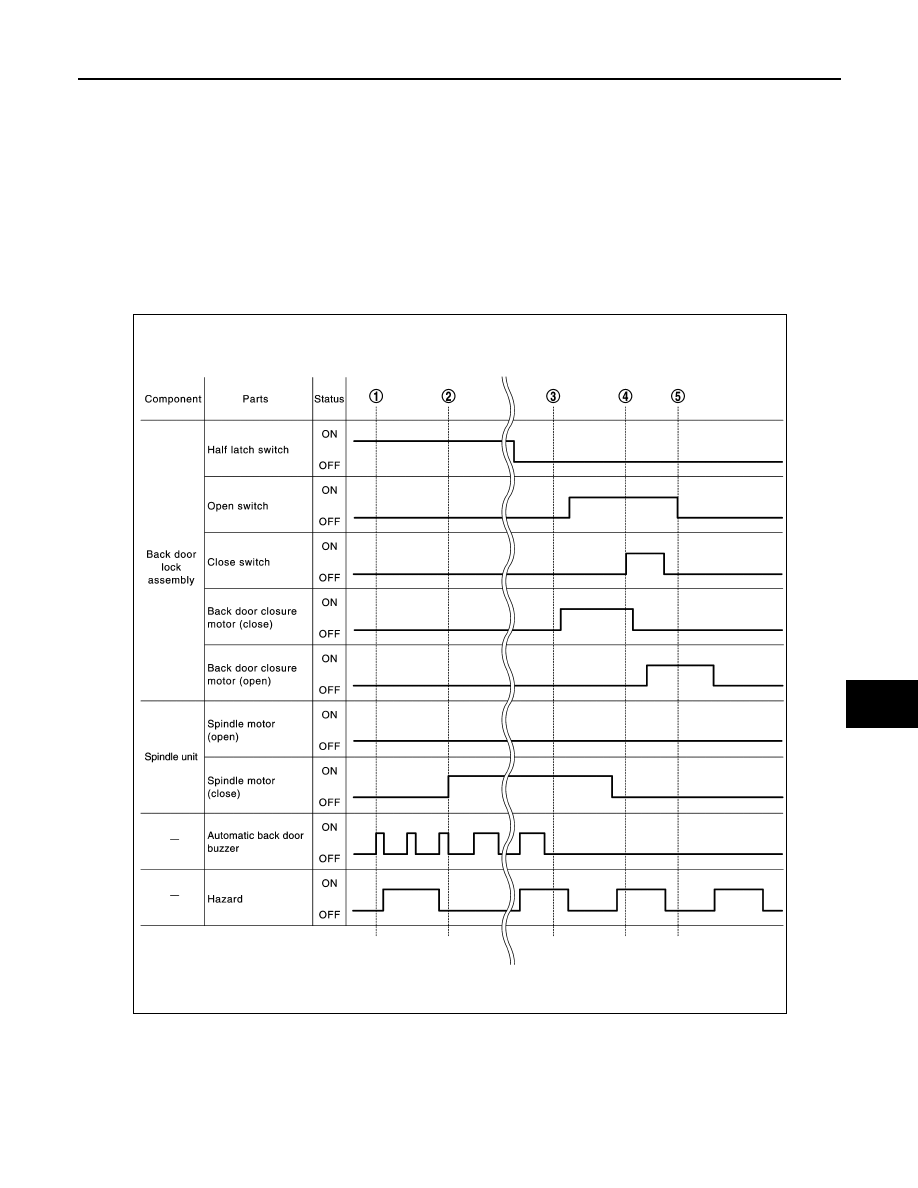

Fully Open to Fully Closed Operation

When operating the automatic back door switch, automatic back door close switch and Intelligent Key, the

automatic back door system operates as follows:

1. Operates the chime and hazard after the operation enable conditions are established.
2. After the chime (pattern A) stops sounding, operates the spindle motor to perform the back door close

operation.

3. The back door closure motor performs the close operation in 300 msec. or more after turning the half latch

switch to OFF.

4. The back door closure motor performs the open operation after turning the close switch to ON.

JMKIA6522GB

2015 Rogue NAM

DLK-44

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

5. Stop the back door closure motor open operation and return the latch to the neutral position after turning

the close switch to OFF.

2015 Rogue NAM

SYSTEM (INTEGRATED HOMELINK TRANSMITTER)

DLK-45

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTEGRATED HOMELINK TRANSMITTER)

System Description

INFOID:0000000011278793

Item

Function

Integrated Homelink

®

 transmit-

ter

A maximum of 3 radio signals can be stored and transmitted to operate the garage door, etc.
