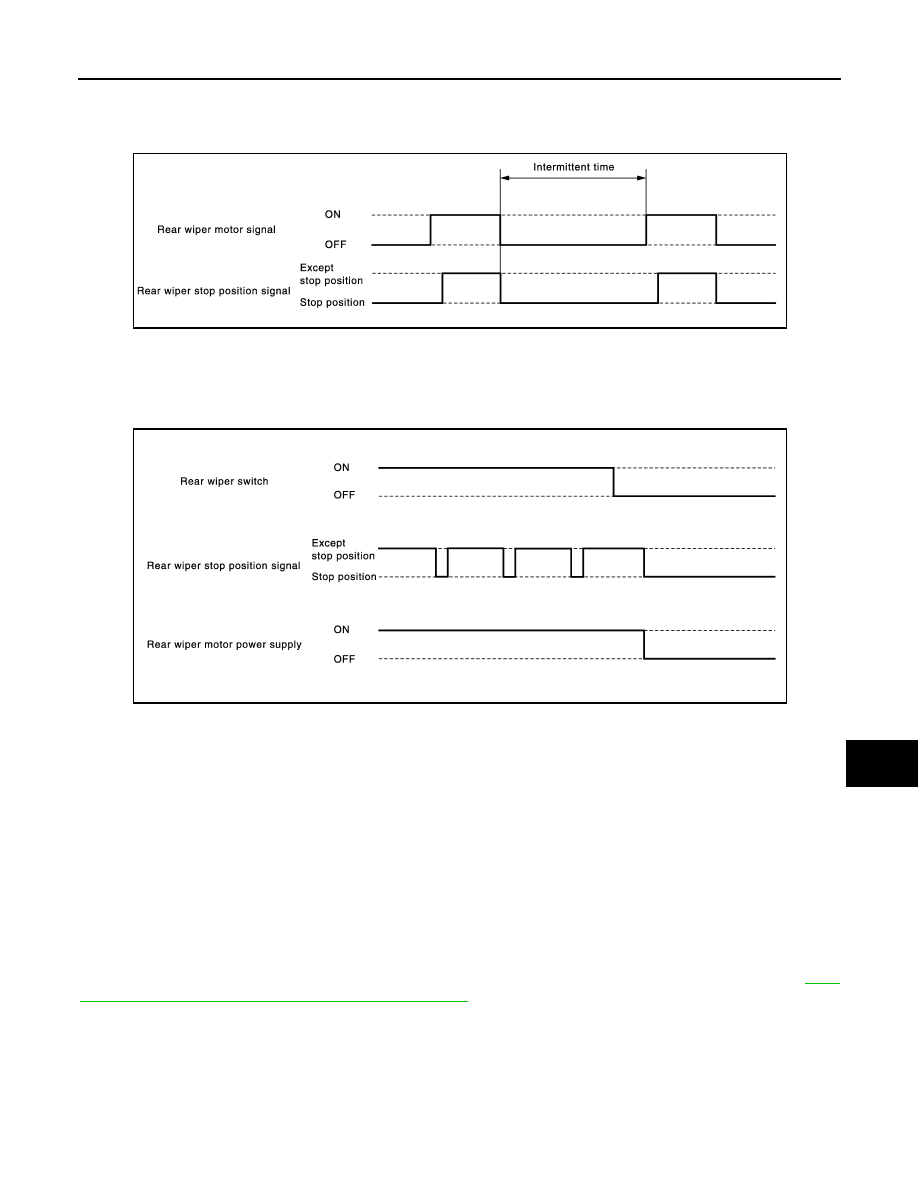

- Rear wiper switch INT

• BCM controls the rear wiper to operate once.

• BCM detects the rear wiper motor stopping position.

• BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.

REAR WIPER AUTO STOP OPERATION

• BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF.

• BCM reads a rear wiper stop position signal from the rear wiper motor to detect a rear wiper motor position.

• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:

BCM stops supplying power to the rear wiper motor when the power switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately 3

times.

Washer linked operating condition of rear wiper:

- Power switch ON

- Rear washer switch ON (0.4 second or more)

• The washer pump is grounded through the combination switch with the rear washer switch ON.

REAR WIPER AND WASHER SYSTEM : Fail-safe

INFOID:0000000011280380

FAIL

−SAFE OPERATION

IPDM E/R performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

WW-

11, "REAR WIPER AND WASHER SYSTEM : Fail-safe"

.

JPLIA1258GB

JPLIA1259GB

WW-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011379502

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

Air conditioner

AIR CONDITIONER

×

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

WW-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER : CONSULT Function (BCM - WIPER)

INFOID:0000000011379503

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

*

: Initial Setting

Monitor Item [Unit]

Description

PUSH SW [On/Off]

Indicates condition of push-button ignition switch.

VEH SPEED 1 [km/h]

Indicates vehicle speed signal received from ABS on CAN communication line.

FR WIPER HI [On/Off]

Indicates condition of wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WASHER SW [On/Off]

FR WIPER INT [On/Off]

FR WIPER STOP [On/Off]

Indicates front wiper auto stop signal received from IPDM E/R on CAN communication
line.

INT VOLUME [1

− 7]

Indicates condition of intermittent wiper operation of combination switch.

RR WIPER ON [On/Off]

Indicates condition of rear wiper operation of combination switch.

RR WIPER INT [On/Off]

RR WASHER SW [On/Off]

RR WIPER STOP [On/Off]

Indicates rear wiper motor auto stop input from rear wiper motor.

Test Item

Description

FR WIPER

This test is able to check front wiper operation [Hi/Lo/INT/Off].

RR WIPER

This test is able to check rear wiper operation [On/Off].

Support Item

Setting

Description

WIPER SPEED SETTING

On

Front wiper intermittent time linked with vehicle speed and wiper intermit-
tent dial position.

Off

*

Front wiper intermittent time is not linked with vehicle speed and wiper in-
termittent dial position.

WW-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011379504

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER
WIPER : CONSULT Function (BCM - WIPER)

INFOID:0000000011379505

DATA MONITOR

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

Exterior lamp

HEADLAMP

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×
