WT-52

< SYMPTOM DIAGNOSIS >

TPMS

SYMPTOM DIAGNOSIS

TPMS

Symptom Table

INFOID:0000000011280533

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

Low tire pres-
sure warning
lamp

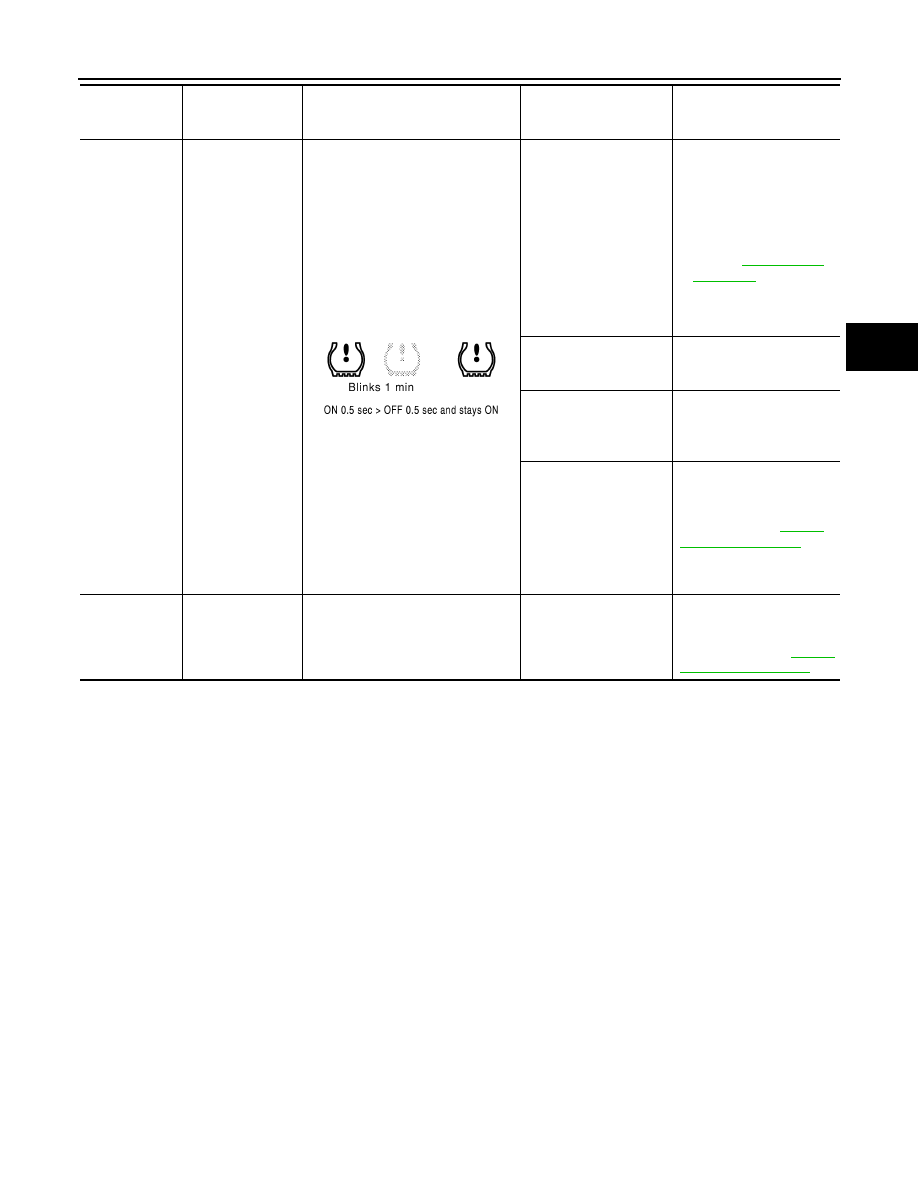

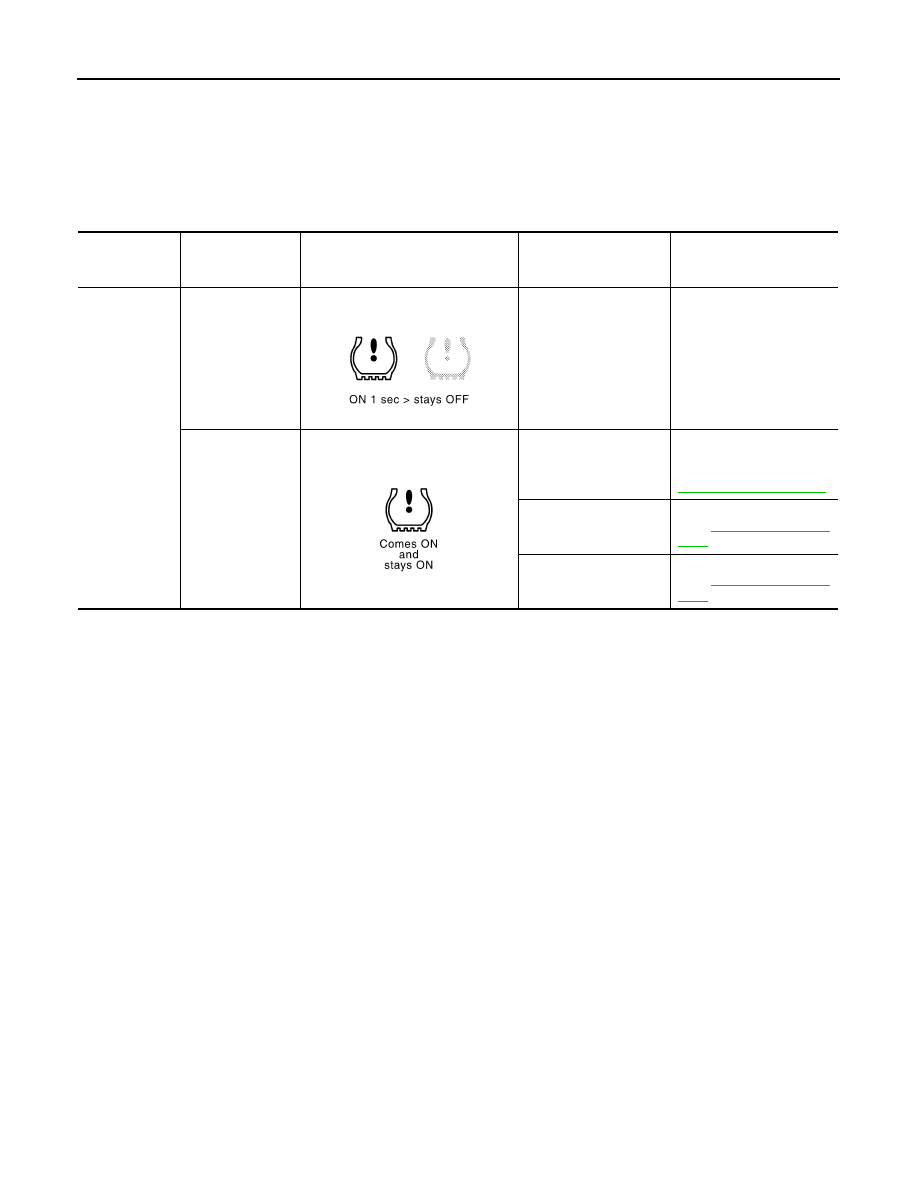

The low tire pres-
sure warning lamp
illuminates for 1
second, then turns
OFF.

Wake-up operation for all
tire pressure sensors at
wheels is completed.

No system malfunctions

The low tire pres-
sure warning lamp
turns ON and stays
illuminated.

Low tire pressure

Check the tire pressure for
all wheels and adjust to the
specified value. Refer to

WT-73, "Tire Air Pressure"

Tire pressure monitoring
system configuration not
performed.

Perform configuration. Re-
fer to

WT-29, "Work Proce-

dure"

Tire pressure sensor ID
registration not per-
formed.

Perform ID registration. Re-
fer to

WT-26, "Work Proce-

dure"

SEIA0592E

SEIA0598E

TPMS

WT-53

< SYMPTOM DIAGNOSIS >

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
repeats blinking at
0.5-second inter-
vals for 1 minute,
and then stays illu-
minated.

The BCM cannot detect
tire pressure data signal.

• Check visually that the

tire pressure sensors are
installed. If necessary, re-
place/install the tire pres-
sure sensor(s) and
perform tire pressure
sensor ID registration.
Refer to

WT-26, "Work

Procedure"

• Remove the interference

radio wave (e.g. battery
charger of smart phone).

The combination meter
fuse is open or removed
(or pulled out).

Check and install the com-
bination meter fuse. If nec-
essary, replace the fuse.

The BCM harness con-
nector is removed.

Check the connection con-
ditions of the BCM harness
connector, and repair if nec-
essary.

Tire Pressure Monitoring
System (TPMS) mal-
function.
(except tire pressure
monitoring system con-
figuration and/or tire
pressure sensor ID reg-
istration non-performed)

Perform CONSULT self-di-
agnosis. Refer to

WT-13,

"CONSULT Function"

Hazard warning
lamp

The hazard warn-
ing lamp does not
blink twice when
performing ID reg-
istration operation.

—

ID registration is not
completed.

Perform “ID REGISTRA-
TION CANNOT BE COM-
PLETED” diagnosis
procedure. Refer to

WT-59,

"Diagnosis Procedure"

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

SEIA0788E

WT-54

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000011378272

The low tire pressure warning lamp does not turn ON when the ignition switch is turned ON.

NOTE:

The low tire pressure warning lamp turn ON for approximately 1 second and then turns OFF when the ignition

switch is turned ON. This is to check that no abnormal condition is present in the tire pressure monitoring sys-

tem.

The combination meter may be malfunctioning or the tire pressure monitoring system may be malfunctioning if

the low tire pressure warning lamp does not turn ON when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000011378273

NOTE:

The Signal Tech II Tool [– (J-50190)] can be used to perform the following functions. Refer to the Signal Tech

II User Guide for additional information.

• Activate and display TPMS sensor IDs

• Display tire pressure reported by the TPMS sensor

• Read TPMS DTCs

• Register TPMS sensor IDs

CHECK LOW TIRE PRESSURE WARNING LAMP SIGNAL

With CONSULT

1. Turn the ignition switch ON.

CAUTION:

Never start the engine.

2. Select “Active Test” in “AIR PRESSURE MONITOR”.

3. Touch “WARNING LAMP” to turn ON the low tire pressure warning lamp.
When “Active Test” is performed, does the low tire pressure warning lamp in the combination meter turn ON?

YES

>> GO TO 2.

>> GO TO 3.

CHECK LOW TIRE PRESSURE WARNING LAMP OPERATION

Check that the low tire pressure warning lamp is turned OFF after turns ON for approximately 1 second, when

the ignition switch is turned ON.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

>> Replace the BCM. Refer to

BCS-75, "Removal and Installation"

(with Intelligent Key system) or
