WT-16

< ECU DIAGNOSIS INFORMATION >

TIRE PRESSURE MONITORING SYSTEM

DTC Index

INFOID:0000000011378237

3

C1735 IGNITION SIGNAL

4

• U1000 CAN COMM CIRCUIT
• U1010 CONTROL UNIT (CAN)

5

C1729 VHCL SPEED SIG ERR

6

• C1765 WHEEL TOP DATA FL
• C1766 WHEEL TOP DATA FR
• C1767 WHEEL TOP DATA RL
• C1768 WHEEL TOP DATA RR

7

• C1716 [PRESSDATA ERR] FL
• C1717 [PRESSDATA ERR] FR
• C1718 [PRESSDATA ERR] RR
• C1719 [PRESSDATA ERR] RL

8

• C1708 [NO DATA] FL
• C1709 [NO DATA] FR
• C1710 [NO DATA] RR
• C1711 [NO DATA] RL

9

• C1704 LOW PRESSURE FL
• C1705 LOW PRESSURE FR
• C1706 LOW PRESSURE RR
• C1707 LOW PRESSURE RL

10

• C1730 FLAT TIRE FL
• C1731 FLAT TIRE FR
• C1732 FLAT TIRE RR
• C1733 FLAT TIRE RL

11

• C1770 G SENSOR FL
• C1771 G SENSOR FR
• C1772 G SENSOR RL
• C1773 G SENSOR RR

Priority

Detected items (DTC)

DTC

Items (CONSULT screen terms)

Low tire pressure warning

lamp

Reference

C1704

LOW PRESSURE FL

ON

WT-31, "DTC Logic"

C1705

LOW PRESSURE FR

C1706

LOW PRESSURE RR

C1707

LOW PRESSURE RL

C1708

[NO DATA] FL

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-33, "DTC Logic"

C1709

[NO DATA] FR

C1710

[NO DATA] RR

C1711

[NO DATA] RL

C1716

[PRESSDATA ERR] FL

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-36, "DTC Logic"

C1717

[PRESSDATA ERR] FR

C1718

[PRESSDATA ERR] RR

C1719

[PRESSDATA ERR] RL

C1729

VHCL SPEED SIG ERR

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-38, "DTC Logic"

TIRE PRESSURE MONITORING SYSTEM

WT-17

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NOTE:

If some DTCs are displayed at the same time, refer to

WT-15, "DTC Inspection Priority Chart"

.

C1730

FLAT TIRE FL

ON

WT-39, "DTC Logic"

C1731

FLAT TIRE FR

C1732

FLAT TIRE RR

C1733

FLAT TIRE RL

C1734

CONTROL UNIT

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-41, "DTC Logic"

C1735

IGNITION SIGNAL

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-43, "DTC Logic"

C1765

WHEEL TOP DATA FL

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-44, "DTC Logic"

C1766

WHEEL TOP DATA FR

C1767

WHEEL TOP DATA RL

C1768

WHEEL TOP DATA RR

C1769

CONFIG SETTING

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-45, "DTC Logic"

C1770

G SENSOR FL

OFF

WT-46, "DTC Logic"

C1771

G SENSOR FR

C1772

G SENSOR RL

C1773

G SENSOR RR

U1000

CAN COMM CIRCUIT

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-47, "Description"

U1010

CONTROL UNIT (CAN)

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-48, "DTC Logic"

DTC

Items (CONSULT screen terms)

Low tire pressure warning

lamp

Reference

WT-18

< ECU DIAGNOSIS INFORMATION >

BCM

BCM

List of ECU Reference

INFOID:0000000011280496

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"

BCS-107, "Fail Safe"

BCS-107, "DTC Inspection Priority Chart"

BCS-108, "DTC Index"

TIRE PRESSURE MONITORING SYSTEM

WT-19

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

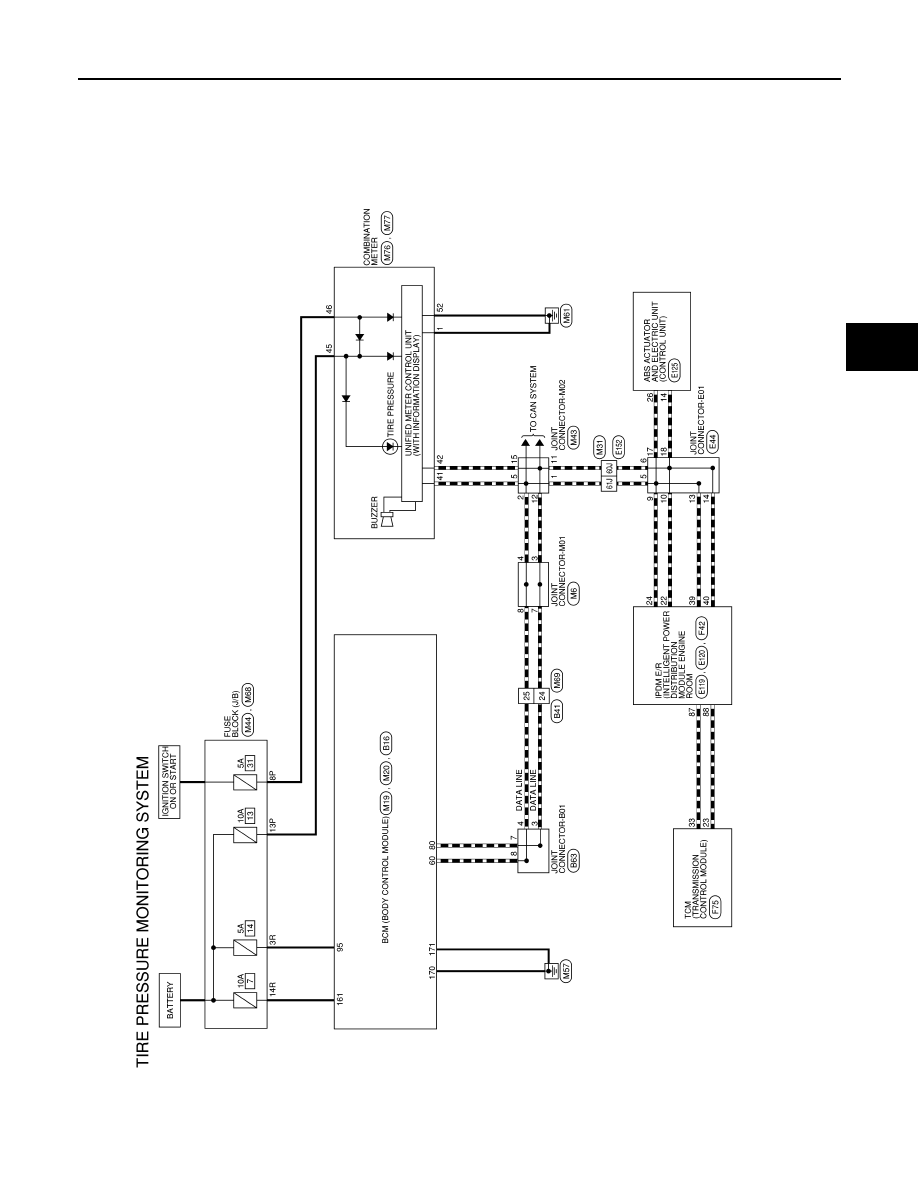

WIRING DIAGRAM

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

INFOID:0000000011280497

AAEWA0070GB
