VTL-6

< SYSTEM DESCRIPTION >

VENTILATION SYSTEM

SYSTEM DESCRIPTION

VENTILATION SYSTEM

System Description

INFOID:0000000011280000

OUTLINE

Automatic A/C

The ventilation system is controlled by the A/C switch assembly. For details of the automatic air conditioner

system, refer to

HAC-10, "System Description"

.

Manual A/C

The ventilation system is controlled by the front air control. For details of the manual air conditioner system,

refer to

HAC-118, "System Description"

.

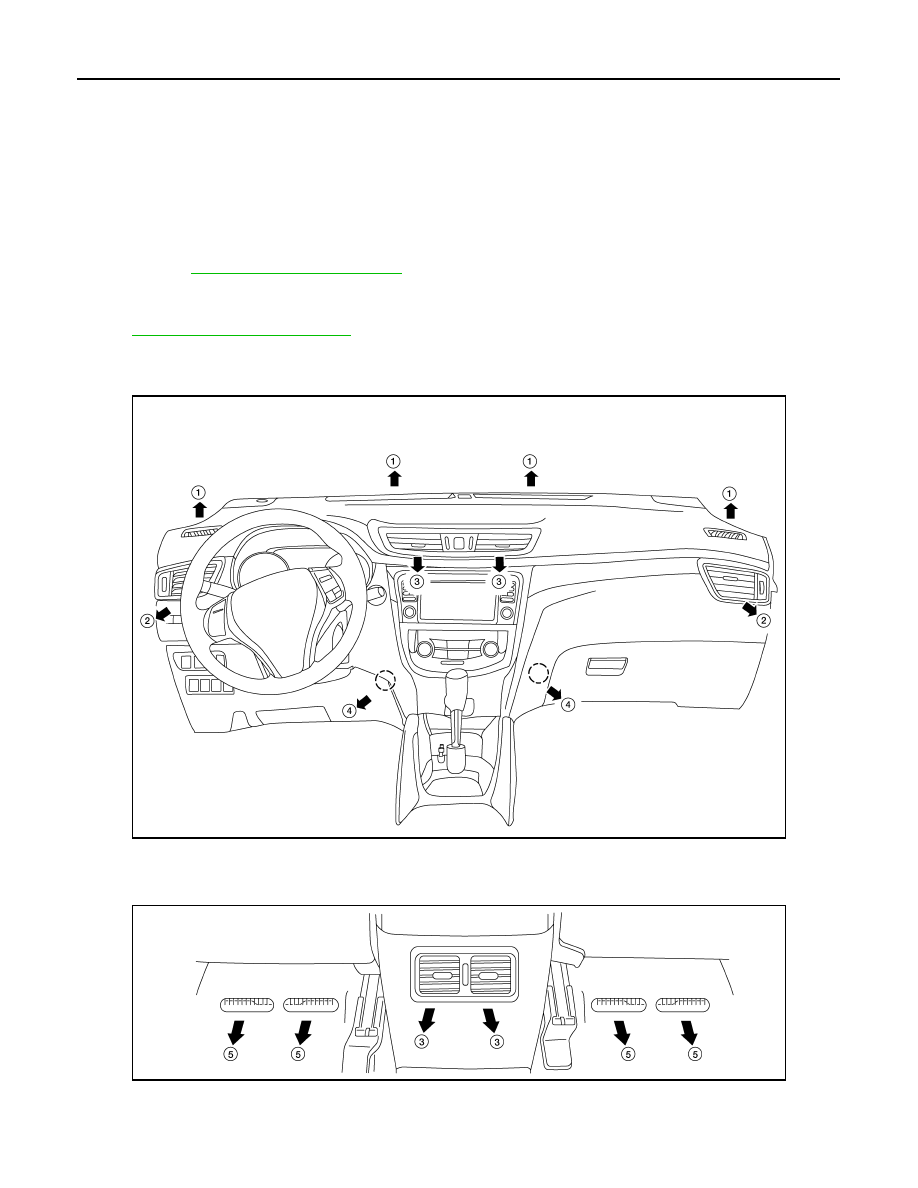

AIR FLOW

Front

Rear

ALIIA0875ZZ

AWIIA1778ZZ

VENTILATION SYSTEM

VTL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

• *1: Air flow is also supplied to front foot until passenger room temperature stabilizes when temperature set-

ting is other than 18

°C (60°F). At that time, air flowing is the same as 18°C (60°F) setting.

• *2: During automatic defogging control.

Discharge air flow

Mode posi-

tion

Condition

Air outlet / distribution

DEF

(1)

VENT

FOOT

Side (2) Center (3)

Front (4)

Center (5)

Upper Vent:
ON

Temperature con-
trol switch

18

°C (60°F)

—

×

×

—

—

Other than 18

°C

(60

°F)

*1

—

×

×

—

—

—

—

×

×

×

×

—

—

—

—

×

×

—

×

—

—

×

×

—

×

—

—

—

—

*2

—

×

—

—

—

—

VTL-8

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

REMOVAL AND INSTALLATION

DUCTS AND GRILLES

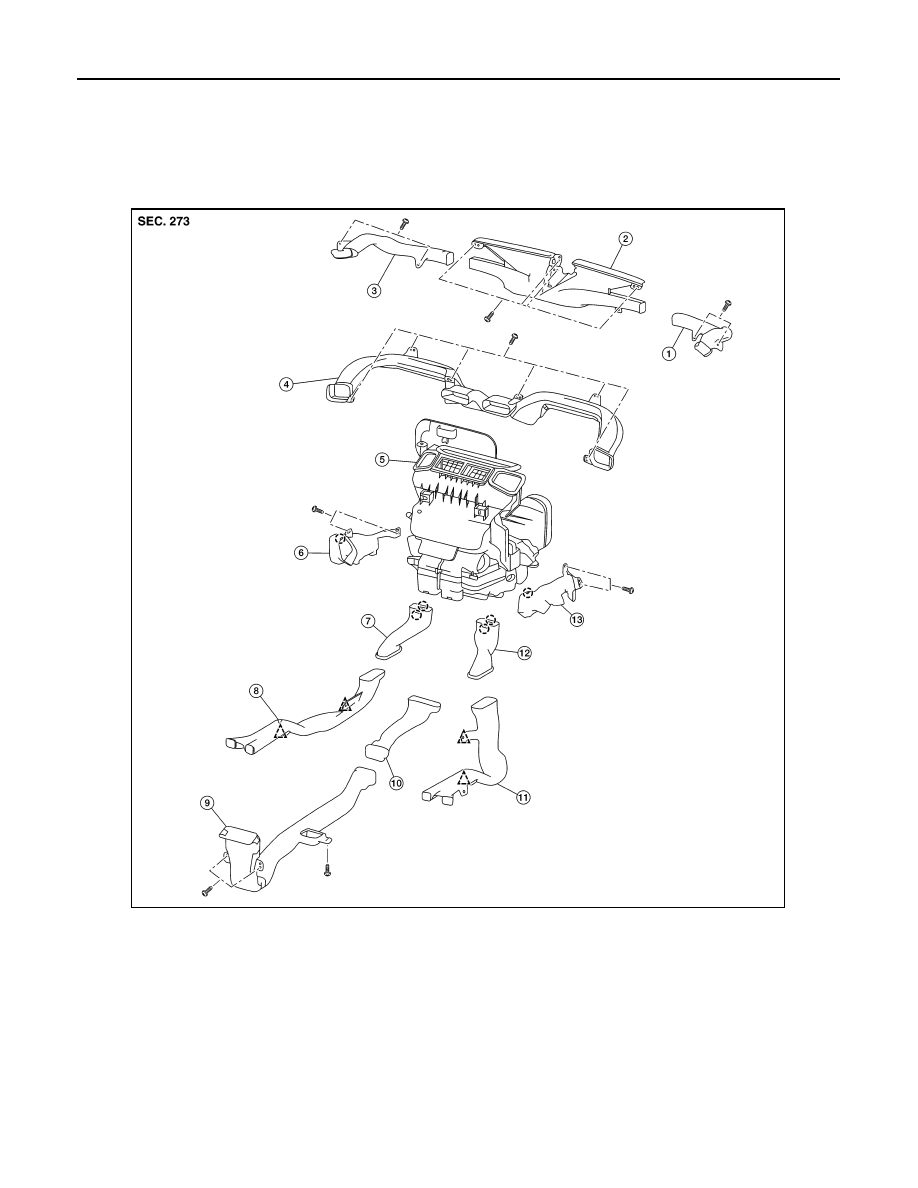

Exploded View

INFOID:0000000011280001

DEFROSTER NOZZLE
DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000011280002

REMOVAL

1.

Side defroster duct (RH)

2.

Defroster nozzle

3.

Side defroster duct (LH)

4.

Center ventilator duct

5.

Heating and cooling unit assembly

6.

Front foot duct (LH)

7.

Front floor connecting duct (LH)

8.

Front floor duct (LH)

9.

Rear center ventilator duct

10. Adaptor duct

11. Front floor duct (RH)

12. Front floor connecting duct (RH)

13. Front foot duct (RH)

AWIIA1792ZZ

DUCTS AND GRILLES

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

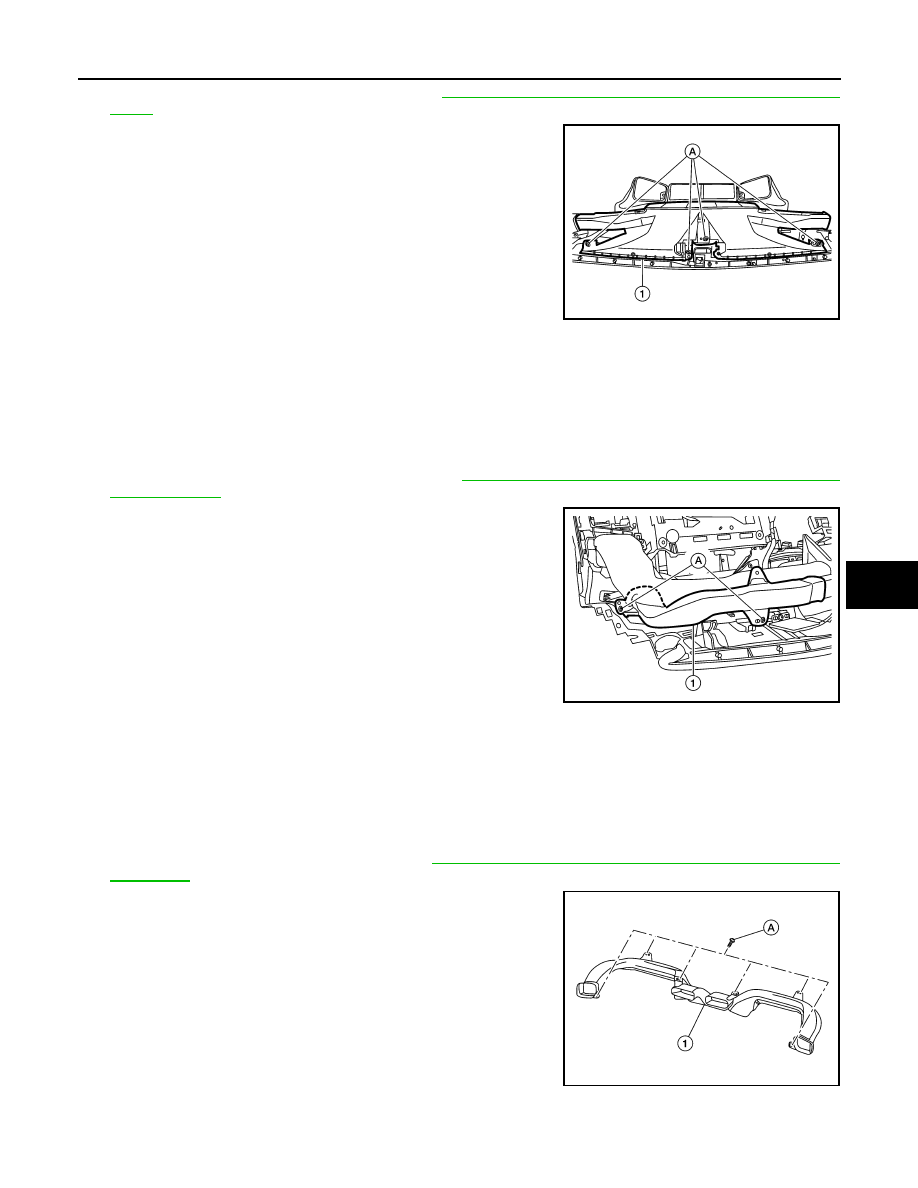

1. Remove side defroster ducts (LH/RH). Refer to

VTL-9, "SIDE DEFROSTER DUCT : Removal and Instal-

lation"

.

2. Remove screws (A) and defroster nozzle (1).

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER DUCT
SIDE DEFROSTER DUCT : Removal and Installation

INFOID:0000000011280003

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal

and Installation"

.

2. Remove the screws (A) and the side defroster duct (1).

NOTE:

LH side shown; RH similar.

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000011280004

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and

Installation"

.

2. Remove screws (A) and center ventilator duct (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0953ZZ

ALIIA0954ZZ

ALIIA0955ZZ
