TM-196

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CVT SHIFT SELECTOR

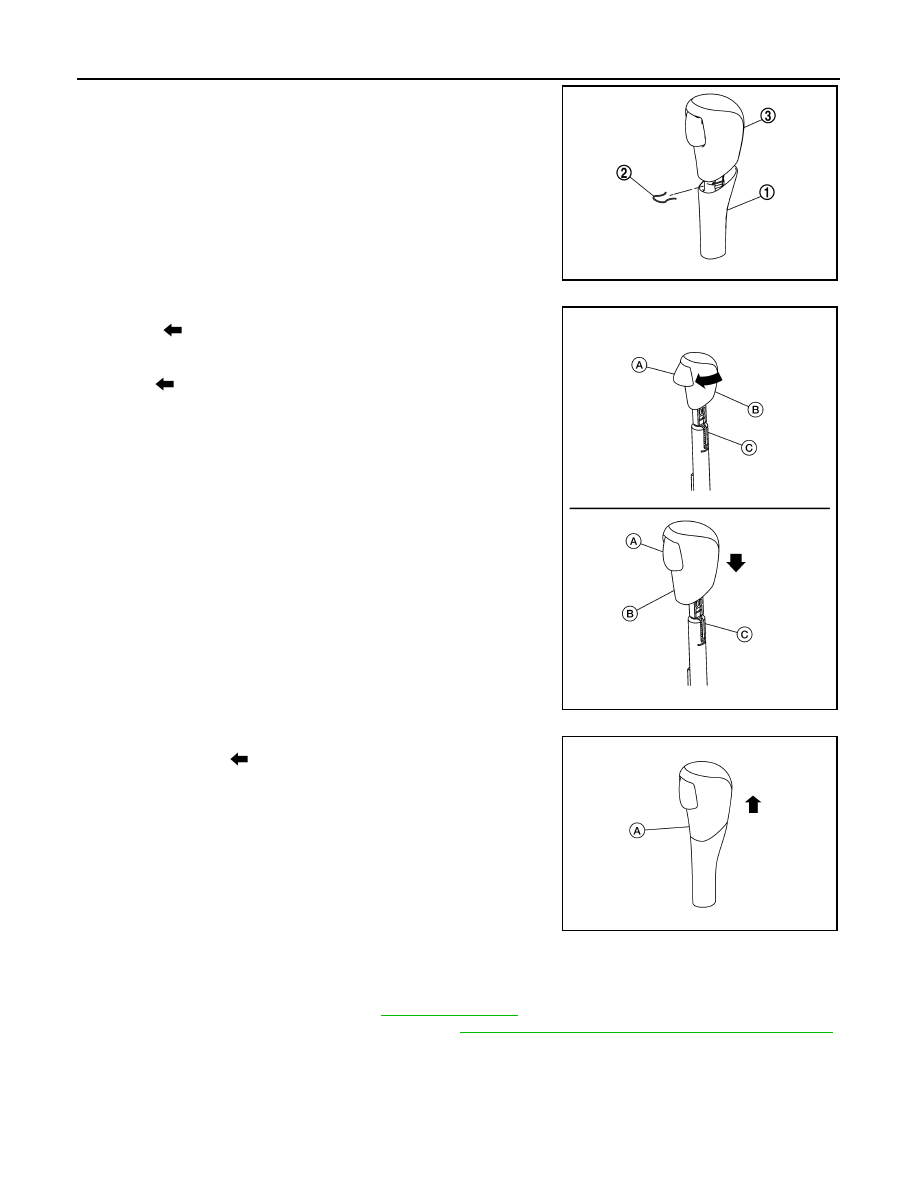

1. Install the lock pin (2) onto the shift selector handle (3).

2. Install the shift selector handle cover (1) onto the shift selector

handle.

3. Shift the selector lever to “N” position.

4. Pull and hold the shift selector handle button (A) in the direction

shown (

) using a suitable tool and insert shift selector handle

(B) into the shift selector assembly (C) until a slight touch is felt.

5. Release shift selector handle button (A) and continue to push

down (

) on shift selector handle (B) into shift selector assem-

bly (C) until you feel it click into place.

CAUTION:

Do not strike the selector lever handle to press it into place.

6. After installing shift selector handle (A), pull the handle in the

direction shown (

) to check that it does not become discon-

nected.

Inspection

INFOID:0000000011279413

INSPECTION AFTER INSTALLATION

• Check the shift selector position. Refer to

TM-91, "Inspection"

.

• Check that shift lock can be forcible release. Refer to

TM-29, "SHIFT LOCK SYSTEM : System Description"

.

JSDIA3654ZZ

AWDIA1253ZZ

AWDIA1254ZZ

CONTROL CABLE

TM-197

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

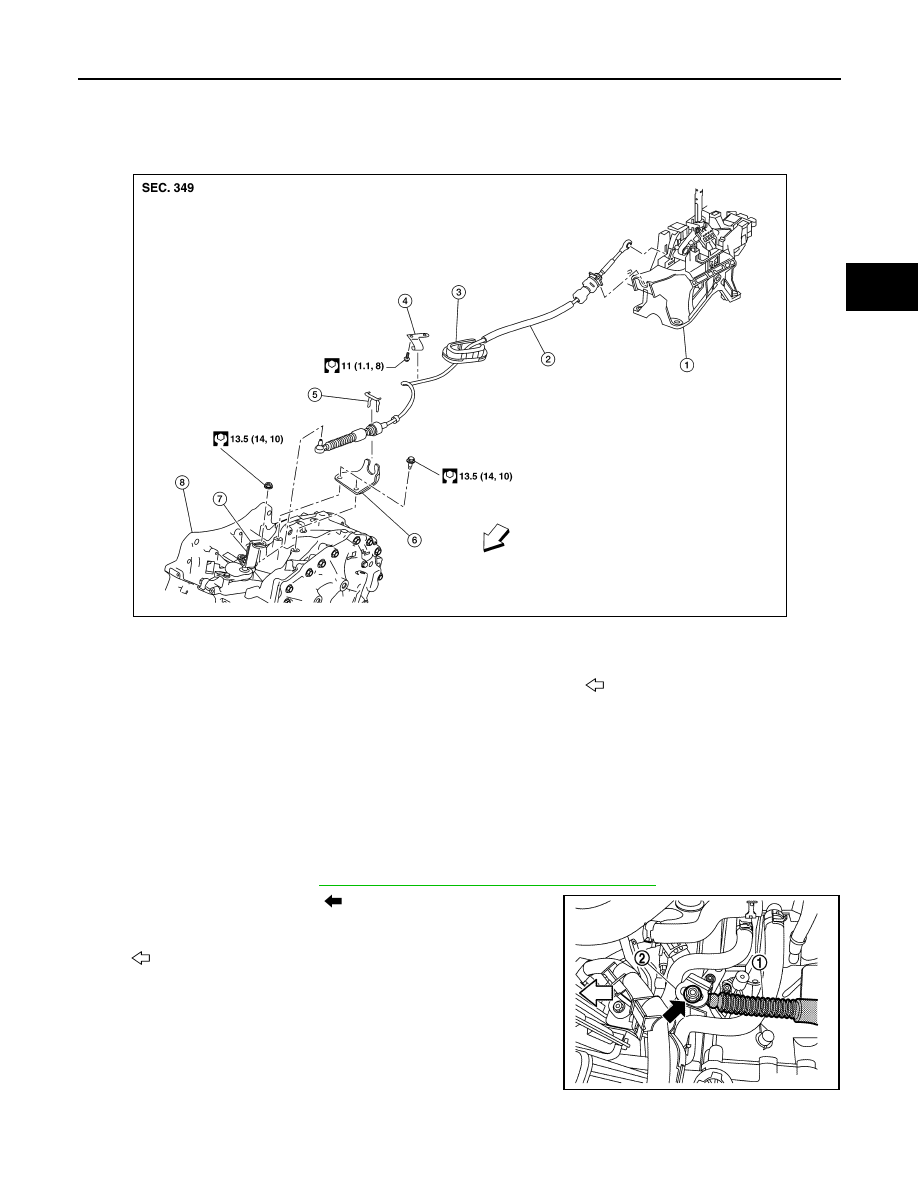

CONTROL CABLE

Exploded View

INFOID:0000000011279414

Removal and Installation

INFOID:0000000011279415

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

2. Remove battery tray. Refer to

PG-79, "Removal and Installation (Battery Tray)"

.

3. Remove the control cable nut (

) and remove the control cable

(1) from the manual lever (2).

1.

Shift selector

2.

Control cable

3.

Retainer grommet

4.

Bracket A

5.

Lock plate

6.

Bracket B

7.

Manual lever

8.

Transaxle assembly

Front

AWDIA1147ZZ

: Front

JSDIA4147ZZ

TM-198

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CONTROL CABLE

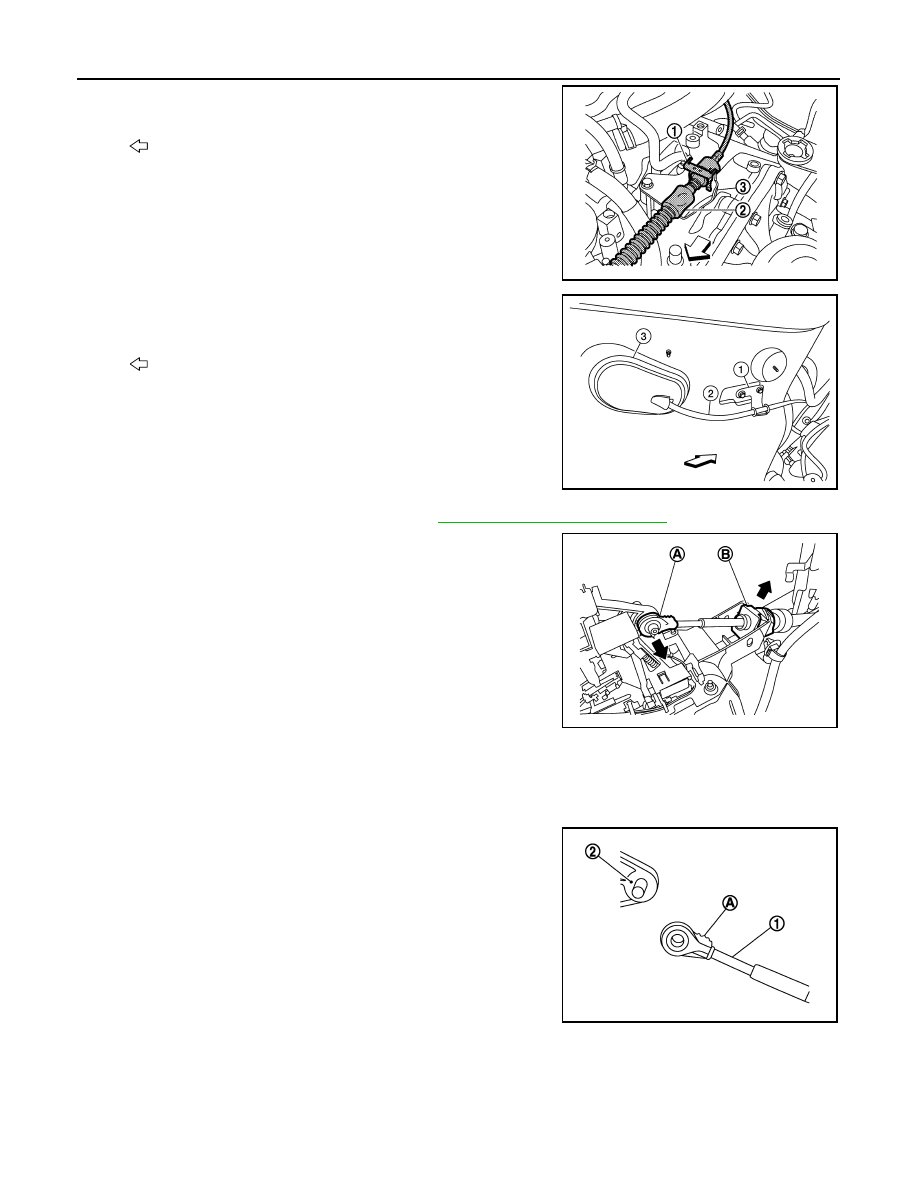

4. Remove the lock plate (1) and remove the control cable (2) from

bracket (3).

5. Remove the control cable (2) from bracket (1).
6. Remove retainer grommet (3) by pushing upward.

7. Remove the center console assembly. Refer to

IP-19, "Removal and Installation"

.

8. Disconnect the tip (A) of control cable and remove the socket

(B) from the shift selector assembly.

9. Remove the control cable.

INSTALLATION

Installation is in the reverse order of removal.

• Pay attention to the following when connecting the control cable to the shift selector assembly.

1. When connecting the control cable (1) to the shift selector

assembly (2), face the grooved surface of the rib (A) up and

insert the control cable until it stops.

NOTE:

Apply multi-purpose grease to control cable eye before installa-

tion.

: Front

JSDIA4148ZZ

: Front

ALDIA0520ZZ

JSDIA4145ZZ

JSDIA1624ZZ

CONTROL CABLE

TM-199

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

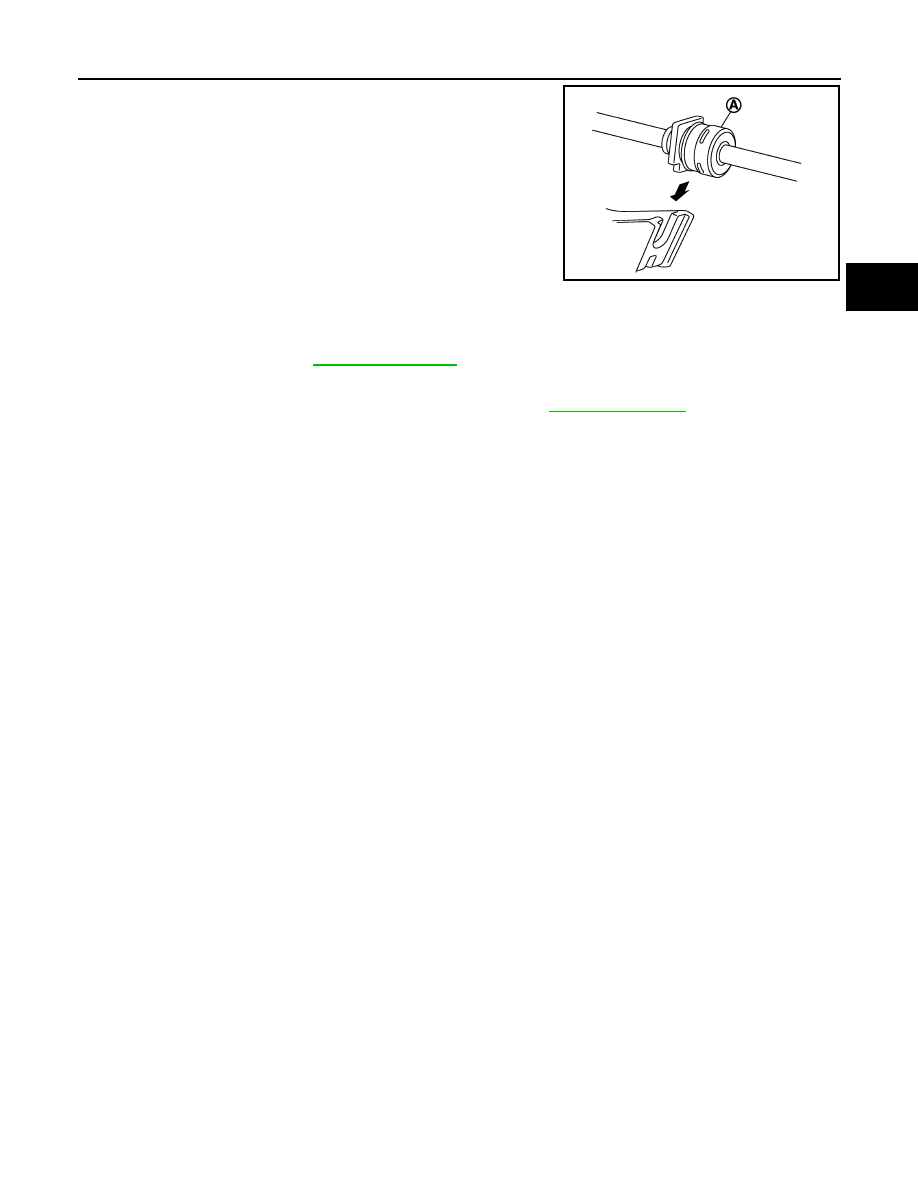

2. Install the socket (A) onto the shift selector assembly.

CAUTION:

• Place the socket onto the shift selector assembly, then

fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

Inspection and Adjustment

INFOID:0000000011279416

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT position. Refer to

TM-91, "Adjustment"

.

INSPECTION AFTER ADJUSTMENT

Check the CVT shift selector position after the adjustment. Refer to

TM-91, "Inspection"

.
