SRC-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011279536

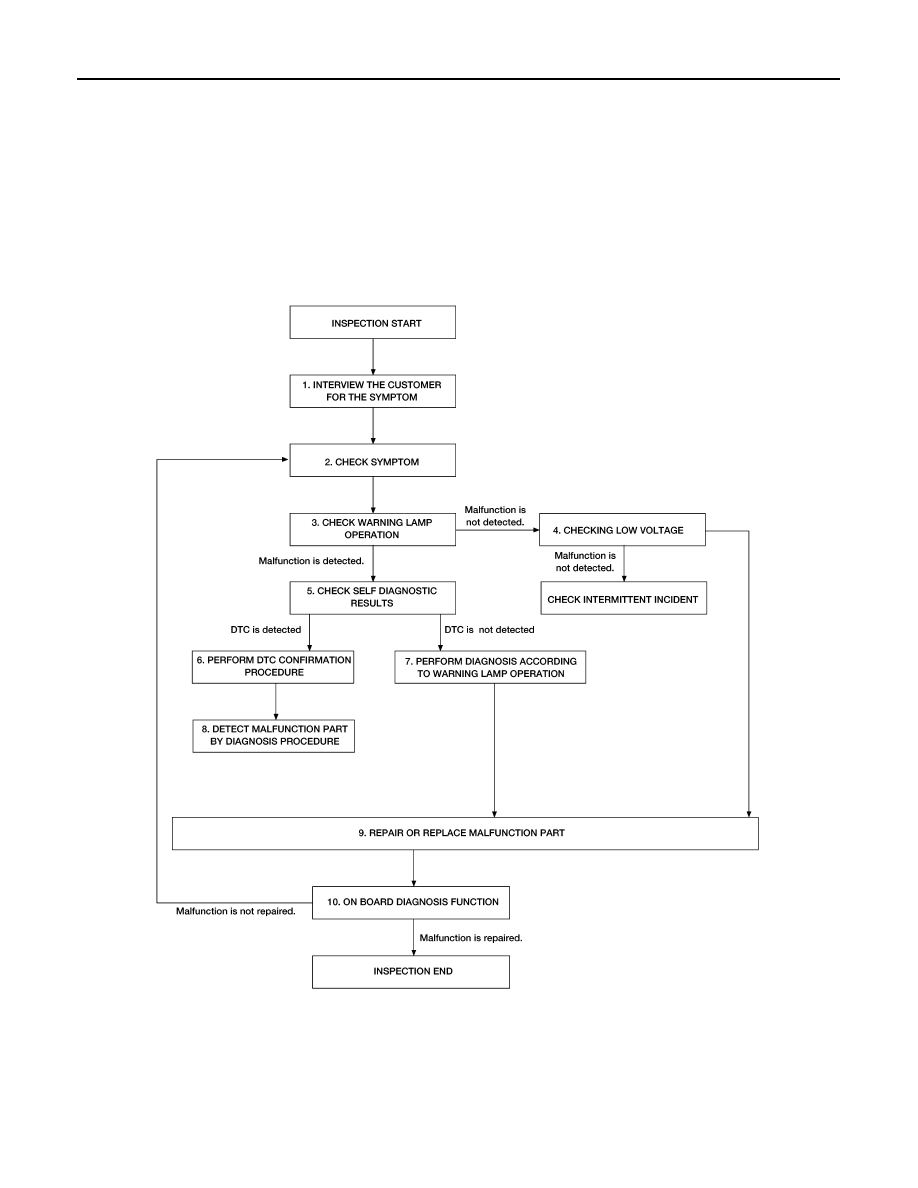

OVERALL SEQUENCE

DETAILED FLOW

AWHIA0555GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-39

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

1.

INTERVIEW THE CUSTOMER FOR THE SYMPTOM

Interview the customer for the symptom (the condition and the environment when the incident/malfunction

occurs).

>> GO TO 2.

2.

CHECK SYMPTOM

Check the symptom from the customer information.

>> GO TO 3.

3.

CHECK WARNING LAMP OPERATION

Check air bag warning lamp operation in the user mode.
Are any malfunction detected?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK LOW VOLTAGE

Check low voltage with CONSULT.
Are any malfunction detected?

YES

>> GO TO 9.

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

5.

CHECK SELF DIAGNOSTIC RESULT

Check “Self Diagnostic Result” with CONSULT or diagnosis mode.

If it is impossible to switch to diagnosis mode, follow the same procedure that DTC is not detected.

NOTE:

Perform the following procedure if DTC is detected.

• Record DTC (Print them out with CONSULT.)

• Erase “Self Diagnostic Result”.

• Study the relationship between the malfunction that DTC or air bag warning lamp indicates and the symptom

that the customer describes.

• Check related service bulletins for information.
Is DTC detected?

YES

>> GO TO 6.

NO

>> GO TO 7.

6.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the DTC.

>> GO TO 8.

7.

PERFORM DIAGNOSIS ACCORDING TO WARNING LAMP OPERATION

1. Check air bag warning lamp operation in the user mode.

2. Perform Diagnosis Procedure for the air bag warning lamp operation.

>> GO TO 9.

8.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the DTC.

>> GO TO 9.

9.

REPAIR OR REPLACE THE MALFUNCTION PART

Repair or replace the malfunctioning part.

SRC-40

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 10.

10.

ON BOARD DIAGNOSIS FUNCTION

Check self diagnostic result and air bag warning lamp operation in the user mode.
Is the malfunction repaired?

YES

>> Inspection End.

NO

>> GO TO 2.

INSPECTION AND ADJUSTMENT

SRC-41

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000011279537

• When replacing the occupant classification system control unit, perform “Zero point reset” procedure. Refer

to

SRC-41, "ZERO POINT RESET : Special Repair Requirement"

.

• When replacing the air bag diagnosis sensor unit configuration of the air bag diagnosis sensor unit is

required. Refer to

SRC-42, "CONFIGURATION : Work Procedure"

.

ZERO POINT RESET
ZERO POINT RESET : Description

INFOID:0000000011279538

Always perform “Zero point reset” using CONSULT when removing and installing the passenger seat or ser-

vicing the occupant classification system. If zero point reset is not performed the OCS may not operate nor-

mally, which may increase the risk of serious injury in a collision. “Zero point reset” is an initializing procedure

for occupant detection sensor that must be performed when replacing or removing and installing passenger

seat.

If “Zero point reset” is not performed, the initialization is incomplete and Occupant Detection System does not

operate normally.

NOTE:

• When “Zero point reset” is performed once after removal and installation of passenger seat, CONSULT dis-

plays “complete”.

• When reinstalling passenger seat after removal, the initial value for occupant detection sensor changes, and

Occupant Detection System does not operate normally.

• Always perform “Zero point reset” after performing the work as per the following:

- Reinstallation of passenger seat

- Installation of passenger seat that is “Zero point reset” complete

- Installation of passenger seat that is “Zero point reset” in complete

ZERO POINT RESET : Special Repair Requirement

INFOID:0000000011279539

1.

PERFORM ZERO POINT RESET

1. Perform “Zero point reset”.

NOTE:

When performing “Zero point reset”, be careful of the items described as per the following:

• Perform “Zero point reset” after installing passenger seat to the vehicle

• Do not put any objects on passenger seat

• Do not apply excessive vibration to the vehicle

• Do not touch the vehicle

• Do not tilt the vehicle

2. Select start on “Zero point reset function” screen from, “Work support” of CONSULT “OCCUPANT

DETECTION”.

3. “Zero point reset” starts.

>> GO TO 2.

2.

CONFIRMATION OF SETTING

1. Proceed to “Zero point reset function” screen from “Work support” of CONSULT “OCCUPANT DETEC-

TION”.

2. Check that “Complete” or “Incomplete” is displayed on “Zero point reset status”.

CAUTION:

• “Complete” is displayed on “Zero point reset current status” if the seat is reinstalled by seat removal

and installation, or “Zero point reset” is already performed.

• “Zero point reset current status” displays “Incomplete” if a new seat is installed. When turning key

switch ON without performing “Zero point reset”, front passenger air bag OFF indicator turns ON.

When “Zero point reset” is performed, front passenger air bag OFF indicator turns OFF.
